Передние двери TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

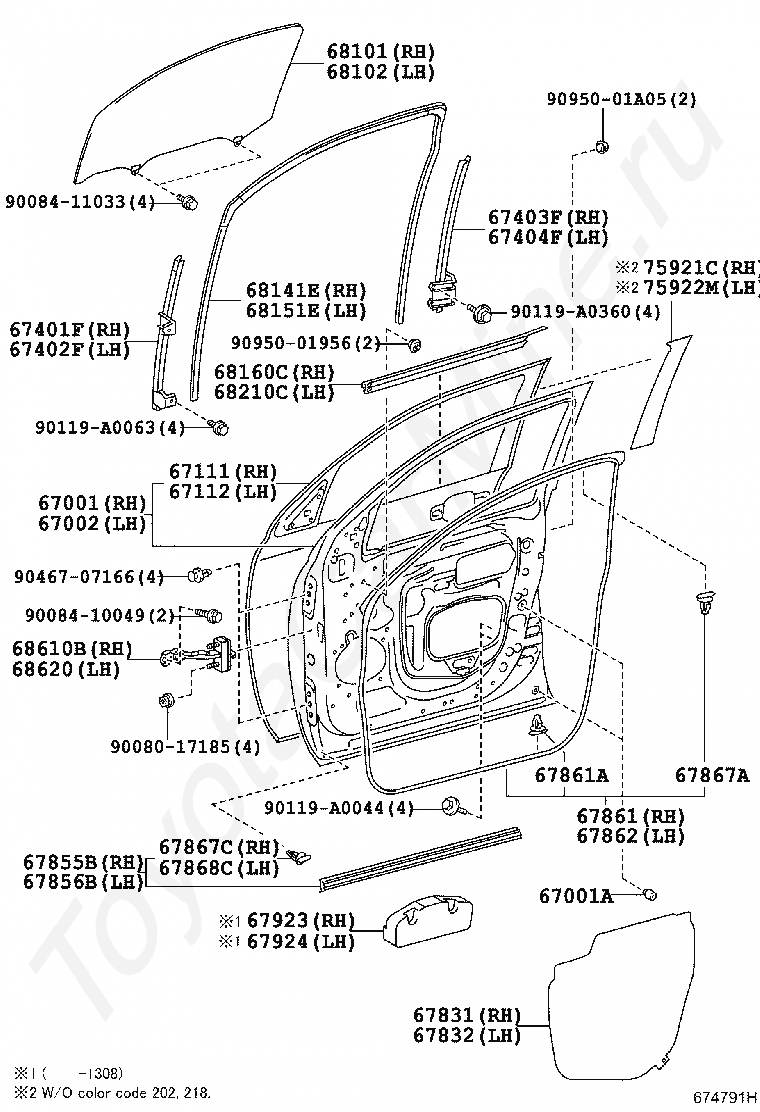

Код

Описание

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67111

PANEL, FRONT DOOR, OUTER RH

67112

PANEL, FRONT DOOR, OUTER LH

67401F

FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

67402F

FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

67403F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67855B

PROTECTOR, FRONT DOOR PANEL, RH

67856B

PROTECTOR, FRONT DOOR PANEL, LH

67861

WEATHERSTRIP, FRONT DOOR, RH

67861A

RETAINER(FOR FRONT DOOR WEATHERSTRIP)

67862

WEATHERSTRIP, FRONT DOOR, LH

67867A

CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

67923

CUSHION, FRONT DOOR STIFFENER, NO.1

67924

CUSHION, FRONT DOOR STIFFENER, NO.2

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141E

RUN, FRONT DOOR GLASS, RH

68151E

RUN, FRONT DOOR GLASS, LH

68160C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68210C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610B

CHECK ASSY, FRONT DOOR, RH

68620

CHECK ASSY, FRONT DOOR, LH

75921C

TAPE, BLACK OUT, NO.1 RH

75922M

TAPE, BLACK OUT, NO.1 LH

9008017185

Крепеж

9008410049

Крепеж

9008411033

Крепеж

90119A0044

Крепеж

90119A0063

Крепеж

90119A0360

Крепеж

9046707166

Крепеж

9095001956

Крепеж

9095001A05

Крепеж

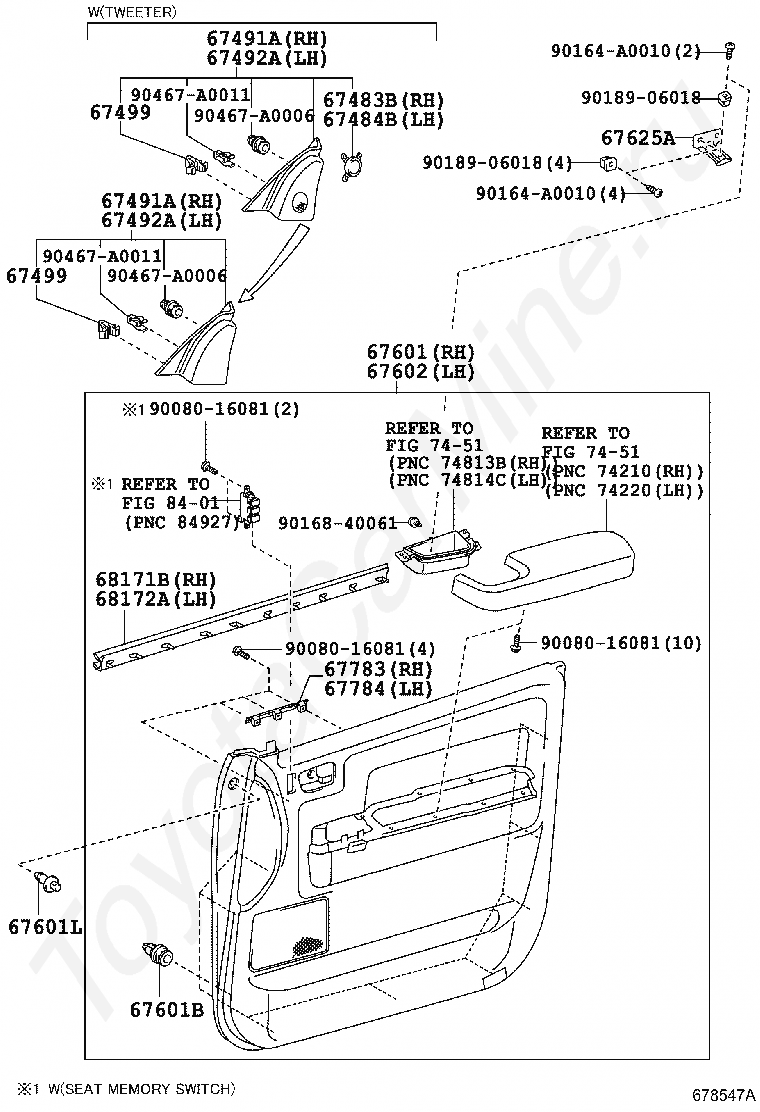

Код

Описание

67483B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, RH

67484B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67499

RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601L

CLIP(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67625A

BRACKET, FRONT DOOR TRIM, NO.1

67665C

REFLECTOR, FRONT DOOR TRIM, RH

67666B

REFLECTOR, FRONT DOOR TRIM, LH

67773B

POCKET, FRONT DOOR TRIM, NO.2 RH

67774B

POCKET, FRONT DOOR TRIM, NO.2 LH

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

7451

переход к группе запчастей

8401

переход к группе запчастей

9008016081

Крепеж

90164A0010

Крепеж

9016840061

Крепеж

9018906018

Крепеж

90467A0006

Крепеж

90467A0011

Крепеж

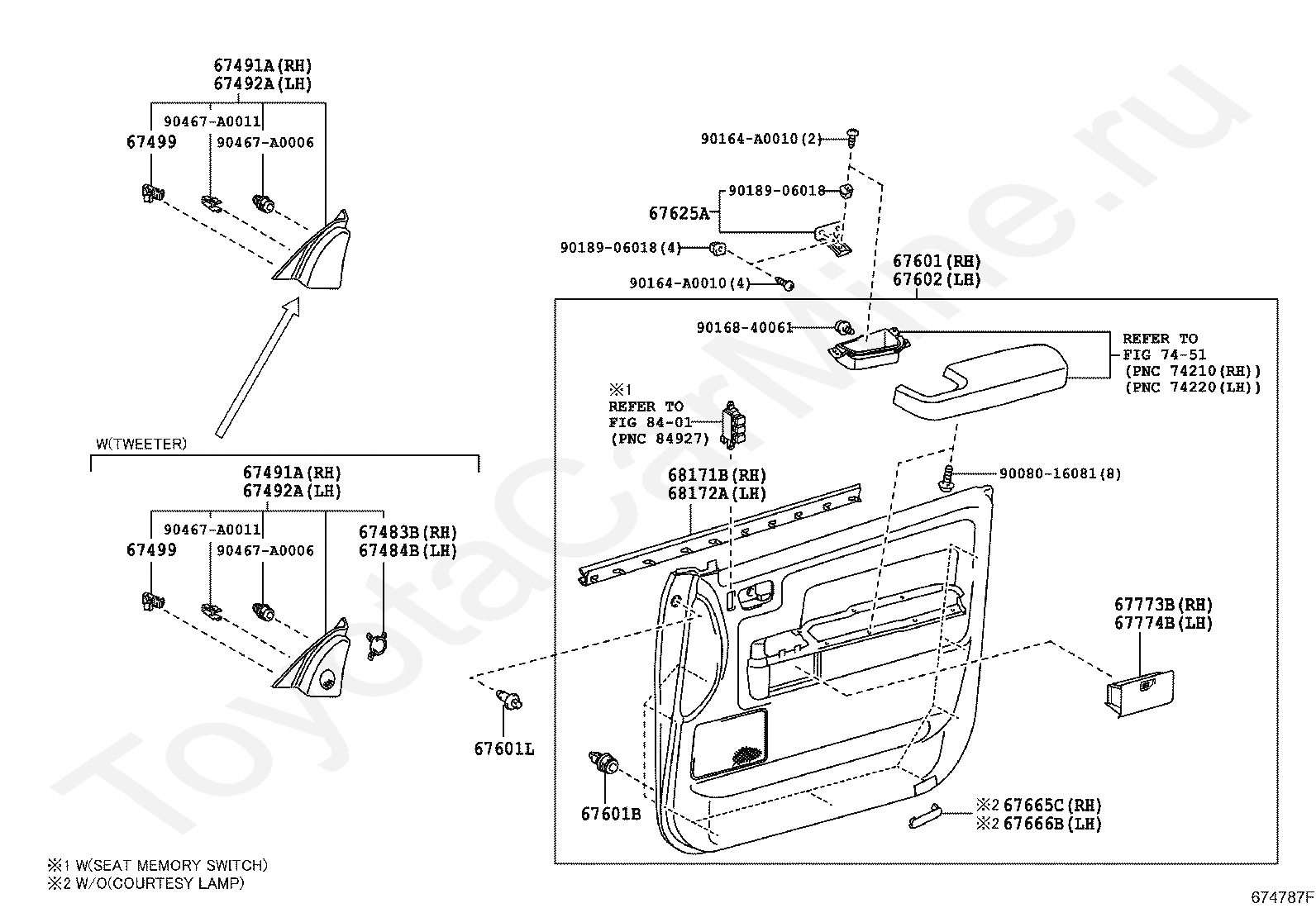

Код

Описание

67483B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, RH

67484B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67499

RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601L

CLIP(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67625A

BRACKET, FRONT DOOR TRIM, NO.1

67783

COVER, FRONT DOOR TRIM, CENTER RH

67784

COVER, FRONT DOOR TRIM, CENTER LH

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

7451

переход к группе запчастей

8401

переход к группе запчастей

9008016081

Крепеж

90164A0010

Крепеж

9016840061

Крепеж

9018906018

Крепеж

90467A0006

Крепеж

90467A0011

Крепеж

Код

Описание

67483B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, RH

67484B

RETAINER, FRONT DOOR FRONT LOWER FRAME SEAL, LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67499

RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601B

CLIP(FOR FRONT DOOR TRIM BOARD)

67601L

CLIP(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67625A

BRACKET, FRONT DOOR TRIM, NO.1

67783

COVER, FRONT DOOR TRIM, CENTER RH

67784

COVER, FRONT DOOR TRIM, CENTER LH

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

7451

переход к группе запчастей

8401

переход к группе запчастей

9008016081

Крепеж

90164A0010

Крепеж

9016840061

Крепеж

9018906018

Крепеж

90467A0006

Крепеж

90467A0011

Крепеж
