REAR BODY SIDE PANEL TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

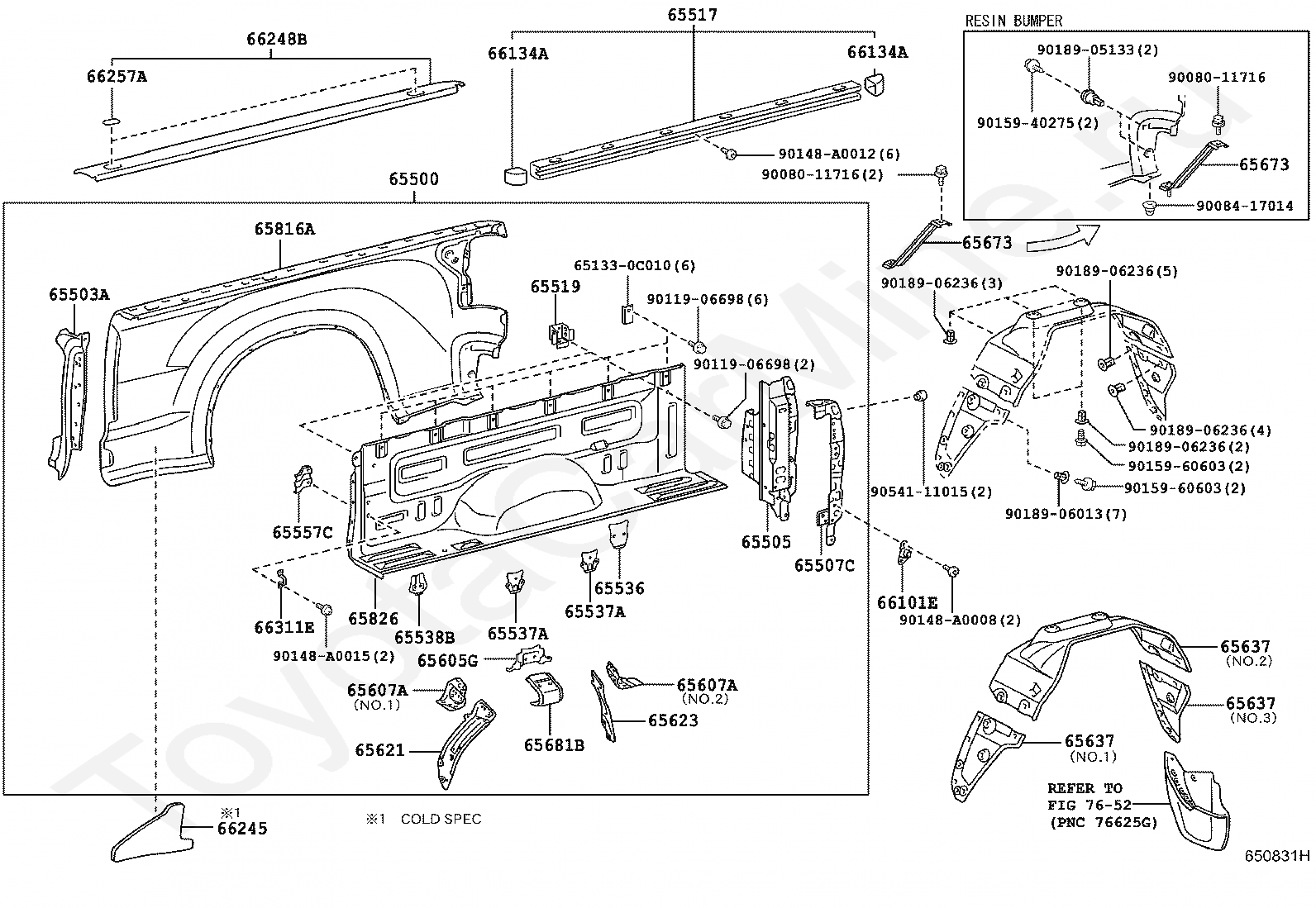

Код

Описание

651330C010

Крепеж

65500

PANEL ASSY, REAR BODY SIDE, RH

65503A

POST SUB-ASSY, SIDE PANEL FRONT END, RH

65505

POST SUB-ASSY, SIDE PANEL REAR END, RH

65507C

POST SUB-ASSY, SIDE PANEL REAR END, OUT RH

65517

RAIL, SIDE PANEL TOP, REAR RH

65519

BRACKET, TOP RAIL

65536

PATCH, SIDE PANEL REINFORCEMENT, NO.1

65537A

PATCH, SIDE PANEL REINFORCEMENT, RH

65538B

PATCH, SIDE PANEL REINFORCEMENT, NO.3

65557C

RETAINER, ROPE HOOK, NO.1

65605G

PANEL SUB-ASSY, WHEEL HOUSE, RH

65607A

SKIRT SUB-ASSY, SIDE PANEL, REAR RH

65621

SKIRT, SIDE PANEL, FRONT RH

65623

SKIRT, SIDE PANEL, RR RH

65637

LINER, REAR WHEEL HOUSE, RH

65673

BRACE, SIDE PANEL SKIRT, REAR

65681B

BRACKET, WHEEL HOUSE SEAL, SIDE, RH

65816A

PANEL, REAR BODY SIDE, RH

65826

PANEL, REAR BODY SIDE, INNER RH

66101E

HINGE SUB-ASSY, TAIL GATE MALE, RH

66134A

CAP, SIDE GATE SUPPORT

66245

PROTECTOR, REAR BODY, NO.3 RH

66248B

PROTECTOR, REAR BODY SIDE PANEL, RH

66257A

PLATE, REAR BODY PROTECTOR, RH

66311E

HOOK, ROPE

7652

переход к группе запчастей

9008011716

Крепеж

9008417014

Крепеж

9011906698

Крепеж

90148A0008

Крепеж

90148A0012

Крепеж

90148A0015

Крепеж

9015940275

Крепеж

9015960603

Крепеж

9018905133

Крепеж

9018906013

Крепеж

9018906236

Крепеж

9054111015

Крепеж

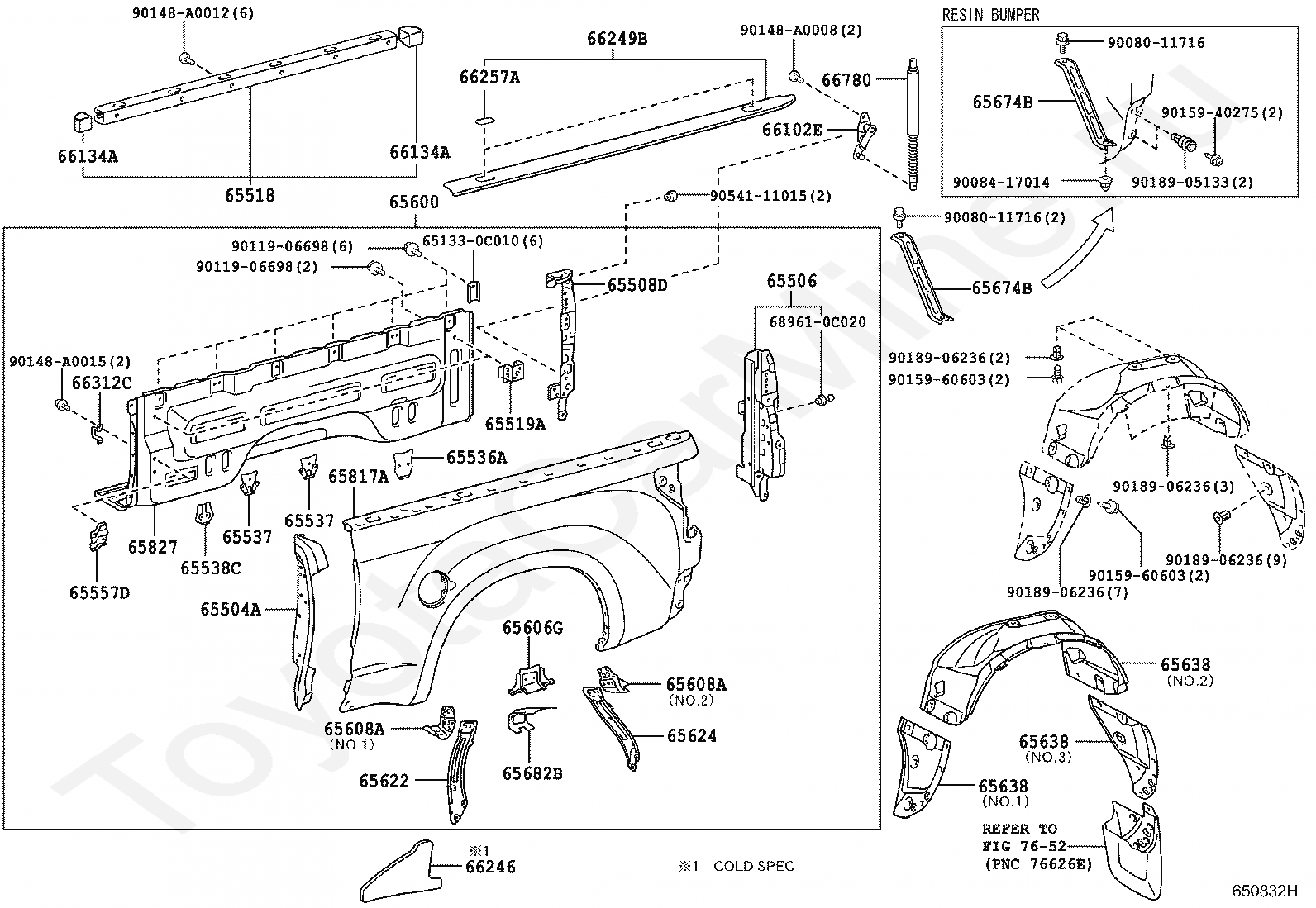

Код

Описание

651330C010

Крепеж

65504A

POST SUB-ASSY, SIDE PANEL FRONT END, LH

65506

POST SUB-ASSY, SIDE PANEL REAR END, LH

65508D

POST SUB-ASSY, SIDE PANEL REAR END, OUT LH

65518

RAIL, SIDE PANEL TOP, REAR LH

65519A

BRACKET, TOP RAIL

65536A

PATCH, SIDE PANEL REINFORCEMENT, NO.2

65537

PATCH, SIDE PANEL REINFORCEMENT, NO.2

65538C

PATCH, SIDE PANEL REINFORCEMENT, LH

65557D

RETAINER, ROPE HOOK, NO.2

65600

PANEL ASSY, REAR BODY SIDE, LH

65606G

PANEL SUB-ASSY, WHEEL HOUSE, LH

65608A

SKIRT SUB-ASSY, SIDE PANEL, REAR LH

65622

SKIRT, SIDE PANEL, FRONT LH

65624

SKIRT, SIDE PANEL, RR LH

65638

LINER, REAR WHEEL HOUSE, LH

65674B

BRACE, SIDE PANEL SKIRT, RR LH

65682B

BRACKET, WHEEL HOUSE SEAL, SIDE, LH

65817A

PANEL, REAR BODY SIDE, LH

65827

PANEL, REAR BODY SIDE, INNER LH

66102E

HINGE SUB-ASSY, TAIL GATE MALE, LH

66134A

CAP, SIDE GATE SUPPORT

66246

PROTECTOR, REAR BODY, NO.3 LH

66249B

PROTECTOR, REAR BODY SIDE PANEL, LH

66257A

PLATE, REAR BODY PROTECTOR, RH

66312C

HOOK, ROPE

66780

SUPPORT SUB-ASSY, SIDE GATE, LH

689610C020

Крепеж

7652

переход к группе запчастей

9008011716

Крепеж

9008417014

Крепеж

9011906698

Крепеж

90148A0008

Крепеж

90148A0012

Крепеж

90148A0015

Крепеж

9015940275

Крепеж

9015960603

Крепеж

9018905133

Крепеж

9018906236

Крепеж

9054111015

Крепеж

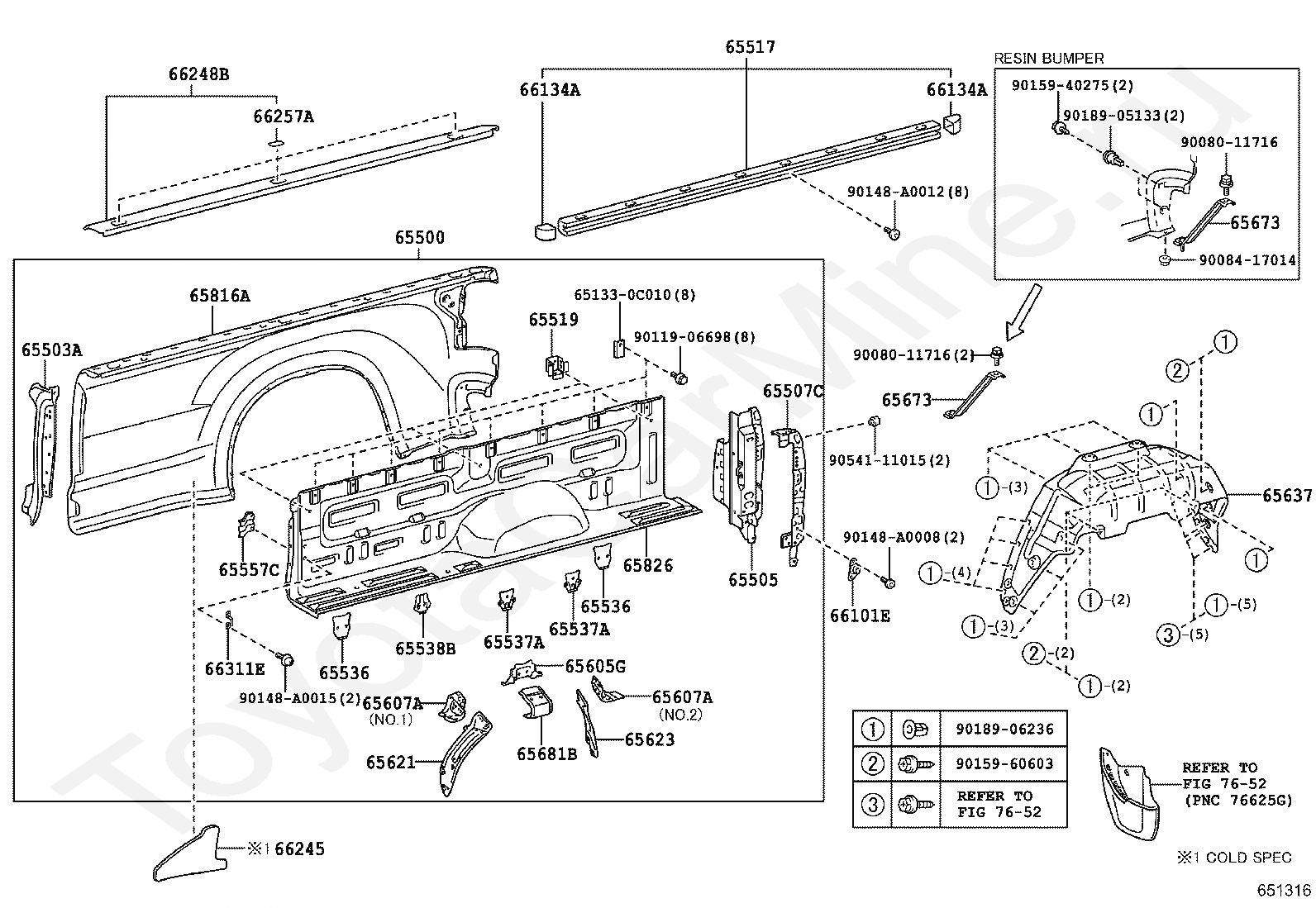

Код

Описание

651330C010

Крепеж

65500

PANEL ASSY, REAR BODY SIDE, RH

65503A

POST SUB-ASSY, SIDE PANEL FRONT END, RH

65505

POST SUB-ASSY, SIDE PANEL REAR END, RH

65507C

POST SUB-ASSY, SIDE PANEL REAR END, OUT RH

65517

RAIL, SIDE PANEL TOP, REAR RH

65519

BRACKET, TOP RAIL

65536

PATCH, SIDE PANEL REINFORCEMENT, NO.1

65537A

PATCH, SIDE PANEL REINFORCEMENT, RH

65538B

PATCH, SIDE PANEL REINFORCEMENT, NO.3

65557C

RETAINER, ROPE HOOK, NO.1

65605G

PANEL SUB-ASSY, WHEEL HOUSE, RH

65607A

SKIRT SUB-ASSY, SIDE PANEL, REAR RH

65621

SKIRT, SIDE PANEL, FRONT RH

65623

SKIRT, SIDE PANEL, RR RH

65637

LINER, REAR WHEEL HOUSE, RH

65673

BRACE, SIDE PANEL SKIRT, REAR

65681B

BRACKET, WHEEL HOUSE SEAL, SIDE, RH

65816A

PANEL, REAR BODY SIDE, RH

65826

PANEL, REAR BODY SIDE, INNER RH

66101E

HINGE SUB-ASSY, TAIL GATE MALE, RH

66134A

CAP, SIDE GATE SUPPORT

66245

PROTECTOR, REAR BODY, NO.3 RH

66248B

PROTECTOR, REAR BODY SIDE PANEL, RH

66257A

PLATE, REAR BODY PROTECTOR, RH

66311E

HOOK, ROPE

7652

переход к группе запчастей

9008011716

Крепеж

9008417014

Крепеж

9011906698

Крепеж

90148A0008

Крепеж

90148A0012

Крепеж

90148A0015

Крепеж

9015940275

Крепеж

9015960603

Крепеж

9018905133

Крепеж

9018906236

Крепеж

9054111015

Крепеж

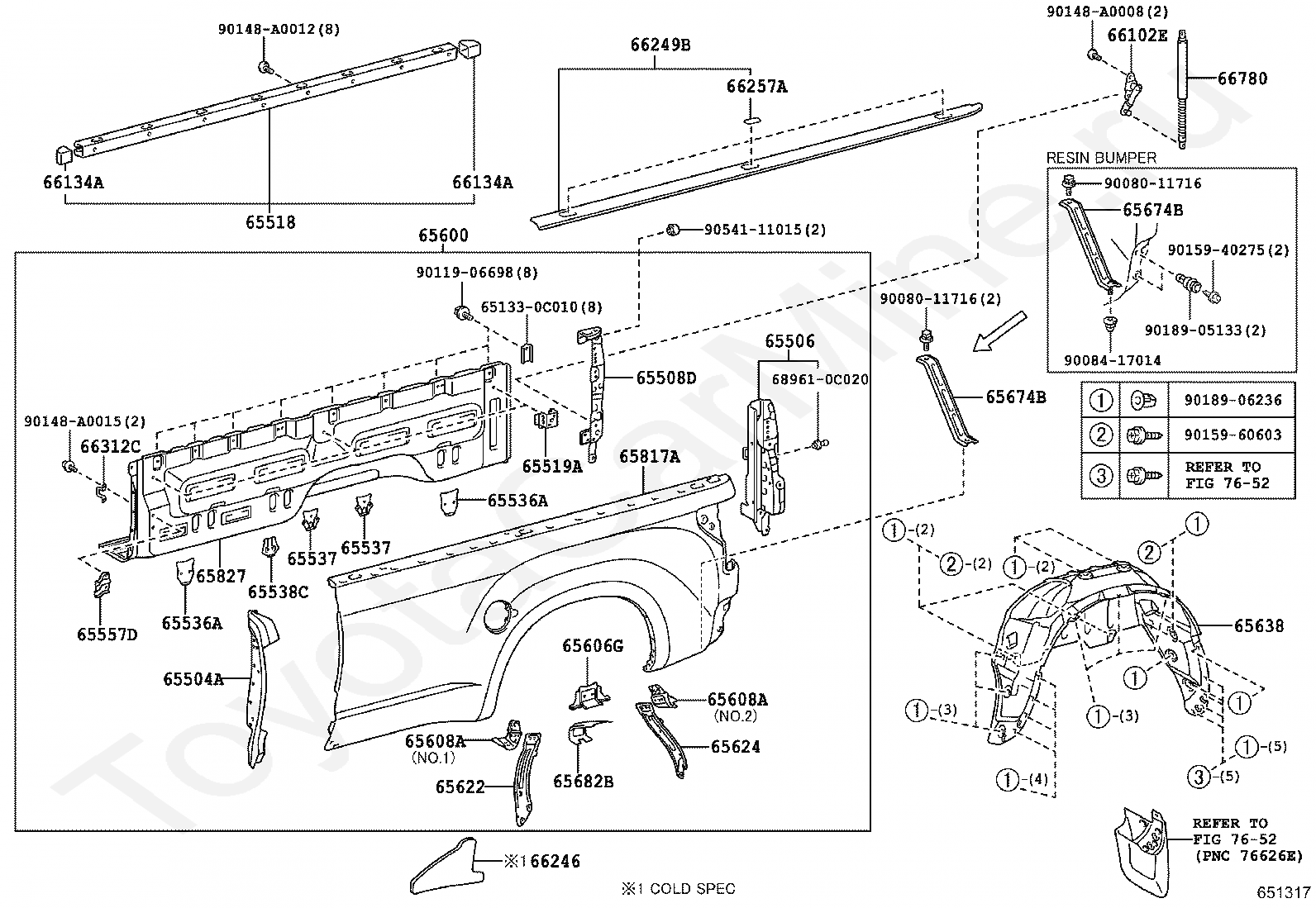

Код

Описание

651330C010

Крепеж

65504A

POST SUB-ASSY, SIDE PANEL FRONT END, LH

65506

POST SUB-ASSY, SIDE PANEL REAR END, LH

65508D

POST SUB-ASSY, SIDE PANEL REAR END, OUT LH

65518

RAIL, SIDE PANEL TOP, REAR LH

65519A

BRACKET, TOP RAIL

65536A

PATCH, SIDE PANEL REINFORCEMENT, NO.2

65537

PATCH, SIDE PANEL REINFORCEMENT, NO.2

65538C

PATCH, SIDE PANEL REINFORCEMENT, LH

65557D

RETAINER, ROPE HOOK, NO.2

65600

PANEL ASSY, REAR BODY SIDE, LH

65606G

PANEL SUB-ASSY, WHEEL HOUSE, LH

65608A

SKIRT SUB-ASSY, SIDE PANEL, REAR LH

65622

SKIRT, SIDE PANEL, FRONT LH

65624

SKIRT, SIDE PANEL, RR LH

65638

LINER, REAR WHEEL HOUSE, LH

65674B

BRACE, SIDE PANEL SKIRT, RR LH

65682B

BRACKET, WHEEL HOUSE SEAL, SIDE, LH

65817A

PANEL, REAR BODY SIDE, LH

65827

PANEL, REAR BODY SIDE, INNER LH

66102E

HINGE SUB-ASSY, TAIL GATE MALE, LH

66134A

CAP, SIDE GATE SUPPORT

66246

PROTECTOR, REAR BODY, NO.3 LH

66249B

PROTECTOR, REAR BODY SIDE PANEL, LH

66257A

PLATE, REAR BODY PROTECTOR, RH

66312C

HOOK, ROPE

66780

SUPPORT SUB-ASSY, SIDE GATE, LH

689610C020

Крепеж

7652

переход к группе запчастей

9008011716

Крепеж

9008417014

Крепеж

9011906698

Крепеж

90148A0008

Крепеж

90148A0012

Крепеж

90148A0015

Крепеж

9015940275

Крепеж

9015960603

Крепеж

9018905133

Крепеж

9018906236

Крепеж

9054111015

Крепеж
