Каталог
ЕвропаМодель
TOYOACEДвигатель
1,6 литраКузов
LOW DECK (STANDARD DECK)Фрейм
RY12Опции
правый руль STEEL-MADE DECK 1.5 TONNE

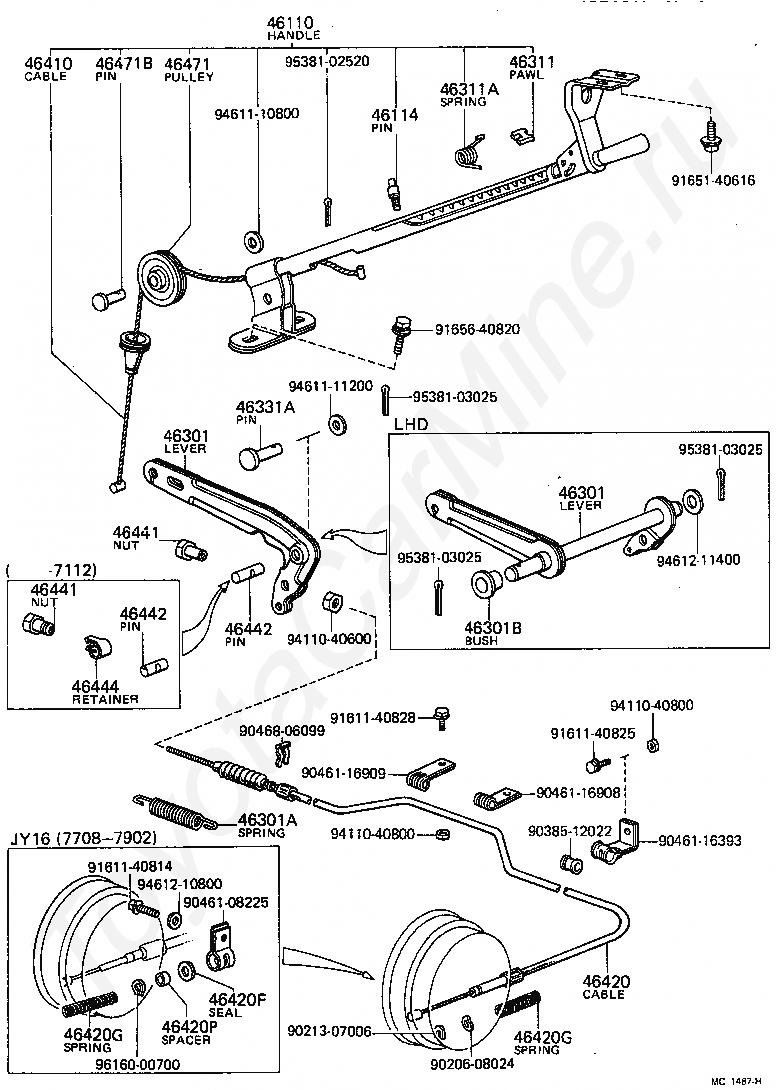

Код
Описание
46110
HANDLE ASSY, PARKING BRAKE CONTROL
46114
PIN, PARKING BRAKE PLUNGER
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301A
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301B
BUSH(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46331A
PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46441
NUT, WIRE ADJUSTING, NO.1
46442
PIN, WIRE PIVOT
46444
RETAINER, CABLE ADJUSTING
46471
PULLEY, WIRE
46471B
PIN, W/HOLE(FOR WIRE PULLEY SET)
9020608024
Крепеж
9021307006
Крепеж
9038512022
Крепеж
9046108225
Крепеж
9046116393
Крепеж
9046116908
Крепеж
9046116909
Крепеж
9046806099
Крепеж
9161140814
Крепеж
9161140825
Крепеж
9161140828
Крепеж
9165140616
Крепеж
9165640820
Крепеж
9411040600
Крепеж
9411040800
Крепеж
9461110800
Крепеж
9461111200
Крепеж
9461210800
Крепеж
9461211400
Крепеж
9538102520
Крепеж
9538103025
Крепеж
9616000700
Крепеж

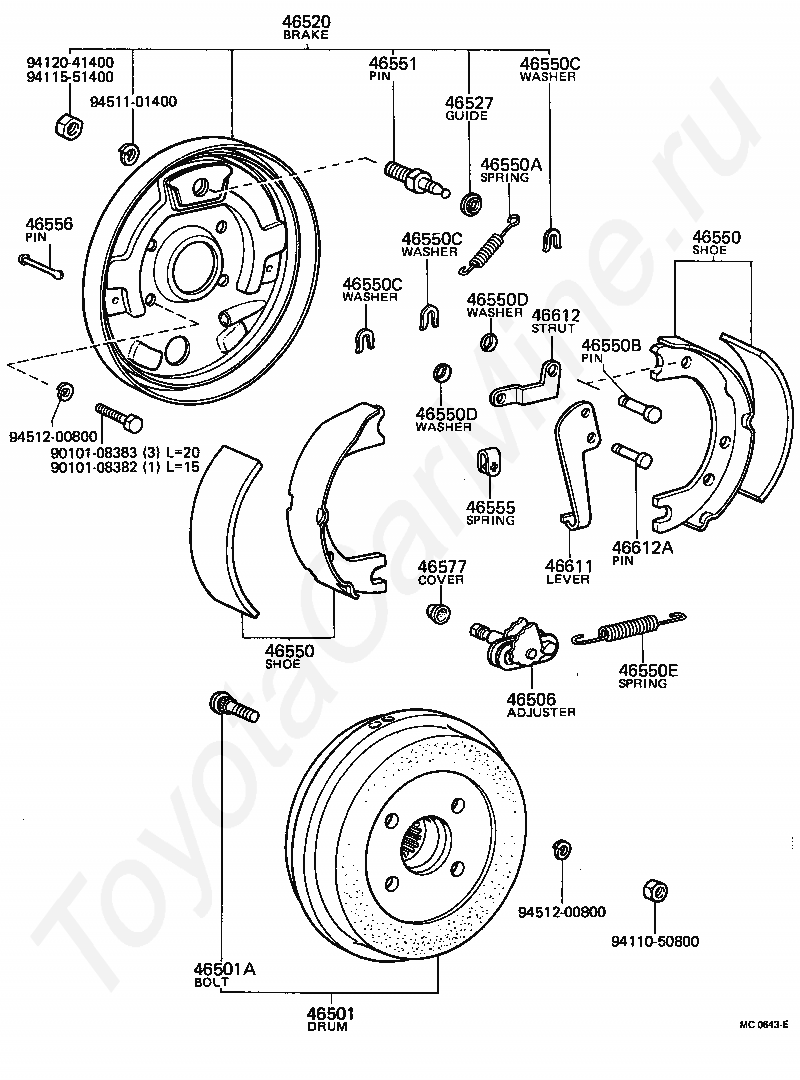

Код
Описание
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46506
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46520
PLATE SUB-ASSY, PARKING BRAKE
46527
GUIDE, SHOE(FOR PARKING BRAKE)
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550B
PIN(FOR PARKING BRAKE SHOE)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550D
WASHER, WAVE(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46551
PIN, ANCHOR(FOR PARKING BRAKE)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46577
COVER, ADJUSTING CAM HOLE
46611
LEVER, PARKING BRAKE SHOE, RH OR CENTER
46612
STRUT, PARKING BRAKE SHOE LEVER
46612A
PIN(FOR PARKING BRAKE SHOE LEVER STRUT)
9010108382
Крепеж
9010108383
Крепеж
9411050800
Крепеж
9411551400
Крепеж
9412041400
Крепеж
9451101400
Крепеж
9451200800
Крепеж
Код
Описание
46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46506
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46520
PLATE SUB-ASSY, PARKING BRAKE
46527
GUIDE, SHOE(FOR PARKING BRAKE)
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550B
PIN(FOR PARKING BRAKE SHOE)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550D
WASHER, WAVE(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46551
PIN, ANCHOR(FOR PARKING BRAKE)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46577
COVER, ADJUSTING CAM HOLE
46611
LEVER, PARKING BRAKE SHOE, RH OR CENTER
46612
STRUT, PARKING BRAKE SHOE LEVER
46612A
PIN(FOR PARKING BRAKE SHOE LEVER STRUT)
9010108382
Крепеж
9010108383
Крепеж
9411050800
Крепеж
9411551400
Крепеж
9412041400
Крепеж
9451101400
Крепеж
9451200800
Крепеж
