Каталог
ЕвропаМодель
TOYOACEДвигатель
1,6 литраКузов
LOW DECK (STANDARD DECK)Фрейм
RY12Опции
правый руль STEEL-MADE DECK 1.5 TONNE

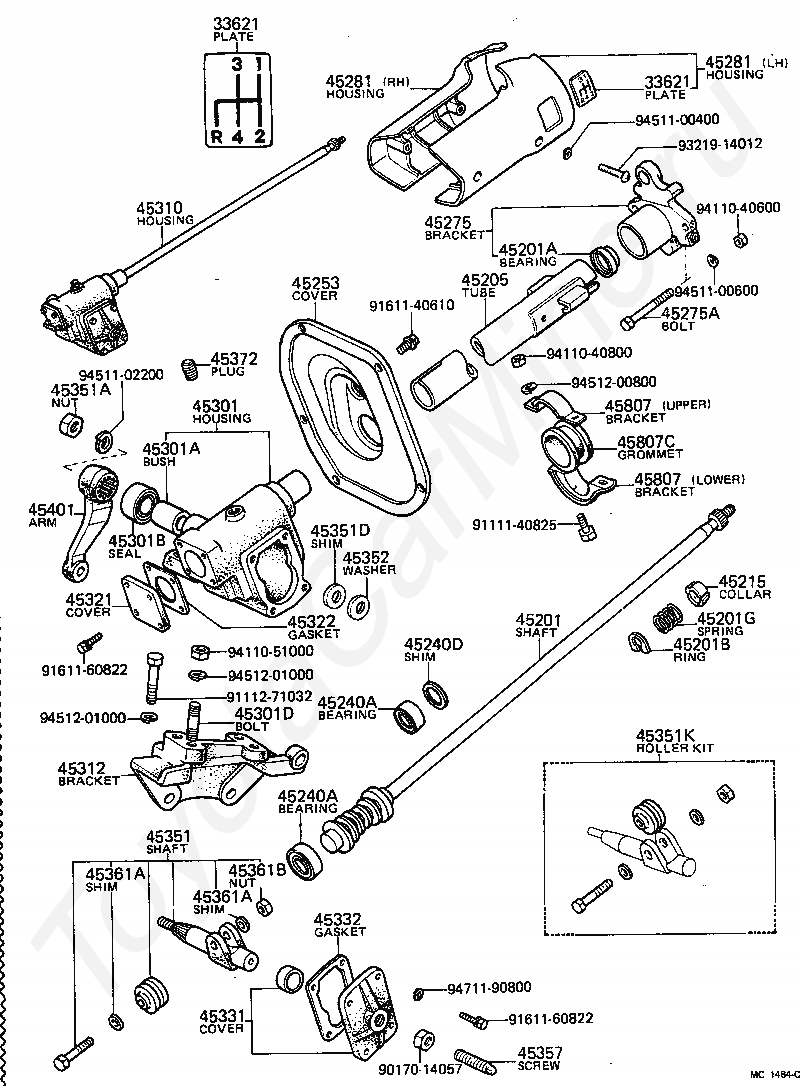

Код
Описание
33621
PLATE, CONTROL LEVER CAUTION
45201
SHAFT SUB-ASSY, STEERING MAIN
45201A
BEARING(FOR STEERING MAIN SHAFT)
45201B
RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201G
SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205
TUBE SUB-ASSY, STEERING COLUMN
45215
COLLAR, MAIN SHAFT BEARING THRUST
45240A
BEARING(FOR STEERING WORM)
45240D
SHIM(FOR STEERING WORM BEARING ADJUST)
45253
COVER, STEERING COLUMN HOLE
45275
BRACKET, STEERING COLUMN, UPPER
45275A
BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
45281
HOUSING, STEERING COLUMN
45301
HOUSING SUB-ASSY, STEERING GEAR
45301A
BUSH OR BEARING, SECTOR SHAFT, NO.1
45301B
SEAL, OIL(FOR SECTOR SHAFT)
45301D
BOLT, STUD(FOR STEERING GEAR HOUSING)
45310
HOUSING ASSY, STEERING GEAR
45312
BRACKET, STEERING GEAR HOUSING
45321
COVER, GEAR HOUSING END
45322
GASKET, GEAR HOUSING END COVER
45331
COVER, SECTOR SHAFT END
45332
GASKET, SECTOR SHAFT END COVER
45351
SHAFT, STEERING SECTOR
45351A
NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45351D
SHIM(FOR STEERING SECTOR ADJUSTING)
45351K
ROLLER KIT, STEERING SECTOR
45352
WASHER, SECTOR SHAFT THRUST
45357
SCREW, SECTOR SHAFT ADJUSTING
45361A
SHIM(FOR STEERING SECTOR ROLLER ADJUST)
45361B
NUT(FOR STEERING SECTOR ROLLER SETTING)
45372
PLUG, STEERING GEAR HOUSING OIL
45401
ARM SUB-ASSY, PITMAN
45807
BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807C
GROMMET(FOR STEERING COLUMN CLAMP)
9017014057
Крепеж
9111140825
Крепеж
9111271032
Крепеж
9161140610
Крепеж
9161160822
Крепеж
9321914012
Крепеж
9411040600
Крепеж
9411040800
Крепеж
9411051000
Крепеж
9451100400
Крепеж
9451100600
Крепеж
9451102200
Крепеж
9451200800
Крепеж
9451201000
Крепеж
9471190800
Крепеж

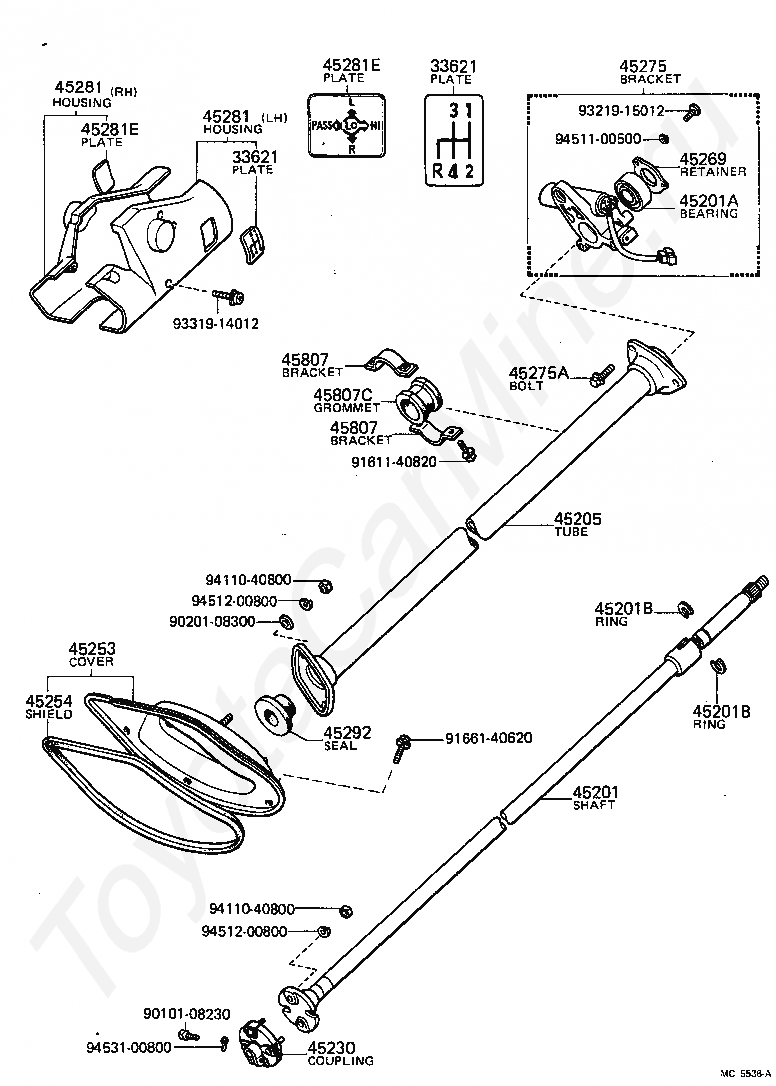

Код
Описание
33621
PLATE, CONTROL LEVER CAUTION
45201
SHAFT SUB-ASSY, STEERING MAIN
45201A
BEARING(FOR STEERING MAIN SHAFT)
45201B
RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205
TUBE SUB-ASSY, STEERING COLUMN
45230
COUPLING ASSY, FLEXIBLE
45253
COVER, STEERING COLUMN HOLE
45254
SHIELD, STEERING COLUMN HOLE
45269
RETAINER, MAIN SHAFT BEARING
45275
BRACKET, STEERING COLUMN, UPPER
45275A
BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
45281
HOUSING, STEERING COLUMN
45281E
PLATE, SAFETY CAUTION
45292
SEAL, MAIN SHAFT LOWER DUST
45807
BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807C
GROMMET(FOR STEERING COLUMN CLAMP)
9010108230
Крепеж
9020108300
Крепеж
9161140820
Крепеж
9166140620
Крепеж
9321915012
Крепеж
9331914012
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451200800
Крепеж
9453100800
Крепеж

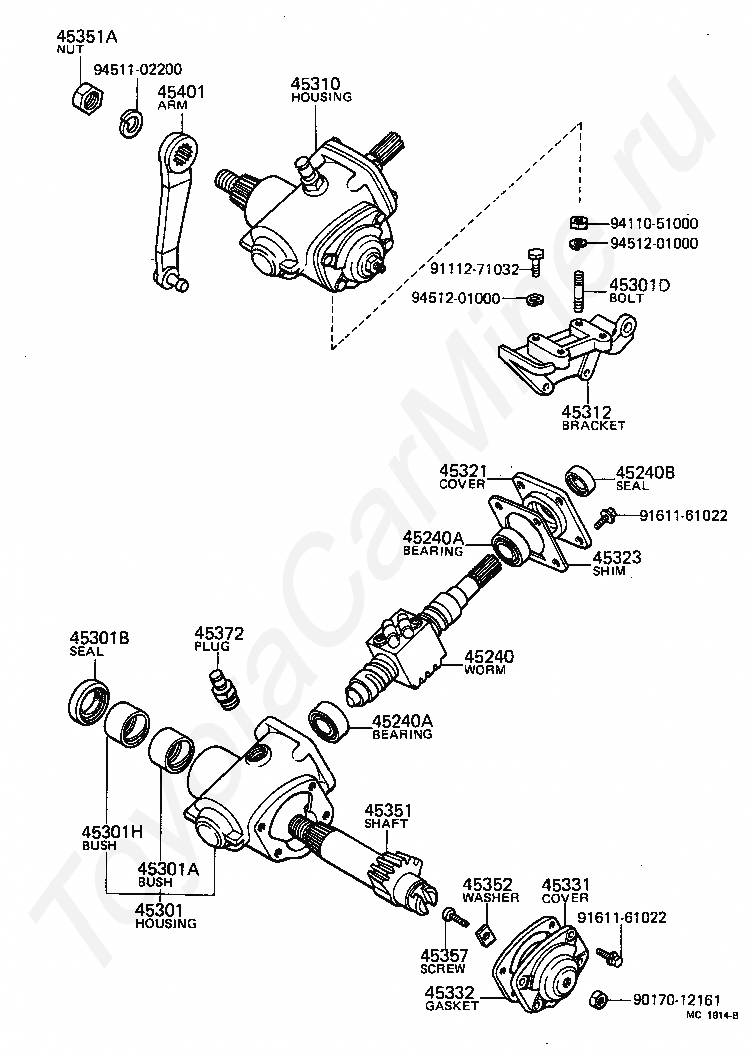

Код
Описание
45240
WORM ASSY, STEERING
45240A
BEARING(FOR STEERING WORM)
45240B
SEAL, OIL(FOR STEERING WORM)
45301
HOUSING SUB-ASSY, STEERING GEAR
45301A
BUSH OR BEARING, SECTOR SHAFT, NO.1
45301B
SEAL, OIL(FOR SECTOR SHAFT)
45301D
BOLT, STUD(FOR STEERING GEAR HOUSING)
45301H
BUSH OR BEARING, SECTOR SHAFT, NO.2
45310
HOUSING ASSY, STEERING GEAR
45312
BRACKET, STEERING GEAR HOUSING
45321
COVER, GEAR HOUSING END
45323
SHIM, GEAR HOUSING END COVER
45331
COVER, SECTOR SHAFT END
45332
GASKET, SECTOR SHAFT END COVER
45351
SHAFT, STEERING SECTOR
45351A
NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352
WASHER, SECTOR SHAFT THRUST
45357
SCREW, SECTOR SHAFT ADJUSTING
45372
PLUG, STEERING GEAR HOUSING OIL
45401
ARM SUB-ASSY, PITMAN
9017012161
Крепеж
9111271032
Крепеж
9161161022
Крепеж
9411051000
Крепеж
9451102200
Крепеж
9451201000
Крепеж
