Каталог
ЕвропаМодель
TOYOACEДвигатель
1,6 литраКузов
LOW DECK (STANDARD DECK)Фрейм
RY12Опции
правый руль STEEL-MADE DECK 1.5 TONNE

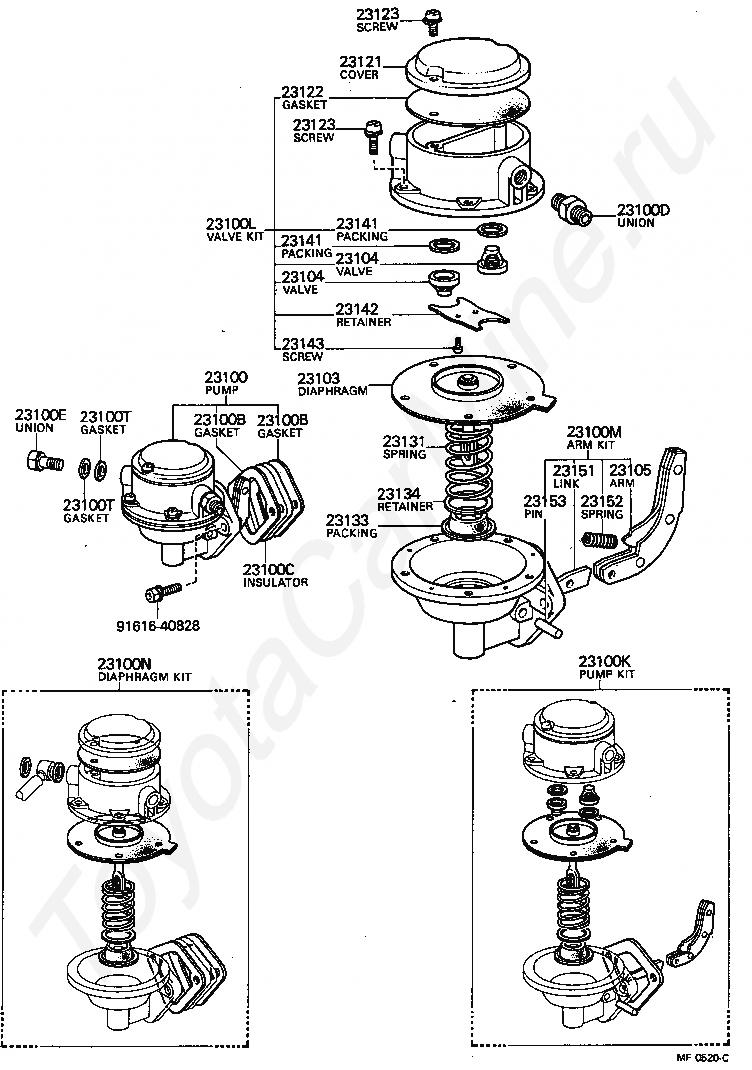

Код
Описание
23100
PUMP ASSY, FUEL
23100B
GASKET, FUEL PUMP
23100C
INSULATOR, FUEL PUMP
23100D
UNION, NIPPLE(FOR FUEL OUTLET)
23100E
UNION, NIPPLE(FOR FUEL INLET)
23100K
PUMP KIT, FUEL
23100L
VALVE KIT, FUEL PUMP
23100M
ARM KIT, FUEL PUMP ROCKER
23100N
DIAPHRAGM KIT, FUEL PUMP
23100T
GASKET, NIPPLE UNION(FOR FUEL INLET)
23103
DIAPHRAGM SUB-ASSY
23104
VALVE SUB-ASSY
23105
ARM SUB-ASSY, ROCKER
23121
COVER, FUEL PUMP
23122
GASKET, FUEL PUMP COVER
23123
SCREW, COVER SET, NO.1
23131
SPRING, DIAPHRAGM(FOR FUEL PUMP)
23133
PACKING, OIL SEAL(FOR FUEL PUMP)
23134
RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)
23141
PACKING, VALVE
23142
RETAINER, VALVE
23143
SCREW, VALVE RETAINER SET
23151
LINK, ROCKER ARM
23152
SPRING, ROCKER ARM
23153
PIN, ROCKER ARM
9161640828
Крепеж

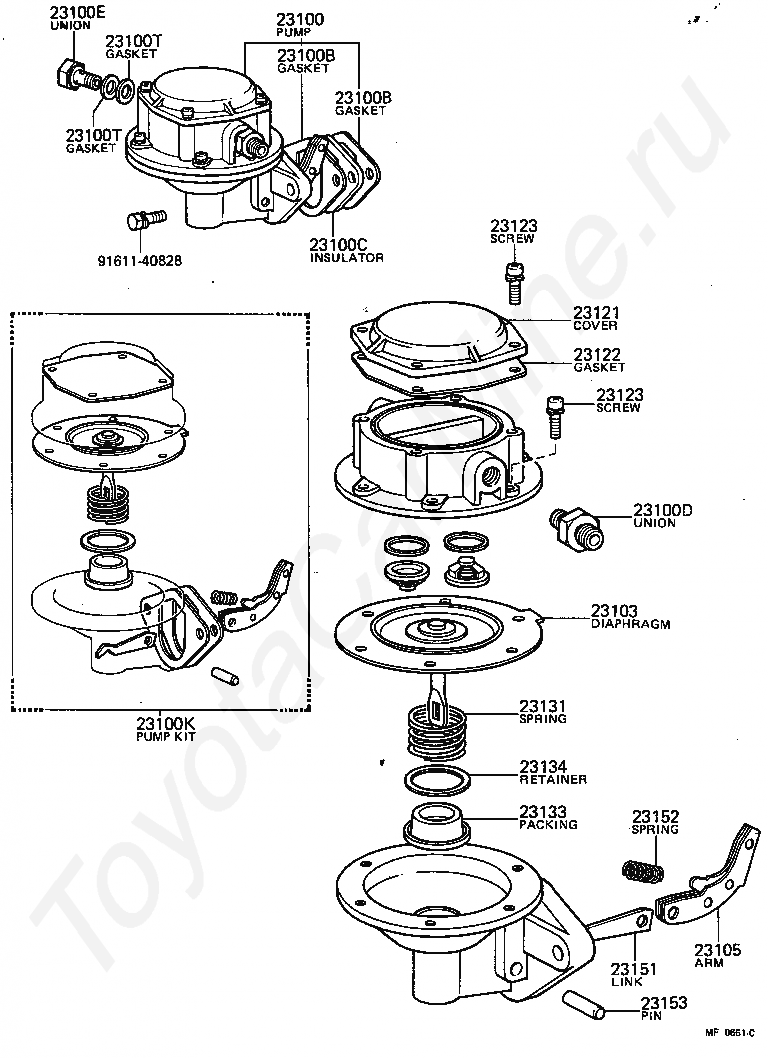

Код
Описание
23100
PUMP ASSY, FUEL
23100B
GASKET, FUEL PUMP
23100C
INSULATOR, FUEL PUMP
23100D
UNION, NIPPLE(FOR FUEL OUTLET)
23100E
UNION, NIPPLE(FOR FUEL INLET)
23100K
PUMP KIT, FUEL
23100T
GASKET, NIPPLE UNION(FOR FUEL INLET)
23103
DIAPHRAGM SUB-ASSY
23105
ARM SUB-ASSY, ROCKER
23121
COVER, FUEL PUMP
23122
GASKET, FUEL PUMP COVER
23123
SCREW, COVER SET, NO.1
23131
SPRING, DIAPHRAGM(FOR FUEL PUMP)
23133
PACKING, OIL SEAL(FOR FUEL PUMP)
23134
RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)
23151
LINK, ROCKER ARM
23152
SPRING, ROCKER ARM
23153
PIN, ROCKER ARM
9161140828
Крепеж

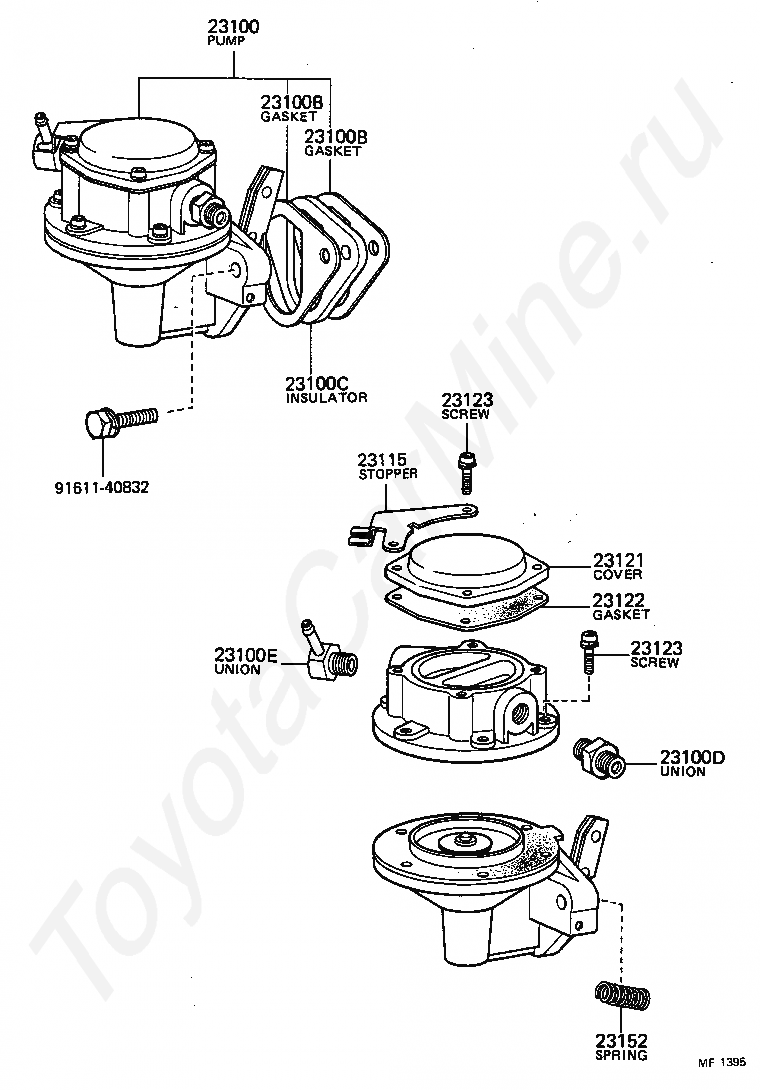

Код
Описание
23100
PUMP ASSY, FUEL
23100B
GASKET, FUEL PUMP
23100C
INSULATOR, FUEL PUMP
23100D
UNION, NIPPLE(FOR FUEL OUTLET)
23100E
UNION, NIPPLE(FOR FUEL INLET)
23115
STOPPER, UNION NIPPLE
23121
COVER, FUEL PUMP
23122
GASKET, FUEL PUMP COVER
23123
SCREW, COVER SET, NO.1
23152
SPRING, ROCKER ARM
9161140832
Крепеж
