Каталог
ЕвропаМодель
TOYOACEДвигатель
1,6 литраКузов
LOW DECK (STANDARD DECK)Фрейм
RY12Опции
правый руль STEEL-MADE DECK 1.5 TONNE

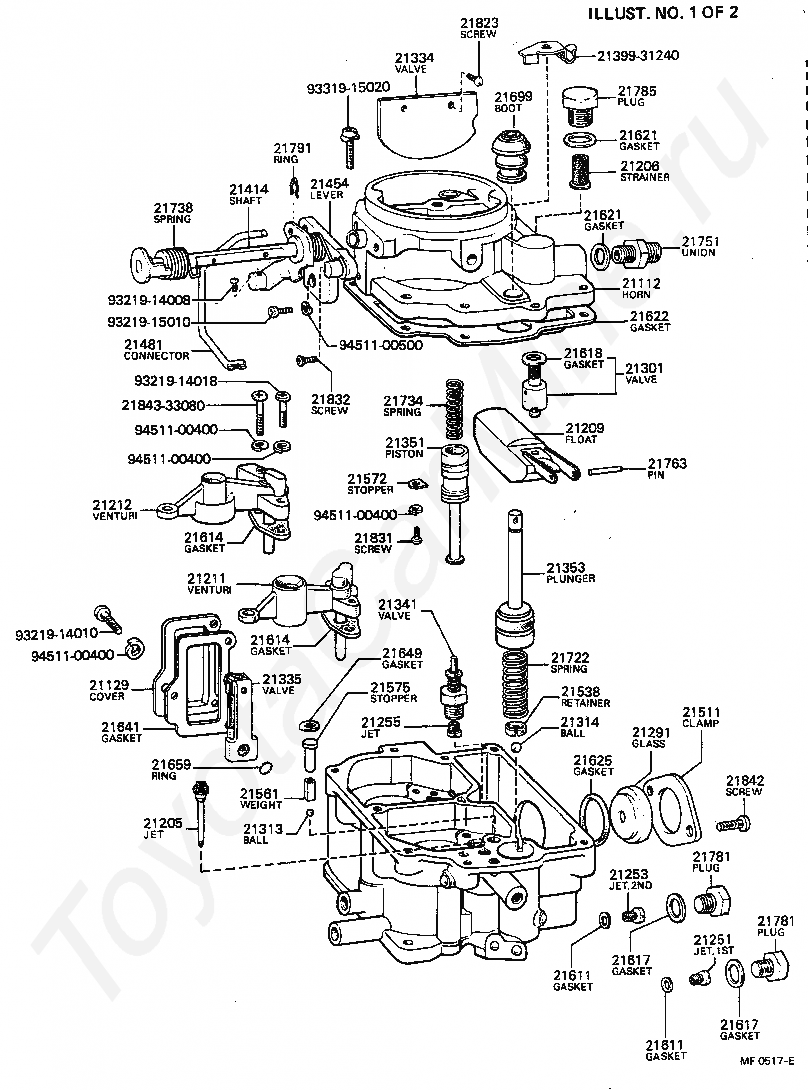

Код
Описание
21112
HORN, AIR
21129
COVER(FOR THERMOSTATIC VALVE)
21205
JET SUB-ASSY, SLOW
21206
STRAINER SUB-ASSY
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21334
VALVE, CHOKE
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
2139931240
Крепеж
21414
SHAFT, CHOKE
21454
LEVER, CHOKE
21481
CONNECTOR, 1ST IDLE
21511
CLAMP, LEVEL GAGE
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21572
STOP, POWER PISTON
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21734
SPRING, POWER PISTON
21738
SPRING, CHOKE VALVE RELIEF
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785
PLUG, CARBURETOR FUEL INLET STRAINER
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21823
SCREW, CHOKE, VALVE SET
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2184333080
Крепеж
9321914008
Крепеж
9321914010
Крепеж
9321914018
Крепеж
9321915010
Крепеж
9331915020
Крепеж
9451100400
Крепеж
9451100500
Крепеж

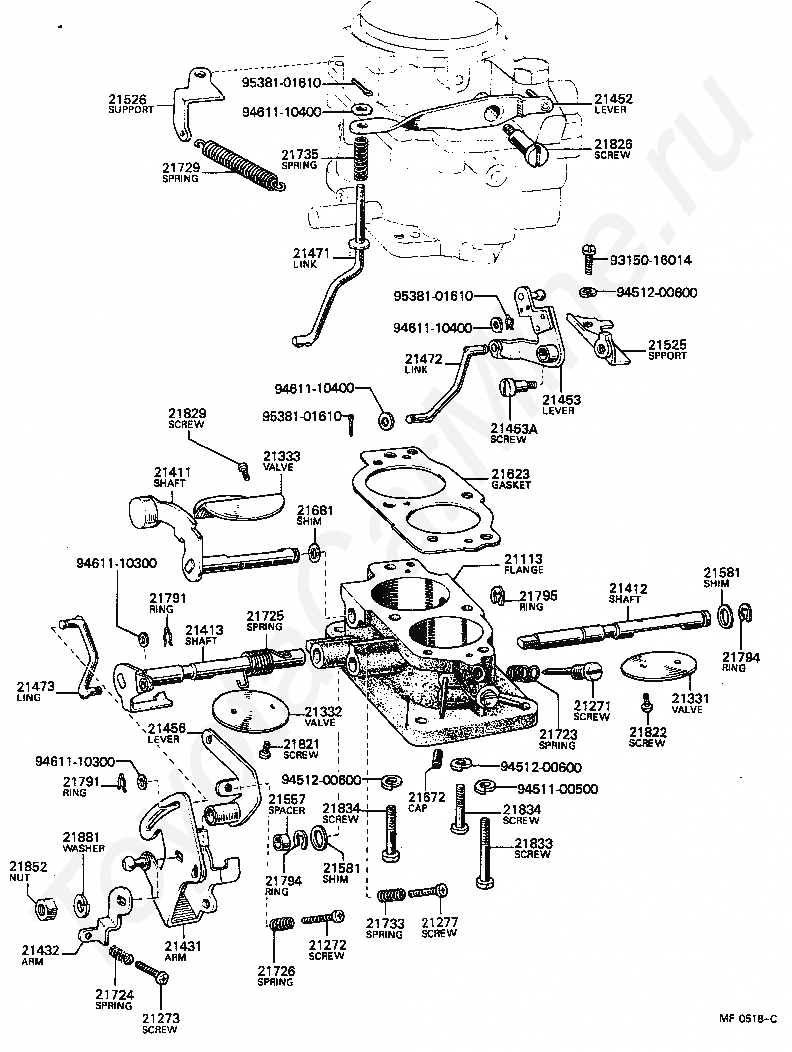

Код
Описание
21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21277
SCREW, LOW IDLE ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21333
VALVE, HIGH SPEED
21411
SHAFT, HIGH SPEED
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21431
ARM, 1ST THROTTLE SHAFT
21432
ARM, THROTTLE
21452
LEVER, PUMP
21453
LEVER, 1ST THROTTLE
21453A
SCREW, 1ST THROTTLE LEVER SET
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21472
LINK, PUMP CONNECTING, NO.2
21473
LINK, THROTTLE SHAFT
21525
SUPPORT, ACCELERATOR LINK
21526
SUPPORT, BACK SPRING
21557
SPACER(FOR 1ST IDLE CAM)
21581
SHIM, 1ST THROTTLE SHAFT
21623
GASKET, BODY FLANGE
21672
CAP
21681
SHIM(FOR HIGH SPEED SHAFT)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21725
SPRING, 2ND THROTTLE BACK
21726
SPRING, 1ST IDLE ADJUSTING
21729
SPRING, 1ST THROTTLE BACK
21733
SPRING, LOW IDLE ADJUSTING
21735
SPRING, PUMP ARM
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21795
RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21826
SCREW, PUMP ARM SET
21829
SCREW, HIGH SPEED VALVE SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
9315016014
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж

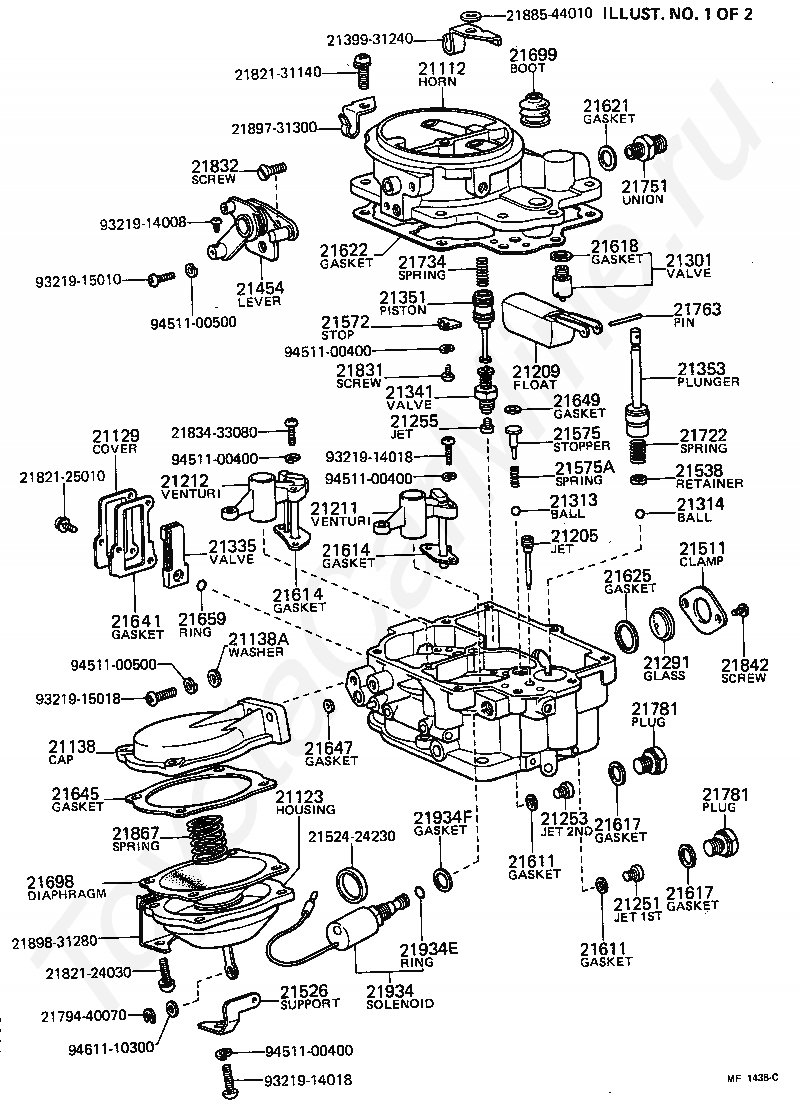

Код
Описание
21112
HORN, AIR
21123
HOUSING, DIAPHRAGM
21129
COVER(FOR THERMOSTATIC VALVE)
21138
CAP, DIAPHRAGM
21138A
WASHER(FOR DIAPHRAGM CAP SET)
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
2139931240
Крепеж
21454
LEVER, CHOKE
21511
CLAMP, LEVEL GAGE
2152424230
Крепеж
21526
SUPPORT, BACK SPRING
21538
RETAINER, BALL CHECK
21572
STOP, POWER PISTON
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21575A
SPRING(FOR STOPPER, B)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2179440070
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
2183433080
Крепеж
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21867
SPRING, DIAPHRAGM
2188544010
Крепеж
2189731270
Крепеж
2189831270
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9321914018
Крепеж
9321915010
Крепеж
9321915018
Крепеж
9321915025
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9461110300
Крепеж

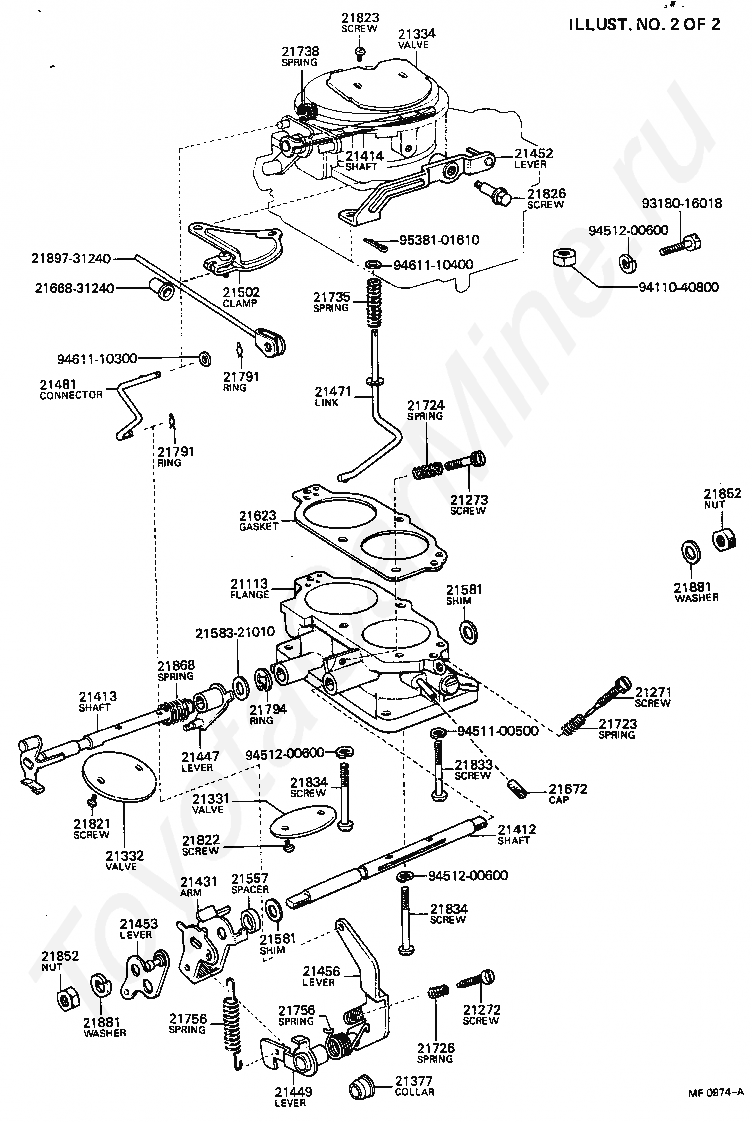

Код
Описание
21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21334
VALVE, CHOKE
21377
COLLAR(FOR 2ND THROTTLE SHAFT)
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21414
SHAFT, CHOKE
21431
ARM, 1ST THROTTLE SHAFT
21447
LEVER, DIAPHRAGM
21449
LEVER, 2ND KICK
21452
LEVER, PUMP
21453
LEVER, 1ST THROTTLE
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21481
CONNECTOR, 1ST IDLE
21502
CLAMP SUB-ASSY, CHOKE WIRE
21557
SPACER(FOR 1ST IDLE CAM)
21581
SHIM, 1ST THROTTLE SHAFT
2158321010
Крепеж
21623
GASKET, BODY FLANGE
2166831240
Крепеж
21672
CAP
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21735
SPRING, PUMP ARM
21738
SPRING, CHOKE VALVE RELIEF
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21823
SCREW, CHOKE, VALVE SET
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21852
NUT, THROTTLE LEVER SET
21868
SPRING, DIAPHRAGM RELIEF
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2189731240
Крепеж
9318016018
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж

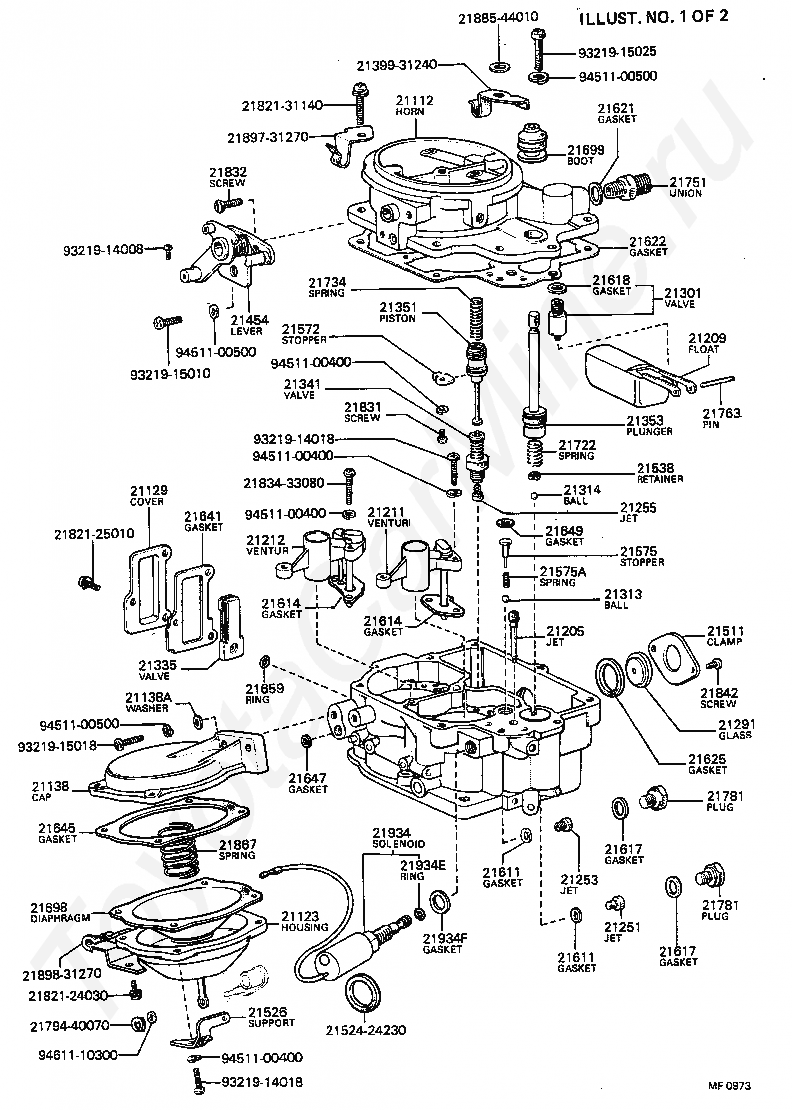

Код
Описание
21112
HORN, AIR
21123
HOUSING, DIAPHRAGM
21129
COVER(FOR THERMOSTATIC VALVE)
21138
CAP, DIAPHRAGM
21138A
WASHER(FOR DIAPHRAGM CAP SET)
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21335
VALVE, THERMOSTATIC
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
2139931240
Крепеж
21454
LEVER, CHOKE
21511
CLAMP, LEVEL GAGE
2152424230
Крепеж
21526
SUPPORT, BACK SPRING
21538
RETAINER, BALL CHECK
21572
STOP, POWER PISTON
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21575A
SPRING(FOR STOPPER, B)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659
RING, O(FOR THERMOSTATIC VALVE)
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2179440070
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182131140
Крепеж
21831
SCREW, POWER PISTON STOP
21832
SCREW(FOR CHOKE LEVER ADAPTER SET)
2183433080
Крепеж
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21867
SPRING, DIAPHRAGM
2188544010
Крепеж
2189731300
Крепеж
2189831280
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914008
Крепеж
9321914018
Крепеж
9321915010
Крепеж
9321915018
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9461110300
Крепеж
Код
Описание

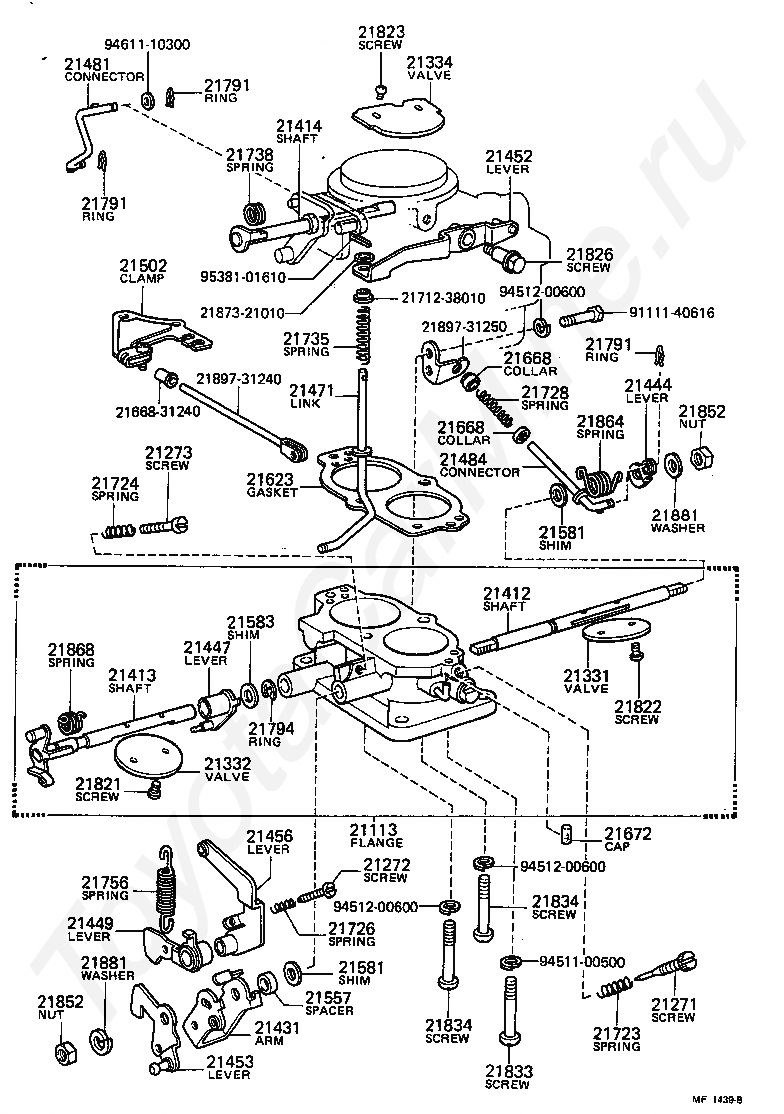

21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21334
VALVE, CHOKE
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21414
SHAFT, CHOKE
21431
ARM, 1ST THROTTLE SHAFT
21444
LEVER(FOR RELOADER LINK MECHANISM)
21447
LEVER, DIAPHRAGM
21449
LEVER, 2ND KICK
21452
LEVER, PUMP
21453
LEVER, 1ST THROTTLE
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21481
CONNECTOR, 1ST IDLE
21484
CONNECTOR(FOR OPENER)
21502
CLAMP SUB-ASSY, CHOKE WIRE
21557
SPACER(FOR 1ST IDLE CAM)
21581
SHIM, 1ST THROTTLE SHAFT
21583
SHIM, 2ND THROTTLE SHAFT
21623
GASKET, BODY FLANGE
21668
COLLAR
2166831240
Крепеж
21672
CAP
2171238010
Крепеж
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21735
SPRING, PUMP ARM
21738
SPRING, CHOKE VALVE RELIEF
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21823
SCREW, CHOKE, VALVE SET
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21852
NUT, THROTTLE LEVER SET
21864
SPRING(FOR 1ST THROTTLE ARM)
21868
SPRING, DIAPHRAGM RELIEF
2187321010
Крепеж
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2189731240
Крепеж
2189731250
Крепеж
9111140616
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9538101610
Крепеж
Наш менеджер перезвонит в ближайшее время
