Каталог
АмерикаМодель
RAV4 (NAP)Двигатель
2,5 литра, 16 клапанов, DOHCКузов
фургонФрейм
AXAA52Трансмиссия
автомат АКПП, 8 скоростейОпции
5 дверей METERS США 832W

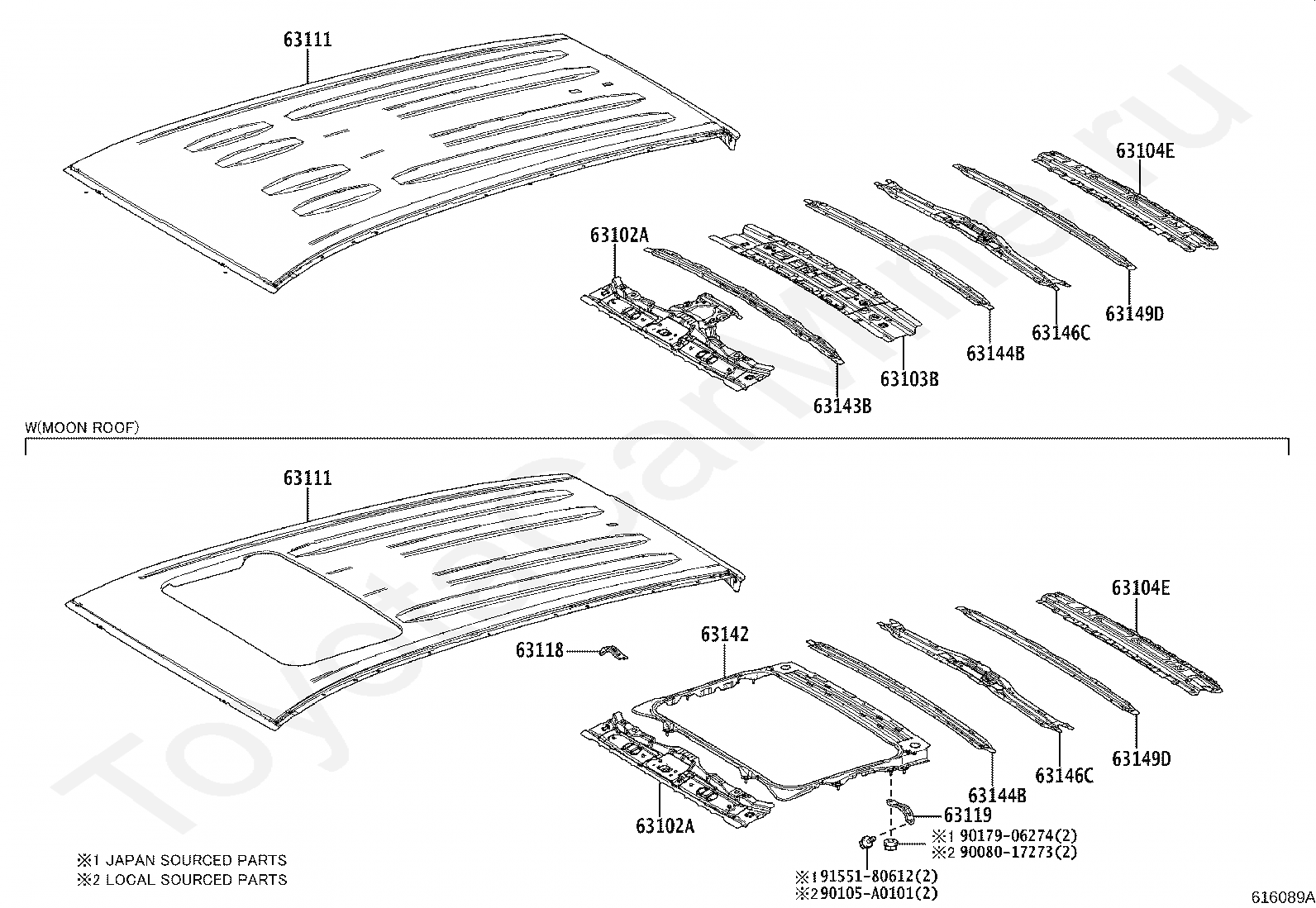

Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103B
REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63104E
REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63111
PANEL, ROOF
63118
SUPPORT, ROOF PANEL, RH
63119
SUPPORT, ROOF PANEL, LH
63142
REINFORCEMENT, ROOF PANEL, NO.2
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63144B
REINFORCEMENT, ROOF PANEL, NO.4
63146C
REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63149D
REINFORCEMENT, ROOF PANEL, NO.8
9008017273
Крепеж
90105A0101
Крепеж
9017906274
Крепеж
9155180612
Крепеж

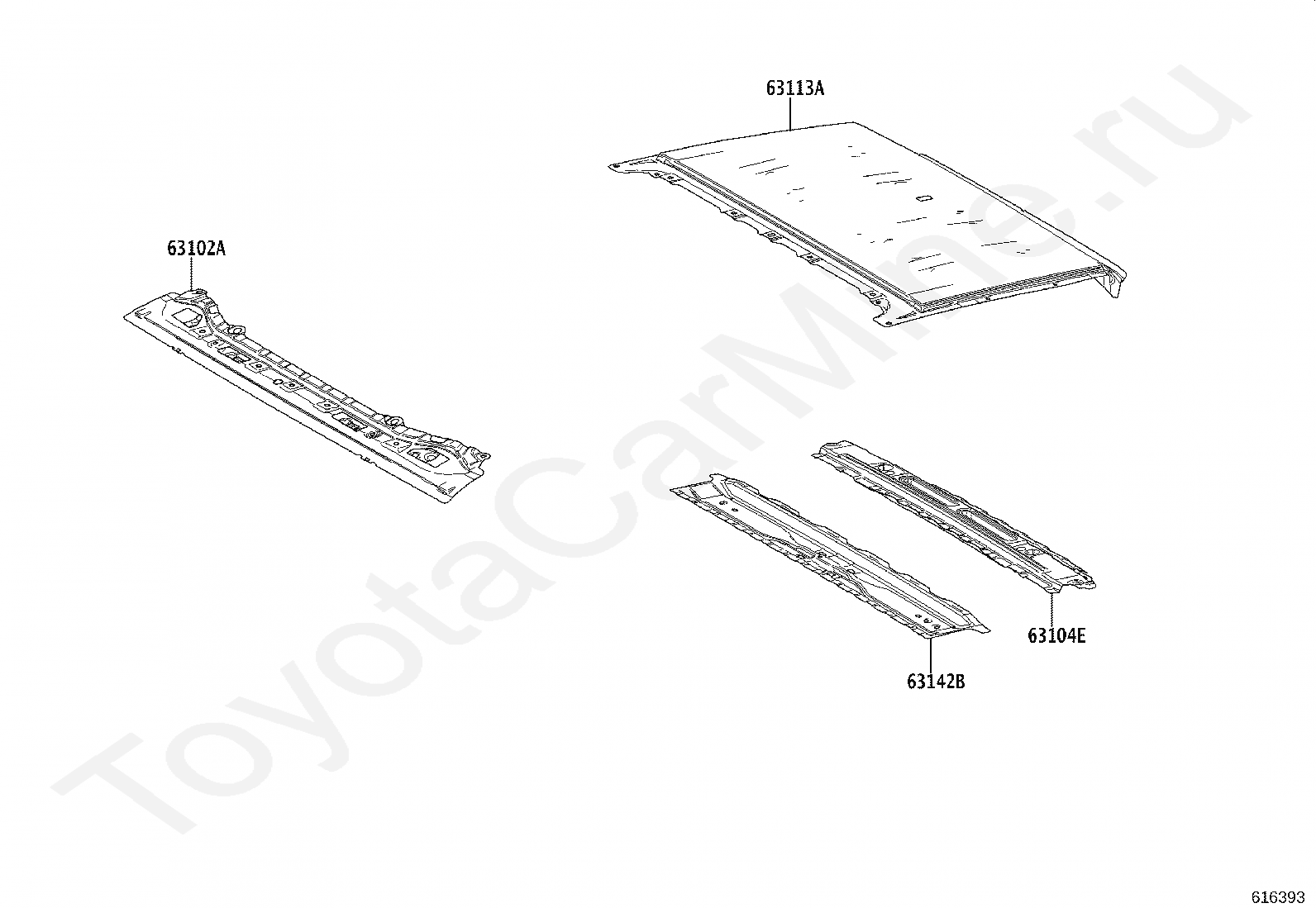

Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63104E
REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63113A
PANEL, ROOF, NO.3
63142B
REINFORCEMENT, ROOF PANEL, REAR

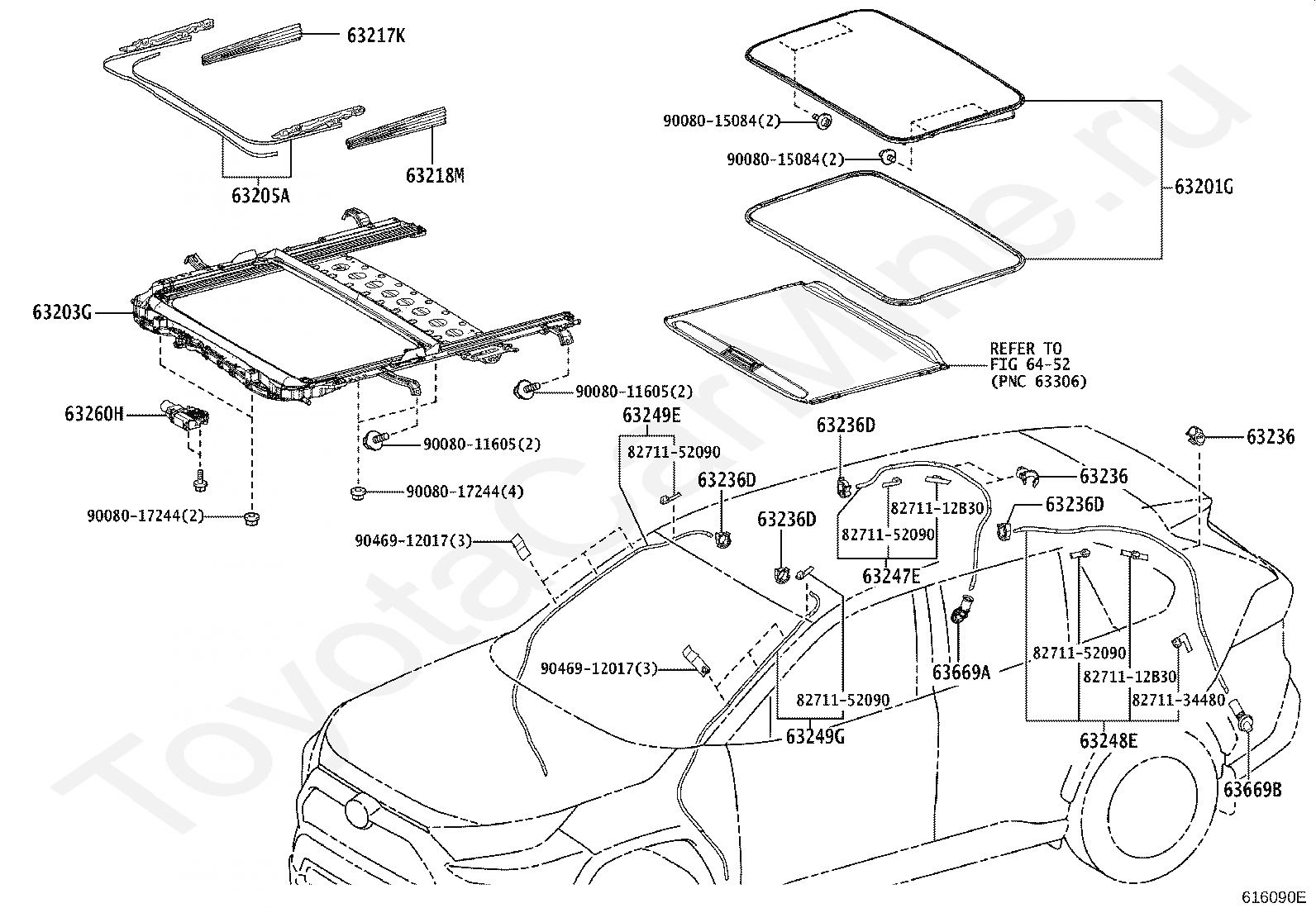

Код
Описание
63201G
GLASS SUB-ASSY, SLIDING ROOF
63203G
HOUSING SUB-ASSY, SLIDING ROOF, REAR
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63217K
GARNISH, SLIDING ROOF SIDE, RH
63218M
GARNISH, SLIDING ROOF SIDE, LH
63236
CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236D
CLAMP, SLIDING ROOF DRAIN HOSE
63247E
HOSE, SLIDING ROOF DRAIN, REAR RH
63248E
HOSE, SLIDING ROOF DRAIN, REAR LH
63249E
HOSE, SLIDING ROOF DRAIN
63249G
HOSE, SLIDING ROOF DRAIN
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63669A
GROMMET, SLIDING ROOF DRAIN
63669B
GROMMET, SLIDING ROOF DRAIN
6452
переход к группе запчастей
8271112B30
Крепеж
8271134480
Крепеж
8271152090
Крепеж
9008011605
Крепеж
9008015084
Крепеж
9008017244
Крепеж
9046912017
Крепеж

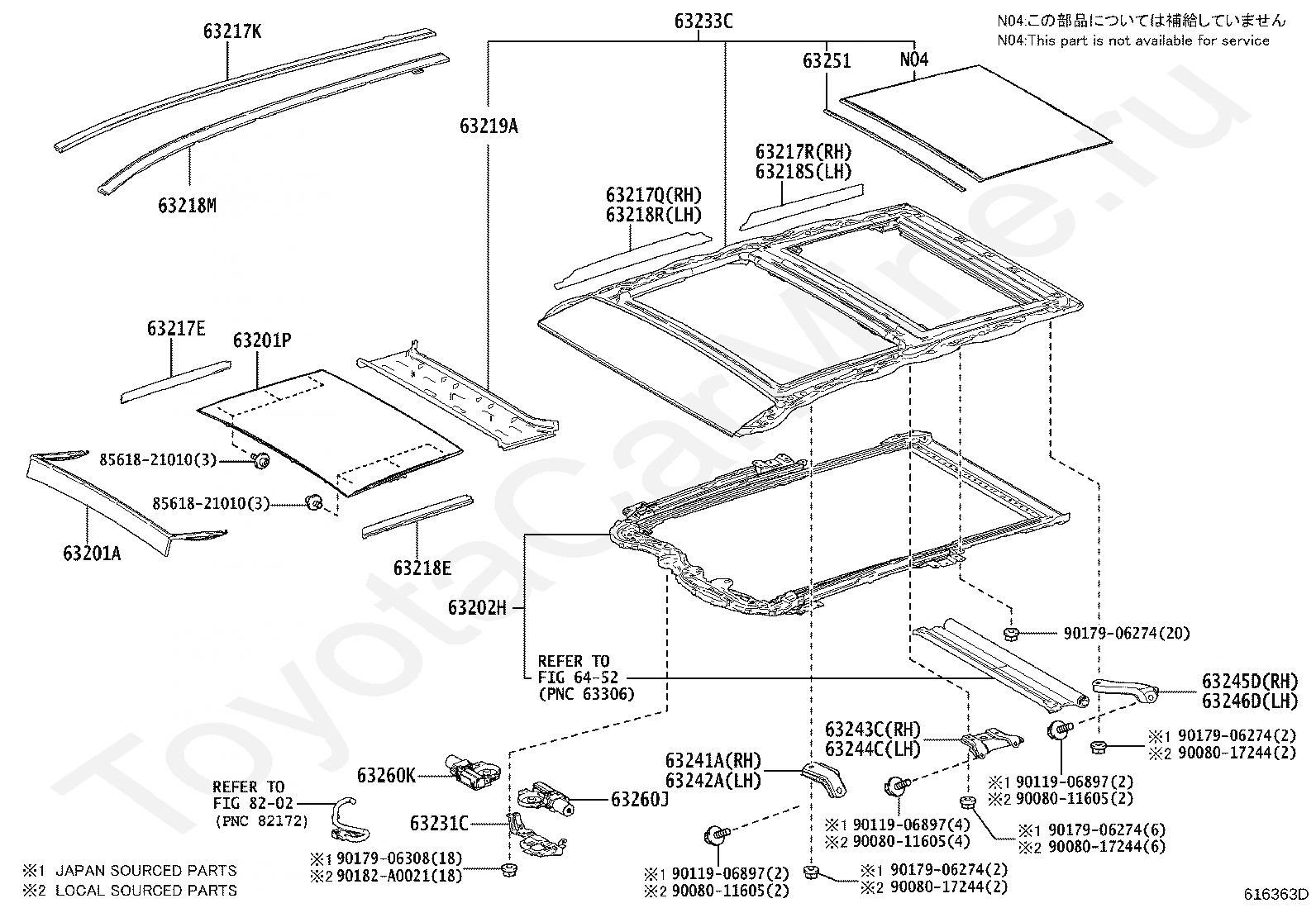

Код
Описание
63201A
PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63201P
GLASS SUB-ASSY, SLIDING ROOF
63202H
RAIL SUB-ASSY, SLIDE ROOF
63217E
GARNISH, SLIDING ROOF, FRONT RH
63217K
GARNISH, SLIDING ROOF SIDE, RH
63217Q
GARNISH, SLIDING ROOF SIDE, RH
63217R
GARNISH, SLIDING ROOF SIDE, RH
63218E
GARNISH, SLIDING ROOF, FRONT LH
63218M
GARNISH, SLIDING ROOF SIDE, LH
63218R
GARNISH, SLIDING ROOF SIDE, LH
63218S
GARNISH, SLIDING ROOF SIDE, LH
63219A
GARNISH, SLIDING ROOF, REAR
63231C
BRACKET, ROOM LAMP
63233C
PANEL, SLIDING ROOF HOUSING
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63243C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63244C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH
63245D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63246D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63251
WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF
63260J
GEAR ASSY, SLIDING ROOF DRIVE
63260K
GEAR ASSY, SLIDING ROOF DRIVE
6452
переход к группе запчастей
8202
переход к группе запчастей
8561821010
Крепеж
9008011605
Крепеж
9008017244
Крепеж
9011906897
Крепеж
9017906274
Крепеж
9017906308
Крепеж
90182A0021
Крепеж

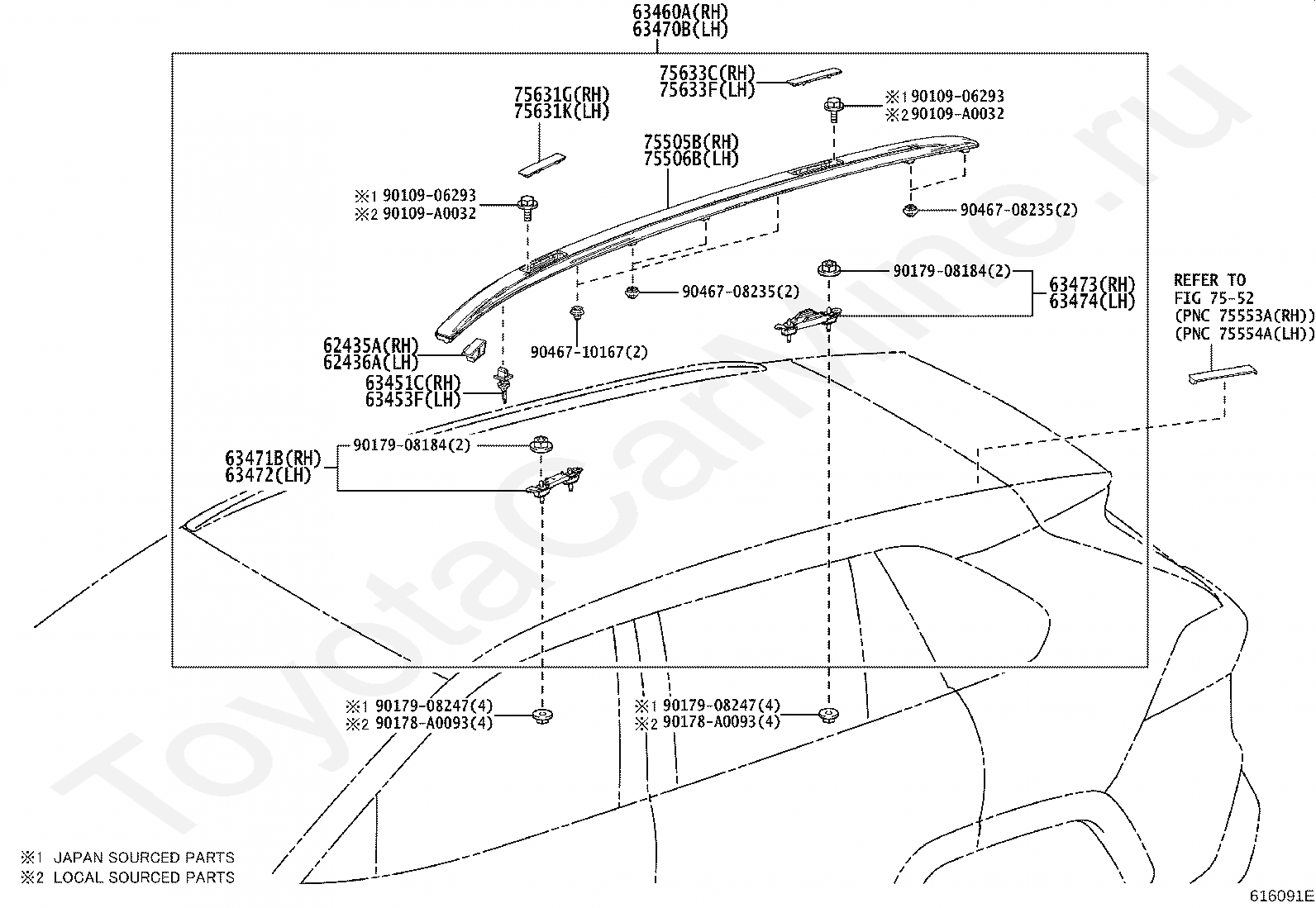

Код
Описание
62435A
PAD, ROOF SIDE RAIL, FRONT RH
62436A
PAD, ROOF SIDE RAIL, FRONT LH
63451C
RETAINER, ROOF RACK, FRONT RH
63453F
RETAINER, ROOF RACK, FRONT LH
63460A
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
63471B
LEG, ROOF RACK, FRONT RH
63472
LEG, ROOF RACK, FRONT LH
63473
LEG, ROOF RACK, REAR RH
63474
LEG, ROOF RACK, REAR LH
75505B
GARNISH SUB-ASSY, ROOF SIDE, FRONT RH
75506B
GARNISH SUB-ASSY, ROOF SIDE, FRONT LH
7552
переход к группе запчастей
75631G
LID, ROOF SIDE GARNISH, NO.1 RH
75631K
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75633F
LID, ROOF SIDE GARNISH, NO.2 LH
9010906293
Крепеж
90109A0032
Крепеж
90178A0093
Крепеж
9017908184
Крепеж
9017908247
Крепеж
9046708235
Крепеж
9046710167
Крепеж

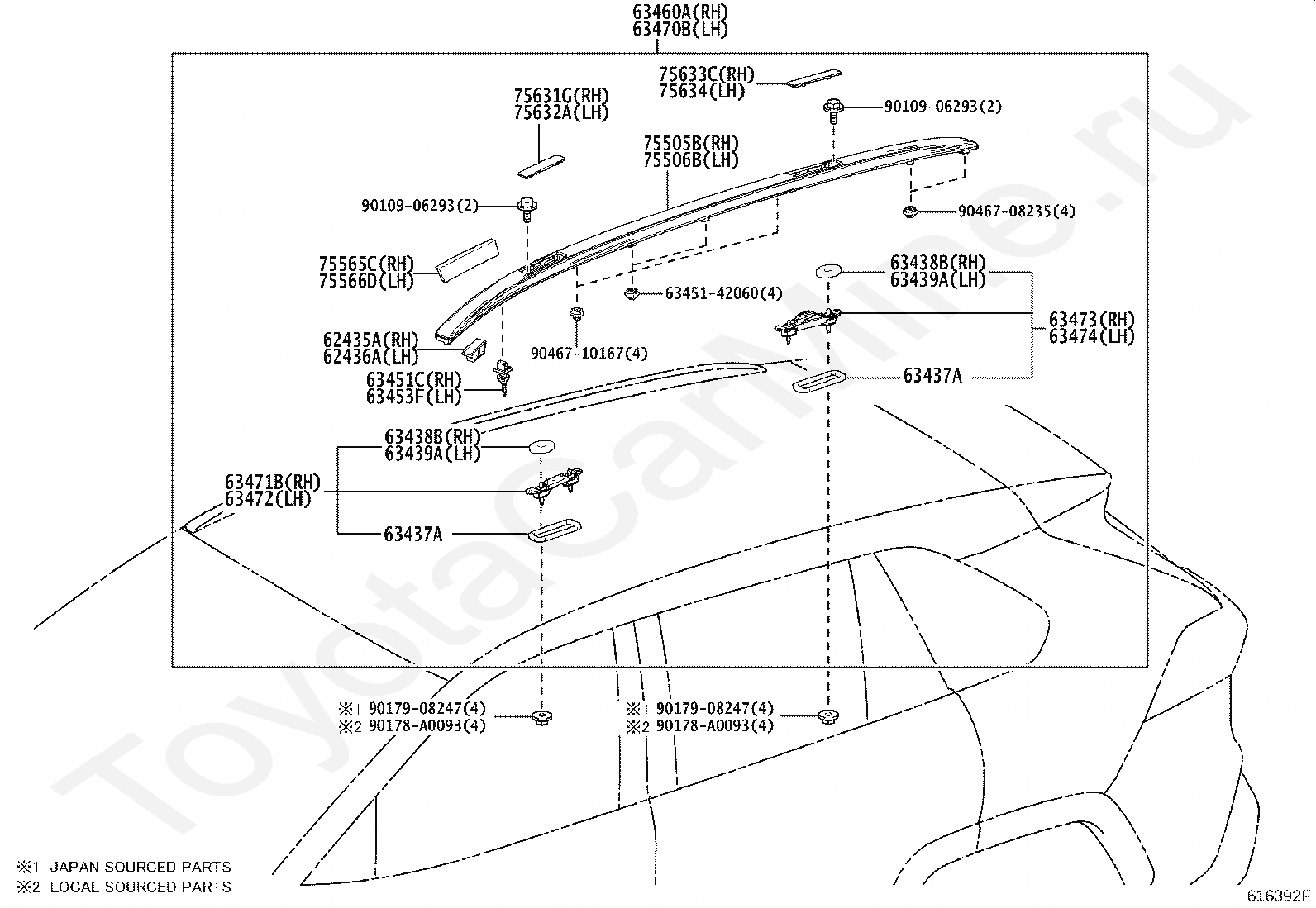

Код
Описание
62435A
PAD, ROOF SIDE RAIL, FRONT RH
62436A
PAD, ROOF SIDE RAIL, FRONT LH
63437A
SEAL, ROOF CARRIER, NO.2
63438B
SEAL, ROOF CARRIER, NO.3 RH
63439A
SEAL, ROOF CARRIER, NO.3 LH
6345142060
Крепеж
63451C
RETAINER, ROOF RACK, FRONT RH
63453F
RETAINER, ROOF RACK, FRONT LH
63460A
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
63471B
LEG, ROOF RACK, FRONT RH
63472
LEG, ROOF RACK, FRONT LH
63473
LEG, ROOF RACK, REAR RH
63474
LEG, ROOF RACK, REAR LH
75505B
GARNISH SUB-ASSY, ROOF SIDE, FRONT RH
75506B
GARNISH SUB-ASSY, ROOF SIDE, FRONT LH
75565C
PROTECTOR, ROOF SIDE GARNISH, FRONT RH
75566D
PROTECTOR, ROOF SIDE GARNISH, FRONT LH
75631G
LID, ROOF SIDE GARNISH, NO.1 RH
75632A
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75634
LID, ROOF SIDE GARNISH, NO.2 LH
9010906293
Крепеж
90178A0093
Крепеж
9017908247
Крепеж
9046708235
Крепеж
9046710167
Крепеж

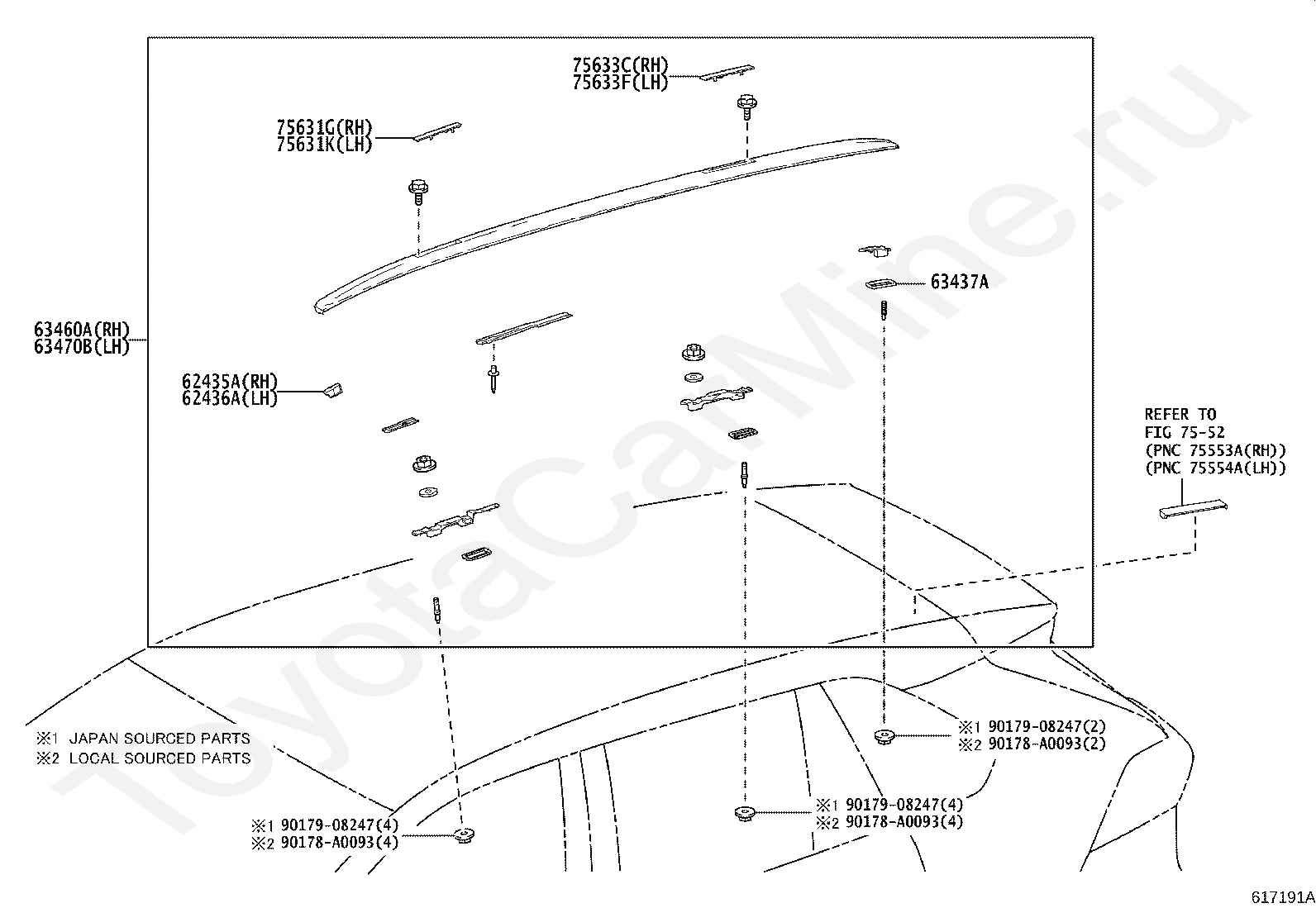

Код
Описание
62435A
PAD, ROOF SIDE RAIL, FRONT RH
62436A
PAD, ROOF SIDE RAIL, FRONT LH
63437A
SEAL, ROOF CARRIER, NO.2
63460A
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
7552
переход к группе запчастей
75631G
LID, ROOF SIDE GARNISH, NO.1 RH
75631K
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75633F
LID, ROOF SIDE GARNISH, NO.2 LH
90178A0093
Крепеж
9017908247
Крепеж

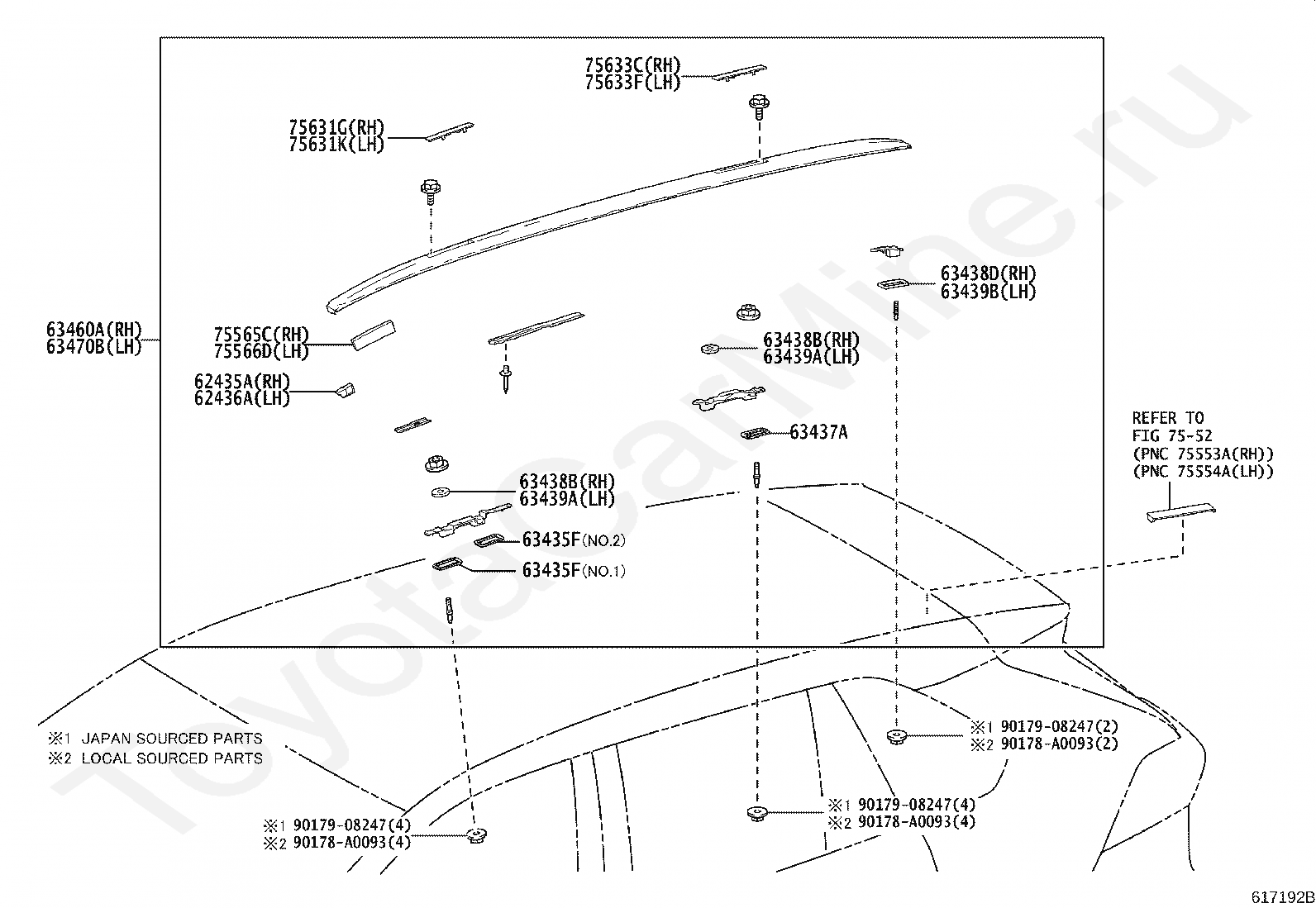

Код
Описание
62435A
PAD, ROOF SIDE RAIL, FRONT RH
62436A
PAD, ROOF SIDE RAIL, FRONT LH
63435F
SEAL, ROOF CARRIER, NO.1
63437A
SEAL, ROOF CARRIER, NO.2
63438B
SEAL, ROOF CARRIER, NO.3 RH
63438D
SEAL, ROOF CARRIER, NO.3 RH
63439A
SEAL, ROOF CARRIER, NO.3 LH
63439B
SEAL, ROOF CARRIER, NO.3 LH
63460A
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
7552
переход к группе запчастей
75565C
PROTECTOR, ROOF SIDE GARNISH, FRONT RH
75566D
PROTECTOR, ROOF SIDE GARNISH, FRONT LH
75631G
LID, ROOF SIDE GARNISH, NO.1 RH
75631K
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75633F
LID, ROOF SIDE GARNISH, NO.2 LH
90178A0093
Крепеж
9017908247
Крепеж
