Боковая панель кузова TOYOTA RAV4 (NAP), 2020/09 - 2025, 2,5 литра, 16 клапанов, DOHC, фургон, AXAA52, автомат, АКПП, 8 скоростей

Каталог

Америка

Модель

RAV4 (NAP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

фургон

Фрейм

AXAA52

Трансмиссия

автомат АКПП, 8 скоростей

Опции

5 дверей METERS США 832W

Код

Описание

53821B

BRACKET, FRONT FENDER, REAR RH

53822B

BRACKET, FRONT FENDER, REAR LH

53837C

BRACKET, FRONT SIDE PANEL, NO.2 RH

53838E

BRACKET, FRONT SIDE PANEL, NO.2 LH

61010

MEMBER ASSY, SIDE, RH

61020

MEMBER ASSY, SIDE, LH

61225A

RAIL, ROOF SIDE OUTER UPPER NO.1, RH

61226A

RAIL, ROOF SIDE OUTER UPPER NO.1, LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61601E

PANEL SUB-ASSY, QUARTER, OUTER RH

61602D

PANEL SUB-ASSY, QUARTER, OUTER LH

Код

Описание

5752

переход к группе запчастей

61031C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61035B

PILLAR SUB-ASSY, NO.4 INNER, RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61073

BRACE SUB-ASSY, QUARTER WHEEL HOUSE, RH

61103A

REINFORCEMENT SUB-ASSY, COWL SIDE, RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61113A

PANEL, SIDE, OUTER NO.2 RH

61121D

PANEL, COWL SIDE, RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61207

RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH

61211C

RAIL, ROOF SIDE, RH

61401C

PANEL SUB-ASSY, ROCKER, OUTER RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61617A

PANEL, QUARTER INNER, REAR RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61703H

REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

61708A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

62554B

PAD, PILLAR, NO.4

65637B

LINER, REAR WHEEL HOUSE, RH

90119A0186

Крепеж

9046706121

Крепеж

9046706206C0

Крепеж

9046707215

Крепеж

9046707220

Крепеж

Код

Описание

5752

переход к группе запчастей

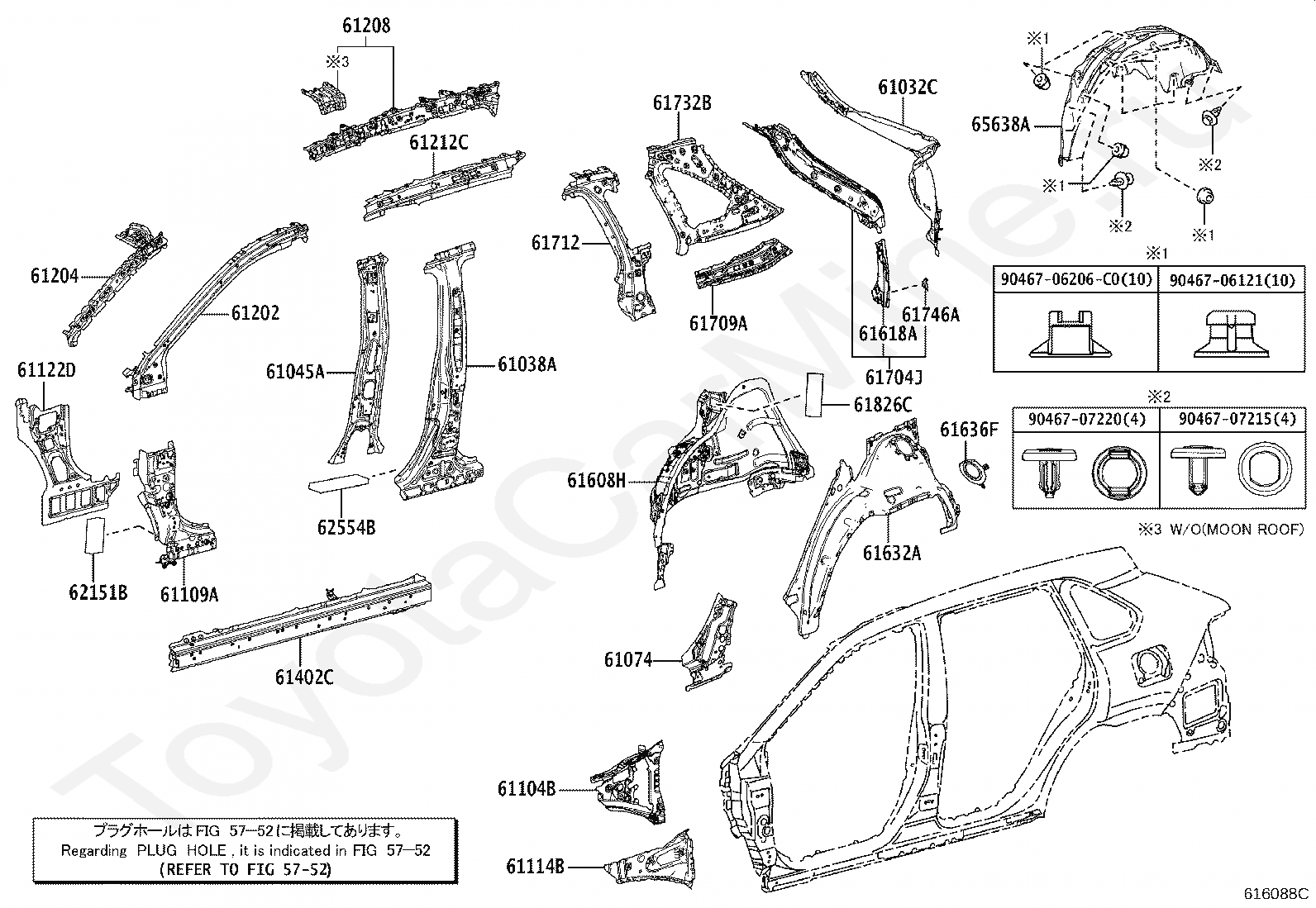

61032C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61045A

PILLAR SUB-ASSY, NO.4 INNER, LH

61074

BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH

61104B

REINFORCEMENT SUB-ASSY, COWL SIDE, LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61114B

PANEL, SIDE, OUTER NO.2 LH

61122D

PANEL, COWL SIDE, LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61208

RAIL SUB-ASSY, ROOF SIDE, INNER CENTER LH

61212C

RAIL, ROOF SIDE, LH

61402C

PANEL SUB-ASSY, ROCKER, OUTER LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61618A

PANEL, QUARTER, INNER REAR LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61636F

REINFORCEMENT, QUARTER PANEL, UPR LH

61704J

REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH

61709A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

62554B

PAD, PILLAR, NO.4

65638A

LINER, REAR WHEEL HOUSE, LH

9046706121

Крепеж

9046706206C0

Крепеж

9046707215

Крепеж

9046707220

Крепеж
