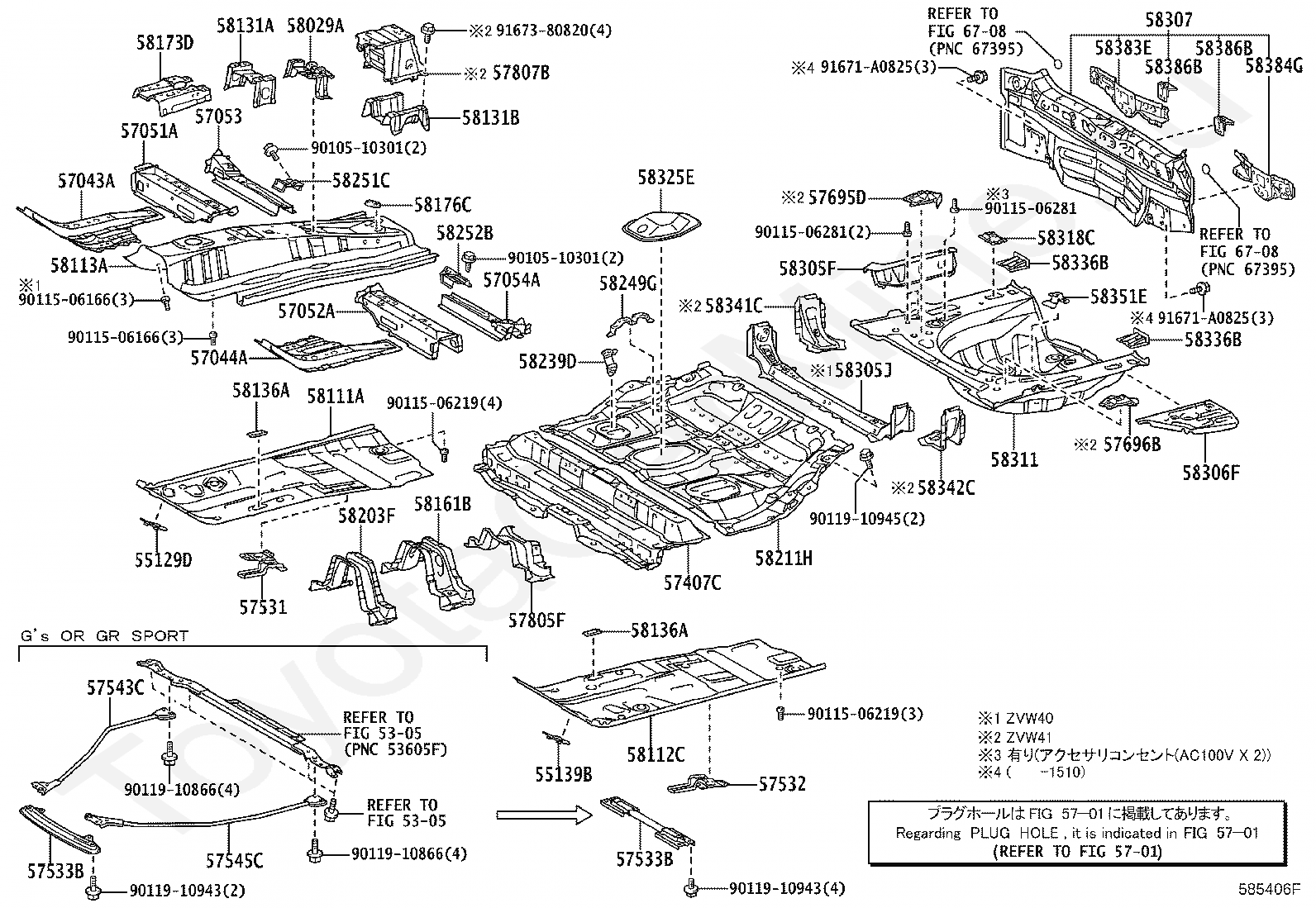

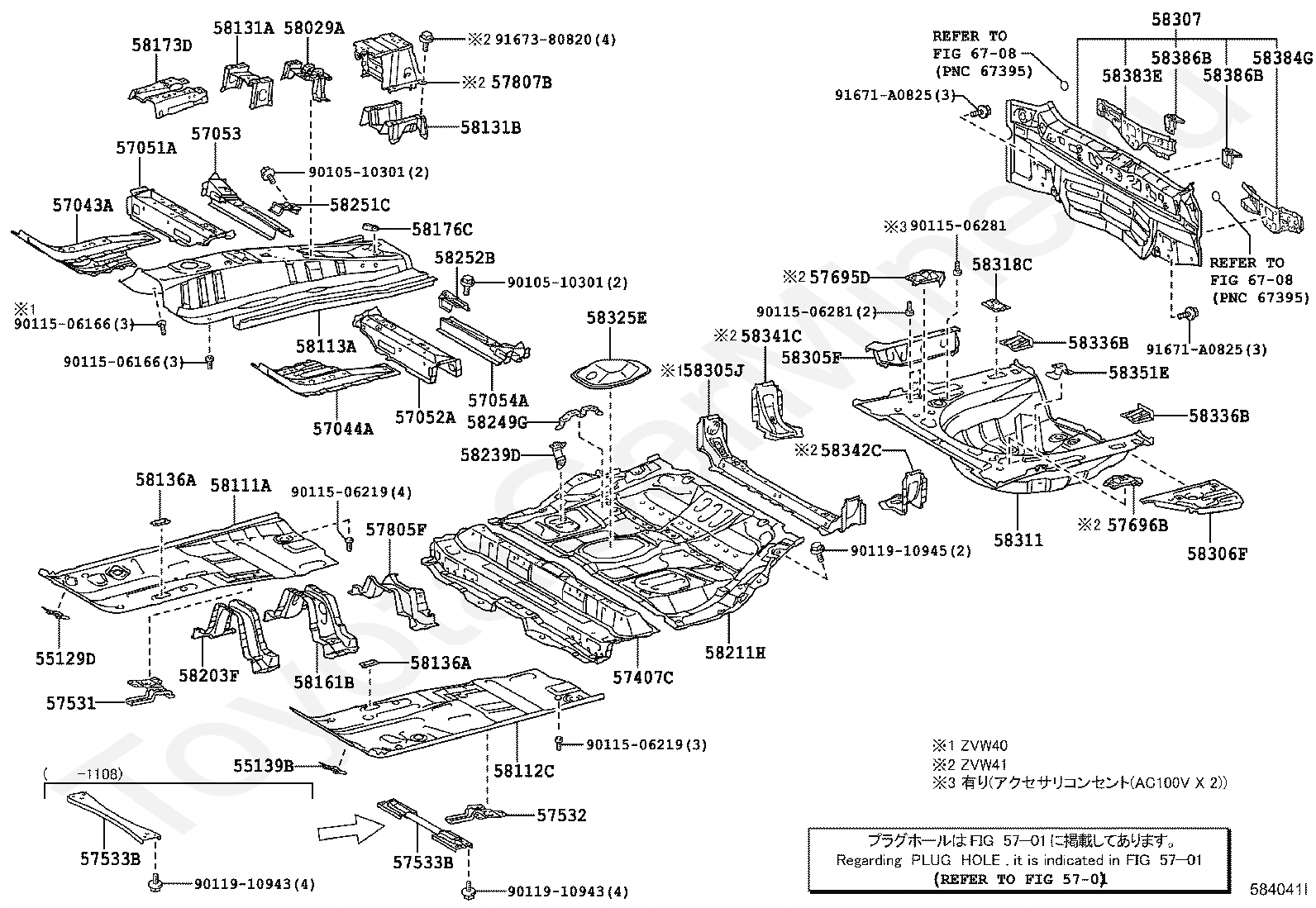

FLOOR PAN & LOWER BACK PANEL TOYOTA PRIUS A(ALPHA), 2014/11 - 2021/03, 1,8 литра, 16 клапанов, DOHC, EFI, S TYPE, ZVW40, вариатор

Каталог

Япония

Модель

PRIUS A(ALPHA)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

ZVW40

Трансмиссия

вариатор

Опции

7-местный COMPLETED VEHICLE 628W

Код

Описание

55129D

COVER, DASH PANEL HOLE, RH

55139B

COVER, DASH PANEL HOLE, LH

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57533B

BRACE, FRONT FLOOR, CENTER

57695D

BRACKET, REAR FLOOR MOUNTING, NO.2 RH

57696B

BRACKET, REAR FLOOR MOUNTING, NO.2 LH

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

57807B

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

58029A

BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58131A

BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

58131B

BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

58136A

COVER, FRONT FLOOR SERVICE HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58173D

BRACKET, COMPUTER MOUNTING, NO.4

58176C

REINFORCEMENT, PARKING BRAKE BASE, NO.2

58203F

BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

58211H

PAN, CENTER FLOOR

58239D

BRACKET, CABLE CLAMP

58249G

BRACKET, CABLE CLAMP, NO.2

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58305J

BRACKET, SPARE WHEEL CARRIER

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58318C

BRACKET, REAR FLOOR CROSSMEMBER

58325E

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58341C

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342C

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

58351E

BRACKET, SPARE WHEEL CLAMP

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384G

GUSSET, LOWER BACK, UPPER RH

58386B

BRACKET, REAR BUMPER COVER, NO.2

6708

переход к группе запчастей

9010510301

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011506281

Крепеж

9011910943

Крепеж

9011910945

Крепеж

91671A0825

Крепеж

9167380820

Крепеж

Код

Описание

5305

переход к группе запчастей

55129D

COVER, DASH PANEL HOLE, RH

55139B

COVER, DASH PANEL HOLE, LH

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57533B

BRACE, FRONT FLOOR, CENTER

57543C

BRACE, CENTER FLOOR, NO.1

57545C

BRACE, CENTER FLOOR, NO.2

57695D

BRACKET, REAR FLOOR MOUNTING, NO.2 RH

57696B

BRACKET, REAR FLOOR MOUNTING, NO.2 LH

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

57807B

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

58029A

BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58131A

BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

58131B

BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

58136A

COVER, FRONT FLOOR SERVICE HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58173D

BRACKET, COMPUTER MOUNTING, NO.4

58176C

REINFORCEMENT, PARKING BRAKE BASE, NO.2

58203F

BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

58211H

PAN, CENTER FLOOR

58239D

BRACKET, CABLE CLAMP

58249G

BRACKET, CABLE CLAMP, NO.2

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58305J

BRACKET, SPARE WHEEL CARRIER

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58318C

BRACKET, REAR FLOOR CROSSMEMBER

58325E

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58341C

BRACKET, REAR ABSORBER MOUNTING, NO.1 RH

58342C

BRACKET, REAR ABSORBER MOUNTING, NO.1 LH

58351E

BRACKET, SPARE WHEEL CLAMP

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384G

GUSSET, LOWER BACK, UPPER RH

58386B

BRACKET, REAR BUMPER COVER, NO.2

6708

переход к группе запчастей

9010510301

Крепеж

9011506166

Крепеж

9011506219

Крепеж

9011506281

Крепеж

9011910866

Крепеж

9011910943

Крепеж

9011910945

Крепеж

91671A0825

Крепеж

9167380820

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA PRIUS A(ALPHA), 2014/11 - 2021/03, 1,8 литра, 16 клапанов, DOHC, EFI, S TYPE, ZVW40, вариатор
