Торпеда с бардачком TOYOTA PRIUS A(ALPHA), 2014/11 - 2021/03, 1,8 литра, 16 клапанов, DOHC, EFI, S TYPE, ZVW40, вариатор

Каталог

Япония

Модель

PRIUS A(ALPHA)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

ZVW40

Трансмиссия

вариатор

Опции

7-местный COMPLETED VEHICLE 628W

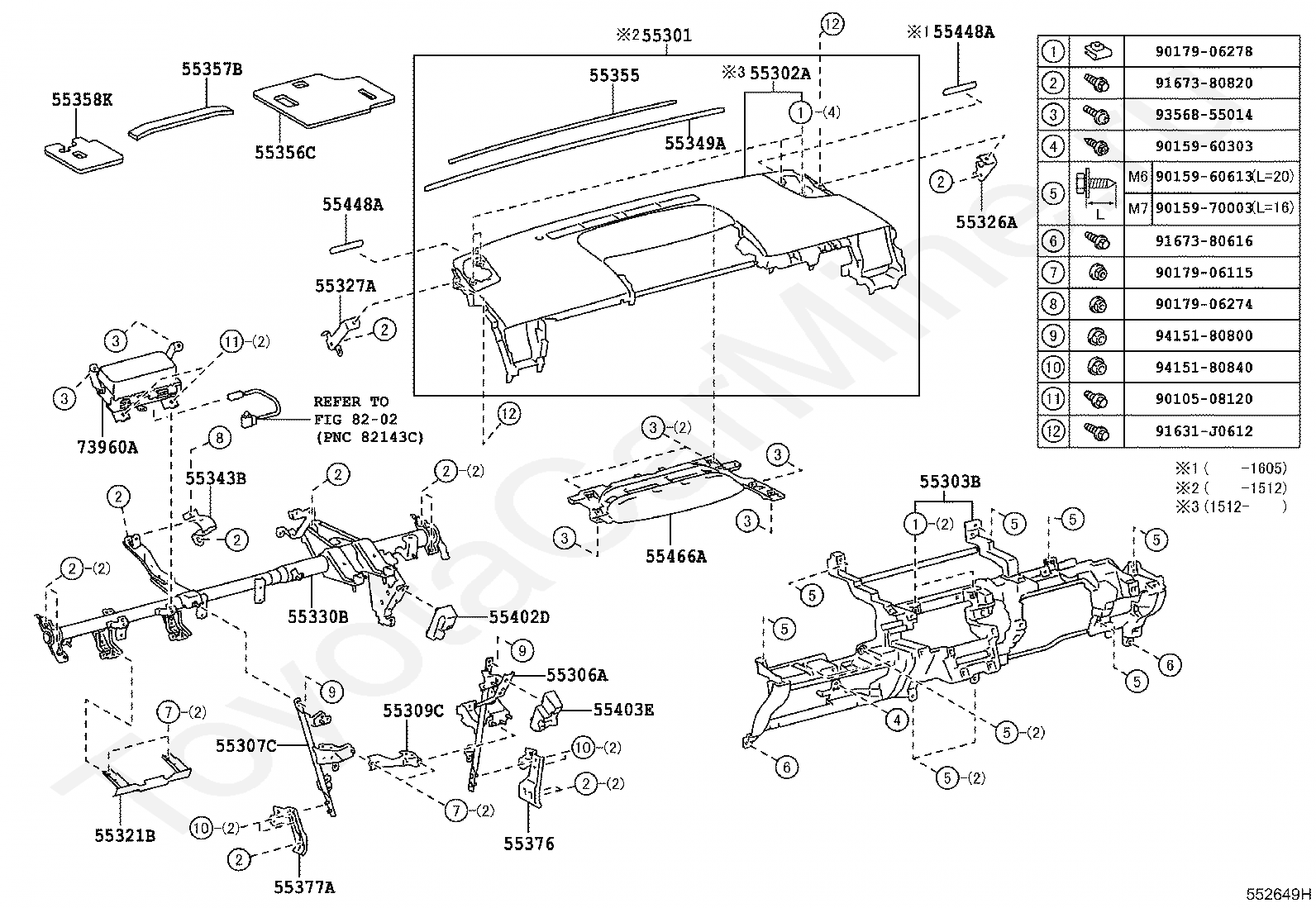

Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55302A

PANEL SUB-ASSY, INSTRUMENT, UPPER

55303B

PANEL SUB-ASSY, INSTRUMENT, LOWER

55306A

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

55307C

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

55309C

REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

55321B

BRACKET, INSTRUMENT PANEL, NO.1

55326A

STAY, INSTRUMENT PANEL, NO.1

55327A

STAY, INSTRUMENT PANEL, NO.2

55330B

REINFORCEMENT ASSY, INSTRUMENT PANEL

55343B

BRACE, INSTRUMENT PANEL TO COWL, CENTER

55349A

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55357B

CUSHION, INSTRUMENT PANEL, NO.3

55358K

CUSHION, INSTRUMENT PANEL, NO.4

55376

BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

55377A

BRACKET, INSTRUMENT PANEL MOUNTING, NO.2

55402D

PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

55403E

PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

55448A

CUSHION, INSTRUMENT PANEL FINISH, NO.1

55466A

RETAINER, INSTRUMENT PANEL SAFETY PAD

73960A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

8202

переход к группе запчастей

9010508120

Крепеж

9015960303

Крепеж

9015960613

Крепеж

9015970003

Крепеж

9017906115

Крепеж

9017906274

Крепеж

9017906278

Крепеж

91631J0612

Крепеж

9167380616

Крепеж

9167380820

Крепеж

9356855014

Крепеж

9415180800

Крепеж

9415180840

Крепеж

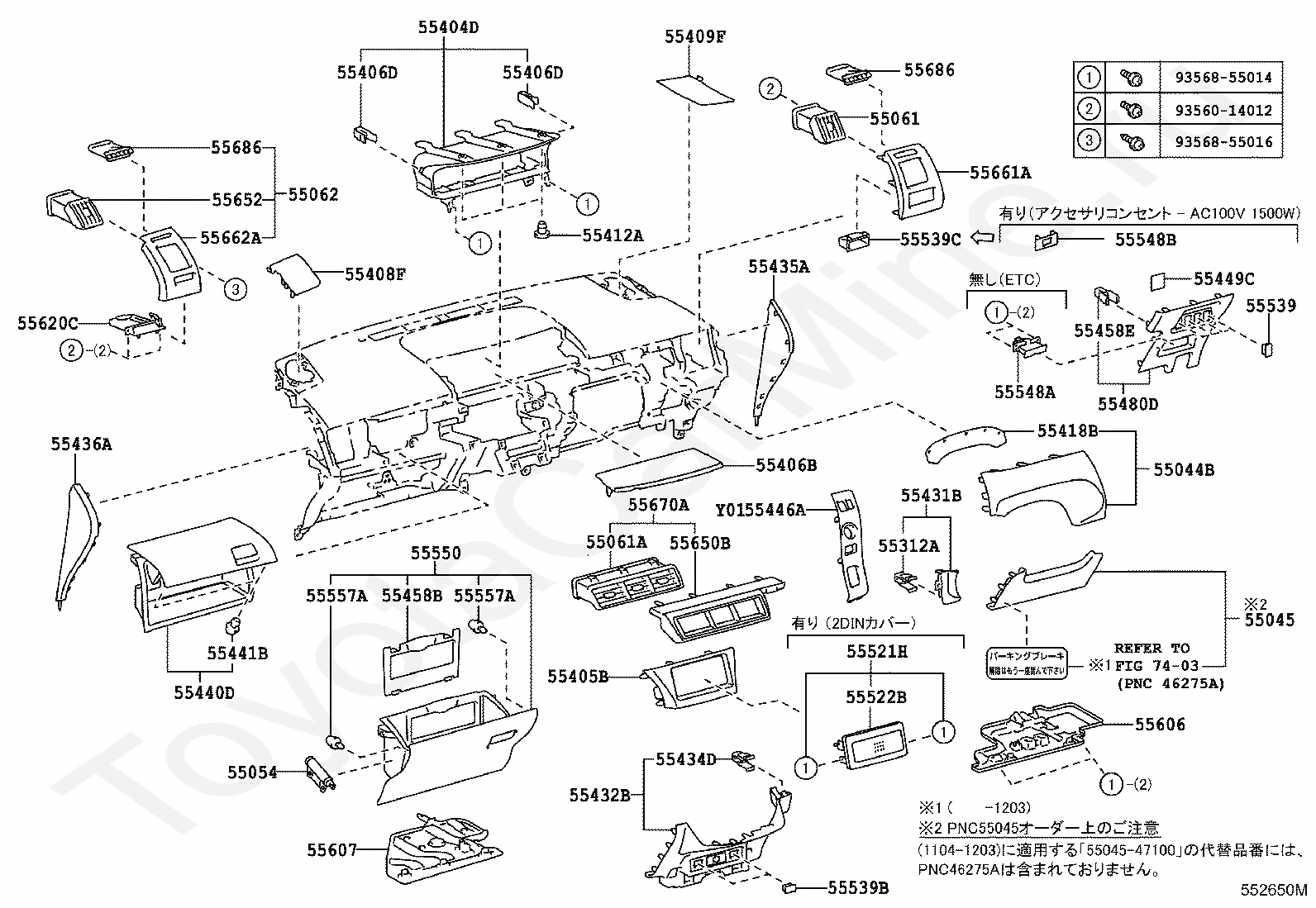

Код

Описание

55044B

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

55045

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55061

55061A

55062

55312A

CLIP, INSTRUMENT PANEL

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55406B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

55406D

CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

55408F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

55409F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55412A

CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END

55418B

SPACER,METER HOOD

55431B

PANEL, INSTRUMENT PANEL FINISH, UPPER

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55434D

CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

55435A

PANEL, INSTRUMENT PANEL FINISH, END RH

55436A

PANEL, INSTRUMENT PANEL FINISH, END LH

55440D

BOX ASSY, INSTRUMENT PANEL

55441B

CUSHION, INSTRUMENT PANEL BOX

55446A

BASE, SWITCH HOLE, NO.1

55449C

CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

55458B

COVER, INSTRUMENT, LWR

55458E

CLIP(FOR INSTRUMENT LOWER COVER)

55480D

PANEL ASSY, INSTRUMENT PANEL FINISH, LWR

55521H

COVER ASSY, STEREO OPENING

55522B

COVER, RADIO TUNER OPENING

55539

COVER, SPARE SWITCH HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55548A

COVER, INSTRUMENT PANEL HOLE

55548B

COVER, INSTRUMENT PANEL HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55606

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55620C

HOLDER, INSTRUMENT PANEL CUP

55650B

BEZEL, INSTRUMENT PANEL REGISTER

55652

55661A

BEZEL, INSTRUMENT PANEL REGISTER

55662A

BEZEL, INSTRUMENT PANEL RESISTER, NO.2

55670A

55686

RETAINER, REGISTER BLADE

7403

переход к группе запчастей

9356014012

Крепеж

9356855014

Крепеж

9356855016

Крепеж

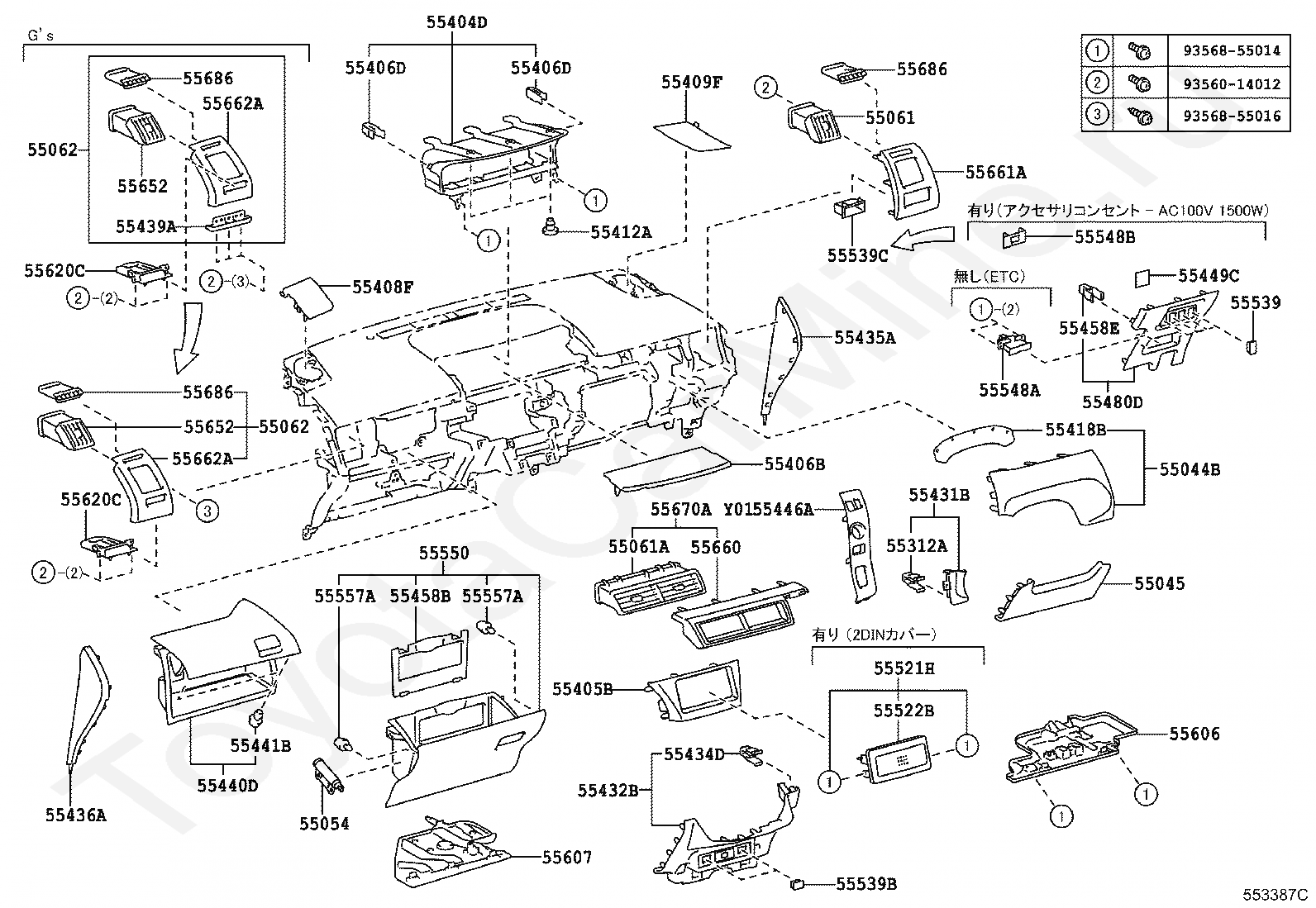

Код

Описание

55044B

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

55045

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55061

55061A

55062

55312A

CLIP, INSTRUMENT PANEL

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55406B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

55406D

CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

55408F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

55409F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55412A

CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END

55418B

SPACER,METER HOOD

55431B

PANEL, INSTRUMENT PANEL FINISH, UPPER

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55434D

CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

55435A

PANEL, INSTRUMENT PANEL FINISH, END RH

55436A

PANEL, INSTRUMENT PANEL FINISH, END LH

55439A

RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

55440D

BOX ASSY, INSTRUMENT PANEL

55441B

CUSHION, INSTRUMENT PANEL BOX

55446A

BASE, SWITCH HOLE, NO.1

55449C

CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

55458B

COVER, INSTRUMENT, LWR

55458E

CLIP(FOR INSTRUMENT LOWER COVER)

55480D

PANEL ASSY, INSTRUMENT PANEL FINISH, LWR

55521H

COVER ASSY, STEREO OPENING

55522B

COVER, RADIO TUNER OPENING

55539

COVER, SPARE SWITCH HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55548A

COVER, INSTRUMENT PANEL HOLE

55548B

COVER, INSTRUMENT PANEL HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55606

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55620C

HOLDER, INSTRUMENT PANEL CUP

55652

55660

55661A

BEZEL, INSTRUMENT PANEL REGISTER

55662A

BEZEL, INSTRUMENT PANEL RESISTER, NO.2

55670A

55686

RETAINER, REGISTER BLADE

9356014012

Крепеж

9356855014

Крепеж

9356855016

Крепеж

Торпеда с бардачком TOYOTA PRIUS A(ALPHA), 2014/11 - 2021/03, 1,8 литра, 16 клапанов, DOHC, EFI, S TYPE, ZVW40, вариатор
