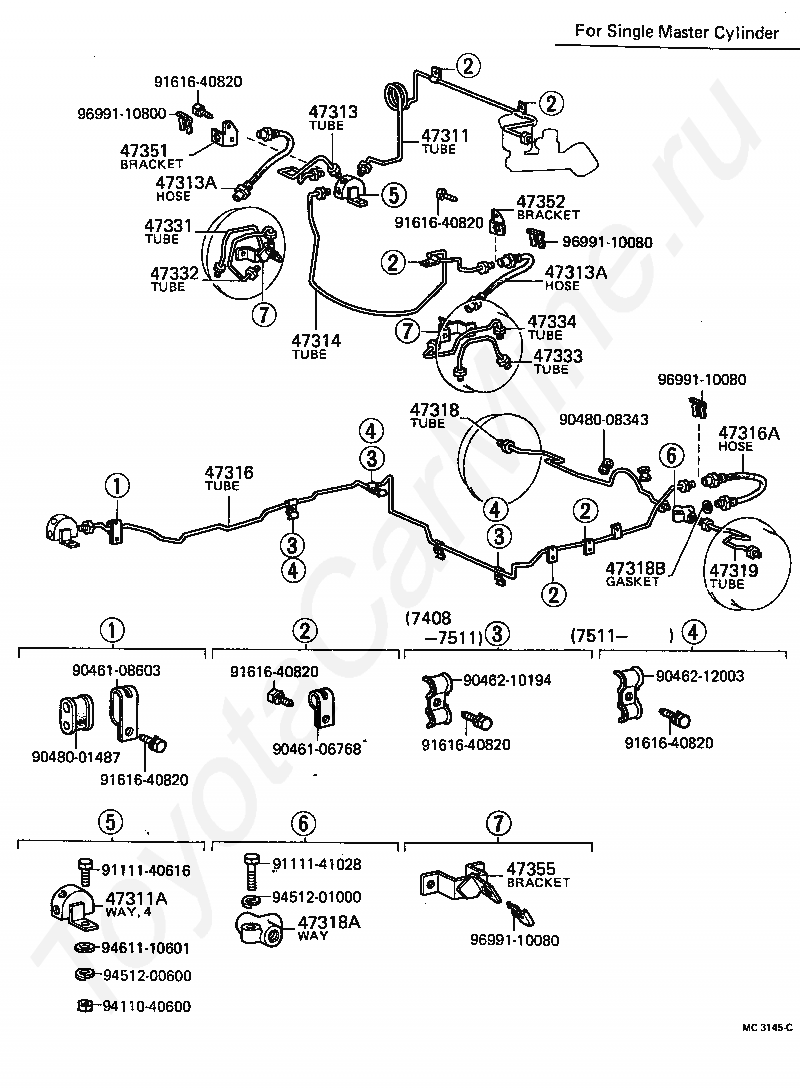

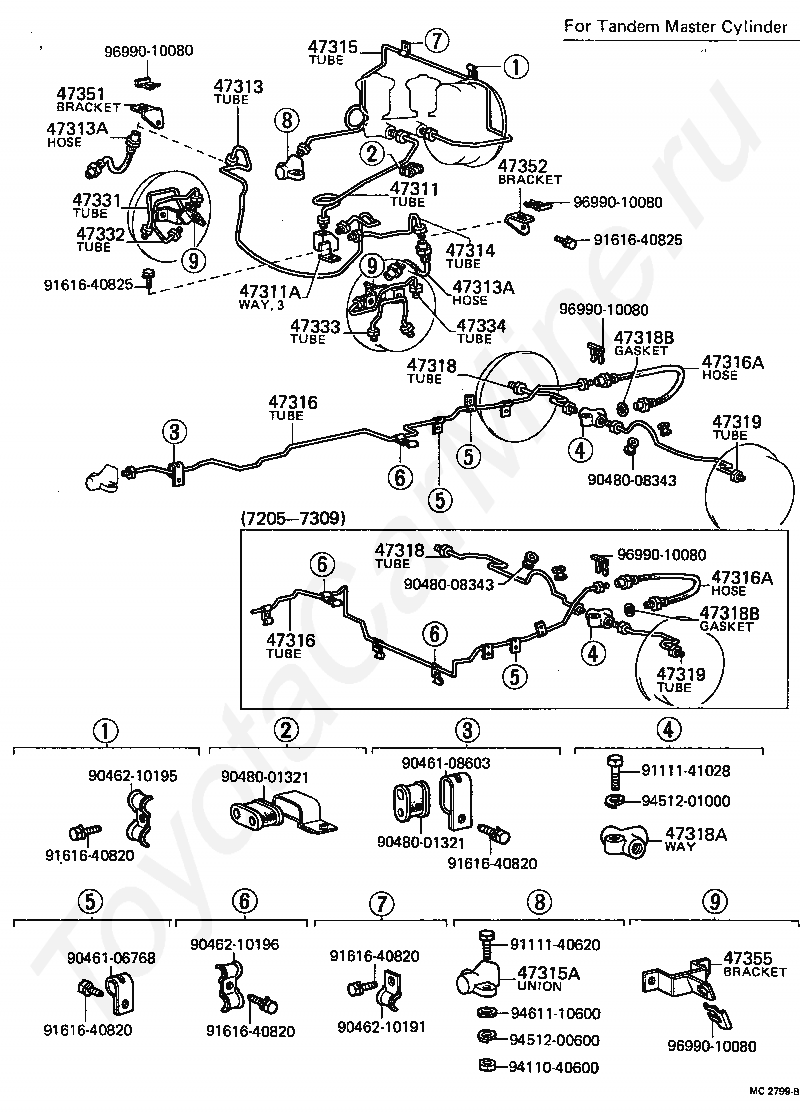

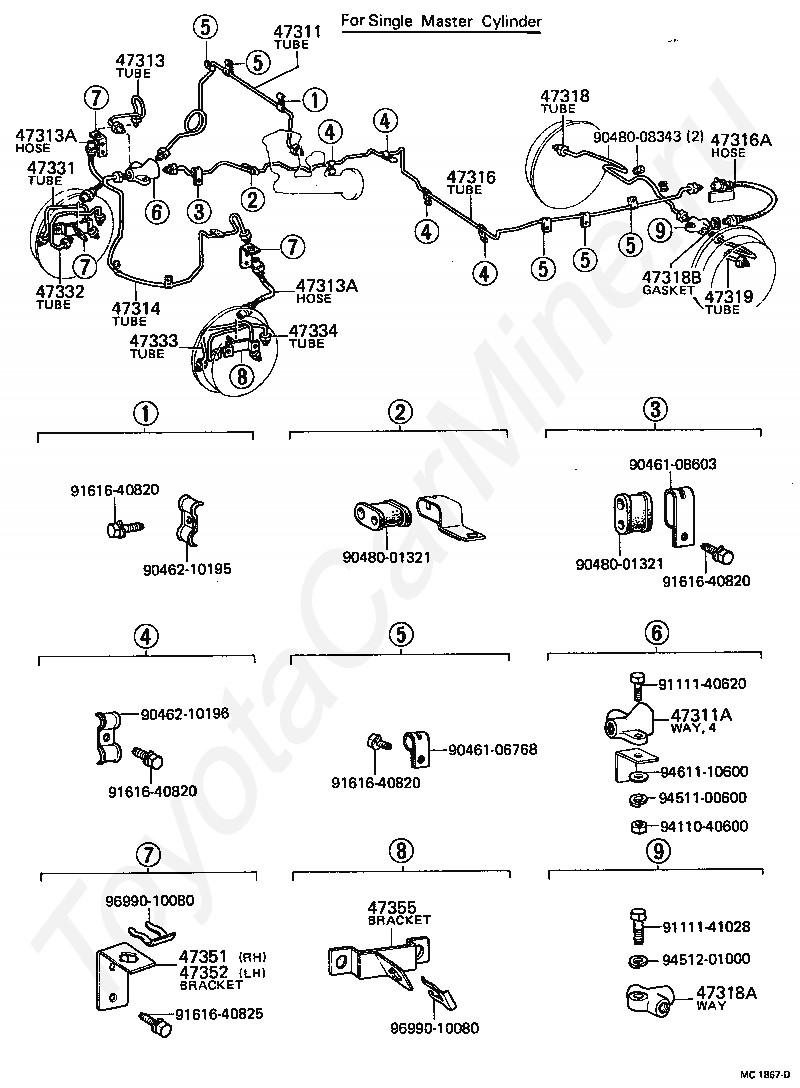

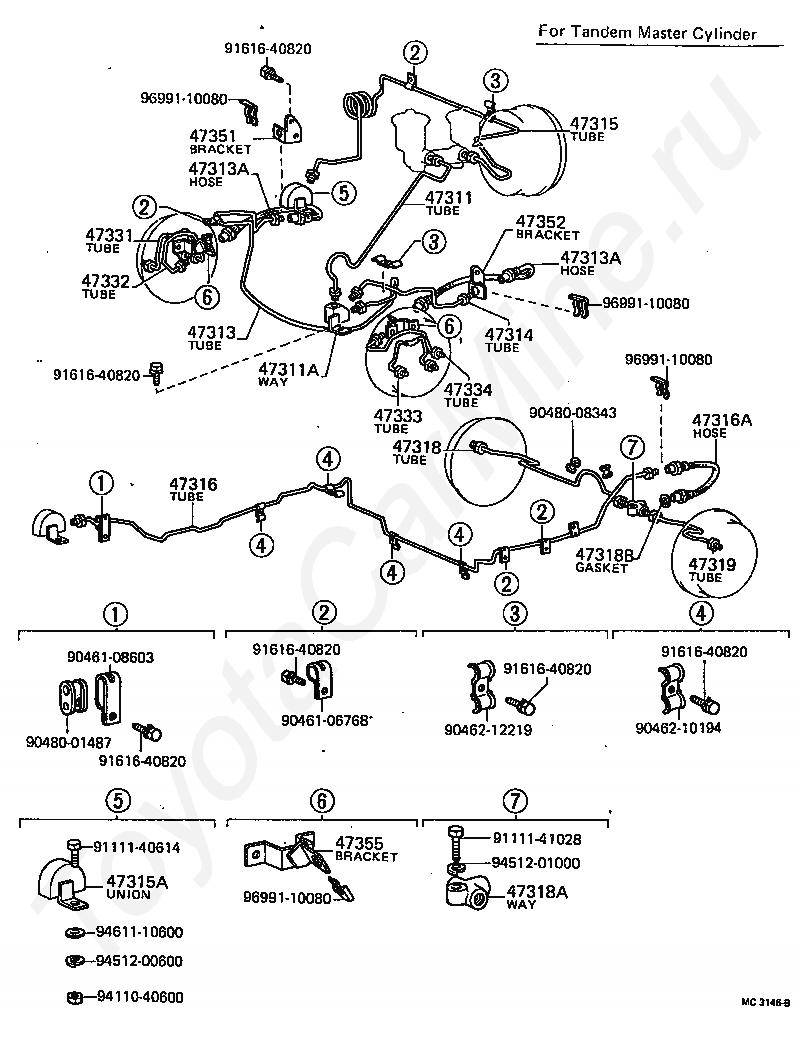

Тормозная магистраль TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени

Каталог

Европа

Модель

HILUX

Двигатель

1,6 литра

Фрейм

RN20

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210195

Крепеж

9046210196

Крепеж

9048001321

Крепеж

9048008343

Крепеж

9111140620

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9161640825

Крепеж

9411040600

Крепеж

9451100600

Крепеж

9451201000

Крепеж

9461110600

Крепеж

9699010080

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210194

Крепеж

9046212003

Крепеж

9048001487

Крепеж

9048008343

Крепеж

9111140616

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461110601

Крепеж

9699110080

Крепеж

9699110800

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315A

WAY OR UNION(FOR REAR BRAKE TUBE)

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210191

Крепеж

9046210195

Крепеж

9046210196

Крепеж

9048001321

Крепеж

9048008343

Крепеж

9111140620

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9161640825

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461110600

Крепеж

9699010080

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315A

WAY OR UNION(FOR REAR BRAKE TUBE)

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210194

Крепеж

9046212219

Крепеж

9048001487

Крепеж

9048008343

Крепеж

9111140614

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461110600

Крепеж

9699110080

Крепеж

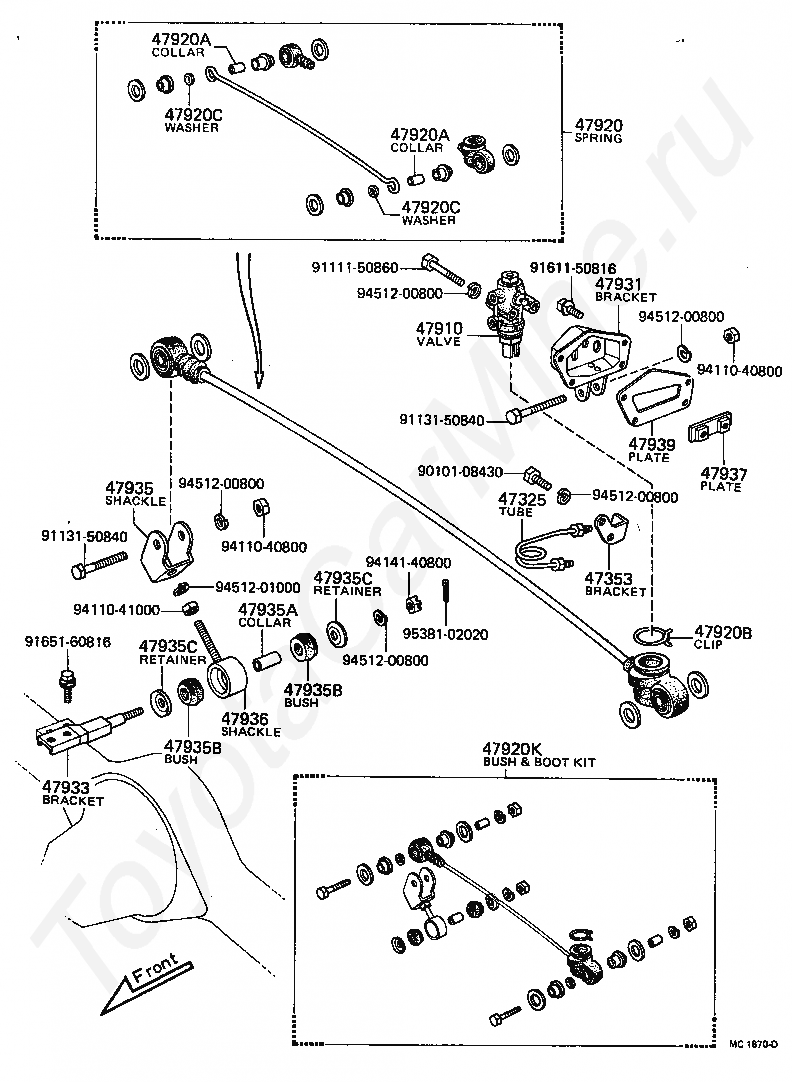

Код

Описание

47325

TUBE, REAR BRAKE, NO.5

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920K

BUSH & BOOT KIT, LOAD SENSING SPRING

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

47939

PLATE, VALVE BRACKET DUST

9010108430

Крепеж

9111150860

Крепеж

9113150840

Крепеж

9161150816

Крепеж

9165160816

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210194

Крепеж

9046212003

Крепеж

9048001487

Крепеж

9048008343

Крепеж

9111140616

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461110601

Крепеж

9699110080

Крепеж

9699110800

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315A

WAY OR UNION(FOR REAR BRAKE TUBE)

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47318A

WAY(FOR REAR RH BRAKE TUBE)

47318B

GASKET(FOR REAR RH BRAKE TUBE)

47319

TUBE, FRONT BRAKE, NO.9

47331

TUBE, REAR BRAKE, NO.10

47332

TUBE, REAR BRAKE, NO.11

47333

TUBE, REAR BRAKE, NO.12

47334

TUBE, REAR BRAKE, NO.13

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47355

BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

9046106768

Крепеж

9046108603

Крепеж

9046210194

Крепеж

9046212219

Крепеж

9048001487

Крепеж

9048008343

Крепеж

9111140614

Крепеж

9111141028

Крепеж

9161640820

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461110600

Крепеж

9699110080

Крепеж

Код

Описание

47325

TUBE, REAR BRAKE, NO.5

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920K

BUSH & BOOT KIT, LOAD SENSING SPRING

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

47939

PLATE, VALVE BRACKET DUST

9010108430

Крепеж

9111150860

Крепеж

9113150840

Крепеж

9161150816

Крепеж

9165160816

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени
