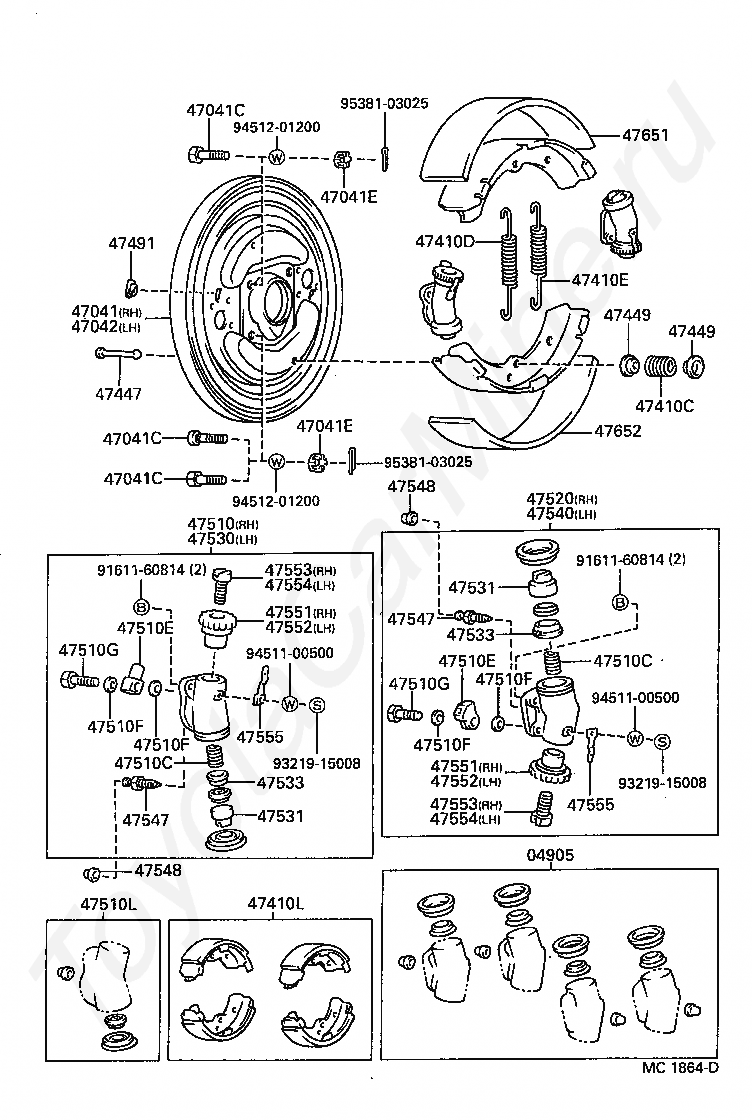

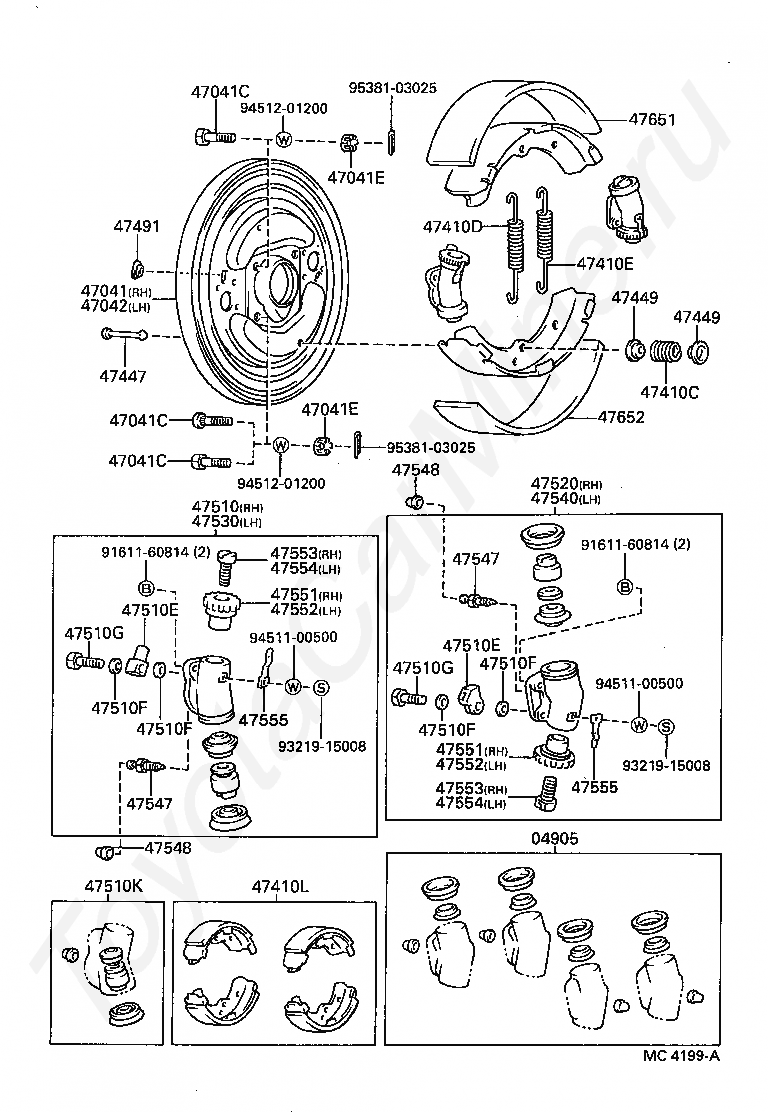

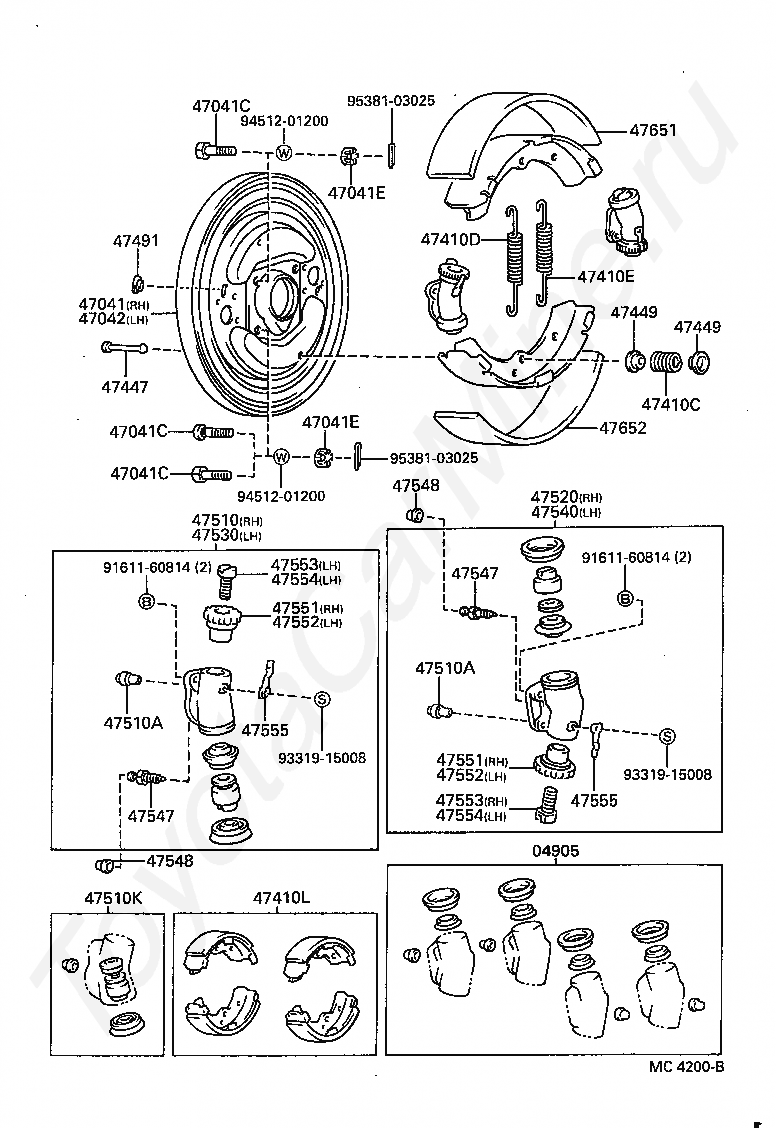

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени

Каталог

Европа

Модель

HILUX

Двигатель

1,6 литра

Фрейм

RN20

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль

Код

Описание

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041C

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47041E

NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410E

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410L

SHOE KIT, FRONT BRAKE

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510C

SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

47510E

UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510F

GASKET(FOR FRONT WHEEL BRAKE CYLINDER)

47510G

BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510L

CUP KIT, FRONT WHEEL CYLINDER

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47531

PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

47533

SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47551

NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47552

NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47555

SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

47651

LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

47652

LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

9161160814

Крепеж

9321915008

Крепеж

9451100500

Крепеж

9451201200

Крепеж

9538103025

Крепеж

Код

Описание

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041C

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47041E

NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410E

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410L

SHOE KIT, FRONT BRAKE

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510E

UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510F

GASKET(FOR FRONT WHEEL BRAKE CYLINDER)

47510G

BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510K

CYLINDER KIT, FRONT WHEEL

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47551

NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47552

NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47555

SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

47651

LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

47652

LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

9161160814

Крепеж

9321915008

Крепеж

9451100500

Крепеж

9451201200

Крепеж

9538103025

Крепеж

Код

Описание

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041C

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47041E

NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410E

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410L

SHOE KIT, FRONT BRAKE

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510A

SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510K

CYLINDER KIT, FRONT WHEEL

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47551

NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47552

NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47555

SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

47651

LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

47652

LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

9161160814

Крепеж

9331915008

Крепеж

9451201200

Крепеж

9538103025

Крепеж

Код

Описание

04905

CUP KIT, FRONT WHEEL CYLINDER

47041

PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

47041C

BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47041E

NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

47042

PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

47410C

SPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

47410D

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410E

SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

47410L

SHOE KIT, FRONT BRAKE

47447

PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47449

CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

47491

PLUG, HOLE(FOR FRONT BRAKE)

47510

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

47510A

SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

47510K

CYLINDER KIT, FRONT WHEEL

47520

CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

47530

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

47540

CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

47547

PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

47548

CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

47551

NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47552

NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47553

BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

47554

BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

47555

SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

47651

LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

47652

LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

9161160814

Крепеж

9331915008

Крепеж

9451201200

Крепеж

9538103025

Крепеж

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени
