Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
1,8 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
YH50Трансмиссия
механика МКПП, 4 ступени, на рулеОпции
правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

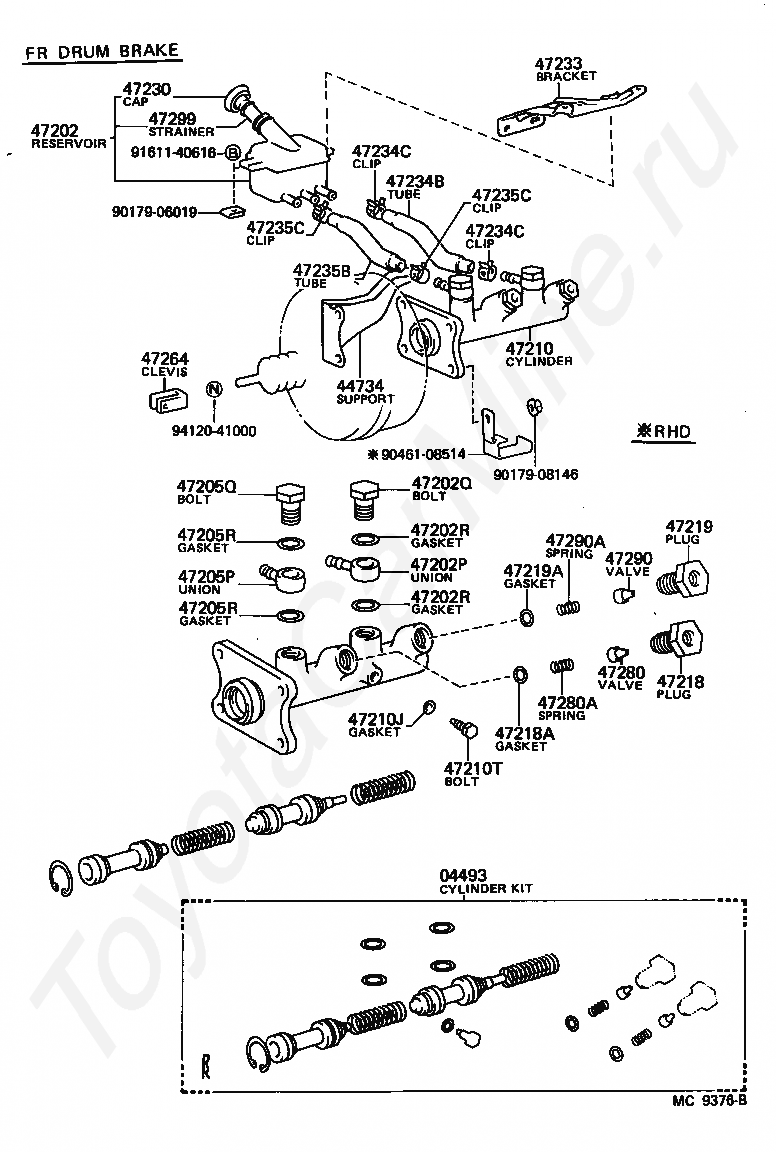

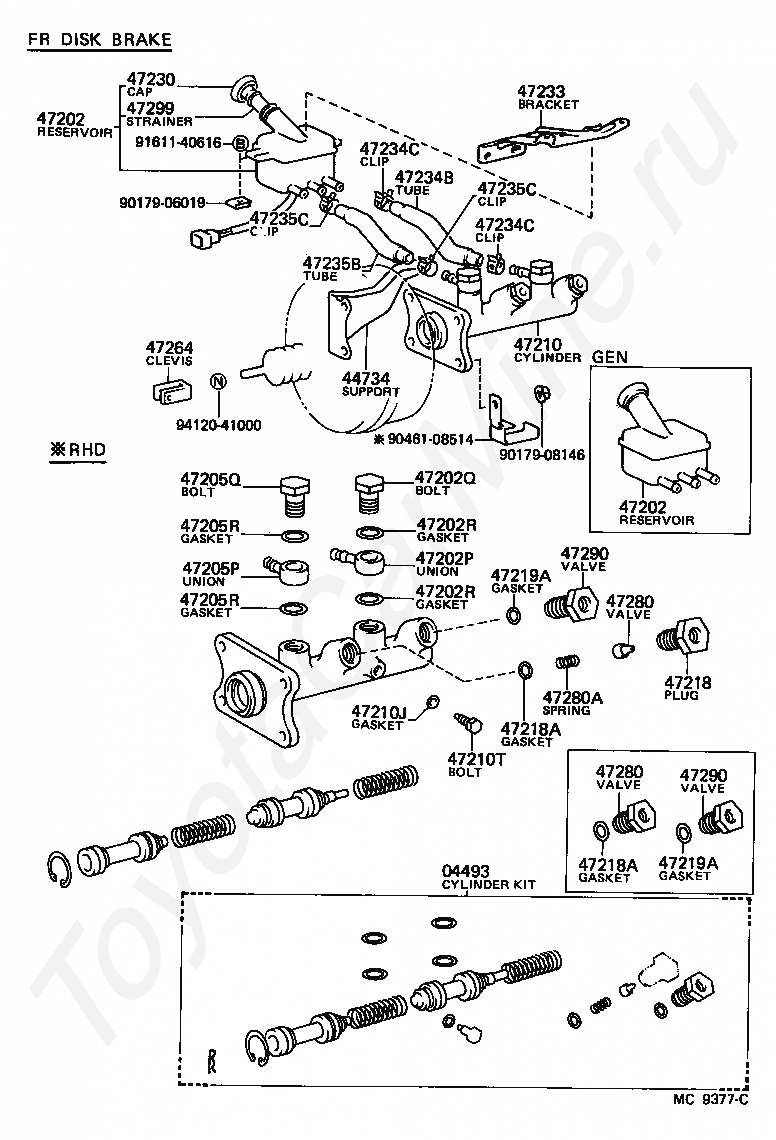

Код
Описание
04493
CYLINDER KIT, BRAKE MASTER
44734
BRACKET, BOOSTER SUPPORT OR ROD SUPPORT
47202
RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202P
UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
47202Q
BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47202R
GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47205P
UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)
47205Q
BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)
47205R
GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)
47210
CYLINDER ASSY, MASTER, W/O BOOSTER
47210J
GASKET(FOR MASTER CYLINDER)
47210T
BOLT(FOR BRAKE MASTER CYLINDER)
47218
PLUG, MASTER CYLINDER FLUID OUTLET
47218A
GASKET(FOR FLUID OUTLET PLUG)
47219
PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)
47219A
GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
47230
CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47233
BRACKET, RESERVOIR
47234B
TUBE, RESERVOIR, NO.1
47234C
CLIP(FOR RESERVOIR TUBE NO.1)
47235B
TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235C
CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
47264
CLEVIS, MASTER CYLINDER PUSH ROD
47280
VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280A
SPRING, COMPRESSION
47290
VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47290A
SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)
47299
STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017906019
Крепеж
9017908146
Крепеж
9046108514
Крепеж
9161140616
Крепеж
9412041000
Крепеж
Код
Описание
04493
CYLINDER KIT, BRAKE MASTER
44734
BRACKET, BOOSTER SUPPORT OR ROD SUPPORT
47202
RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202P
UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
47202Q
BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47202R
GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
47205P
UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)
47205Q
BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)
47205R
GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)
47210
CYLINDER ASSY, MASTER, W/O BOOSTER
47210J
GASKET(FOR MASTER CYLINDER)
47210T
BOLT(FOR BRAKE MASTER CYLINDER)
47218
PLUG, MASTER CYLINDER FLUID OUTLET
47218A
GASKET(FOR FLUID OUTLET PLUG)
47219A
GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
47230
CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47233
BRACKET, RESERVOIR
47234B
TUBE, RESERVOIR, NO.1
47234C
CLIP(FOR RESERVOIR TUBE NO.1)
47235B
TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235C
CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
47264
CLEVIS, MASTER CYLINDER PUSH ROD
47280
VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280A
SPRING, COMPRESSION
47290
VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47299
STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017906019
Крепеж
9017908146
Крепеж
9046108514
Крепеж
9161140616
Крепеж
9412041000
Крепеж
