Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
1,8 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
YH50Трансмиссия
механика МКПП, 4 ступени, на рулеОпции
правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

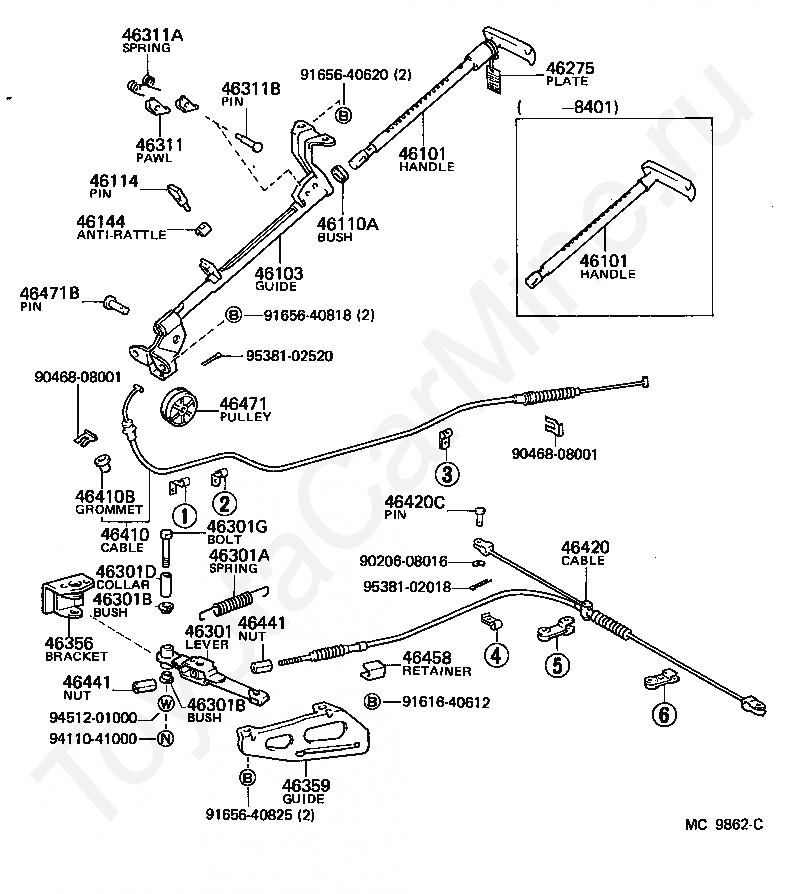

Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46110A
BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
46114
PIN, PARKING BRAKE PLUNGER
46144
ANTI-RATTLE, PARKING BRAKE PLUNGER
46275
PLATE, PARKING BRAKE RELEASE CAUTION
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301A
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301B
BUSH(FOR INTERMEDIATE LEVER)
46301D
COLLAR(FOR INTERMEDIATE LEVER)
46301G
BOLT(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46356
BRACKET, EQUALIZER SUPPORT
46359
GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410B
GROMMET(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420C
PIN, W/HOLE(FOR PARKING BRAKE CABLE)
46441
NUT, WIRE ADJUSTING, NO.1
46458
RETAINER, CABLE
46471
PULLEY, WIRE
46471B
PIN, W/HOLE(FOR WIRE PULLEY SET)
9020608016
Крепеж
9046808001
Крепеж
9161640612
Крепеж
9165640620
Крепеж
9165640818
Крепеж
9165640825
Крепеж
9411041000
Крепеж
9451201000
Крепеж
9538102018
Крепеж
9538102520
Крепеж

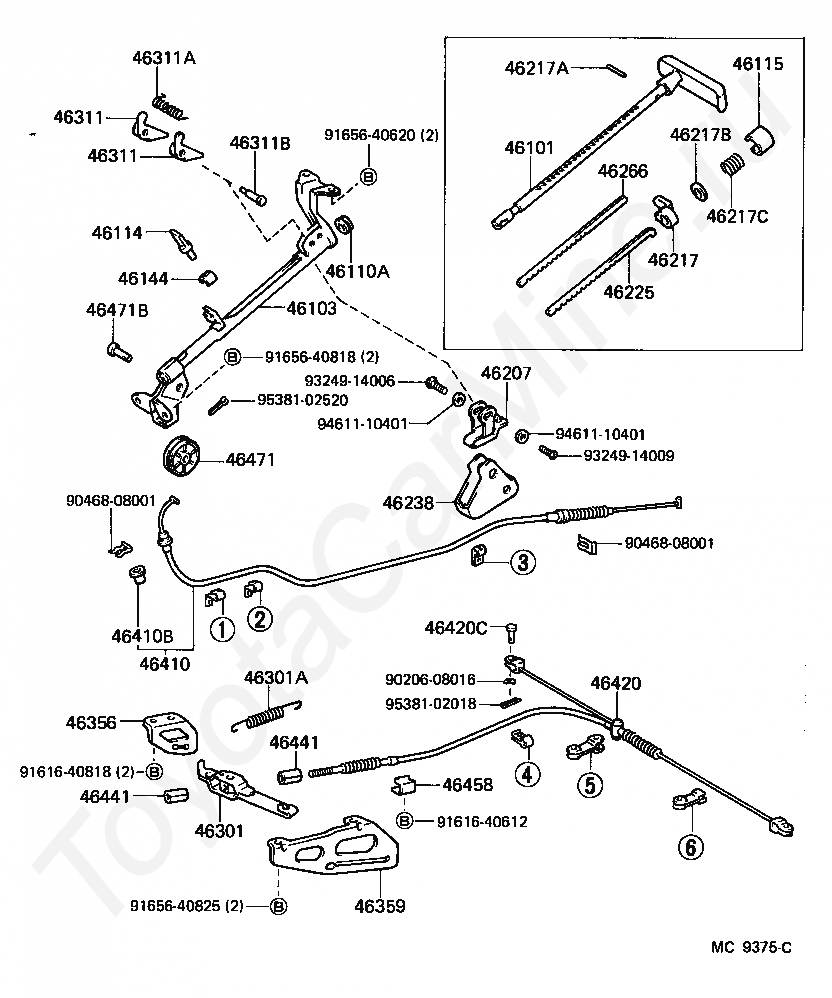

Код
Описание
46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46110A
BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
46114
PIN, PARKING BRAKE PLUNGER
46115
WASHER, PARKING BRAKE PLUNGER
46144
ANTI-RATTLE, PARKING BRAKE PLUNGER
46207
PIN SUB-ASSY, PLUNGER LOCK
46217
KNOB, PARKING BRAKE RELEASE ROD
46217A
PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)
46217B
WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)
46217C
SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)
46225
ROD, PARKING BRAKE PAWL RELEASE
46238
PROTECTOR, PLUNGER LOCK PIN
46266
HOLDER, PLUNGER LOCK PIN
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301A
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46356
BRACKET, EQUALIZER SUPPORT
46359
GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410B
GROMMET(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420C
PIN, W/HOLE(FOR PARKING BRAKE CABLE)
46441
NUT, WIRE ADJUSTING, NO.1
46458
RETAINER, CABLE
46471
PULLEY, WIRE
46471B
PIN, W/HOLE(FOR WIRE PULLEY SET)
9020608016
Крепеж
9046808001
Крепеж
9161640612
Крепеж
9161640818
Крепеж
9165640620
Крепеж
9165640818
Крепеж
9165640825
Крепеж
9324914006
Крепеж
9324914009
Крепеж
9461110401
Крепеж
9538102018
Крепеж
9538102520
Крепеж

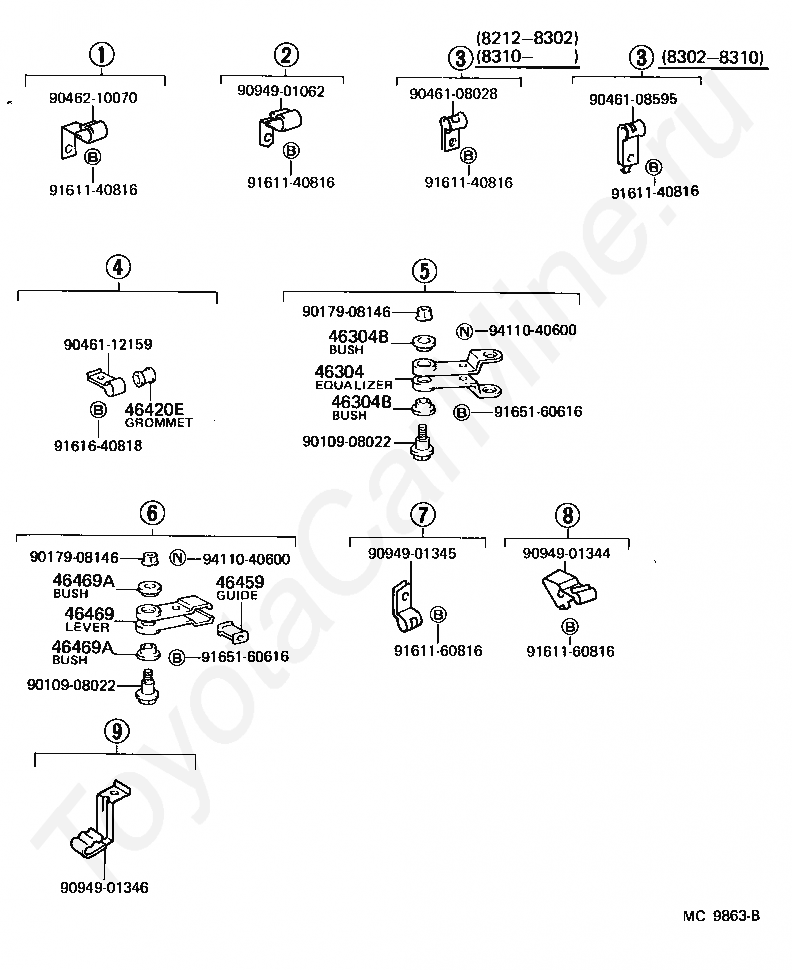

Код
Описание
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46304B
BUSH(FOR PARKING BRAKE EQUALIZER)
46420E
GROMMET(FOR PARKING BRAKE CABLE CLAMP)
46459
GUIDE, CABLE
46469
LEVER, CABLE GUIDE SUPPORT
46469A
BUSH, CABLE GUIDE SUPPORT LEVER
9010908022
Крепеж
9017908146
Крепеж
9046108028
Крепеж
9046108595
Крепеж
9046112159
Крепеж
9046210070
Крепеж
9094901062
Крепеж
9094901344
Крепеж
9094901345
Крепеж
9094901346
Крепеж
9161140816
Крепеж
9161160816
Крепеж
9161640818
Крепеж
9165160616
Крепеж
9411040600
Крепеж
