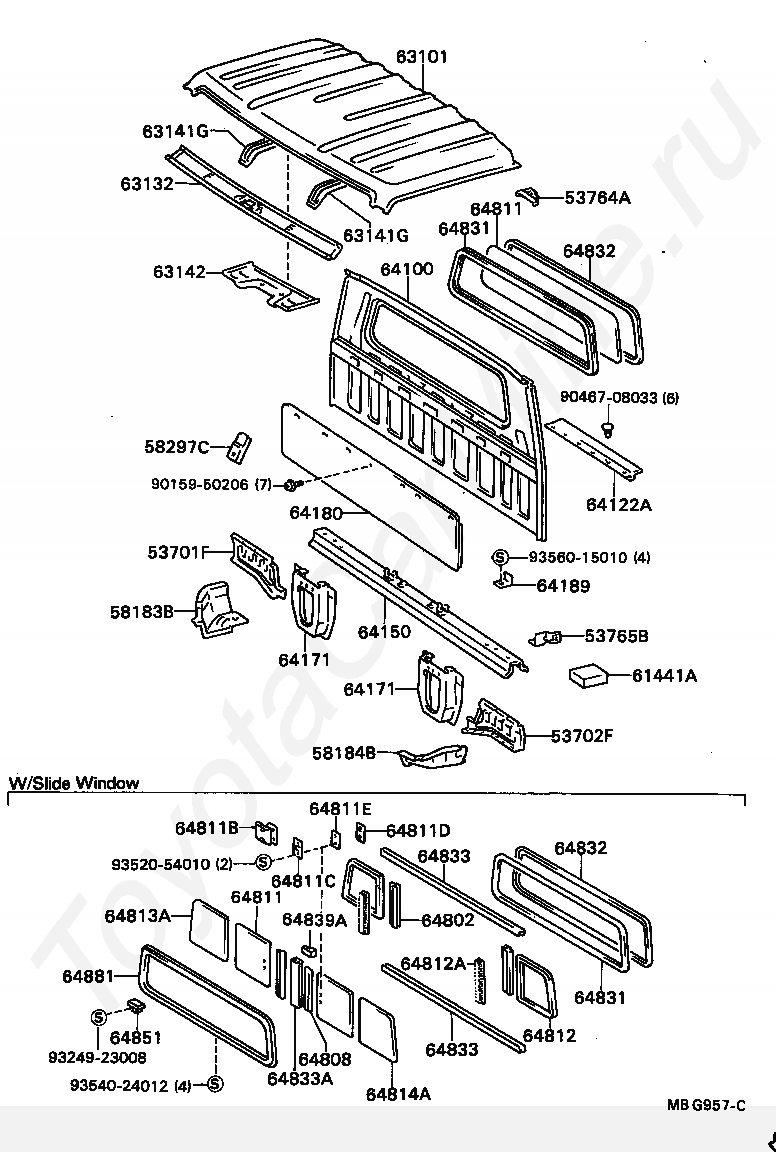

ROOF PANEL & BACK PANEL TOYOTA DYNA/TOYOACE, 1984/09 - 1987/08, 2 литра, V(MODEL MARK), YU70, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

YU70

Трансмиссия

МКПП, 5 скоростей

Опции

DYNA STANDARD ROOF 6-местный ST CBR CBU

Код

Описание

53701F

APRON SUB-ASSY, FRONT FENDER, NO.2 RH

53702F

APRON SUB-ASSY, FRONT FENDER, NO.2 LH

53764A

BRACKET, AIR CLEANER INLET, NO.1

53765B

BRACKET, AIR CLEANER INLET, NO.2

58183B

REINFORCEMENT, REAR MOUNTING, RH

58184B

REINFORCEMENT, REAR MOUNTING, LH

58297C

REINFORCEMENT, SEAT BELT ANCHOR

61441A

SILENCER, REAR PILLAR

63101

PANEL SUB-ASSY, ROOF

63132

PANEL, WINDSHIELD HEADER, INNER

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

64100

PANEL ASSY, BACK, OUTER

64122A

BAFFLE, DUST REAR BODY

64150

FRAME ASSY, BACK

64171

BRACKET, CAB REAR MOUNTING

64180

SILENCER ASSY, BACK PANEL

64189

CLAMP, BACK PANEL SILENCER

64802

FRAME SUB-ASSY, BACK WINDOW FIX

64808

CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

64811

GLASS, BACK WINDOW

64811B

LOCK ASSY, BACK WINDOW

64811C

CATCH, BACK WINDOW LOCK

64811D

RETAINER, BACK WINDOW

64811E

PACKING, BACK WINDOW LOCK

64812

WEATHERSTRIP, BACK WINDOW GLASS, NO.1

64812A

WEATHERSTRIP, BACK WINDOW GLASS, NO.2

64813A

GLASS, BACK WINDOW CORNER, RH

64814A

GLASS, BACK WINDOW CORNER, LH

64831

WEATHERSTRIP, BACK WINDOW GLASS

64832

KEY, BACK WINDOW WEATHERSTRIP

64833

WEATHERSTRIP, BACK WINDOW CHANNEL

64833A

WEATHERSTRIP, BACK WINDOW CENTER CHANNEL

64839A

PACKING, BACK WINDOW

64851

STOP, BACK WINDOW SLIDE GLASS

64881

CHANNEL, BACK WINDOW GLASS

9015950206

Крепеж

9046708033

Крепеж

9324923008

Крепеж

9352054010

Крепеж

9354024012

Крепеж

9356015010

Крепеж

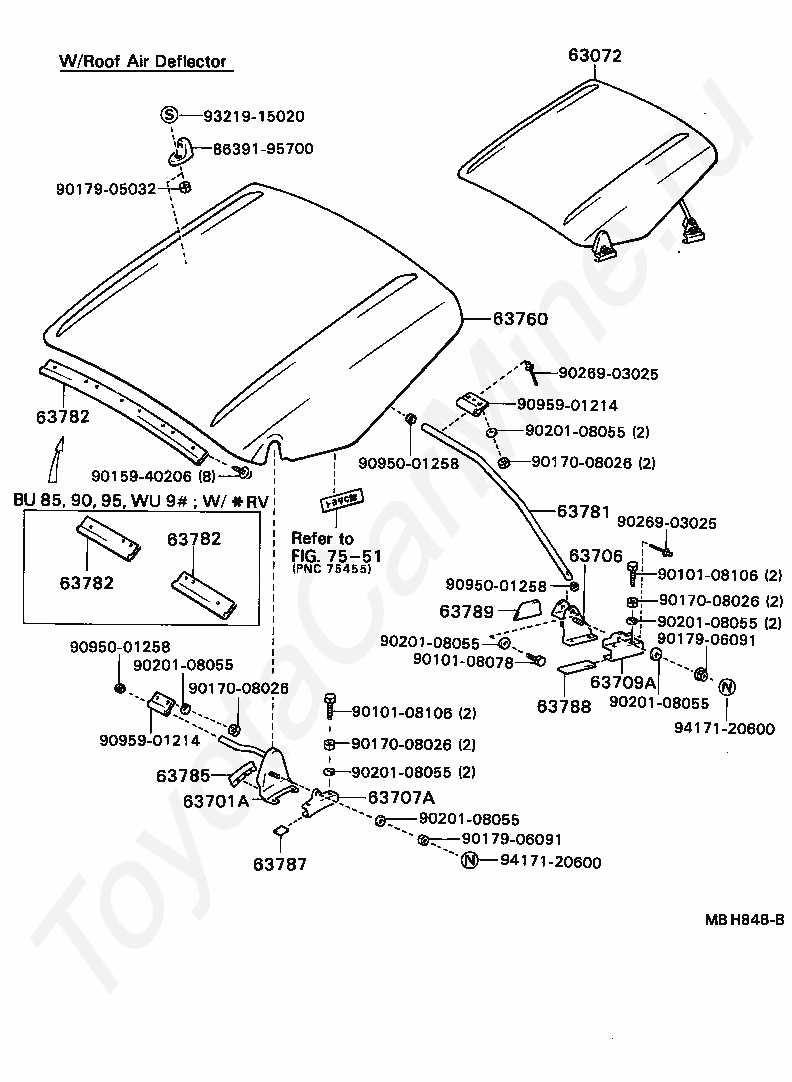

Код

Описание

63072

DEFLECTOR SET, ROOF AIR

63701A

BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT

63706

BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR

63707A

HOLDER SUB-ASSY, ROOF DEFLECTOR, FRONT

63709A

HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR

63760

PANEL ASSY, ROOF AIR DEFLECTOR

63781

STAY, ROOF AIR DEFLECTOR

63782

SEAL, ROOF AIR DEFLECTOR

63785

PAD, ROOF AIR DEFLECTOR, FRONT

63787

PAD, ROOF AIR DEFLECTOR, NO.1

63788

PAD, ROOF AIR DEFLECTOR, NO.2

63789

PAD, ROOF AIR DEFLECTOR, NO.3

7551

переход к группе запчастей

8639195700

Крепеж

9010108078

Крепеж

9010108106

Крепеж

9015940206

Крепеж

9017008026

Крепеж

9017905032

Крепеж

9017906091

Крепеж

9020108055

Крепеж

9026903025

Крепеж

9095001258

Крепеж

9095901214

Крепеж

9321915020

Крепеж

9417120600

Крепеж

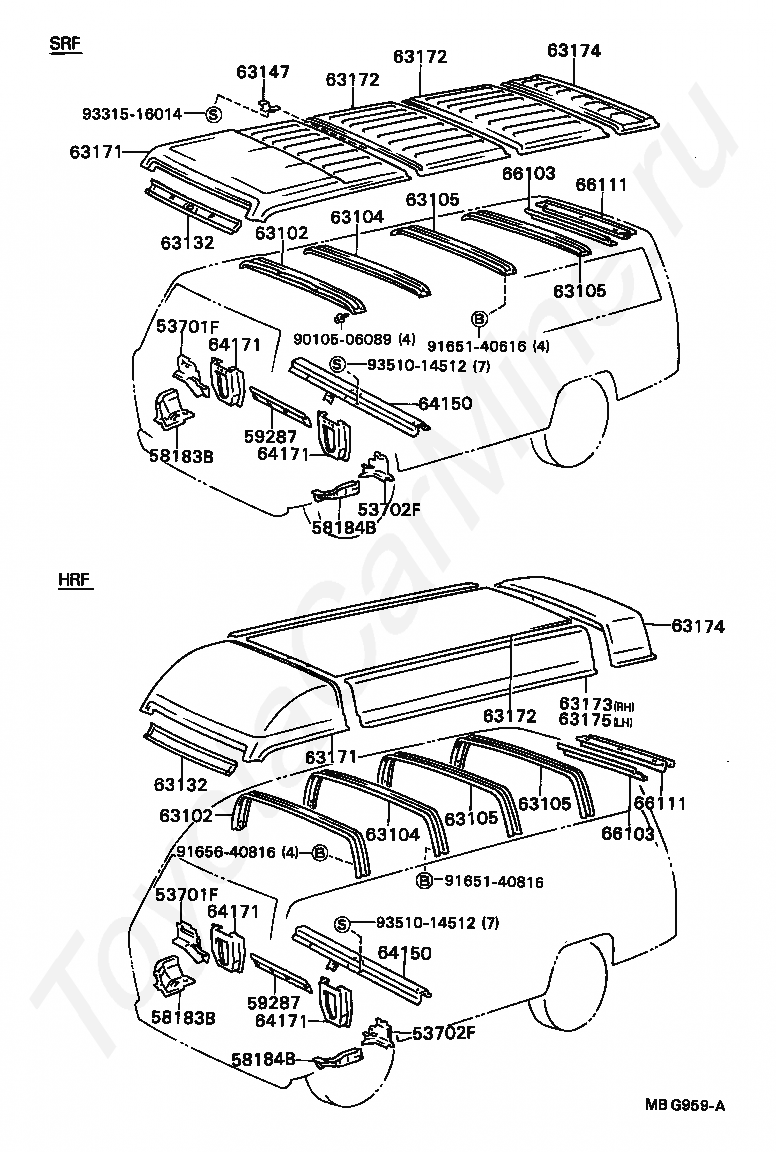

Код

Описание

53701F

APRON SUB-ASSY, FRONT FENDER, NO.2 RH

53702F

APRON SUB-ASSY, FRONT FENDER, NO.2 LH

58183B

REINFORCEMENT, REAR MOUNTING, RH

58184B

REINFORCEMENT, REAR MOUNTING, LH

59287

BASE, TRANSMISSION COVER, CENTER

63102

REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

63104

REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

63105

REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

63132

PANEL, WINDSHIELD HEADER, INNER

63147

BRACKET, ROOF PANEL REINFORCEMENT

63171

PANEL, ROOF, FRONT

63172

PANEL, ROOF, CENTER

63173

PANEL, ROOF, CENTER SIDE RH

63174

PANEL, ROOF, REAR

63175

PANEL, ROOF, CENTER SIDE LH

64150

FRAME ASSY, BACK

64171

BRACKET, CAB REAR MOUNTING

66103

RAIL SUB-ASSY, ROOF BACK, INNER

66111

RAIL, ROOF BACK, OUTER

9010506089

Крепеж

9165140616

Крепеж

9165140816

Крепеж

9165640816

Крепеж

9331516014

Крепеж

9351014512

Крепеж

ROOF PANEL & BACK PANEL TOYOTA DYNA/TOYOACE, 1984/09 - 1987/08, 2 литра, V(MODEL MARK), YU70, МКПП, 5 скоростей
