Боковая панель кузова TOYOTA DYNA/TOYOACE, 1984/09 - 1987/08, 2 литра, V(MODEL MARK), YU70, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

YU70

Трансмиссия

МКПП, 5 скоростей

Опции

DYNA STANDARD ROOF 6-местный ST CBR CBU

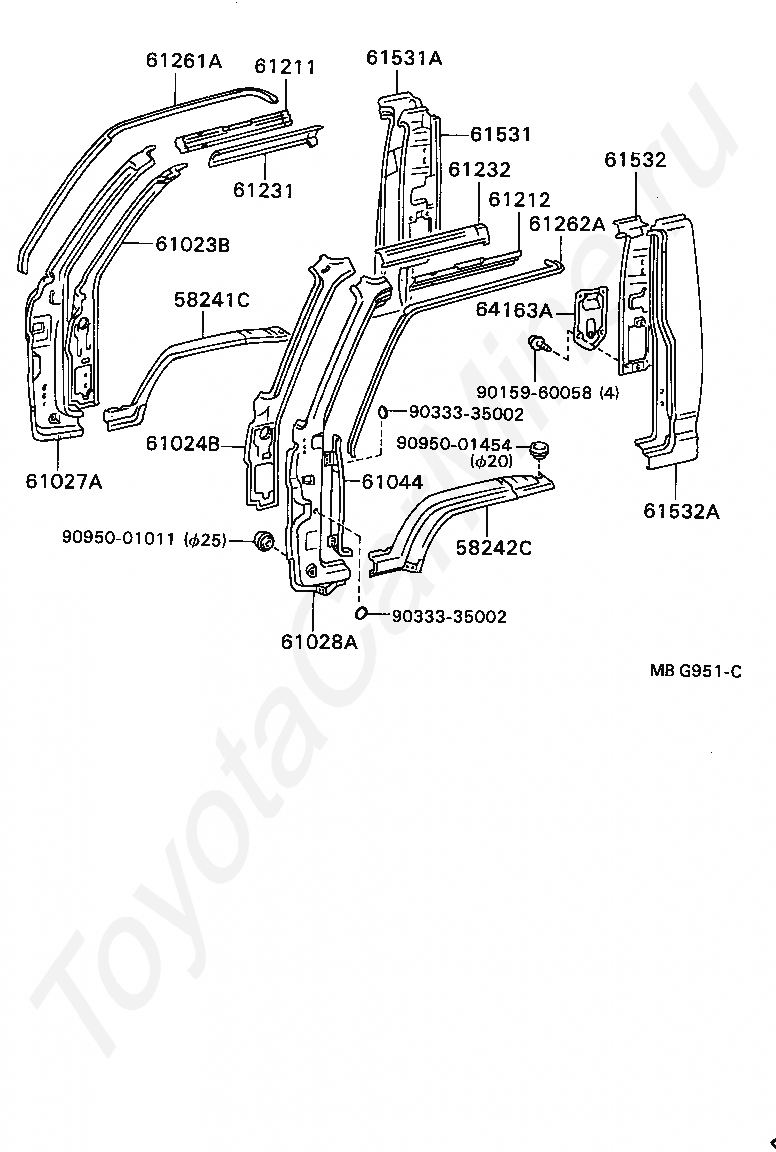

Код

Описание

58241C

PANEL, FLOOR SIDE, RH

58242C

PANEL, FLOOR SIDE, LH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61044

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61261A

CHANNEL, ROOF DRIP SIDE, FRONT RH

61262A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61531

PANEL, BACK CORNER, INNER RH

61531A

PANEL, BACK CORNER, OUTER RH

61532

PANEL, BACK CORNER, INNER LH

61532A

PANEL, BACK CORNER, OUTER LH

64163A

COVER, BACK CORNER, INNER

9015960058

Крепеж

9033335002

Крепеж

9095001011

Крепеж

9095001454

Крепеж

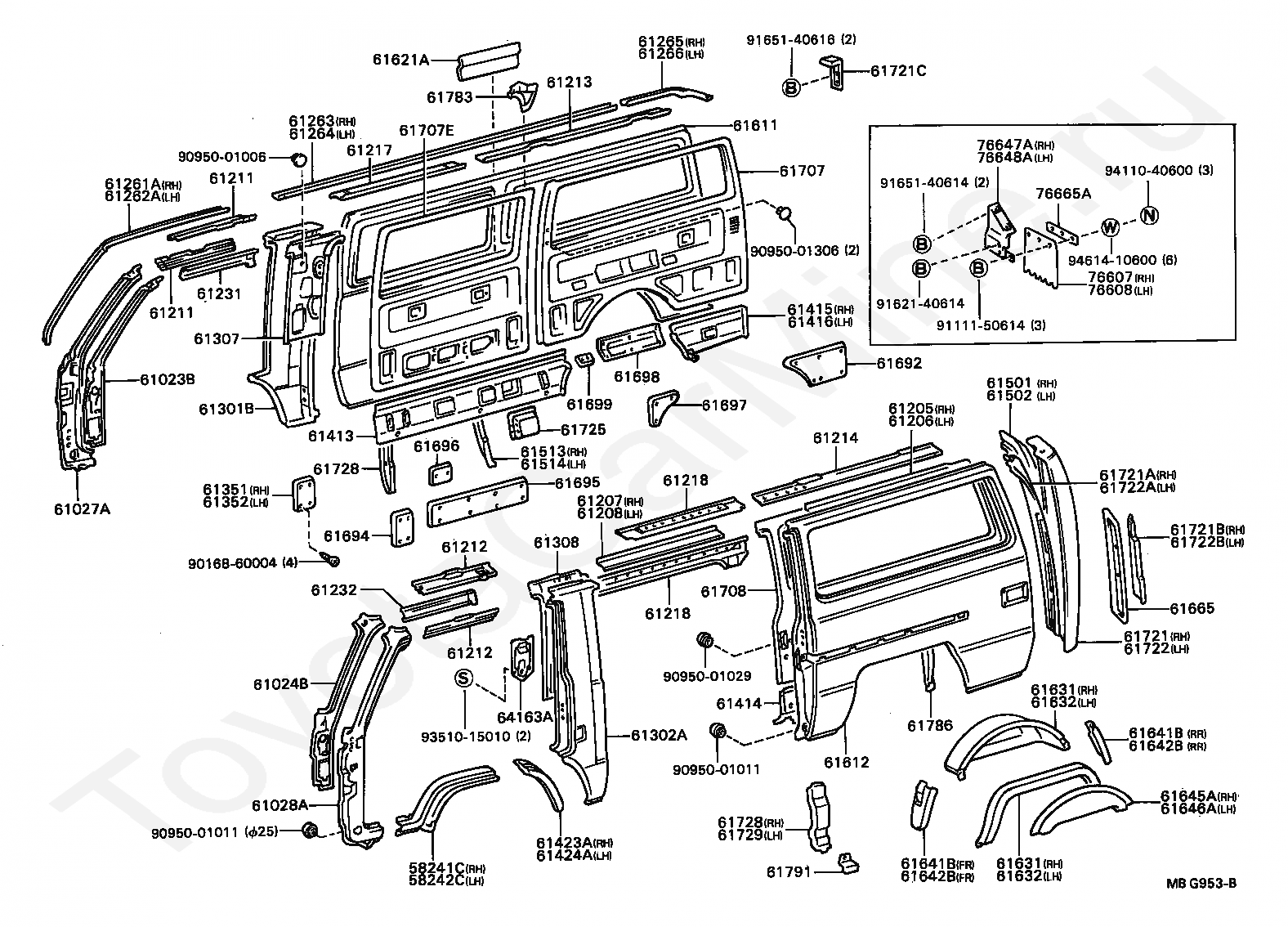

Код

Описание

58241C

PANEL, FLOOR SIDE, RH

58242C

PANEL, FLOOR SIDE, LH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61205

RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

61206

RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH

61207

RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH

61208

RAIL SUB-ASSY, ROOF SIDE, INNER CENTER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61213

RAIL, ROOF SIDE, OUTER REAR RH

61214

RAIL, ROOF SIDE, OUTER REAR LH

61217

RAIL, ROOF SIDE, OUTER CENTER RH

61218

RAIL, ROOF SIDE, OUTER CENTER LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61261A

CHANNEL, ROOF DRIP SIDE, FRONT RH

61262A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61263

CHANNEL, ROOF DRIP, REAR RH

61264

CHANNEL, ROOF DRIP, REAR LH

61265

CHANNEL, QUARTER WINDOW OPENING DRIP, RH

61266

CHANNEL, QUARTER WINDOW OPENING DRIP, LH

61301B

PILLAR, CENTER BODY, OUTER RH

61302A

PILLAR, CENTER BODY, OUTER LH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61351

COVER, CENTER BODY, INNER RH

61352

COVER, CENTER BODY, INNER, LH

61413

PANEL, ROCKER, CENTER RH

61414

PANEL, ROCKER, CENTER LH

61415

PANEL, ROCKER, REAR RH

61416

PANEL, ROCKER, REAR LH

61423A

PANEL, FENDER, INNER LOWER RH

61424A

PANEL, FENDER, INNER LOWER LH

61501

FRAME SUB-ASSY, BACK SIDE, RH

61502

FRAME SUB-ASSY, BACK SIDE, LH

61513

PILLAR, QUARTER LOCK INNER, RH

61514

PILLAR, QUARTER LOCK, INNER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61621A

SEAT, QUARTER OUTER PANEL

61631

PANEL, QUARTER WHEEL HOUSE, RH

61632

PANEL, QUARTER WHEEL HOUSE, LH

61641B

GUSSET, QUARTER WHEEL HOUSE, RH

61642B

GUSSET, QUARTER WHEEL HOUSE, LH

61645A

PANEL, QUARTER FENDER INNER, RH

61646A

PANEL, QUARTER FENDER INNER, LH

61665

COVER, QUARTER CORNER INNER

61692

COVER, QUARTER INNER, REAR

61694

COVER, QUARTER INNER, NO.1

61695

COVER, QUARTER INNER, NO.2

61696

COVER, QUARTER INNER, NO.3

61697

COVER, QUARTER INNER, NO.4

61698

COVER, QUARTER INNER, NO.5

61699

COVER, QUARTER INNER, NO.6

61707

PANEL SUB-ASSY, QUARTER, INNER RH

61707E

EXTENSION, QUARTER INNER PANEL, RH

61708

PANEL SUB-ASSY, QUARTER, INNER LH

61721

PANEL, REAR BODY OUTSIDE CORNER, RH

61721A

PANEL, QUARTER INNER CORNER, RH

61721B

BRACE, QUARTER PANEL CORNER, RH

61721C

RETAINER, QUARTER CONNER OPEN STOPPER CUSHION

61722

PANEL, REAR BODY OUTSIDE CORNER, LH

61722A

PANEL, QUARTER INNER CORNER, LH

61722B

BRACE, QUARTER PANEL CORNER, LH

61725

BOX, FUEL INLET

61728

REINFORCEMENT, QUARTER PANEL, FRONT RH

61729

REINFORCEMENT, QUARTER PANEL, FRONT LH

61783

PATCH, QUARTER PANEL INNER

61786

STRENGTH, QUARTER PANEL VERTICAL

61791

BRACE, QUARTER INNER PANEL

64163A

COVER, BACK CORNER, INNER

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

76647A

SUPPORT, REAR BODY MUDGUARD, RH

76648A

SUPPORT, REAR BODY MUDGUARD, LH

76665A

BRACE, REAR MOUDGUARD

9016860004

Крепеж

9095001006

Крепеж

9095001011

Крепеж

9095001029

Крепеж

9095001306

Крепеж

9111150614

Крепеж

9162140614

Крепеж

9165140614

Крепеж

9165140616

Крепеж

9351015010

Крепеж

9411040600

Крепеж

9461410600

Крепеж

Боковая панель кузова TOYOTA DYNA/TOYOACE, 1984/09 - 1987/08, 2 литра, V(MODEL MARK), YU70, МКПП, 5 скоростей
