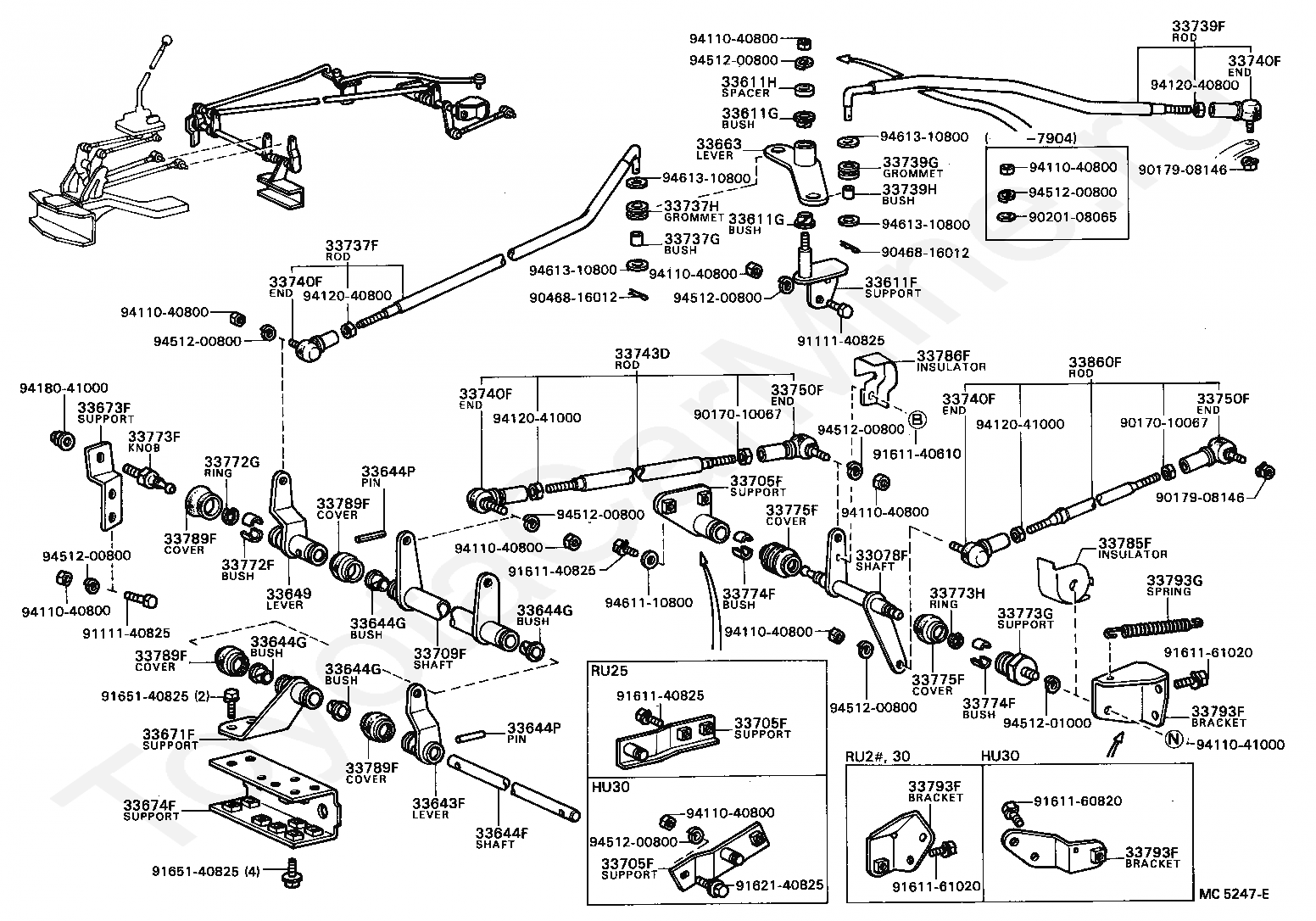

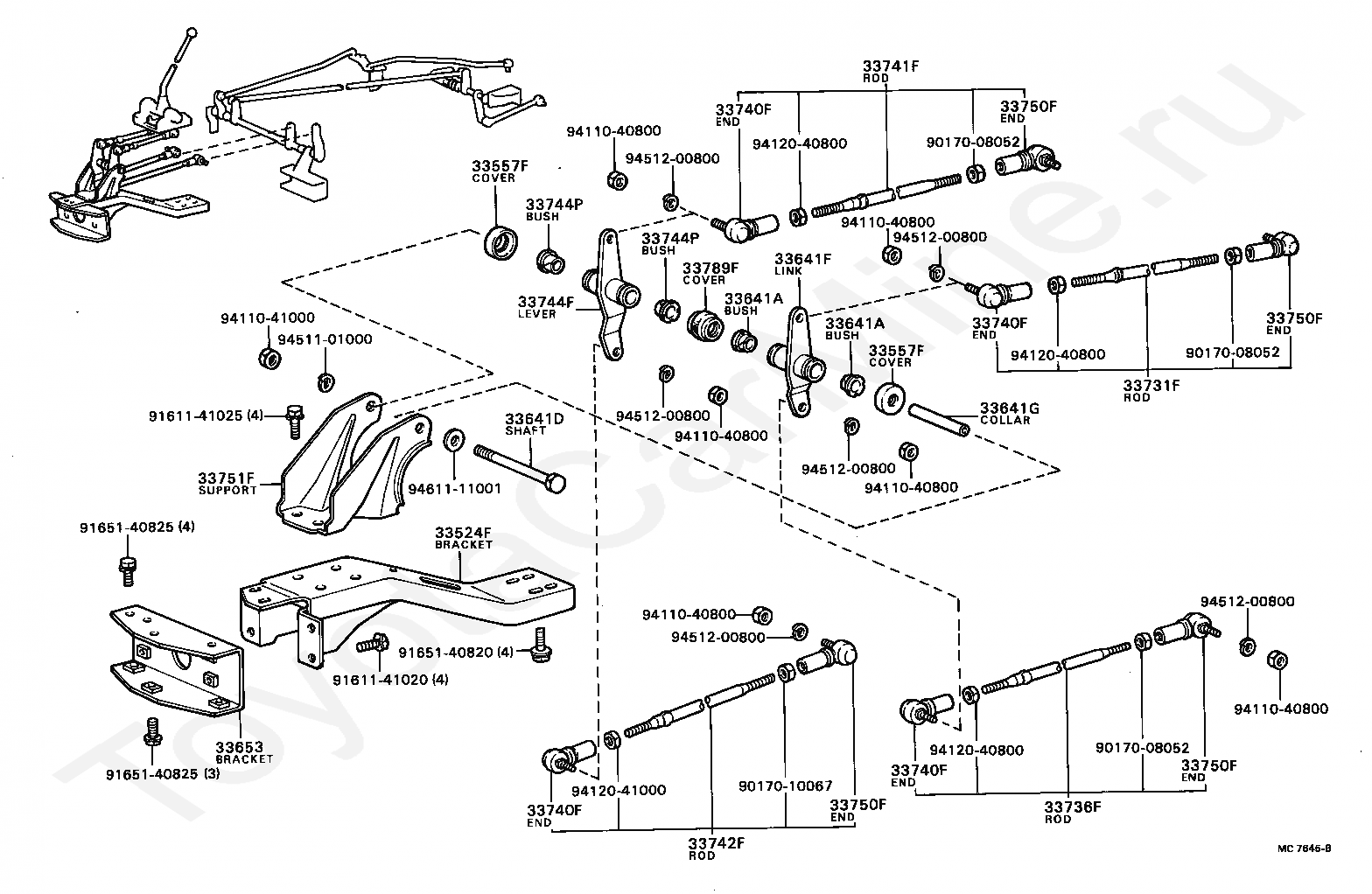

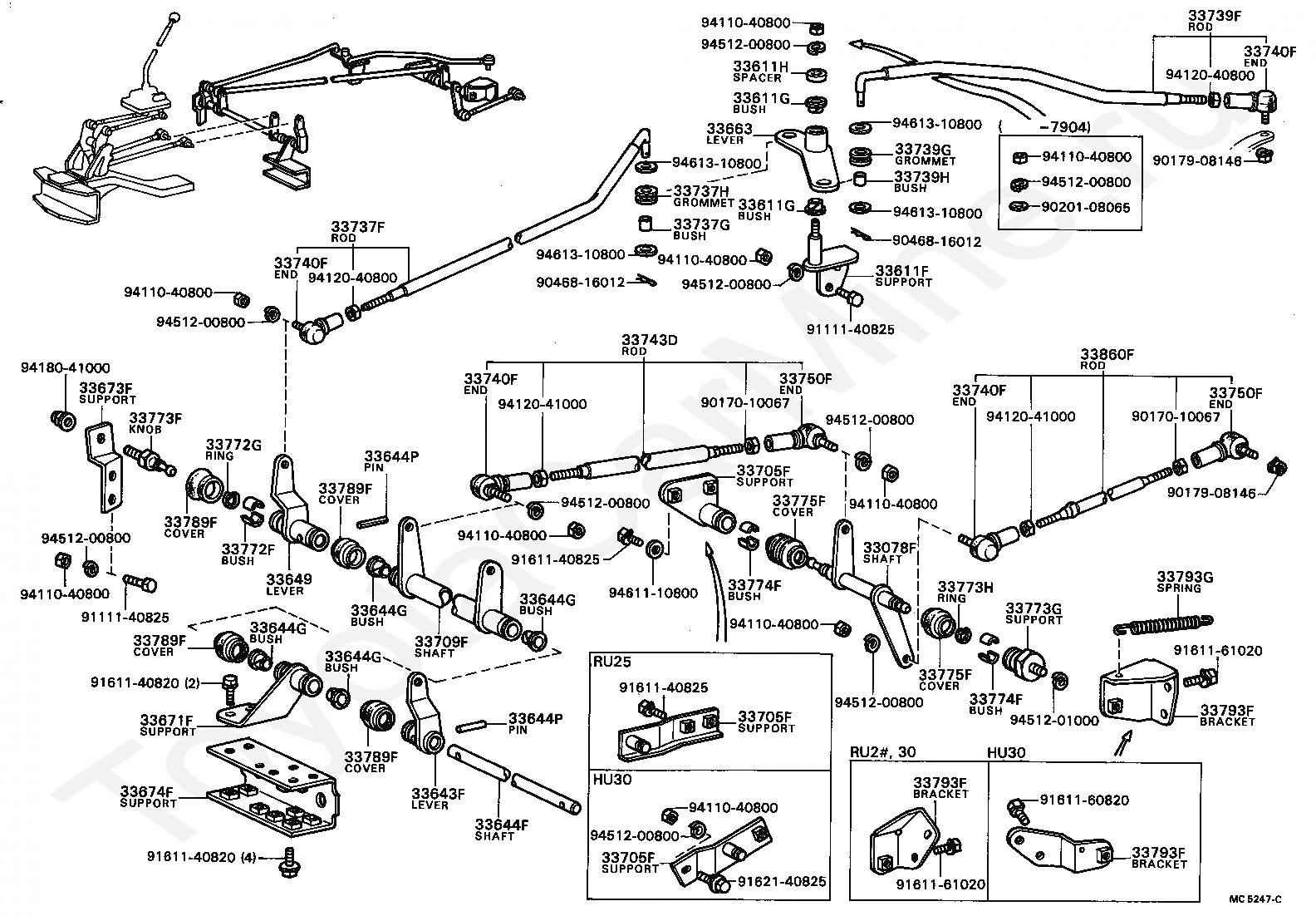

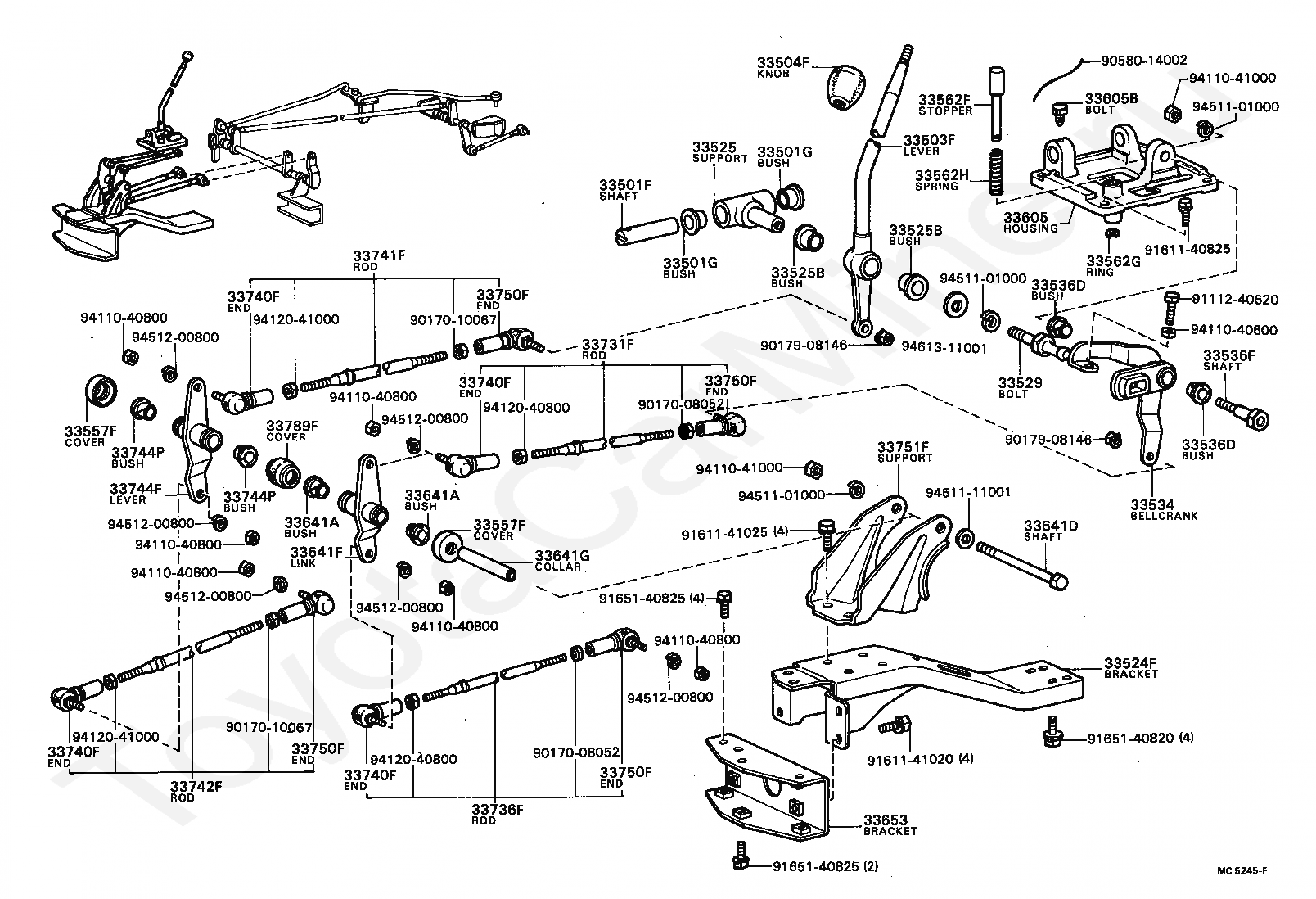

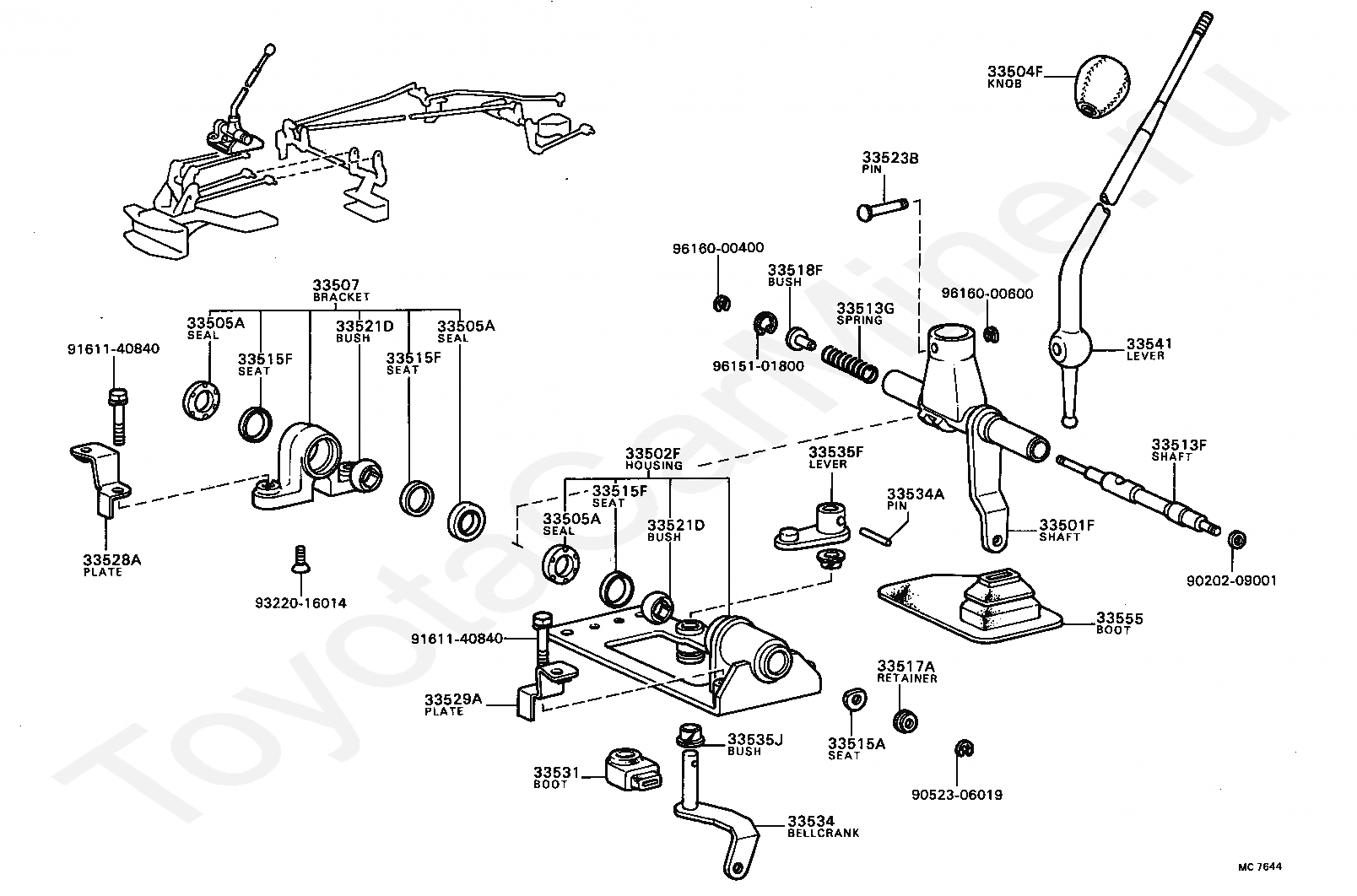

SHIFT LEVER & RETAINER TOYOTA DYNA, 1977/08 - 1984/08, 2 литра, TRUCK (EXCLUDING DUMP TRUCK), RU30, МКПП, 5 скоростей

Каталог

Европа

Модель

DYNA

Двигатель

2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

RU30

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

Код

Описание

33501F

SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

33501G

BUSH (FOR FLOOR SHIFT CONTROL SHAFT)

33503F

LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

33504F

KNOB SUB-ASSY, SHIFT LEVER

33524F

BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

33525

SUPPORT, SHIFT LEVER

33525B

BUSH (FOR SHIFT LEVER SUPPORT)

33529

BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

33534

BELLCRANK, SELECTING

33536D

BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

33536F

SHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)

33557F

COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

33562F

STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

33562G

RING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

33562H

SPRING, COMPRESSION (FOR CONTROL SHAFT UPPER BRACKET)

33605

HOUSING, CONTROL LEVER

33605B

BOLT, LOCK (FOR FLOOR SHIFT CONTROL SHAFT)

33641A

BUSH (FOR SELECTING LINK)

33641D

SHAFT, SELECTING LINK

33641F

LINK, SELECTING (FOR FLOOR SHIFT)

33641G

COLLAR, SELECTING LINK

33653

BRACKET, CONTROL LEVER HOUSING SUPPORT

33731F

ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)

33736F

ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)

33740F

END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

33741F

ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

33742F

ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)

33744F

LEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

33744P

BUSH (FOR SHIFTING, NO.1)

33750F

END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

33751F

SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)

33789F

COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)

9017008052

Крепеж

9017010067

Крепеж

9017908146

Крепеж

9058014002

Крепеж

9111240620

Крепеж

9161140825

Крепеж

9161141020

Крепеж

9161141025

Крепеж

9165140820

Крепеж

9165140825

Крепеж

9411040600

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9451101000

Крепеж

9451200800

Крепеж

9461111001

Крепеж

9461311001

Крепеж

Код

Описание

33078F

SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT)

33611F

SUPPORT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)

33611G

BUSH (FOR CONTROL SELECT LEVER SUPPORT)

33611H

SPACER (FOR CONTROL SELECT LEVER SUPPORT)

33643F

LEVER, GEAR SELECTING, NO.3

33644F

SHAFT, GEAR SELECTING

33644G

BUSH (FOR GEAR SELECTING SHAFT)

33644P

PIN (FOR GEAR SELECTING SHAFT)

33649

LEVER, GEAR SELECTING, NO.4

33663

LEVER, CONTROL

33671F

SUPPORT, CONTROL ROD, NO.1

33673F

SUPPORT, CONTROL ROD, NO.2

33674F

SUPPORT, CONTROL ROD, NO.3

33705F

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)

33709F

SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

33737F

ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)

33737G

BUSH (FOR GEAR SELECTING ROD NO.3)

33737H

GROMMET (FOR GEAR SELECTING ROD NO.3)

33739F

ROD, GEAR SELECTING, NO.4

33739G

GROMMET (FOR GEAR SELECTING ROD NO.4)

33739H

BUSH (FOR GEAR SELECTING ROD NO.4)

33740F

END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

33743D

ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)

33750F

END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

33772F

BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)

33772G

RING, SNAP (FOR CROSS SAFT SUPPORT BUSH)

33773F

KNOB, CROSS SHAFT SUPPORT

33773G

SUPPORT, CROSS SHAFT

33773H

RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33774F

BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)

33775F

COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)

33789F

COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)

33793F

BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)

33793G

SPRING, TENSION(FOR CROSS SHAFT TO SELECT OUTER LEVER)

33860F

ROD ASSY, GEAR SHIFTING, NO.4

9017010067

Крепеж

9017908146

Крепеж

9020108065

Крепеж

9046816012

Крепеж

9111140825

Крепеж

9161140820

Крепеж

9161140825

Крепеж

9161160820

Крепеж

9161161020

Крепеж

9162140825

Крепеж

9411040800

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9418041000

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9461110800

Крепеж

9461310800

Крепеж

Код

Описание

33501F

SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

33502F

HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)

33504F

KNOB SUB-ASSY, SHIFT LEVER

33505A

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT)

33507

BRACKET SUB-ASSY, SHIFT LEVER HOUSING

33513F

SHAFT, CONTROL SHAFT BRACKET

33513G

SPRING, COMPRESSION (FOR CONTROL SHAFT BRACKET SHAFT)

33515A

SEAT, CONTROL UPPER SHAFT (FOR FLOOR SHIFT)

33515F

SEAT, CONTROL SHAFT

33517A

RETAINER, CONTROL UPPER SHAFT SEAT

33518F

BUSH, CONTROL SHAFT

33521D

BUSH (FOR SHIFT LEVER HOUSING)

33523B

PIN, SHIFT LEVER (FOR FLOOR SHIFT)

33528A

PLATE, SHIFT LEVER HOUSING, NO.1

33529A

PLATE, SHIFT LEVER HOUSING, NO.2

33531

BOOT, DUST (FOR CONTROL SHIFT LEVER)

33534

BELLCRANK, SELECTING

33534A

PIN (FOR SELECTING BELLCRANK)

33535F

LEVER, CONTROL SELECT (FOR FLOOR SHIFT)

33535J

BUSH (FOR CONTROL SELECT LEVER)

33541

LEVER, SHIFT

33555

BOOT, SHIFT LEVER

9020209001

Крепеж

9052306019

Крепеж

9161140840

Крепеж

9322016014

Крепеж

9615101800

Крепеж

9616000400

Крепеж

9616000600

Крепеж

Код

Описание

33524F

BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

33557F

COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

33641A

BUSH (FOR SELECTING LINK)

33641D

SHAFT, SELECTING LINK

33641F

LINK, SELECTING (FOR FLOOR SHIFT)

33641G

COLLAR, SELECTING LINK

33653

BRACKET, CONTROL LEVER HOUSING SUPPORT

33731F

ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)

33736F

ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)

33740F

END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

33741F

ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

33742F

ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)

33744F

LEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

33744P

BUSH (FOR SHIFTING, NO.1)

33750F

END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

33751F

SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)

33789F

COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)

9017008052

Крепеж

9017010067

Крепеж

9161141020

Крепеж

9161141025

Крепеж

9165140820

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9451101000

Крепеж

9451200800

Крепеж

9461111001

Крепеж

Код

Описание

33078F

SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT)

33611F

SUPPORT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)

33611G

BUSH (FOR CONTROL SELECT LEVER SUPPORT)

33611H

SPACER (FOR CONTROL SELECT LEVER SUPPORT)

33643F

LEVER, GEAR SELECTING, NO.3

33644F

SHAFT, GEAR SELECTING

33644G

BUSH (FOR GEAR SELECTING SHAFT)

33644P

PIN (FOR GEAR SELECTING SHAFT)

33649

LEVER, GEAR SELECTING, NO.4

33663

LEVER, CONTROL

33671F

SUPPORT, CONTROL ROD, NO.1

33673F

SUPPORT, CONTROL ROD, NO.2

33674F

SUPPORT, CONTROL ROD, NO.3

33705F

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)

33709F

SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

33737F

ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)

33737G

BUSH (FOR GEAR SELECTING ROD NO.3)

33737H

GROMMET (FOR GEAR SELECTING ROD NO.3)

33739F

ROD, GEAR SELECTING, NO.4

33739G

GROMMET (FOR GEAR SELECTING ROD NO.4)

33739H

BUSH (FOR GEAR SELECTING ROD NO.4)

33740F

END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

33743D

ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)

33750F

END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

33772F

BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)

33772G

RING, SNAP (FOR CROSS SAFT SUPPORT BUSH)

33773F

KNOB, CROSS SHAFT SUPPORT

33773G

SUPPORT, CROSS SHAFT

33773H

RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33774F

BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)

33775F

COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)

33785F

INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIFT)

33786F

INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIFT)

33789F

COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)

33793F

BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)

33793G

SPRING, TENSION(FOR CROSS SHAFT TO SELECT OUTER LEVER)

33860F

ROD ASSY, GEAR SHIFTING, NO.4

9017010067

Крепеж

9017908146

Крепеж

9020108065

Крепеж

9046816012

Крепеж

9111140825

Крепеж

9161140610

Крепеж

9161140825

Крепеж

9161160820

Крепеж

9161161020

Крепеж

9162140825

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9412040800

Крепеж

9412041000

Крепеж

9418041000

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9461110800

Крепеж

9461310800

Крепеж

SHIFT LEVER & RETAINER TOYOTA DYNA, 1977/08 - 1984/08, 2 литра, TRUCK (EXCLUDING DUMP TRUCK), RU30, МКПП, 5 скоростей
