Каталог
ЕвропаМодель
DYNAДвигатель
2 литраКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
RU30Трансмиссия
МКПП, 5 скоростейОпции
левый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK WT GEN IV3

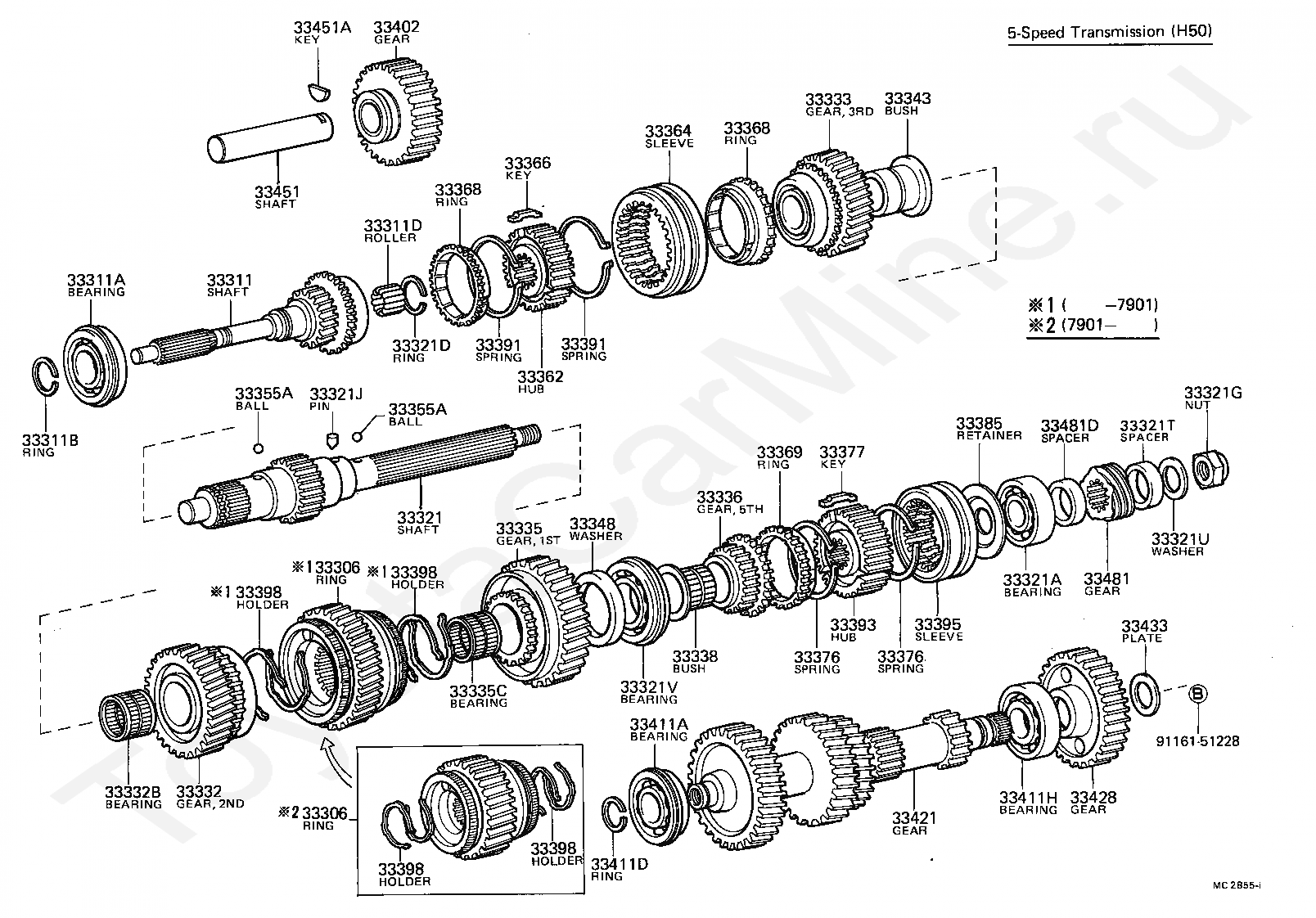

Код
Описание
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321D
RING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321G
NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321T
SPACER (FOR OUTPUT SHAFT)
33321U
WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33331
GEAR, REVERSE
33332
GEAR, 2ND
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336
GEAR, 5TH
33338
BUSH OR BEARING, 5TH GEAR
33338A
BALL (FOR GEAR BUSH)
33355
RACE, 1ST GEAR BEARING INNER
33355A
KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361
HUB, TRANSMISSION CLUTCH, NO.1
33362
HUB, TRANSMISSION CLUTCH, NO.2
33364
SLEEVE, TRANSMISSION HUB, NO.2
33365
KEY, SYNCHROMESH SHIFTING, NO.1
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33367
RING, SYNCHRONIZER, NO.1
33368
RING, SYNCHRONIZER, NO.2
33369
RING, SYNCHRONIZER, NO.3
33371
SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376
SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377
KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33385
RETAINER, SHIFTING KEY
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393
HUB, TRANSMISSION CLUTCH, NO.3
33395
SLEEVE, TRANSMISSION HUB, NO.3
33402
GEAR SUB-ASSY, REVERSE IDLER
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411D
RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411E
NUT(FOR COUNTER GEAR SHAFT)
33411H
BEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411P
BEARING, COUNTER SHAFT CENTER
33411R
RING, SNAP, COUNTER GEAR REAR BEARING
33421
GEAR, COUNTER
33428
GEAR, COUNTERSHAFT 5TH
33428B
BEARING (FOR COUNTER 5TH GEAR)
33451
SHAFT, REVERSE IDLER GEAR
33452
STOPPER, REVERSE IDLER GEAR SHAFT
33481
GEAR, SPEEDOMETER DRIVE (MTM)
33481D
SPACER (FOR SPEEDOMETER DRIVE GEAR)
9161140818
Крепеж

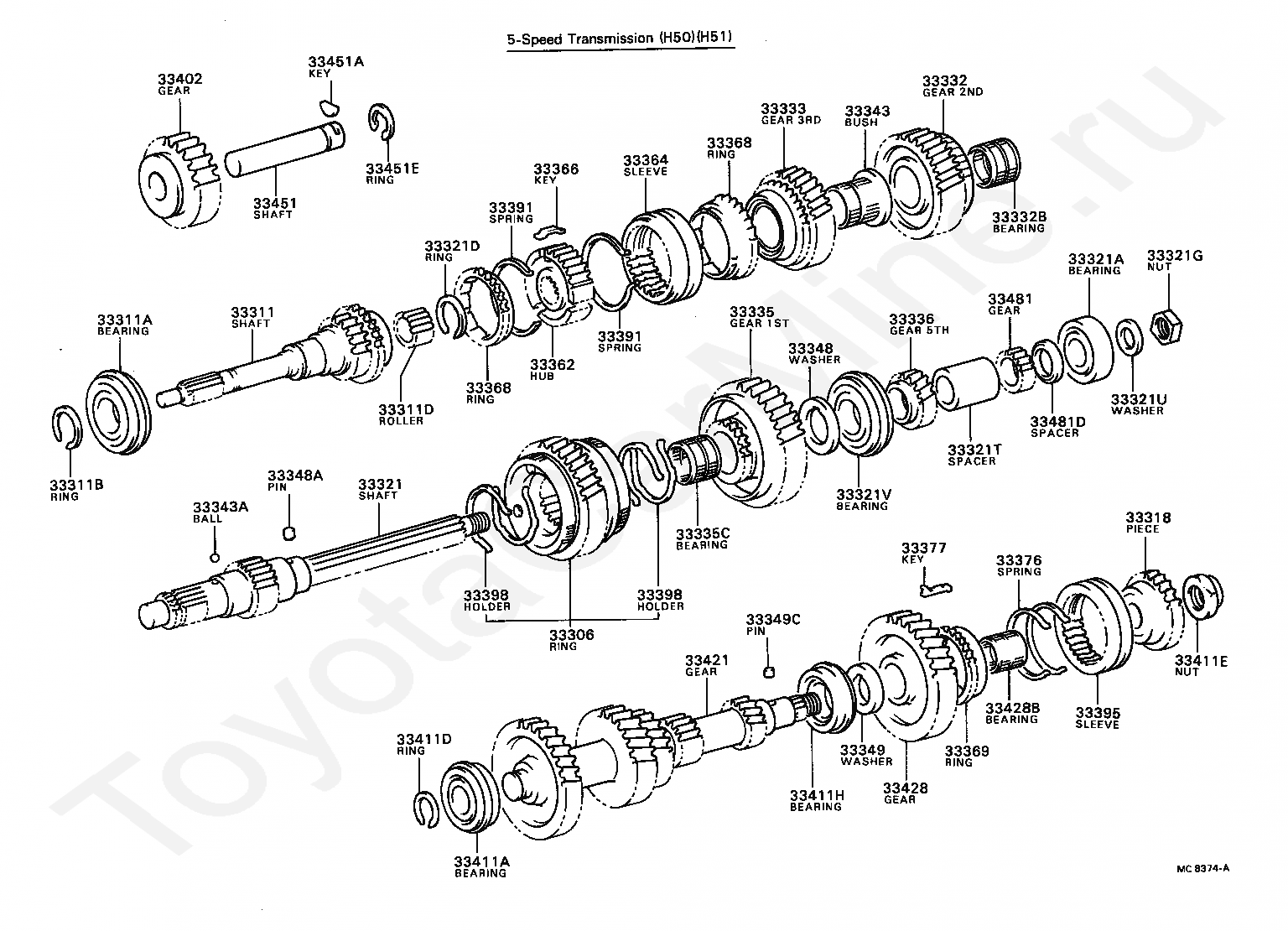

Код
Описание
33306
RING SUB-ASSY, SYNCHRONIZER, NO.1
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321D
RING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321G
NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321J
PIN, STRAIGHT (FOR OUTPUT SHAFT)
33321T
SPACER (FOR OUTPUT SHAFT)
33321U
WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33332
GEAR, 2ND
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336
GEAR, 5TH
33338
BUSH OR BEARING, 5TH GEAR
33343
BUSH, 3RD & 2ND GEAR
33348
WASHER, 1ST GEAR THRUST
33355A
KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362
HUB, TRANSMISSION CLUTCH, NO.2
33364
SLEEVE, TRANSMISSION HUB, NO.2
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33368
RING, SYNCHRONIZER, NO.2
33369
RING, SYNCHRONIZER, NO.3
33376
SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377
KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33385
RETAINER, SHIFTING KEY
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393
HUB, TRANSMISSION CLUTCH, NO.3
33395
SLEEVE, TRANSMISSION HUB, NO.3
33398
HOLDER, SYNCHRONIZER RING
33402
GEAR SUB-ASSY, REVERSE IDLER
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411D
RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411H
BEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421
GEAR, COUNTER
33428
GEAR, COUNTERSHAFT 5TH
33433
PLATE, COUNTER GEAR REAR BEARING LOCK
33451
SHAFT, REVERSE IDLER GEAR
33451A
KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481
GEAR, SPEEDOMETER DRIVE (MTM)
33481D
SPACER (FOR SPEEDOMETER DRIVE GEAR)
9116151228
Крепеж

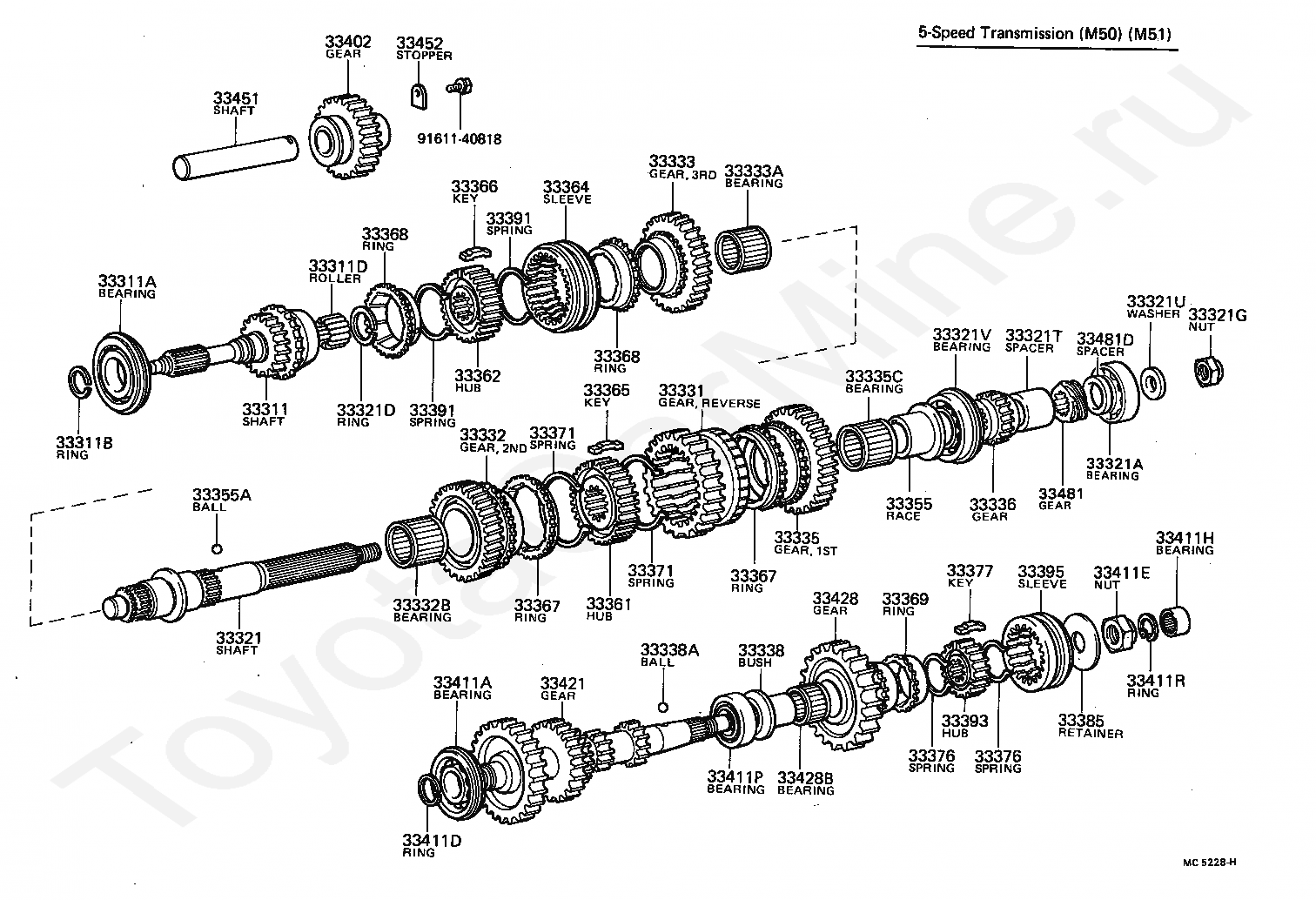

Код
Описание
33306
RING SUB-ASSY, SYNCHRONIZER, NO.1
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33318
PIECE, GEAR SPLINE, NO.5
33321
SHAFT, OUTPUT
33321A
BEARING (FOR OUTPUT SHAFT REAR)
33321D
RING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321G
NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321T
SPACER (FOR OUTPUT SHAFT)
33321U
WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33332
GEAR, 2ND
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336
GEAR, 5TH
33343
BUSH, 3RD & 2ND GEAR
33343A
PIN OR BALL (FOR 3RD & 2ND GEAR BUSH)
33348
WASHER, 1ST GEAR THRUST
33348A
PIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349
WASHER, 5TH GEAR THRUST
33349C
PIN (FOR 5TH GEAR THRUST WASHER)
33362
HUB, TRANSMISSION CLUTCH, NO.2
33364
SLEEVE, TRANSMISSION HUB, NO.2
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33368
RING, SYNCHRONIZER, NO.2
33369
RING, SYNCHRONIZER, NO.3
33376
SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377
KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395
SLEEVE, TRANSMISSION HUB, NO.3
33398
HOLDER, SYNCHRONIZER RING
33402
GEAR SUB-ASSY, REVERSE IDLER
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411D
RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411E
NUT(FOR COUNTER GEAR SHAFT)
33411H
BEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421
GEAR, COUNTER
33428
GEAR, COUNTERSHAFT 5TH
33428B
BEARING (FOR COUNTER 5TH GEAR)
33451
SHAFT, REVERSE IDLER GEAR
33451A
KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33451E
RING, E (FOR REVERSE IDLER GEAR SHAFT)
33481
GEAR, SPEEDOMETER DRIVE (MTM)
33481D
SPACER (FOR SPEEDOMETER DRIVE GEAR)
