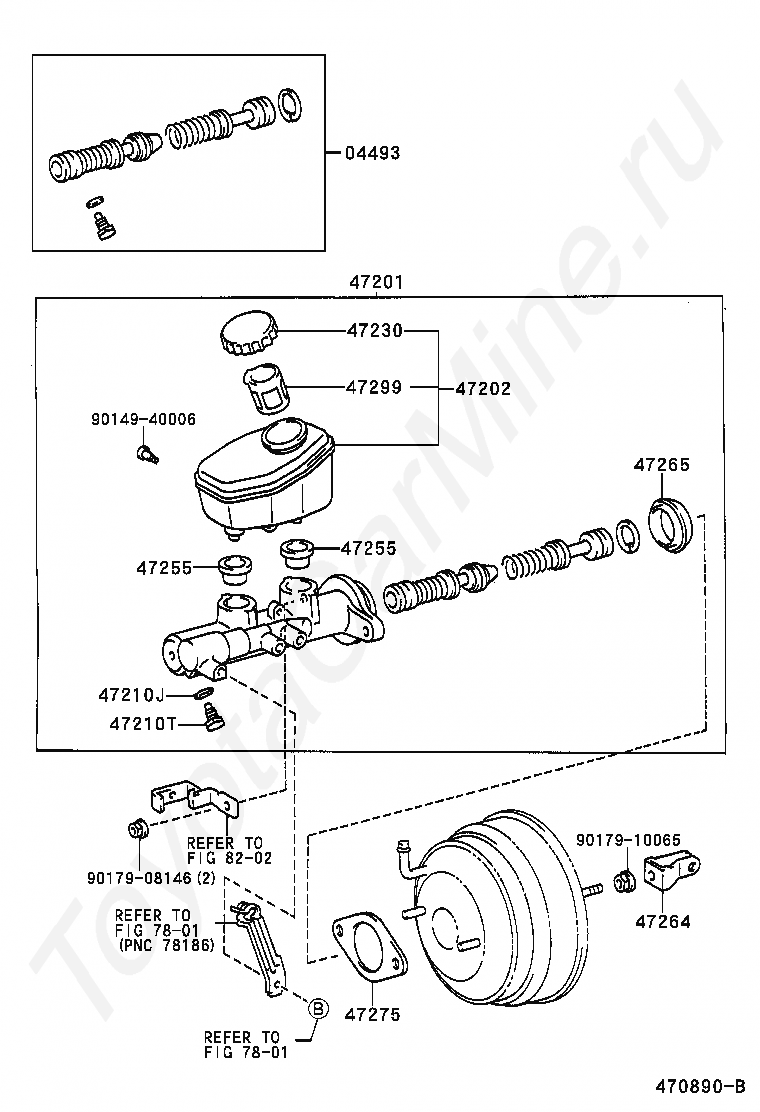

Главный тормозной цилиндр TOYOTA CROWN/CROWN MAJESTA, 1995/08 - 1999/09, 3 литра, 24 клапана, DOHC, EFI, HARD TOP SERIES, E(MODEL MARK), JZS155, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

CROWN/CROWN MAJESTA

Двигатель

3 литра, 24 клапана, DOHC, EFI

Кузов

HARD TOP SERIES

Класс

E(MODEL MARK)

Фрейм

JZS155

Трансмиссия

автомат АКПП, 4 ступени

Опции

TWIN CAM WIDE BODY

Код

Описание

04493

CYLINDER KIT, BRAKE MASTER

47201

CYLINDER SUB-ASSY, BRAKE MASTER

47202

RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

47210J

GASKET(FOR MASTER CYLINDER)

47210T

BOLT(FOR BRAKE MASTER CYLINDER)

47230

CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47255

GROMMET, MASTER CYLINDER RESERVOIR

47264

CLEVIS, MASTER CYLINDER PUSH ROD

47265

BOOT, MASTER CYLINDER

47275

GASKET, BRAKE MASTER CYLINDER

47299

STRAINER, BRAKE MASTER CYLINDER RESERVOIR

7801

переход к группе запчастей

8202

переход к группе запчастей

9014940006

Крепеж

9017908146

Крепеж

9017910065

Крепеж

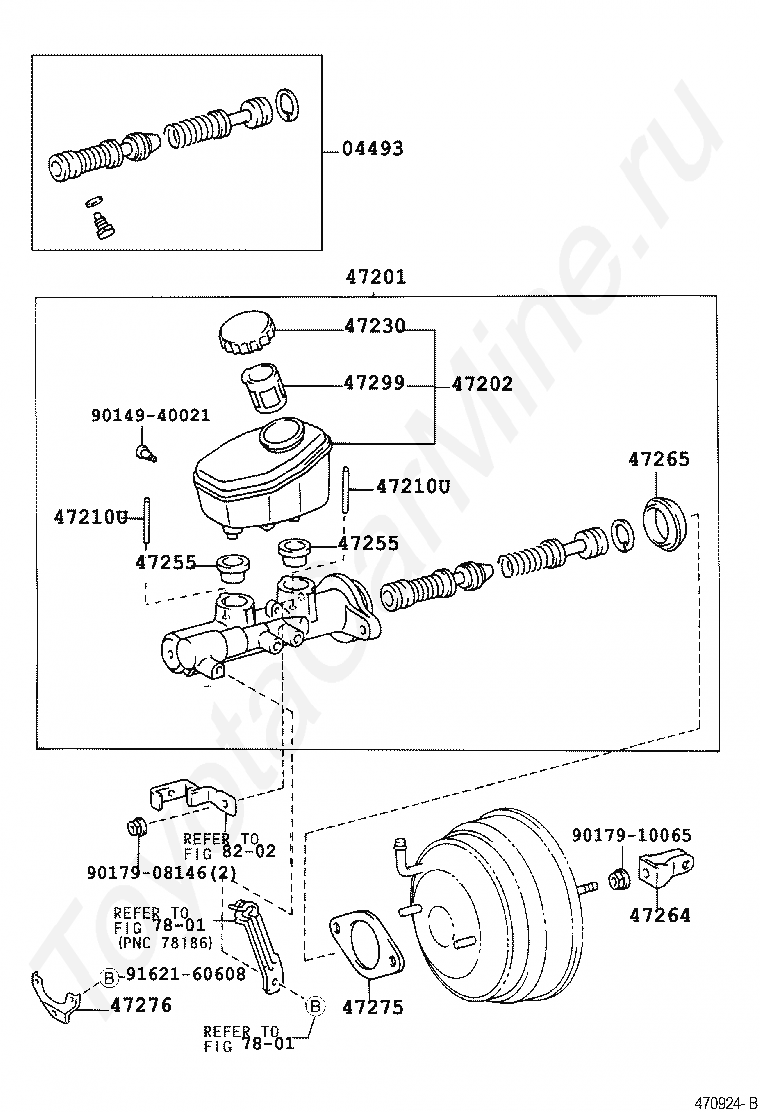

Код

Описание

04493

CYLINDER KIT, BRAKE MASTER

47201

CYLINDER SUB-ASSY, BRAKE MASTER

47202

RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

47210U

PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

47230

CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47255

GROMMET, MASTER CYLINDER RESERVOIR

47264

CLEVIS, MASTER CYLINDER PUSH ROD

47265

BOOT, MASTER CYLINDER

47275

GASKET, BRAKE MASTER CYLINDER

47276

BRACKET, BRAKE MASTER CYLINDER

47299

STRAINER, BRAKE MASTER CYLINDER RESERVOIR

7801

переход к группе запчастей

8202

переход к группе запчастей

9014940021

Крепеж

9017908146

Крепеж

9017910065

Крепеж

9162160608

Крепеж

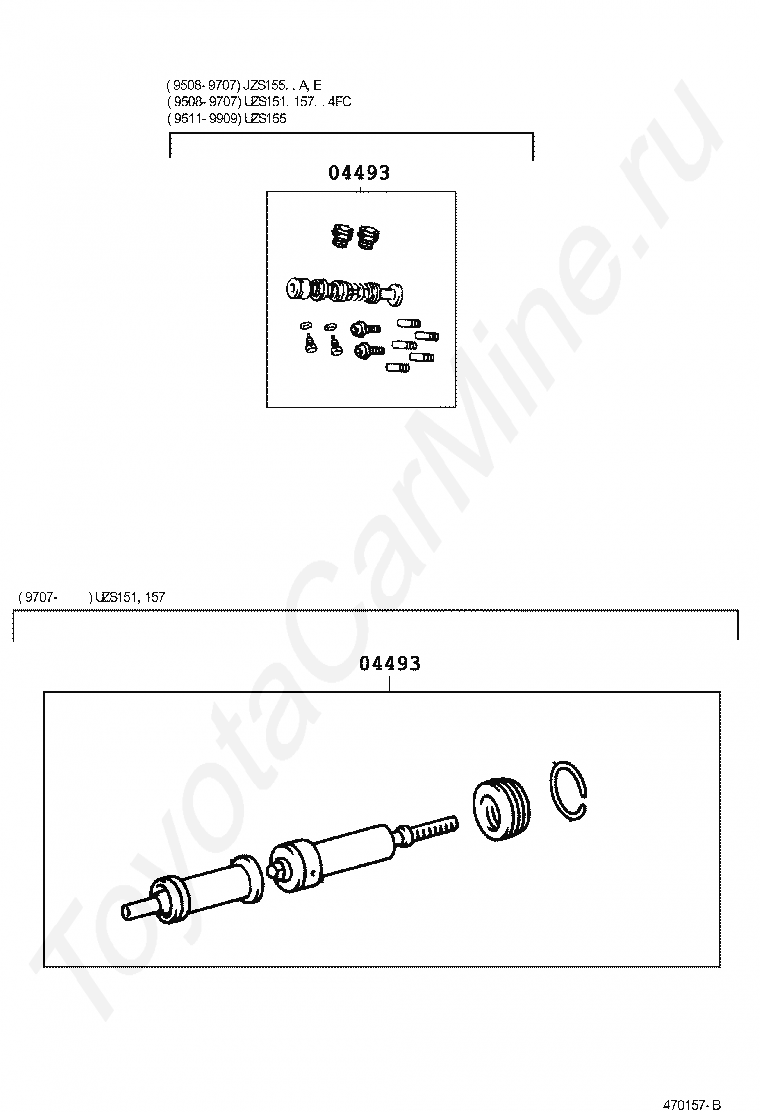

Код

Описание

04493

CYLINDER KIT, BRAKE MASTER

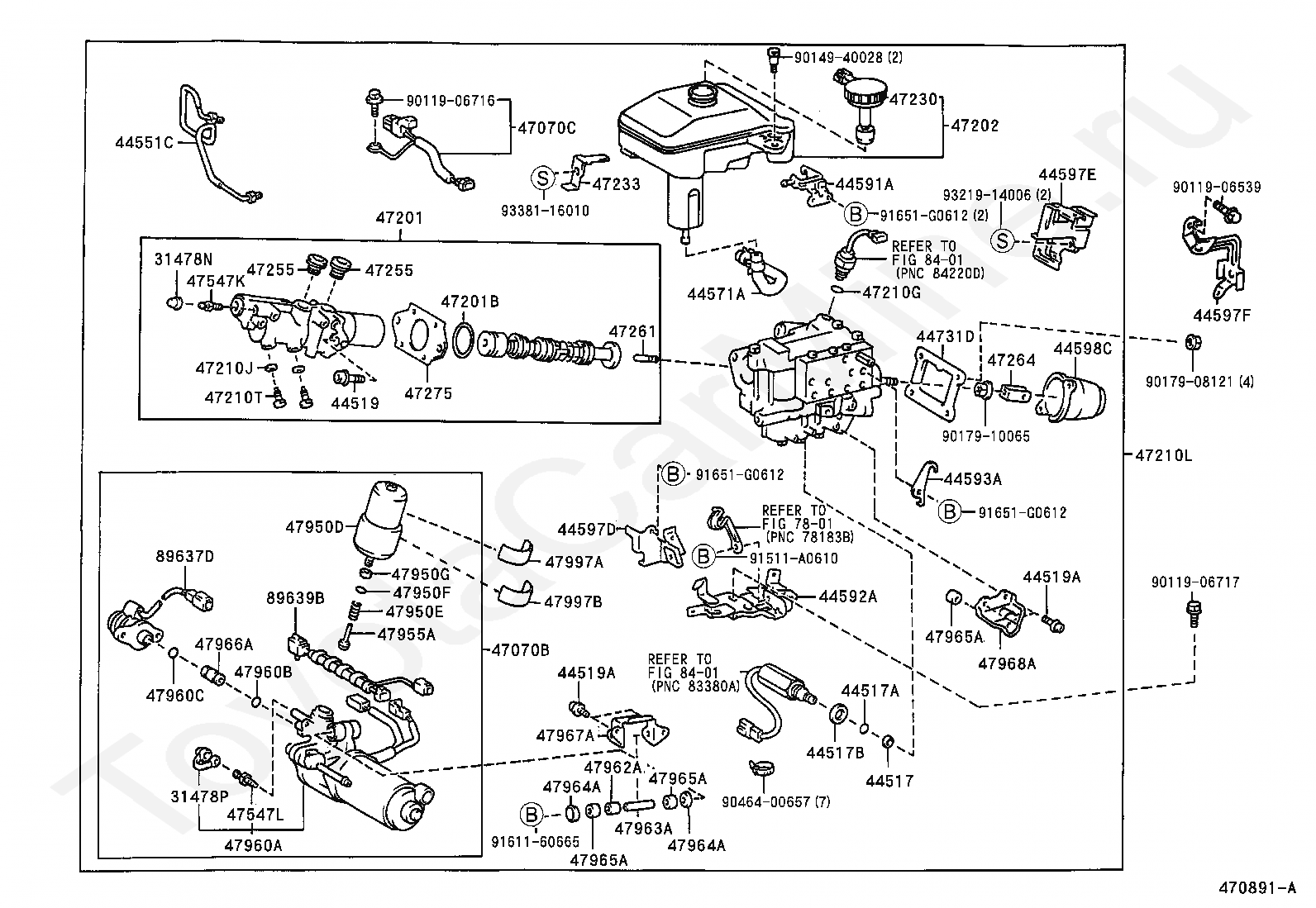

Код

Описание

31478N

CAP, BLEEDER PLUG(FOR BRAKE BOOSTER ACCUMULATOR)

31478P

CAP, BLEEDER PLUG(FOR BRAKE BOOSTER PUMP)

44517

RING, BRAKE ACTUATOR BACK-UP

44517A

RING, O(FOR BRAKE ACTUATOR PRESSURE SWITCH)

44517B

GASKET(FOR BRAKE ACTUATOR PRESSURE SWITCH)

44519

BOLT, BRAKE ACTUATOR

44519A

BOLT(FOR BRAKE BOOSTER PUMP)

44551C

TUBE, BRAKE ACTUATOR, NO.1

44571A

HOSE, BRAKE ACTUATOR, NO.1

44591A

BRACKET, BRAKE ACTUATOR, NO.1

44592A

BRACKET, BRAKE ACTUATOR, NO.2

44593A

BRACKET, BRAKE ACTUATOR, NO.3

44597D

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

44597E

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2

44597F

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.3

44598C

COVER, BRAKE ACTUATOR

44731D

BRACKET, BRAKE BOOSTER

47070B

PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

47070C

WIRE, BRAKE BOOSTER ACCUMULATOR COIL LEAD

47201

CYLINDER SUB-ASSY, BRAKE MASTER

47201B

RING, O(FOR BRAKE MASTER CYLINDER)

47202

RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

47210G

RING, O(FOR DIFFERENTIAL VALVE SWITCH)

47210J

GASKET(FOR MASTER CYLINDER)

47210L

BRAKE BOOSTER ASSY, W/MASTER CYLINDER

47210T

BOLT(FOR BRAKE MASTER CYLINDER)

47230

CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47233

BRACKET, RESERVOIR

47255

GROMMET, MASTER CYLINDER RESERVOIR

47261

ROD, MASTER CYLINDER PUSH

47264

CLEVIS, MASTER CYLINDER PUSH ROD

47275

GASKET, BRAKE MASTER CYLINDER

47547K

PLUG, BLEEDER(FOR BRAKE BOOSTER ACCUMULATOR)

47547L

PLUG, BLEEDER(FOR BRAKE BOOSTER PUMP)

47950D

ACCUMULATOR ASSY, BRAKE BOOSTER

47950E

SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)

47950F

RING, O(FOR BRAKE BOOSTER ACCUMULATOR)

47950G

RING(FOR BRAKE BOOSTER ACCUMULATOR)

47955A

PIPE, BRAKE BOOSTER ACCUMULATOR

47960A

PUMP ASSY, BRAKE BOOSTER

47960B

RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

47960C

SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

47962A

COLLAR, BRAKE BOOSTER PUMP

47963A

SHAFT, BRAKE BOOSTER PUMP

47964A

WASHER, BRAKE BOOSTER PUMP

47965A

BUSH, BRAKE BOOSTER PUMP

47966A

PIPE, BRAKE BOOSTER PUMP OIL

47967A

BRACKET, BRAKE BOOSTER PUMP, NO.1

47968A

BRACKET, BRAKE BOOSTER PUMP, NO.2

47997A

LABEL, ACCUMULATOR CAUTION, NO.1

47997B

LABEL, ACCUMULATOR CAUTION, NO,2

7801

переход к группе запчастей

8401

переход к группе запчастей

89637D

SENSOR, OIL PRESSURE

89639B

WIRE, BRAKE CONTROL

9011906539

Крепеж

9011906716

Крепеж

9011906717

Крепеж

9014940028

Крепеж

9017908121

Крепеж

9017910065

Крепеж

9046400657

Крепеж

91511A0610

Крепеж

9161160665

Крепеж

91651G0612

Крепеж

9321914006

Крепеж

9338116010

Крепеж

Код

Описание

31478N

CAP, BLEEDER PLUG(FOR BRAKE BOOSTER ACCUMULATOR)

31478P

CAP, BLEEDER PLUG(FOR BRAKE BOOSTER PUMP)

44517

RING, BRAKE ACTUATOR BACK-UP

44517A

RING, O(FOR BRAKE ACTUATOR PRESSURE SWITCH)

44517B

GASKET(FOR BRAKE ACTUATOR PRESSURE SWITCH)

44519

BOLT, BRAKE ACTUATOR

44519A

BOLT(FOR BRAKE BOOSTER PUMP)

44551C

TUBE, BRAKE ACTUATOR, NO.1

44571A

HOSE, BRAKE ACTUATOR, NO.1

44591A

BRACKET, BRAKE ACTUATOR, NO.1

44592A

BRACKET, BRAKE ACTUATOR, NO.2

44593A

BRACKET, BRAKE ACTUATOR, NO.3

44597D

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

44597E

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2

44597F

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.3

44598C

COVER, BRAKE ACTUATOR

44731D

BRACKET, BRAKE BOOSTER

47070B

PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

47070C

WIRE, BRAKE BOOSTER ACCUMULATOR COIL LEAD

47201

CYLINDER SUB-ASSY, BRAKE MASTER

47201B

RING, O(FOR BRAKE MASTER CYLINDER)

47202

RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

47210G

RING, O(FOR DIFFERENTIAL VALVE SWITCH)

47210J

GASKET(FOR MASTER CYLINDER)

47210L

BRAKE BOOSTER ASSY, W/MASTER CYLINDER

47210T

BOLT(FOR BRAKE MASTER CYLINDER)

47230

CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

47233

BRACKET, RESERVOIR

47255

GROMMET, MASTER CYLINDER RESERVOIR

47261

ROD, MASTER CYLINDER PUSH

47264

CLEVIS, MASTER CYLINDER PUSH ROD

47275

GASKET, BRAKE MASTER CYLINDER

47547K

PLUG, BLEEDER(FOR BRAKE BOOSTER ACCUMULATOR)

47547L

PLUG, BLEEDER(FOR BRAKE BOOSTER PUMP)

47950D

ACCUMULATOR ASSY, BRAKE BOOSTER

47950E

SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR)

47950F

RING, O(FOR BRAKE BOOSTER ACCUMULATOR)

47950G

RING(FOR BRAKE BOOSTER ACCUMULATOR)

47955A

PIPE, BRAKE BOOSTER ACCUMULATOR

47960A

PUMP ASSY, BRAKE BOOSTER

47960B

RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

47960C

SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)

47962A

COLLAR, BRAKE BOOSTER PUMP

47963A

SHAFT, BRAKE BOOSTER PUMP

47964A

WASHER, BRAKE BOOSTER PUMP

47965A

BUSH, BRAKE BOOSTER PUMP

47966A

PIPE, BRAKE BOOSTER PUMP OIL

47967A

BRACKET, BRAKE BOOSTER PUMP, NO.1

47968A

BRACKET, BRAKE BOOSTER PUMP, NO.2

47997A

LABEL, ACCUMULATOR CAUTION, NO.1

47997B

LABEL, ACCUMULATOR CAUTION, NO,2

7801

переход к группе запчастей

8401

переход к группе запчастей

89637D

SENSOR, OIL PRESSURE

89639B

WIRE, BRAKE CONTROL

9011906539

Крепеж

9011906716

Крепеж

9011906717

Крепеж

9014940028

Крепеж

9017908121

Крепеж

9017910065

Крепеж

9046400657

Крепеж

91511A0610

Крепеж

9161160665

Крепеж

91651G0612

Крепеж

9321914006

Крепеж

9338116010

Крепеж

Главный тормозной цилиндр TOYOTA CROWN/CROWN MAJESTA, 1995/08 - 1999/09, 3 литра, 24 клапана, DOHC, EFI, HARD TOP SERIES, E(MODEL MARK), JZS155, автомат, АКПП, 4 ступени
