ЯпонияМодель
CROWN/CROWN MAJESTAДвигатель
3 литра, 24 клапана, DOHC, EFIКузов
HARD TOP SERIESКласс
E(MODEL MARK)Фрейм
JZS155Трансмиссия
автомат АКПП, 4 ступениОпции
TWIN CAM WIDE BODY
Код
Описание

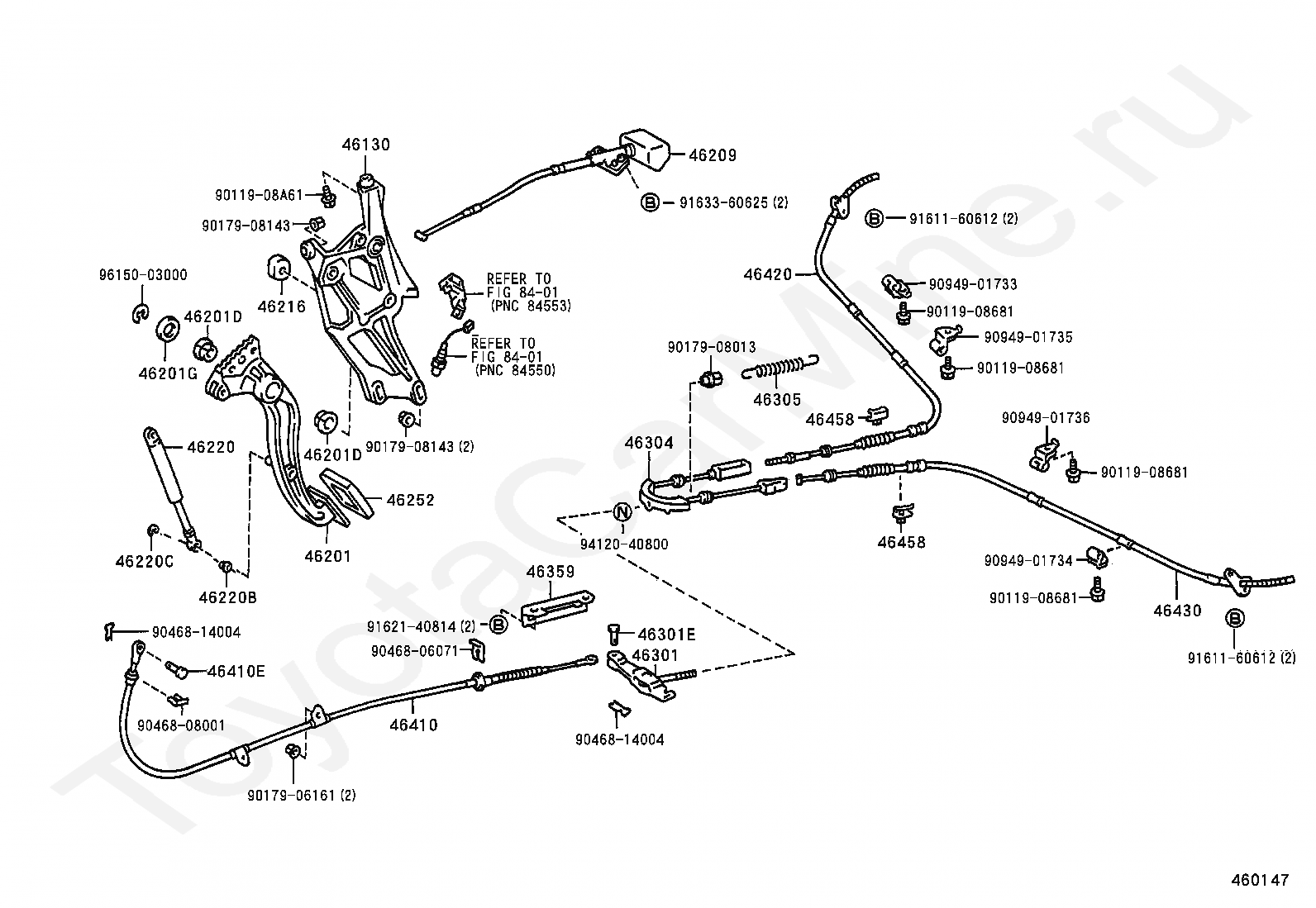

46130
BRACKET ASSY, PARKING BRAKE PEDAL
46201
PEDAL SUB-ASSY, PARKING BRAKE
46201D
BUSH(FOR PARKING BRAKE PEDAL)
46201G
SPACER(FOR PARKING BRAKE PEDAL)
46209
CABLE SUB-ASSY, PARKING BRAKE RELEASE
46216
CUSHION, PARKING PEDAL
46220
ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220B
BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46220C
RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46252
PAD, PARKING PEDAL
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46305
SPRING, PARKING BRAKE RETURN W/DAMPER
46359
GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410E
PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46430
CABLE ASSY, PARKING BRAKE, NO.3
46458
RETAINER, CABLE
8401
переход к группе запчастей
9011908681
Крепеж
9011908A61
Крепеж
9017906161
Крепеж
9017908013
Крепеж
9017908143
Крепеж
9046806071
Крепеж
9046808001
Крепеж
9046814004
Крепеж
9094901733
Крепеж
9094901734
Крепеж
9094901735
Крепеж
9094901736
Крепеж
9161160612
Крепеж
9162140814
Крепеж
9163360625
Крепеж
9412040800
Крепеж
9615003000
Крепеж
Код
Описание

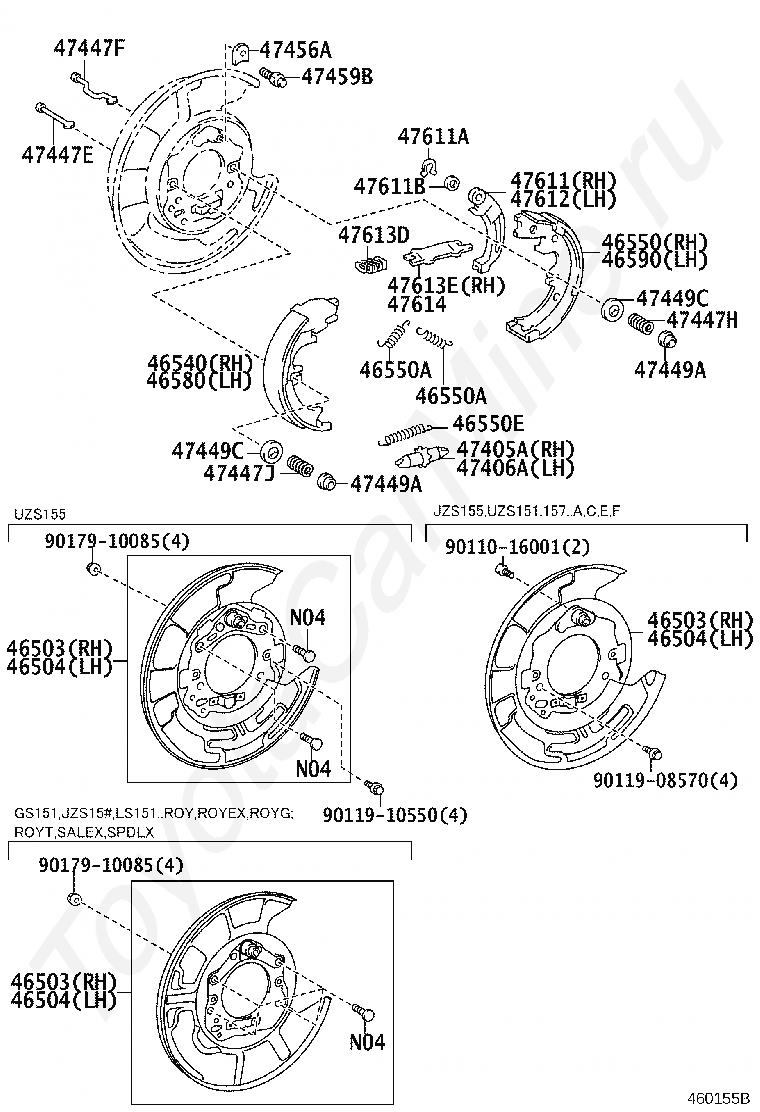

46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447E
PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447F
PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47447H
SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
47447J
SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449C
CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
9011016001
Крепеж
9011908570
Крепеж
9011910550
Крепеж
9017910085
Крепеж
