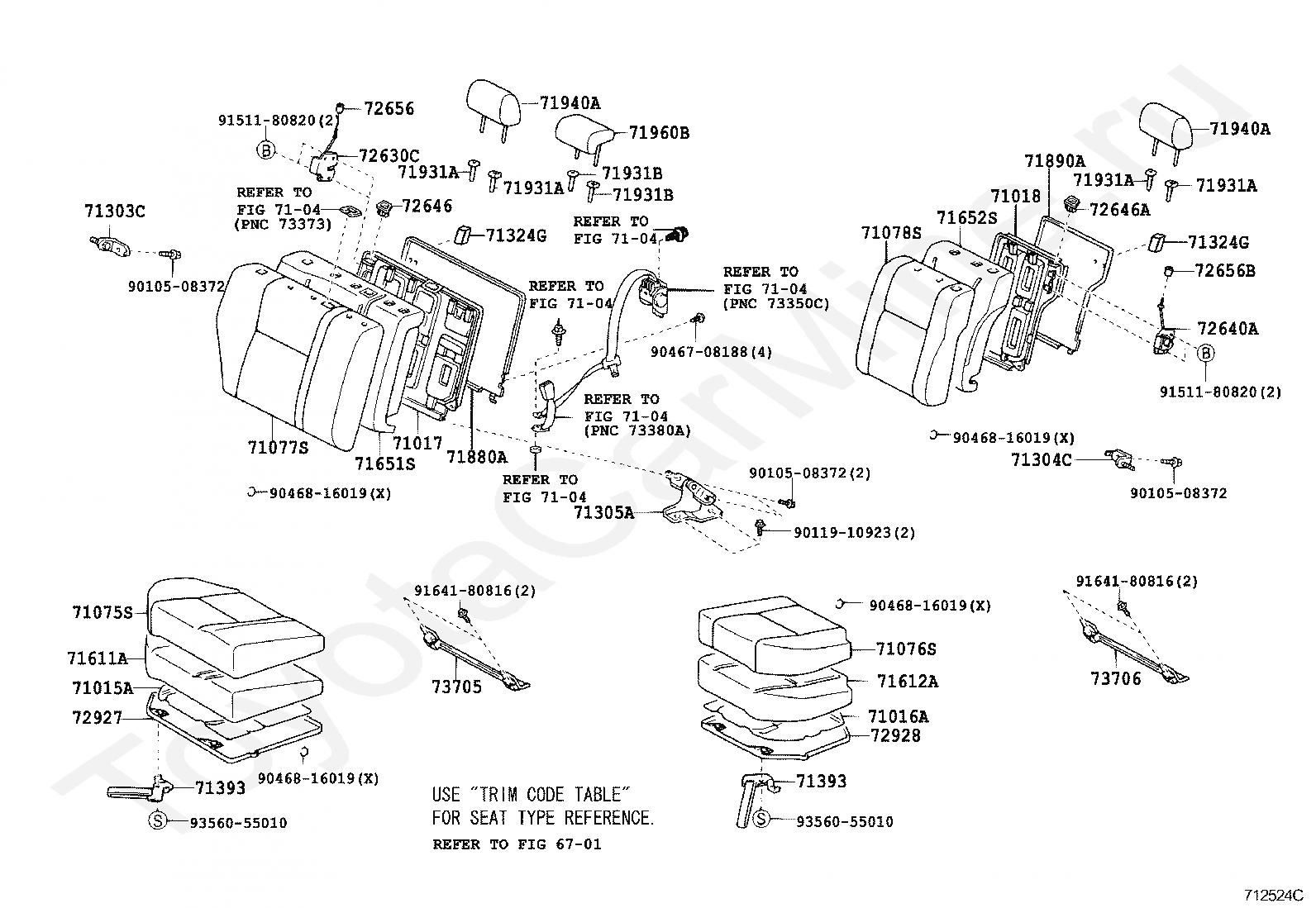

Задние кресла TOYOTA COROLLA HB (JPP), 2002/09 - 2006/10, 1,6 литра, 16 клапанов, DOHC, EFI, хетчбэк, TERRA TYPE, ZZE121, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

COROLLA HB (JPP)

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

хетчбэк

Класс

TERRA TYPE

Фрейм

ZZE121

Трансмиссия

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT правый руль 5 дверей HIGH EFFICIENCY TWIN CAM

Код

Описание

6701

переход к группе запчастей

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71324G

CUSHION, REAR NO.2 SEAT

71393

BAND, REAR SEAT CUSHION

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646A

GROMMET, REAR SEAT BACK STOP BUTTON

72656

BUTTON, REAR SEAT BACK STOP RELEASE

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010508372

Крепеж

9011910923

Крепеж

9046708188

Крепеж

9046816019

Крепеж

9151180820

Крепеж

9164180816

Крепеж

9356055010

Крепеж
