Передние кресла TOYOTA COROLLA HB (JPP), 2002/09 - 2006/10, 1,6 литра, 16 клапанов, DOHC, EFI, хетчбэк, TERRA TYPE, ZZE121, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

COROLLA HB (JPP)

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

хетчбэк

Класс

TERRA TYPE

Фрейм

ZZE121

Трансмиссия

автомат АКПП, 4 ступени

Опции

JAPAN PRODUCT правый руль 5 дверей HIGH EFFICIENCY TWIN CAM

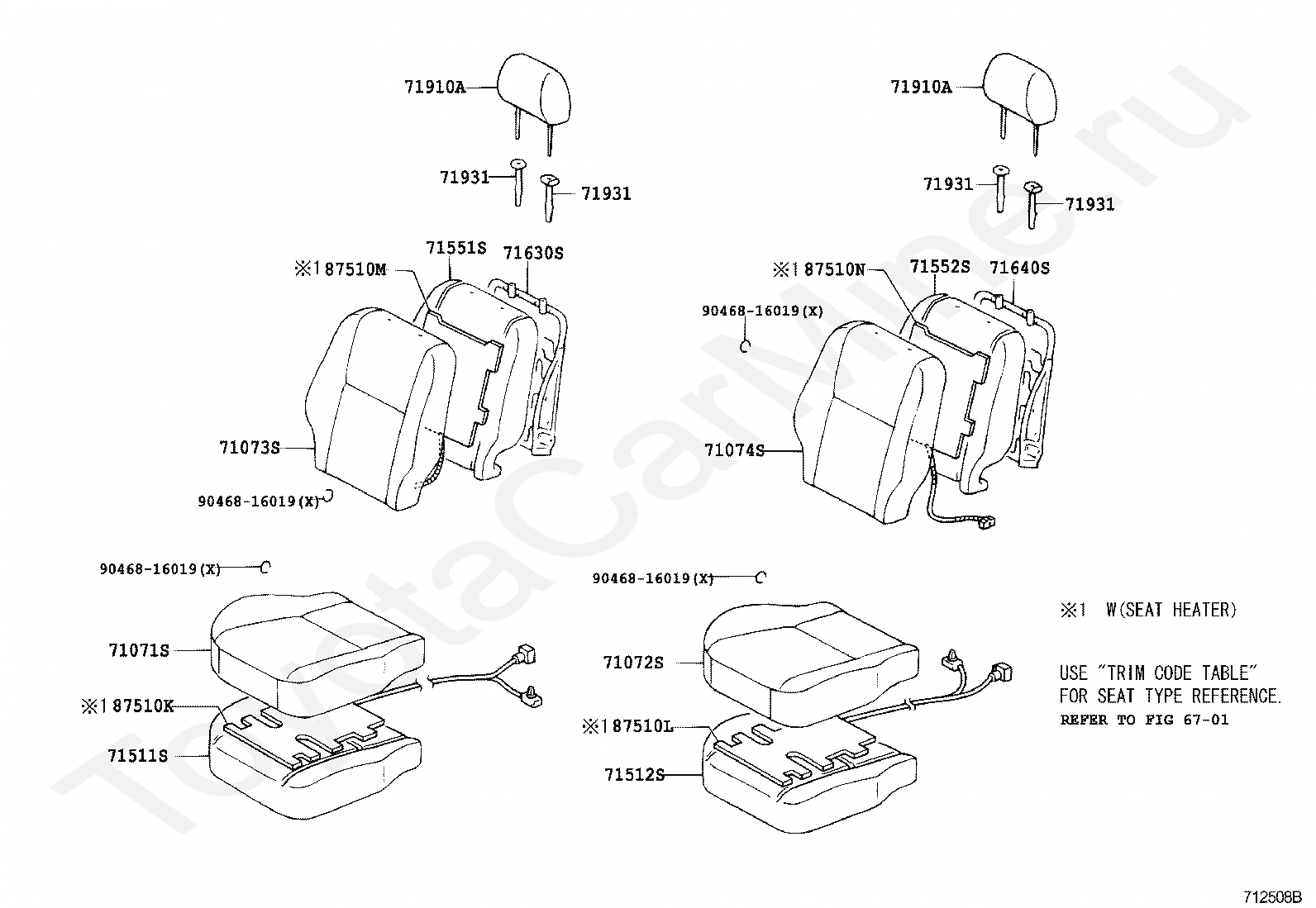

Код

Описание

6701

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9046816019

Крепеж

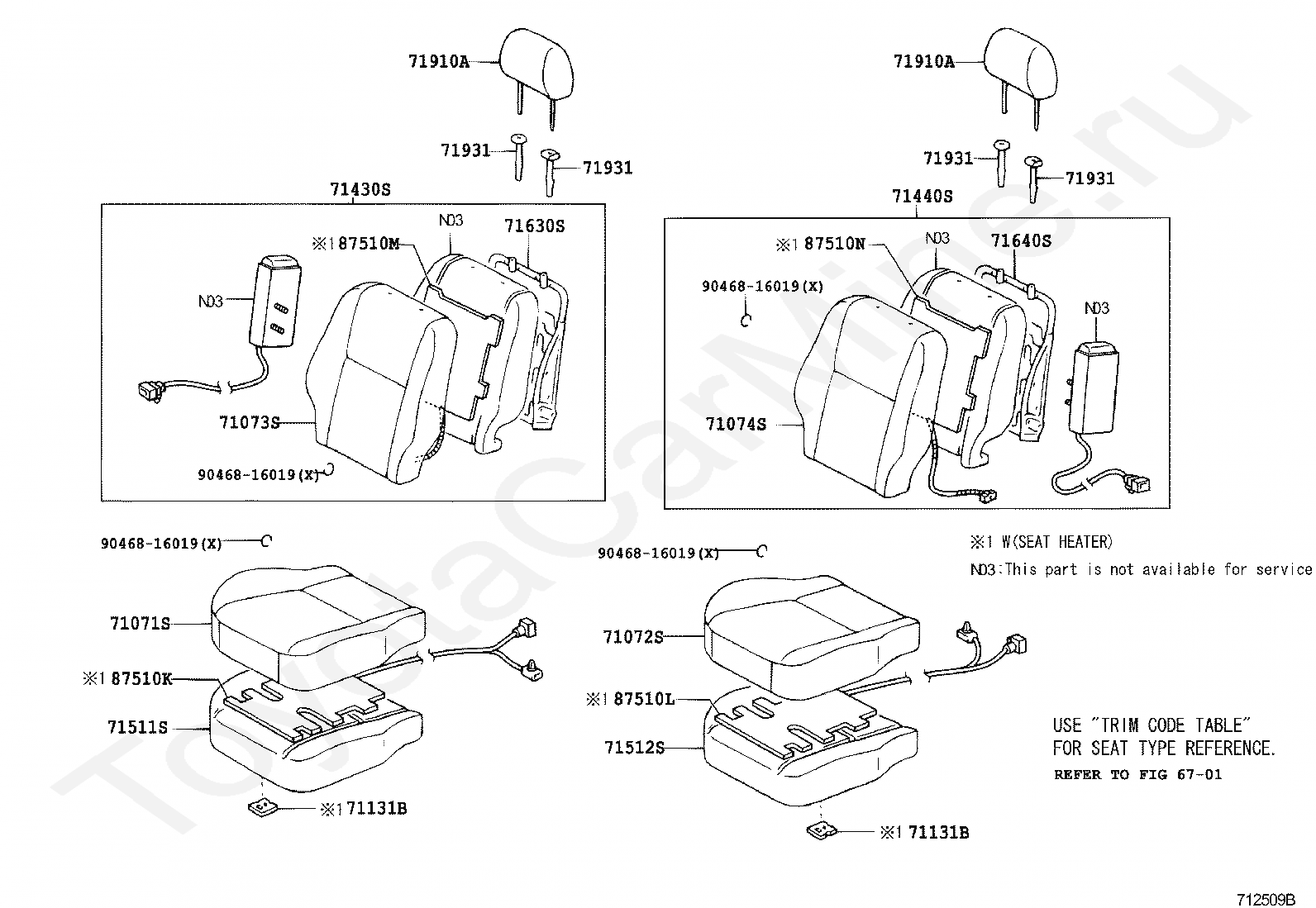

Код

Описание

6701

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9046816019

Крепеж

Код

Описание

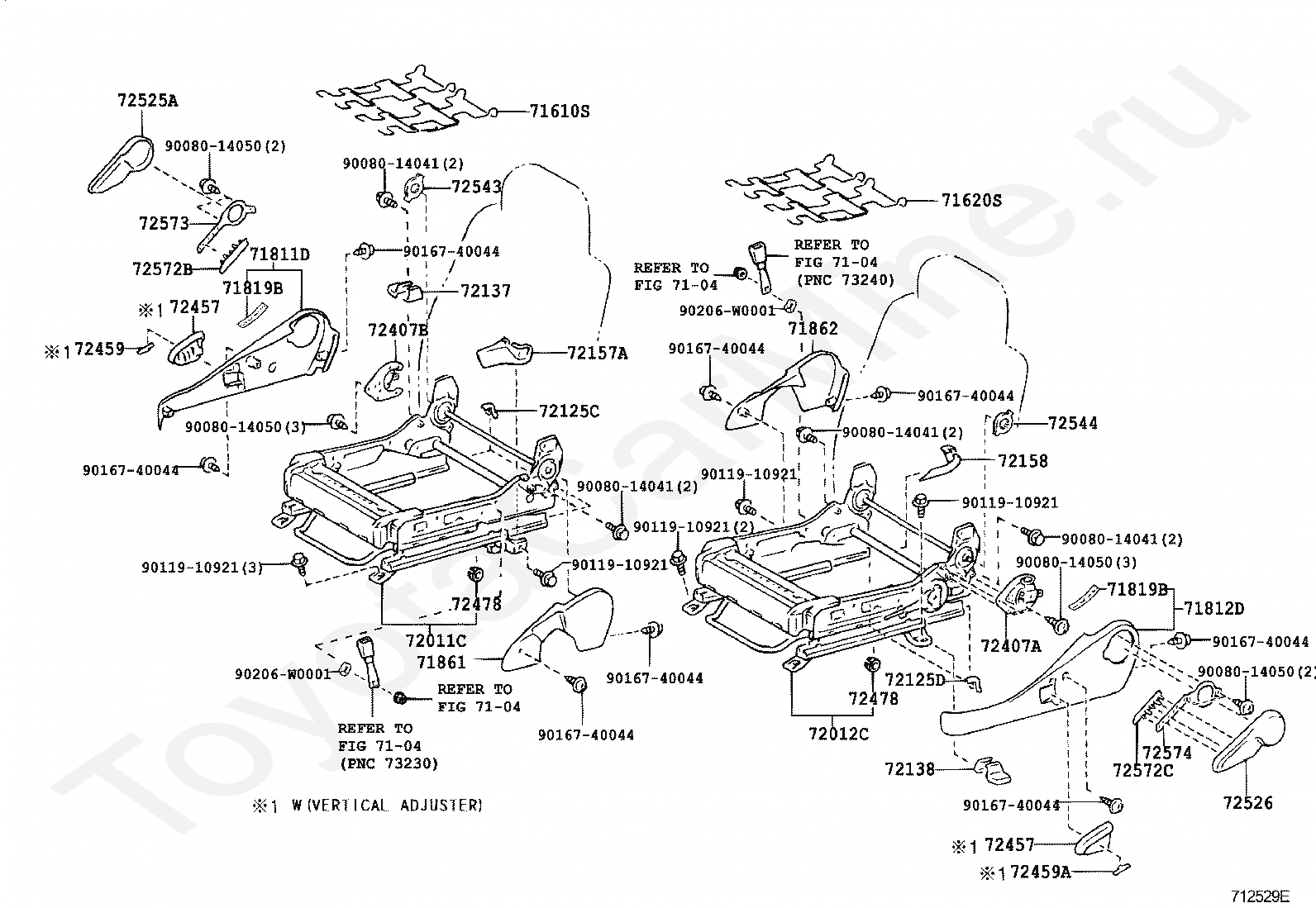

7104

переход к группе запчастей

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71819B

LABEL, SIDE AIR BAG NAME

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125C

COVER, SEAT TRACK LOCK PLATE, NO.1

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72407A

HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH

72407B

HOUSING SUB-ASSY, FRONT SEAT RECLINING RH

72457

KNOB, VERTICAL SEAT ADJUSTER

72459

CAP, VERTICAL SEAT ADJUSTER KNOB

72459A

CAP, VERTICAL SEAT ADJUSTER KNOB

72478

BUSH, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72543

PLATE, RECLINING CONTROL, RH

72544

PLATE, RECLINING CONTROL, LH

72572B

CAP, RECLINING ADJUSTER KNOB, RH

72572C

CAP, RECLINING ADJUSTER KNOB, LH

72573

LEVER, RECLINING CONTROL, RH

72574

LEVER, RECLINING CONTROL, LH

9008014041

Крепеж

9008014050

Крепеж

9011910921

Крепеж

9016740044

Крепеж

90206W0001

Крепеж

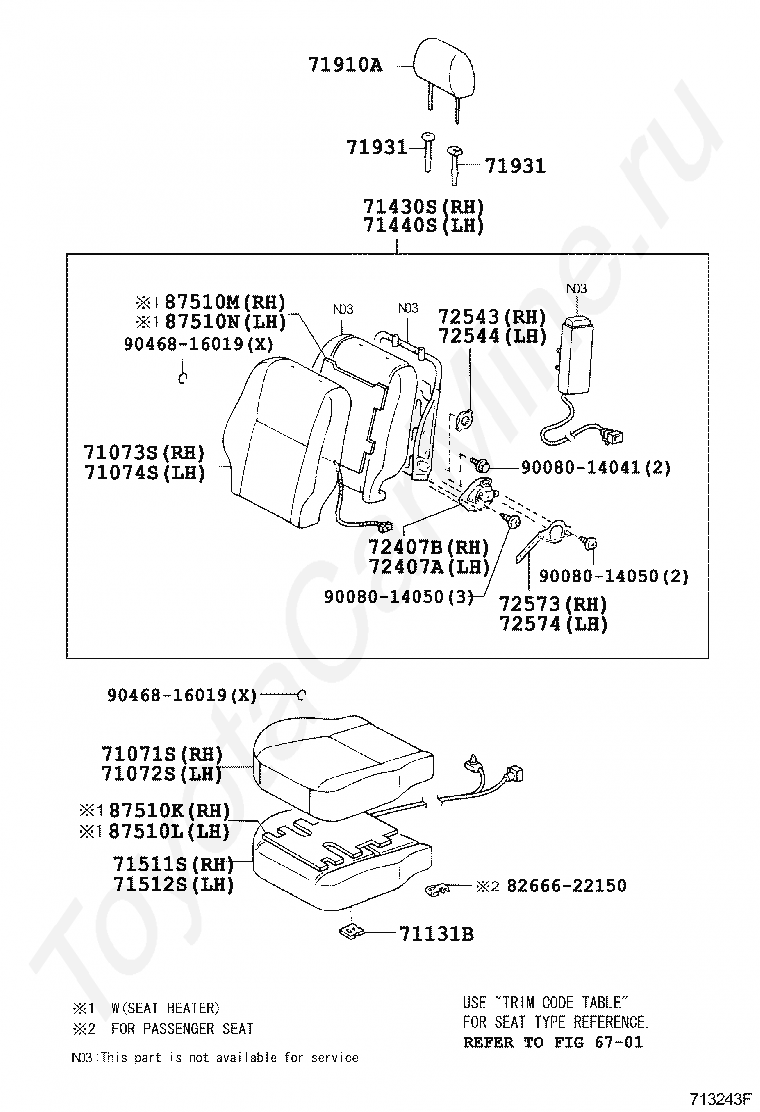

Код

Описание

6701

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72407A

HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH

72407B

HOUSING SUB-ASSY, FRONT SEAT RECLINING RH

72543

PLATE, RECLINING CONTROL, RH

72544

PLATE, RECLINING CONTROL, LH

72573

LEVER, RECLINING CONTROL, RH

72574

LEVER, RECLINING CONTROL, LH

8266622150

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008014041

Крепеж

9008014050

Крепеж

9046816019

Крепеж

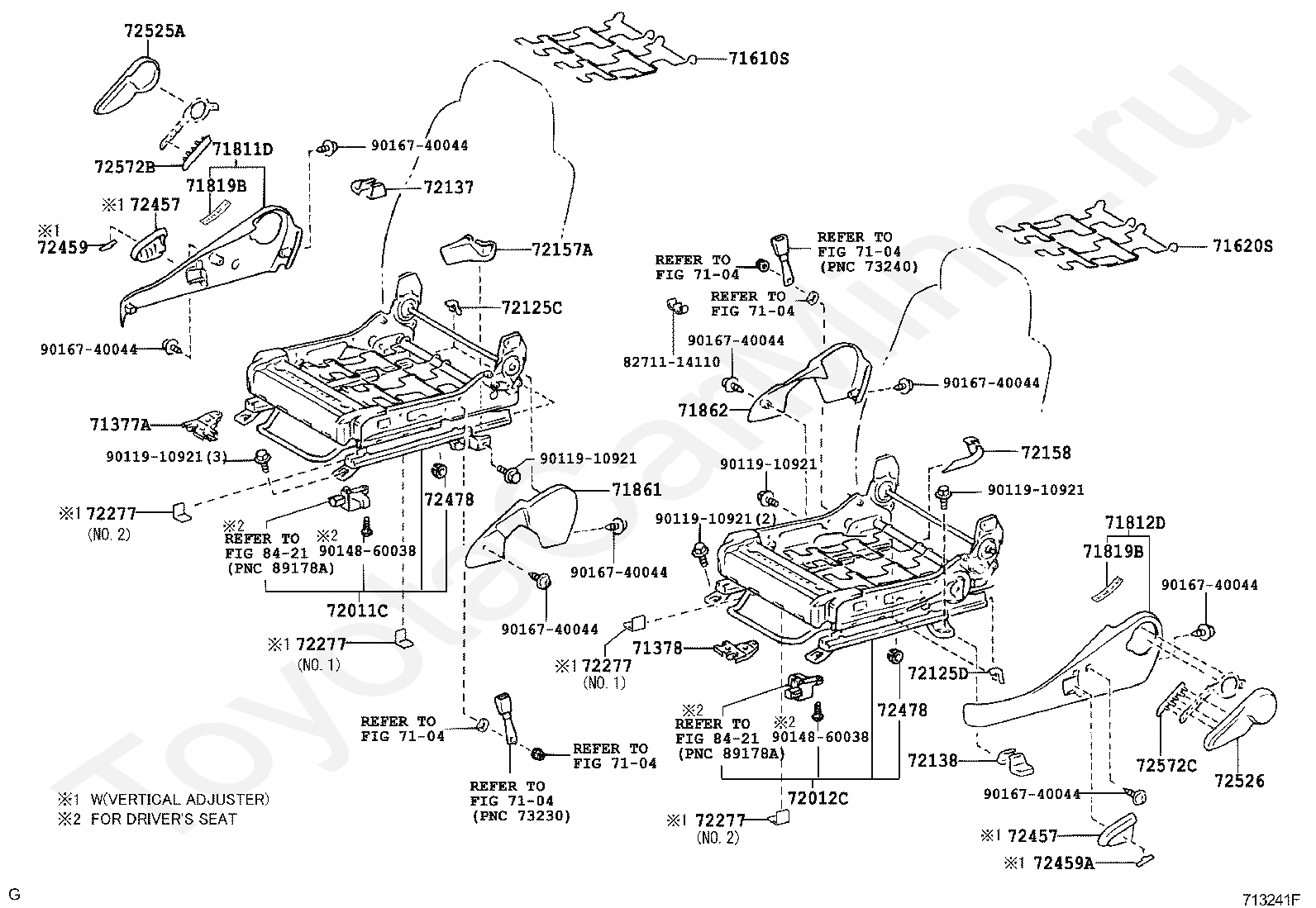

Код

Описание

7104

переход к группе запчастей

71377A

BRACKET, FRONT SEAT, RH

71378

BRACKET, FRONT SEAT, LH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71819B

LABEL, SIDE AIR BAG NAME

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125C

COVER, SEAT TRACK LOCK PLATE, NO.1

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72277

PROTECTOR, SEAT SLIDE POSITION SENSOR,

72457

KNOB, VERTICAL SEAT ADJUSTER

72459

CAP, VERTICAL SEAT ADJUSTER KNOB

72459A

CAP, VERTICAL SEAT ADJUSTER KNOB

72478

BUSH, VERTICAL ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72572B

CAP, RECLINING ADJUSTER KNOB, RH

72572C

CAP, RECLINING ADJUSTER KNOB, LH

8271114110

Крепеж

8421

переход к группе запчастей

9011910921

Крепеж

9014860038

Крепеж

9016740044

Крепеж

Передние кресла TOYOTA COROLLA HB (JPP), 2002/09 - 2006/10, 1,6 литра, 16 клапанов, DOHC, EFI, хетчбэк, TERRA TYPE, ZZE121, автомат, АКПП, 4 ступени
