Каталог
ЯпонияМодель
CHASERДвигатель
2,5 литра, 24 клапана DOHC, EFIКласс
AVANT TYPEФрейм
JZX93Трансмиссия
автоматОпции

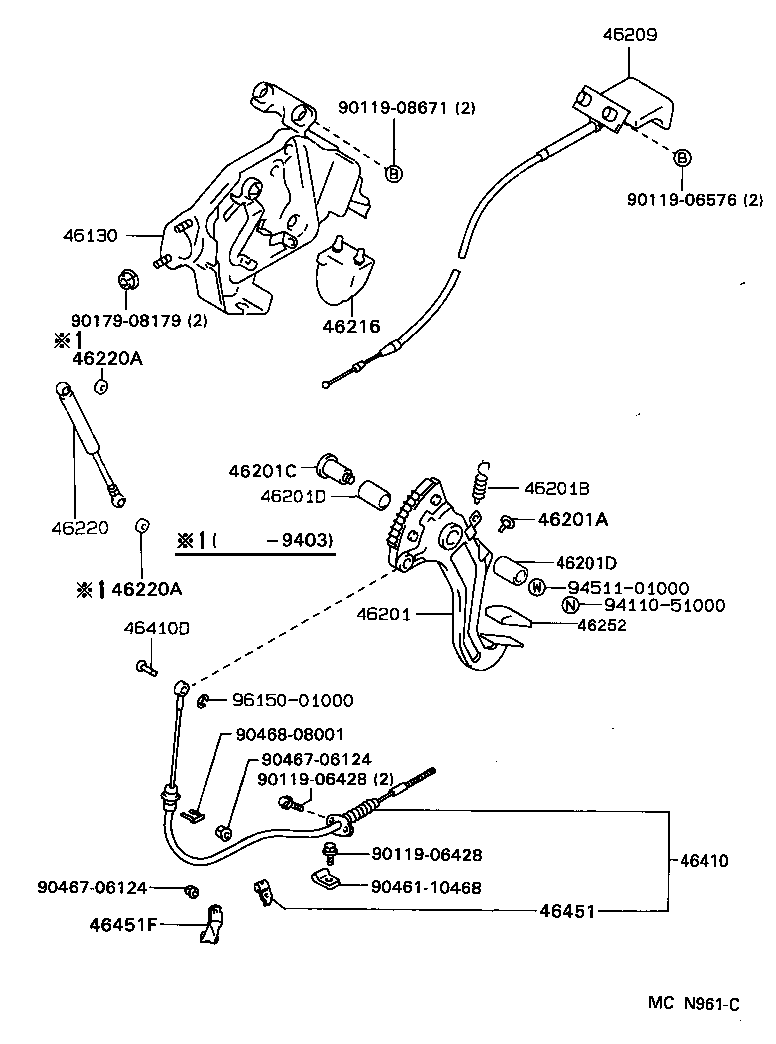

Код
Описание
46130
BRACKET ASSY, PARKING BRAKE PEDAL
46201
PEDAL SUB-ASSY, PARKING BRAKE
46201A
CUSHION(FOR PARKING BRAKE PEDAL)
46201B
SPRING, TENSION
46201C
SHAFT, PEDAL
46201D
BUSH(FOR PARKING BRAKE PEDAL)
46209
CABLE SUB-ASSY, PARKING BRAKE RELEASE
46216
CUSHION, PARKING PEDAL
46220
ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220A
CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46252
PAD, PARKING PEDAL
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
46451
BRACKET, CABLE SUPPORT
46451F
BRACKET, CABLE SUPPORT
9011906428
Крепеж
9011906576
Крепеж
9011908671
Крепеж
9017908179
Крепеж
9046110468
Крепеж
9046706124
Крепеж
9046808001
Крепеж
9411051000
Крепеж
9451101000
Крепеж
9615001000
Крепеж

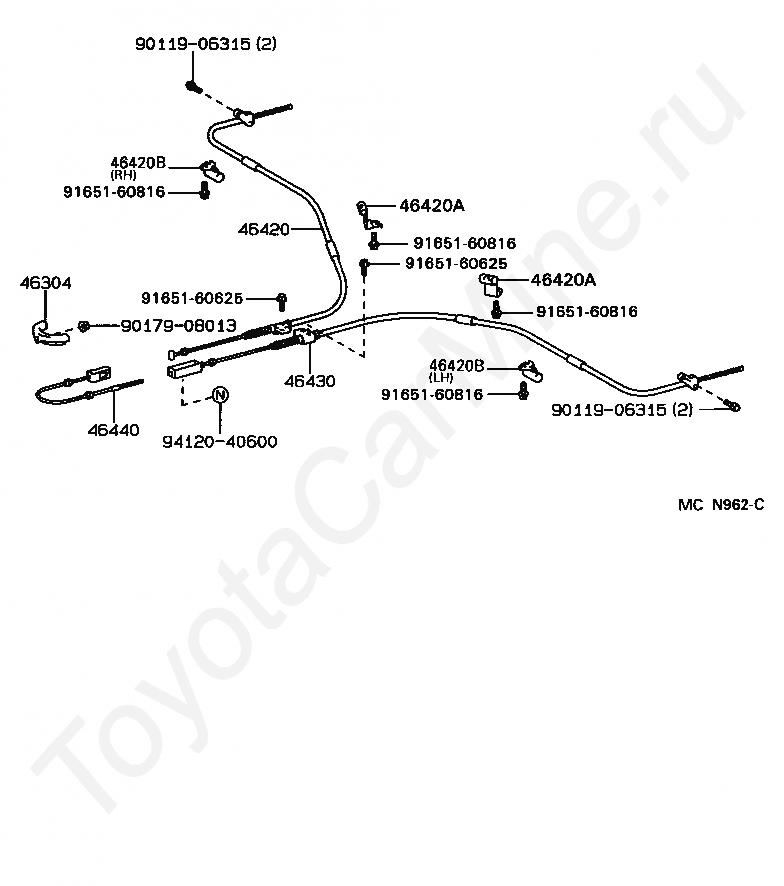

Код
Описание
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420A
CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420B
CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
46440
CABLE ASSY, PARKING BRAKE, NO.4
9011906315
Крепеж
9017908013
Крепеж
9165160625
Крепеж
9165160816
Крепеж
9412040600
Крепеж

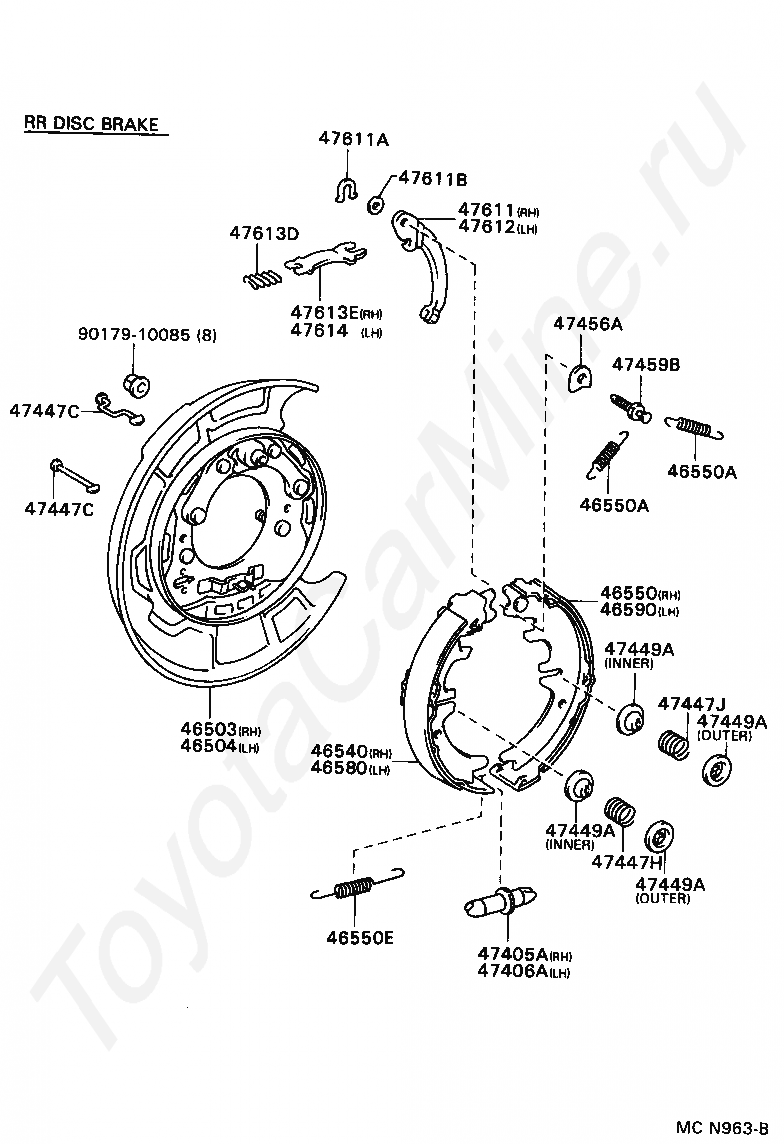

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447C
PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447H
SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
47447J
SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
9017910085
Крепеж
