Каталог
ЯпонияМодель
CHASERДвигатель
2,5 литра, 24 клапана DOHC, EFIКласс
AVANT TYPEФрейм
JZX93Трансмиссия
автоматОпции

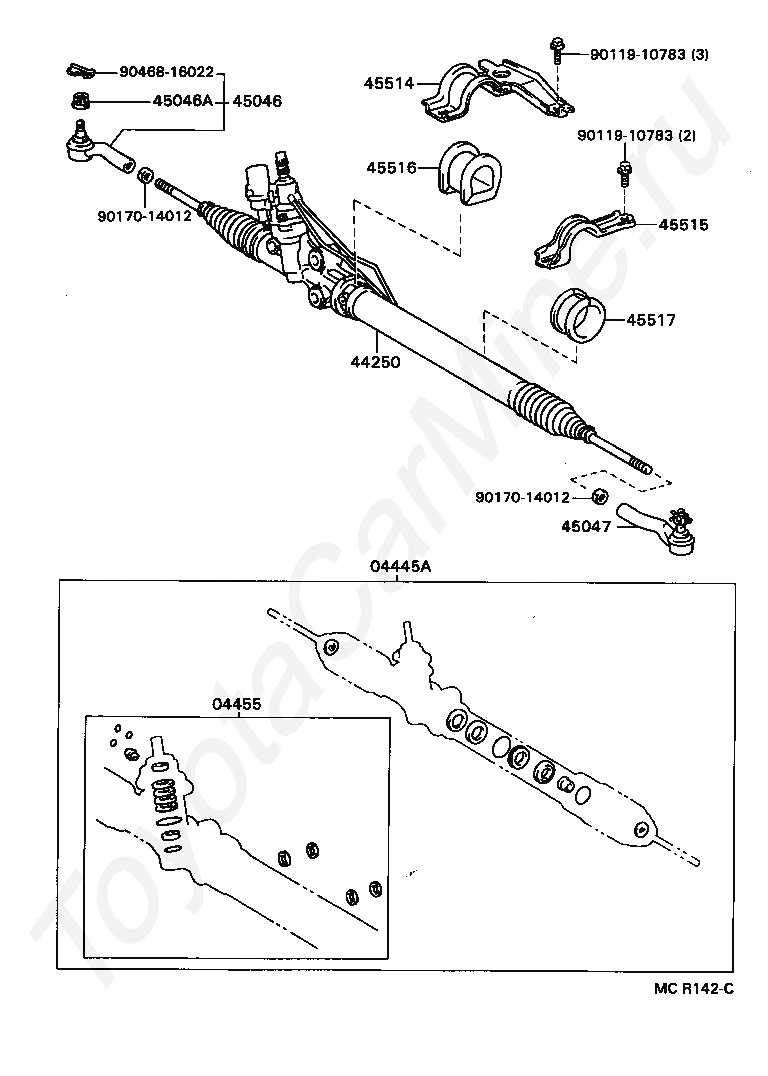

Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
9011910783
Крепеж
9017014012
Крепеж
9046816022
Крепеж

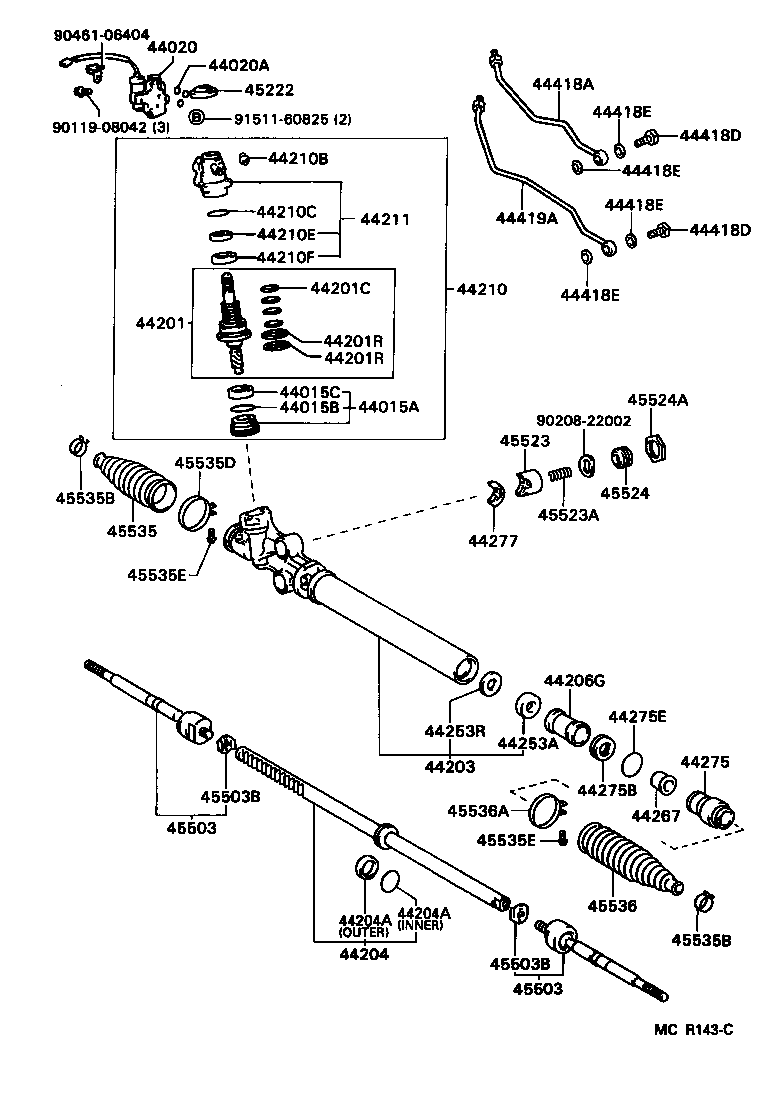

Код
Описание
44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44020
VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE
44020A
RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE)
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44201R
RING(FOR POWER STEERING CONTROL VALVE)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44206G
SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253R
SPACER(FOR POWER STEERING RACK HOUSING)
44267
GUIDE, RACK END
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44275E
RING, O(FOR RACK END GUIDE)
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418D
BOLT, UNION(FOR STEERING TURN PRESSURE TUBE)
44418E
GASKET(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
45222
COVER, STEERING GEAR DUST
45503
END SUB-ASSY, STEERING RACK
45503B
WASHER, CLAW(FOR STEERING RACK END)
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535B
CLIP(FOR STEERING RACK BOOT)
45535D
CLAMP(FOR STEERING RACK BOOT NO.1)
45535E
SCREW(FOR STEERING RACK BOOT CLAMP)
45536
BOOT, STEERING RACK, NO.2
45536A
CLAMP(FOR STEERING RACK BOOT NO.2)
9011908042
Крепеж
9020822002
Крепеж
9046106404
Крепеж
9151160825
Крепеж
