Задние двери TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

CALYA

Двигатель

1,2 литра

Класс

GRAMS

Фрейм

B401

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль

Код

Описание

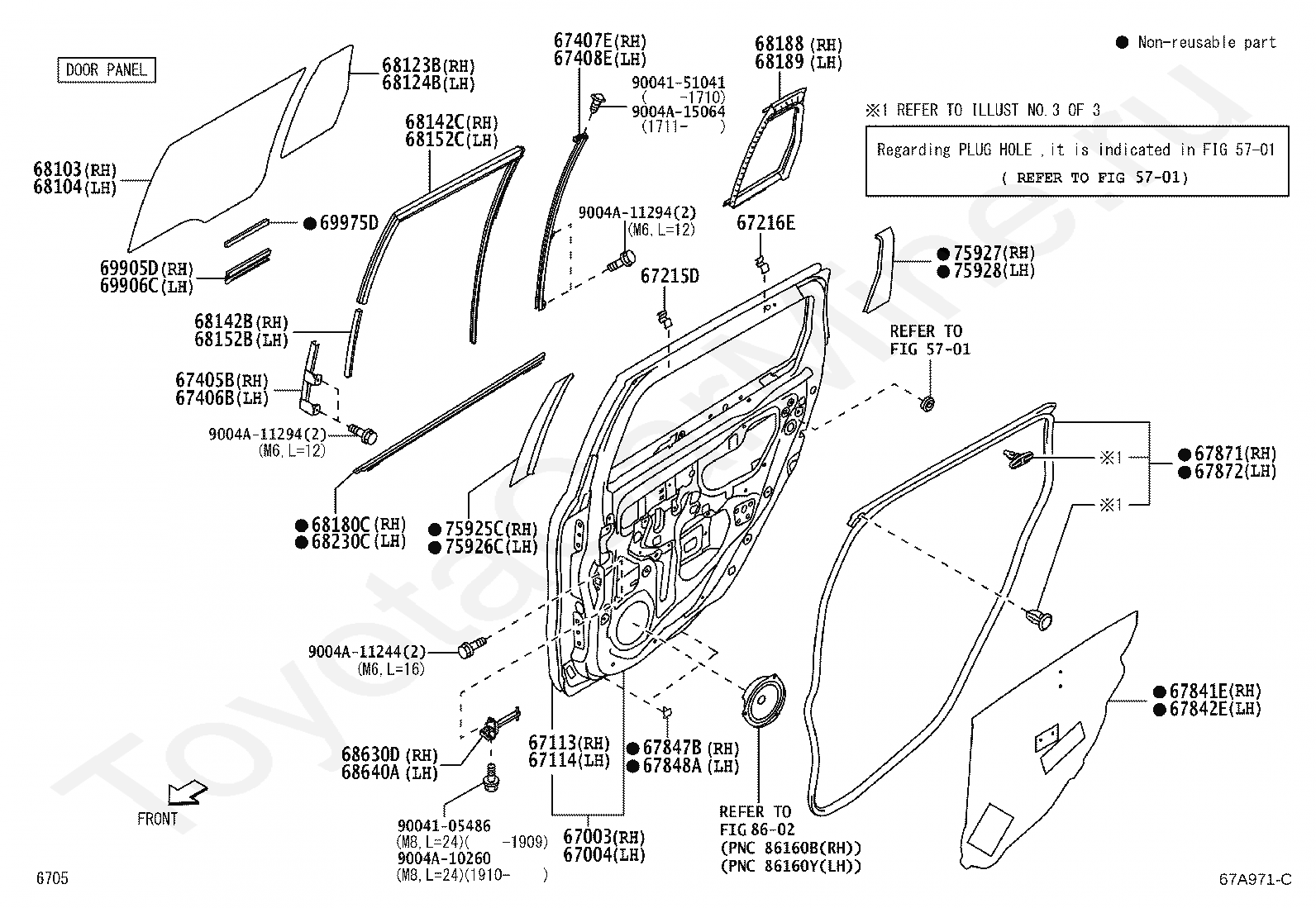

5701

переход к группе запчастей

67003

PANEL SUB-ASSY, REAR DOOR, RH

67004

PANEL SUB-ASSY, REAR DOOR, LH

67113

PANEL, REAR DOOR, OUTER RH

67114

PANEL, REAR DOOR, OUTER LH

67215D

STOP, REAR DOOR WINDOW, UPPER

67216E

STOPPER, REAR DOOR GLASS, UPPER NO.2

67405B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

67406B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

67407E

BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

67408E

BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

67841E

COVER, REAR DOOR SERVICE HOLE, RH

67842E

COVER, REAR DOOR SERVICE HOLE, LH

67847B

SEAL, REAR DOOR VENT, RH NO.1

67848A

SEAL, REAR DOOR VENT, LH NO.1

67871

WEATHERSTRIP, REAR DOOR, RH

67872

WEATHERSTRIP, REAR DOOR, LH

68103

GLASS SUB-ASSY, REAR DOOR, RH

68104

GLASS SUB-ASSY, REAR DOOR, LH

68123B

GLASS, REAR DOOR QUARTER WINDOW, RH

68124B

GLASS, REAR DOOR QUARTER WINDOW, LH

68142B

RUN, REAR DOOR WINDOW, RH

68142C

RUN, REAR DOOR GLASS, RH

68152B

RUN, REAR DOOR WINDOW, LH

68152C

RUN, REAR DOOR GLASS, LH

68180C

WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

68188

WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

68189

WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

68230C

WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

68630D

CHECK ASSY, REAR DOOR, RH

68640A

CHECK ASSY, REAR DOOR, LH

69905D

CHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH

69906C

BRACKET SUB-ASSY, REAR DOOR GLASS, LH

69975D

FILLER, REAR DOOR GLASS CHANNAL

75925C

TAPE, BLACK OUT, NO.3 RH

75926C

TAPE, BLACK OUT, NO.3 LH

75927

TAPE, BLACK OUT, NO.4 RH

75928

TAPE, BLACK OUT, NO.4 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004151041

Крепеж

9004A10260

Крепеж

9004A11244

Крепеж

9004A11294

Крепеж

9004A15064

Крепеж

Код

Описание

5701

переход к группе запчастей

67003

PANEL SUB-ASSY, REAR DOOR, RH

67004

PANEL SUB-ASSY, REAR DOOR, LH

67113

PANEL, REAR DOOR, OUTER RH

67114

PANEL, REAR DOOR, OUTER LH

67215D

STOP, REAR DOOR WINDOW, UPPER

67216E

STOPPER, REAR DOOR GLASS, UPPER NO.2

67405B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

67406B

GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

67407E

BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

67408E

BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

67841E

COVER, REAR DOOR SERVICE HOLE, RH

67842E

COVER, REAR DOOR SERVICE HOLE, LH

67847B

SEAL, REAR DOOR VENT, RH NO.1

67848A

SEAL, REAR DOOR VENT, LH NO.1

67871

WEATHERSTRIP, REAR DOOR, RH

67872

WEATHERSTRIP, REAR DOOR, LH

68103

GLASS SUB-ASSY, REAR DOOR, RH

68104

GLASS SUB-ASSY, REAR DOOR, LH

68123B

GLASS, REAR DOOR QUARTER WINDOW, RH

68124B

GLASS, REAR DOOR QUARTER WINDOW, LH

68142B

RUN, REAR DOOR WINDOW, RH

68142C

RUN, REAR DOOR GLASS, RH

68152B

RUN, REAR DOOR WINDOW, LH

68152C

RUN, REAR DOOR GLASS, LH

68180C

WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

68188

WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

68189

WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

68230C

WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

68630D

CHECK ASSY, REAR DOOR, RH

68640A

CHECK ASSY, REAR DOOR, LH

69905D

CHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH

69906C

BRACKET SUB-ASSY, REAR DOOR GLASS, LH

69975D

FILLER, REAR DOOR GLASS CHANNAL

75925C

TAPE, BLACK OUT, NO.3 RH

75926C

TAPE, BLACK OUT, NO.3 LH

75927

TAPE, BLACK OUT, NO.4 RH

75928

TAPE, BLACK OUT, NO.4 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004151041

Крепеж

9004A10260

Крепеж

9004A11244

Крепеж

9004A11294

Крепеж

9004A15064

Крепеж

Код

Описание

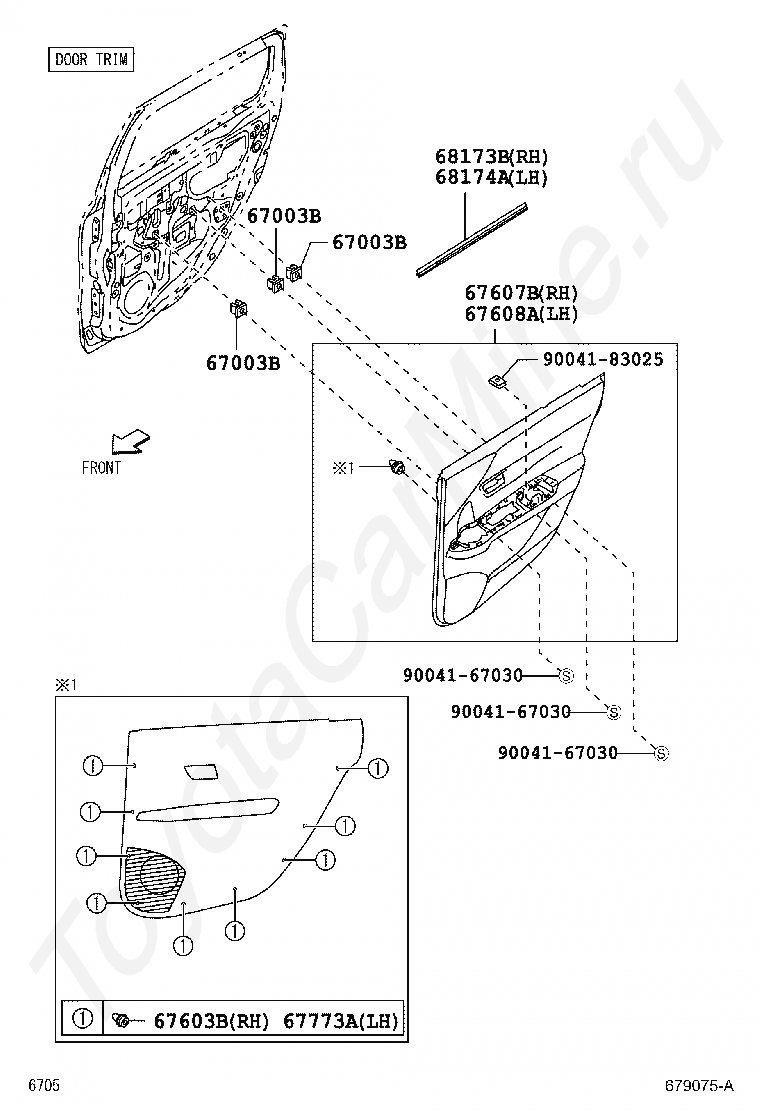

67003B

GROMMET(FOR REAR DOOR PANEL)

67603B

CLIP(FOR REAR DOOR TRIM BOARD)

67607B

PANEL SUB-ASSY, REAR DOOR TRIM, RH

67608A

PANEL SUB-ASSY, REAR DOOR TRIM, LH

67773A

CLIP, REAR DOOR TRIM UPPER RETAINER, NO.1

68173B

WEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174A

WEATHERSTRIP, REAR DOOR GLASS, INNER LH

9004167030

Крепеж

9004183025

Крепеж

Код

Описание

67003B

GROMMET(FOR REAR DOOR PANEL)

67603B

CLIP(FOR REAR DOOR TRIM BOARD)

67607B

PANEL SUB-ASSY, REAR DOOR TRIM, RH

67608A

PANEL SUB-ASSY, REAR DOOR TRIM, LH

67773A

CLIP, REAR DOOR TRIM UPPER RETAINER, NO.1

68173B

WEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174A

WEATHERSTRIP, REAR DOOR GLASS, INNER LH

9004167030

Крепеж

9004183025

Крепеж

Код

Описание

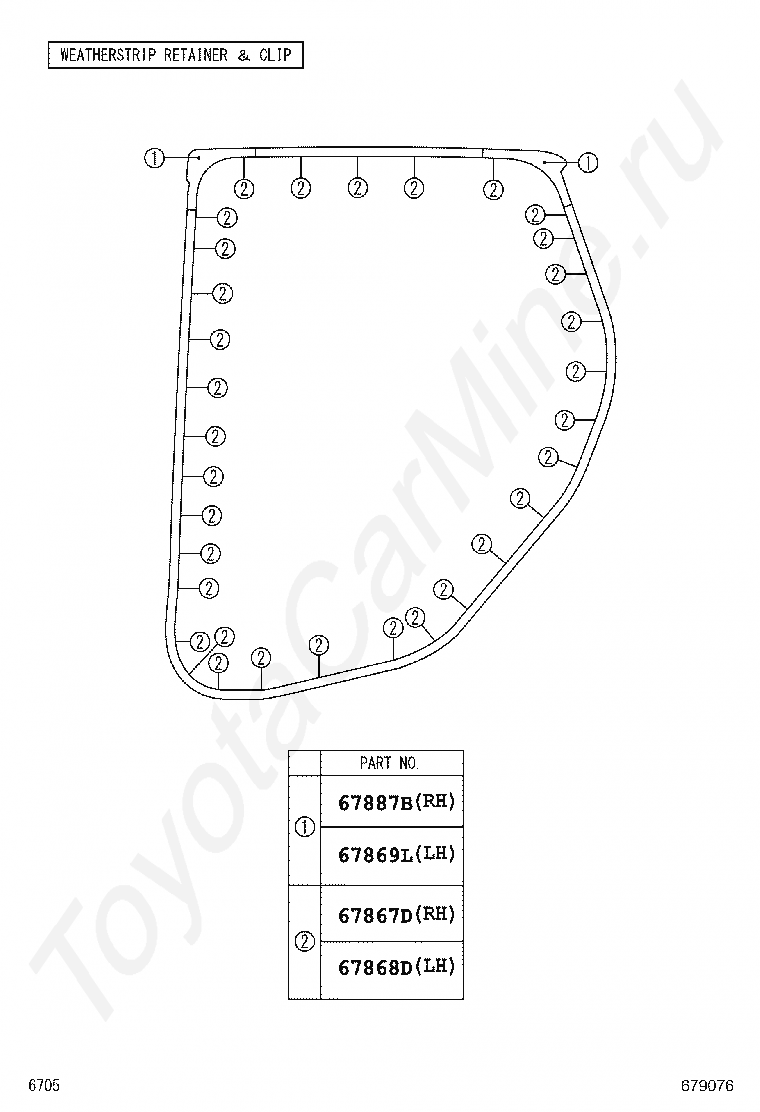

67867D

RETAINER, REAR DOOR WEATHERSTRIP, RH

67868D

RETAINER, REAR DOOR WEATHERSTRIP, LH

67869L

CLIP, REAR DOOR WEATHERSTRIP

67887B

CLIP(FOR REAR DOOR WEATHERSTRIP)

Код

Описание

67867D

RETAINER, REAR DOOR WEATHERSTRIP, RH

67868D

RETAINER, REAR DOOR WEATHERSTRIP, LH

67869L

CLIP, REAR DOOR WEATHERSTRIP

67887B

CLIP(FOR REAR DOOR WEATHERSTRIP)
