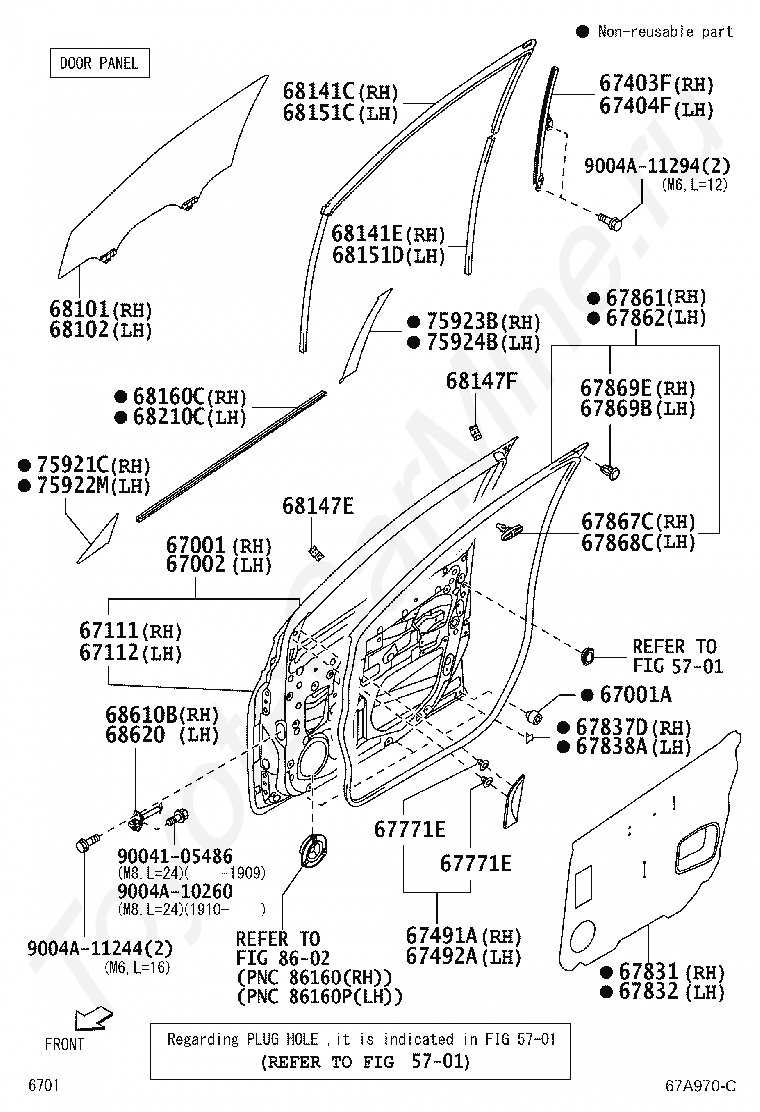

Передние двери TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

CALYA

Двигатель

1,2 литра

Класс

GRAMS

Фрейм

B401

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль

Код

Описание

5701

переход к группе запчастей

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67111

PANEL, FRONT DOOR, OUTER RH

67112

PANEL, FRONT DOOR, OUTER LH

67403F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67771E

RETAINER(FOR FRONT DOOR FRAME BRACKET)

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67837D

SEAL, FRONT DOOR VENT, RH

67838A

SEAL, FRONT DOOR VENT, LH

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

67869B

CLIP, FRONT DOOR WEATHERSTRIP

67869E

CLIP, FRONT DOOR WEATHERSTRIP

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141C

RUN, FRONT DOOR GLASS, RH

68141E

RUN, FRONT DOOR GLASS, RH

68147E

STOP, FRONT DOOR GLASS, UPPER

68147F

STOP, FRONT DOOR GLASS, UPPER

68151C

RUN, FRONT DOOR GLASS, LH

68151D

RUN, FRONT DOOR GLASS, LH

68160C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68210C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610B

CHECK ASSY, FRONT DOOR, RH

68620

CHECK ASSY, FRONT DOOR, LH

75921C

TAPE, BLACK OUT, NO.1 RH

75922M

TAPE, BLACK OUT, NO.1 LH

75923B

TAPE, BLACK OUT, NO.2 RH

75924B

TAPE, BLACK OUT, NO.2 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004A10260

Крепеж

9004A11244

Крепеж

9004A11294

Крепеж

Код

Описание

5701

переход к группе запчастей

67001

PANEL SUB-ASSY, FRONT DOOR, RH

67001A

CUSHION, FRONT DOOR PANEL

67002

PANEL SUB-ASSY, FRONT DOOR, LH

67111

PANEL, FRONT DOOR, OUTER RH

67112

PANEL, FRONT DOOR, OUTER LH

67403F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404F

FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67491A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492A

GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67771E

RETAINER(FOR FRONT DOOR FRAME BRACKET)

67831

COVER, FRONT DOOR SERVICE HOLE, RH

67832

COVER, FRONT DOOR SERVICE HOLE, LH

67837D

SEAL, FRONT DOOR VENT, RH

67838A

SEAL, FRONT DOOR VENT, LH

67861

WEATHERSTRIP, FRONT DOOR, RH

67862

WEATHERSTRIP, FRONT DOOR, LH

67867C

RETAINER, FRONT DOOR WEATHERSTRIP, RH

67868C

RETAINER, FRONT DOOR WEATHERSTRIP, LH

67869B

CLIP, FRONT DOOR WEATHERSTRIP

67869E

CLIP, FRONT DOOR WEATHERSTRIP

68101

GLASS SUB-ASSY, FRONT DOOR, RH

68102

GLASS SUB-ASSY, FRONT DOOR, LH

68141C

RUN, FRONT DOOR GLASS, RH

68141E

RUN, FRONT DOOR GLASS, RH

68147E

STOP, FRONT DOOR GLASS, UPPER

68147F

STOP, FRONT DOOR GLASS, UPPER

68151C

RUN, FRONT DOOR GLASS, LH

68151D

RUN, FRONT DOOR GLASS, LH

68160C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68210C

WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610B

CHECK ASSY, FRONT DOOR, RH

68620

CHECK ASSY, FRONT DOOR, LH

75921C

TAPE, BLACK OUT, NO.1 RH

75922M

TAPE, BLACK OUT, NO.1 LH

75923B

TAPE, BLACK OUT, NO.2 RH

75924B

TAPE, BLACK OUT, NO.2 LH

8602

переход к группе запчастей

9004105486

Крепеж

9004A10260

Крепеж

9004A11244

Крепеж

9004A11294

Крепеж

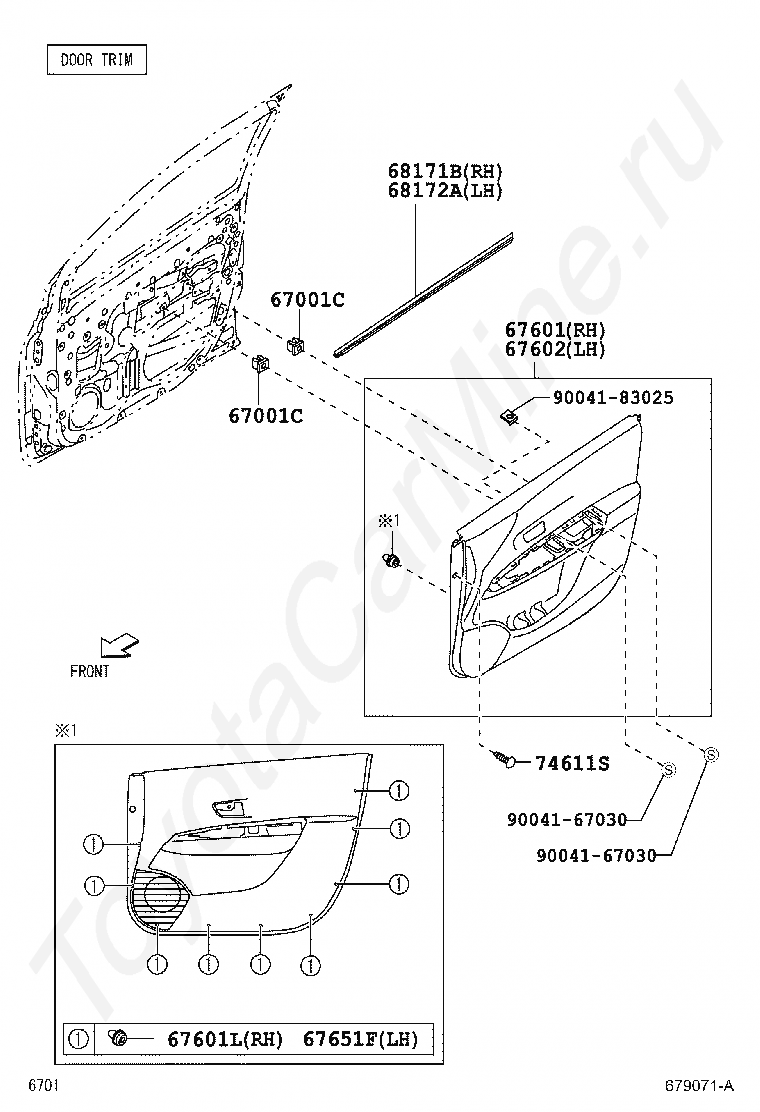

Код

Описание

67001C

GROMMET(FOR FRONT DOOR PANEL)

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601L

CLIP(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67651F

CLIP(FOR FRONT DOOR TRIM BOARD)

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

74611S

CLIP

9004167030

Крепеж

9004183025

Крепеж

Код

Описание

67001C

GROMMET(FOR FRONT DOOR PANEL)

67601

BOARD SUB-ASSY, FRONT DOOR TRIM, RH

67601L

CLIP(FOR FRONT DOOR TRIM BOARD)

67602

BOARD SUB-ASSY, FRONT DOOR TRIM, LH

67651F

CLIP(FOR FRONT DOOR TRIM BOARD)

68171B

WEATHERSTRIP, FRONT DOOR GLASS, INNER RH

68172A

WEATHERSTRIP, FRONT DOOR GLASS, INNER LH

74611S

CLIP

9004167030

Крепеж

9004183025

Крепеж

Передние двери TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени
