Боковая панель кузова TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

CALYA

Двигатель

1,2 литра

Класс

GRAMS

Фрейм

B401

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль

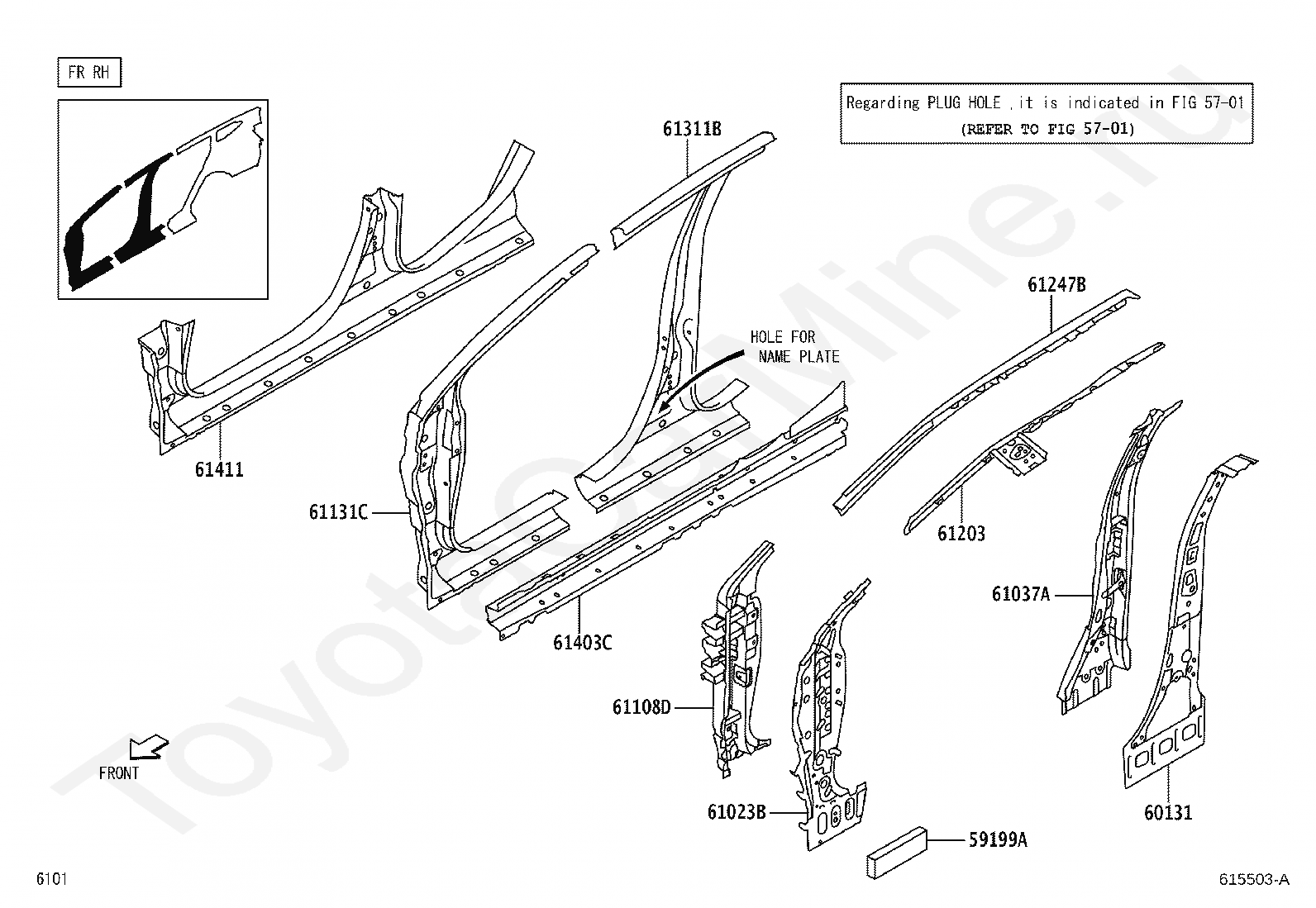

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60131

PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61247B

REINFORCEMENT, ROOF SIDE RAIL, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60131

PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61247B

REINFORCEMENT, ROOF SIDE RAIL, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

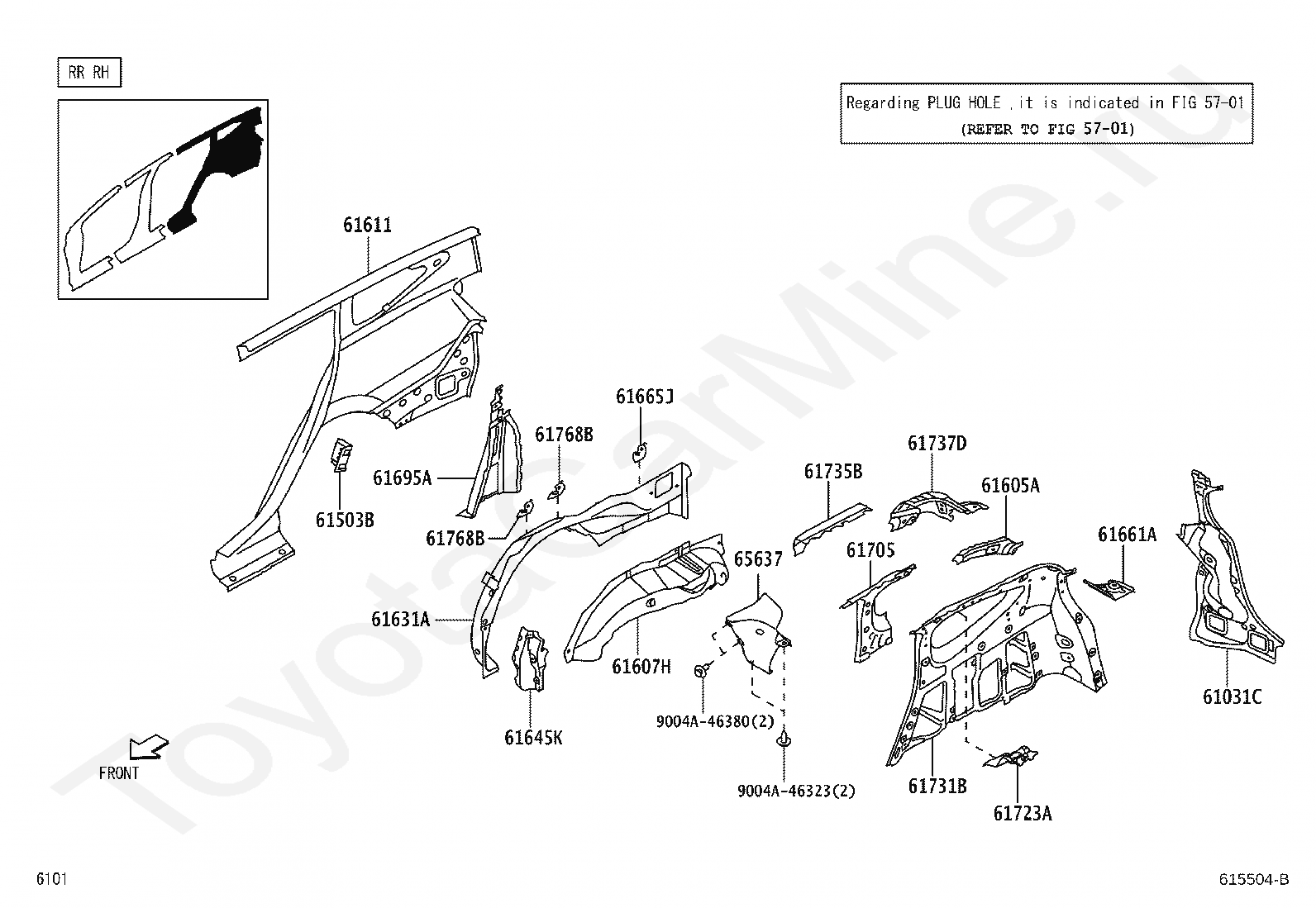

Код

Описание

5701

переход к группе запчастей

61031C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61605A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61611

PANEL, QUARTER, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61661A

EXTENSION, QUARTER PANEL TO UPPER BACK, RH

61665J

PLATE, SEAT BELT ANCHORAGE, RH

61695A

BRACE, QUARTER PANEL, RH

61705

PANEL SUB-ASSY, ROOF SIDE, INNER RH

61723A

REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

61731B

PANEL, ROOF SIDE, INNER RH

61735B

EXTENSION, QUARTER PANEL, INNER RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

65637

LINER, REAR WHEEL HOUSE, RH

9004A46323

Крепеж

9004A46380

Крепеж

Код

Описание

5701

переход к группе запчастей

61031C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61605A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61611

PANEL, QUARTER, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61661A

EXTENSION, QUARTER PANEL TO UPPER BACK, RH

61665J

PLATE, SEAT BELT ANCHORAGE, RH

61695A

BRACE, QUARTER PANEL, RH

61705

PANEL SUB-ASSY, ROOF SIDE, INNER RH

61723A

REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

61731B

PANEL, ROOF SIDE, INNER RH

61735B

EXTENSION, QUARTER PANEL, INNER RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

65637

LINER, REAR WHEEL HOUSE, RH

9004A46323

Крепеж

9004A46380

Крепеж

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60132

PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61248B

REINFORCEMENT, ROOF SIDE RAIL, INNER LH

61312B

PILLAR, CENTER BODY, OUTER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60132

PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61248B

REINFORCEMENT, ROOF SIDE RAIL, INNER LH

61312B

PILLAR, CENTER BODY, OUTER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

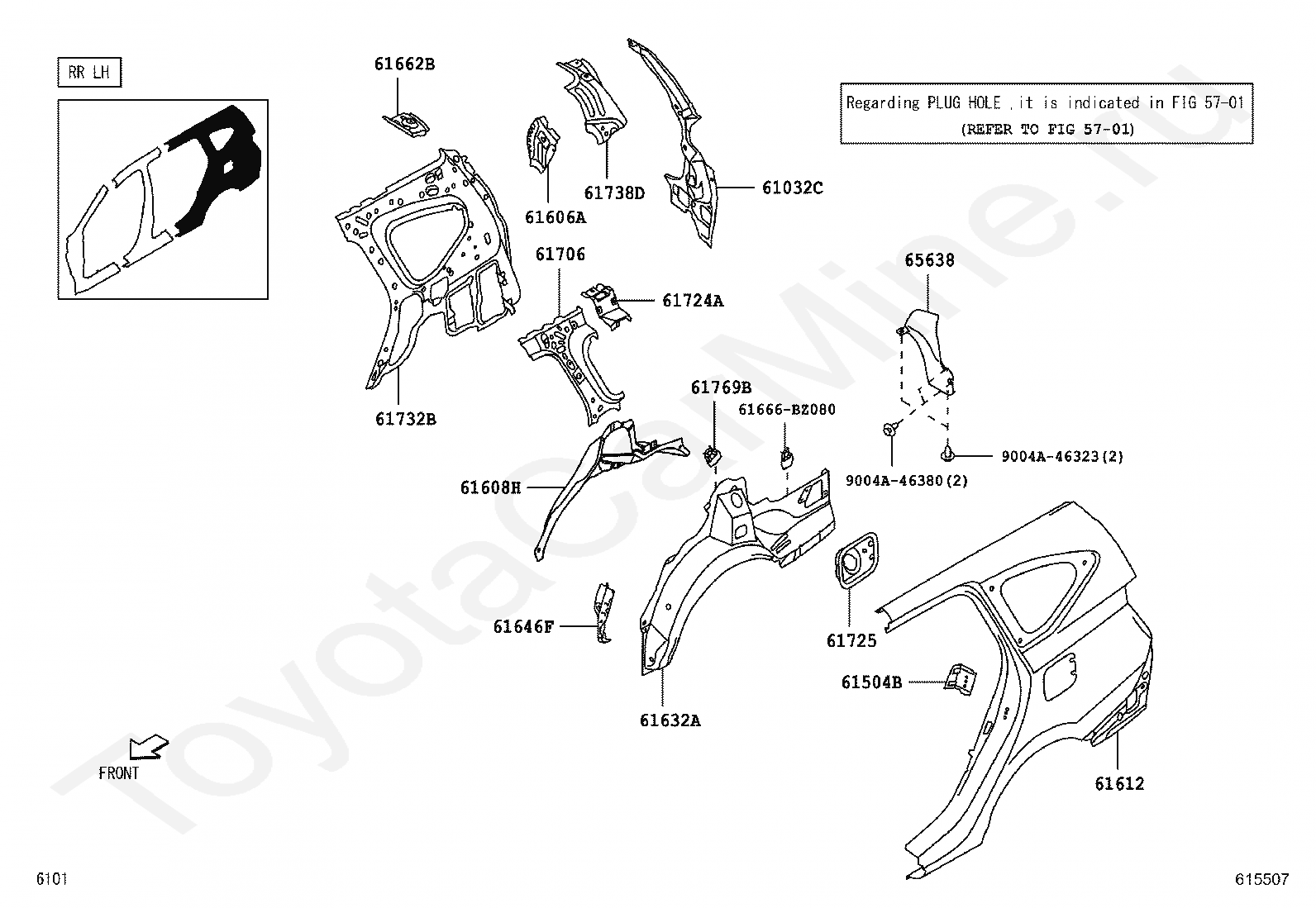

Код

Описание

5701

переход к группе запчастей

61032C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61606A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61612

PANEL, QUARTER, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61662B

EXTENSION, QUARTER PANEL TO UPPER BACK, LH

61666BZ080

Крепеж

61706

PANEL SUB-ASSY, ROOF SIDE, INNER LH

61724A

REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1

61725

BOX, FUEL INLET

61732B

PANEL, ROOF SIDE, INNER LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61769B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

65638

LINER, REAR WHEEL HOUSE, LH

9004A46323

Крепеж

9004A46380

Крепеж

Код

Описание

5701

переход к группе запчастей

61032C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61606A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61612

PANEL, QUARTER, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61662B

EXTENSION, QUARTER PANEL TO UPPER BACK, LH

61666BZ080

Крепеж

61706

PANEL SUB-ASSY, ROOF SIDE, INNER LH

61724A

REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1

61725

BOX, FUEL INLET

61732B

PANEL, ROOF SIDE, INNER LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61769B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

65638

LINER, REAR WHEEL HOUSE, LH

9004A46323

Крепеж

9004A46380

Крепеж
