FLOOR PAN & LOWER BACK PANEL TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

CALYA

Двигатель

1,2 литра

Класс

GRAMS

Фрейм

B401

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль

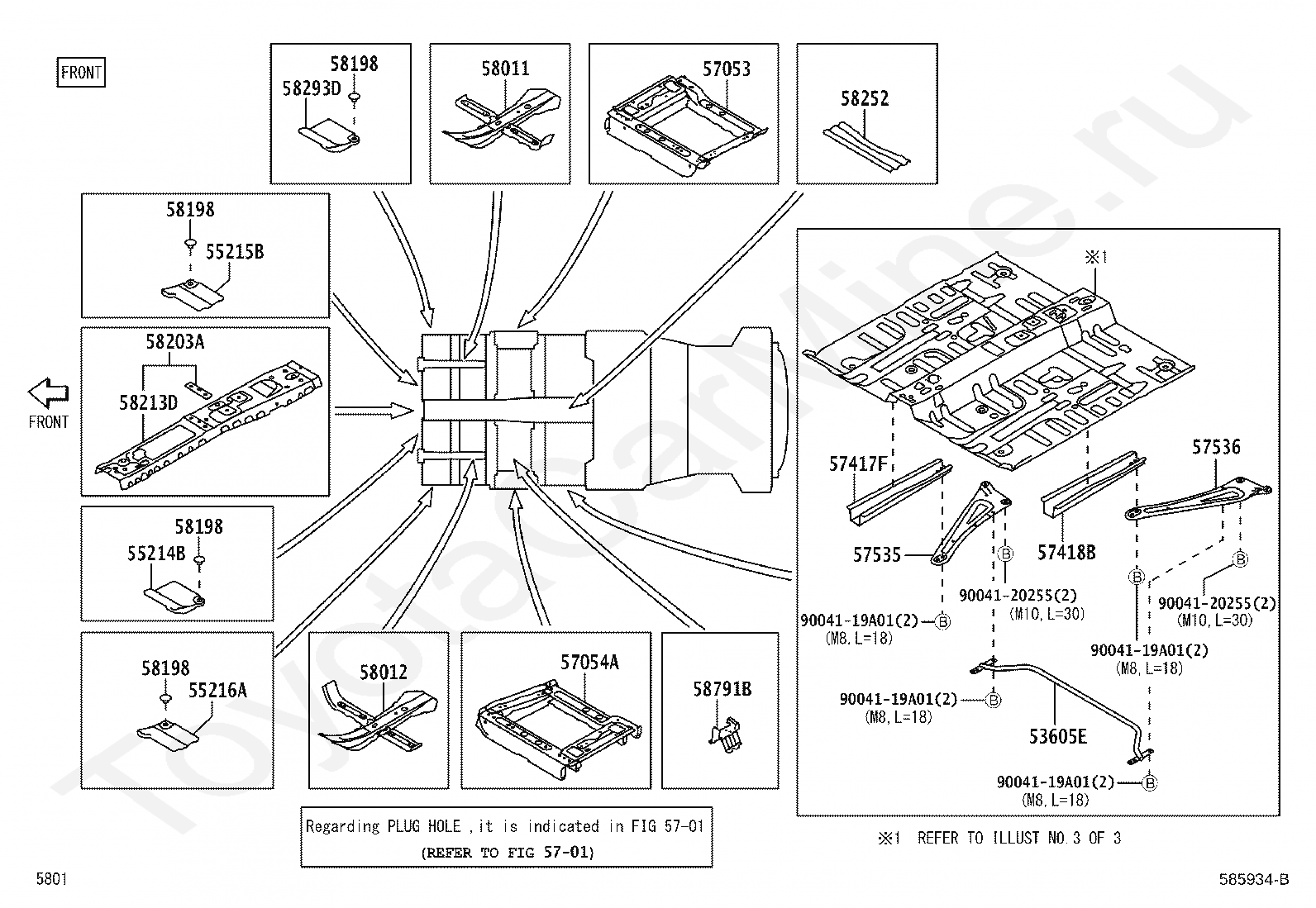

Код

Описание

53605E

BRACE SUB-ASSY, REAR SUSPENSION, UPPER

55214B

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55216A

PAD, DASH PANEL INSULATOR, NO.4

5701

переход к группе запчастей

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57417F

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

57535

BRACE, FRONT FLOOR, RH

57536

BRACE, FRONT FLOOR, LH

58011

PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

58012

PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

58198

CLIP, FOOTREST

58203A

REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58252

BRACE, FLOOR PANEL, REAR

58293D

PAD, FRONT FLOOR

58791B

CARRIER, JACK

9004119A01

Крепеж

9004120255

Крепеж

Код

Описание

53605E

BRACE SUB-ASSY, REAR SUSPENSION, UPPER

55214B

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55216A

PAD, DASH PANEL INSULATOR, NO.4

5701

переход к группе запчастей

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57417F

REINFORCEMENT, FRONT FLOOR UNDER, RH

57418B

REINFORCEMENT, FRONT FLOOR UNDER, LH

57535

BRACE, FRONT FLOOR, RH

57536

BRACE, FRONT FLOOR, LH

58011

PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

58012

PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

58198

CLIP, FOOTREST

58203A

REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58252

BRACE, FLOOR PANEL, REAR

58293D

PAD, FRONT FLOOR

58791B

CARRIER, JACK

9004119A01

Крепеж

9004120255

Крепеж

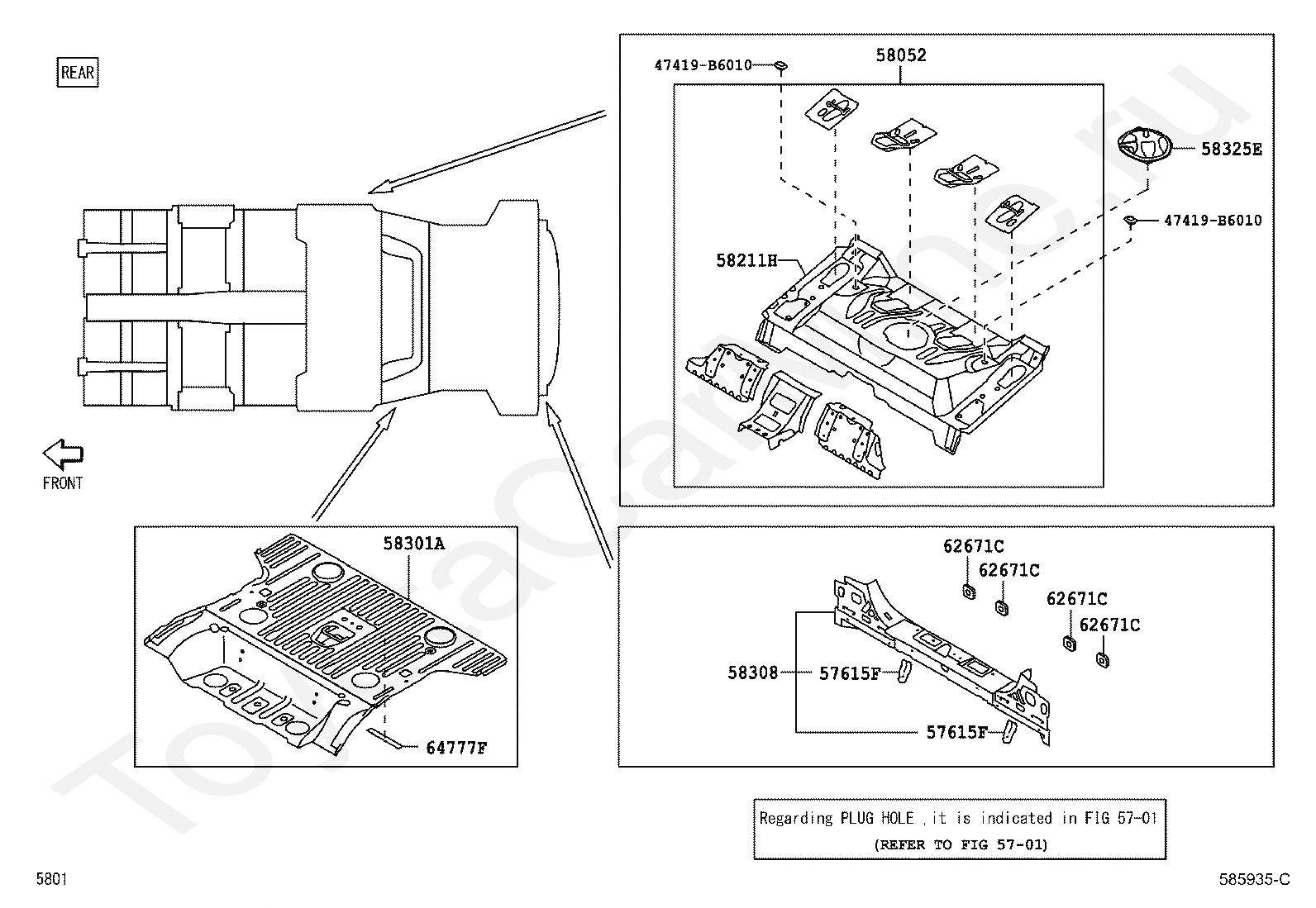

Код

Описание

47419B6010

Крепеж

5701

переход к группе запчастей

57615F

BRACKET, REAR BUMPER MOUNTING

58052

PAN SUB-ASSY, CENTER FLOOR

58211H

PAN, CENTER FLOOR

58301A

PANEL SUB-ASSY, REAR FLOOR

58308

PANEL SUB-ASSY, BODY LOWER BACK, INNER

58325E

COVER, REAR FLOOR SERVICE HOLE

62671C

COVER, LOWER BACK PANEL

64777F

CUSHION, SPARE WHEEL

Код

Описание

47419B6010

Крепеж

5701

переход к группе запчастей

57615F

BRACKET, REAR BUMPER MOUNTING

58052

PAN SUB-ASSY, CENTER FLOOR

58211H

PAN, CENTER FLOOR

58301A

PANEL SUB-ASSY, REAR FLOOR

58308

PANEL SUB-ASSY, BODY LOWER BACK, INNER

58325E

COVER, REAR FLOOR SERVICE HOLE

62671C

COVER, LOWER BACK PANEL

64777F

CUSHION, SPARE WHEEL

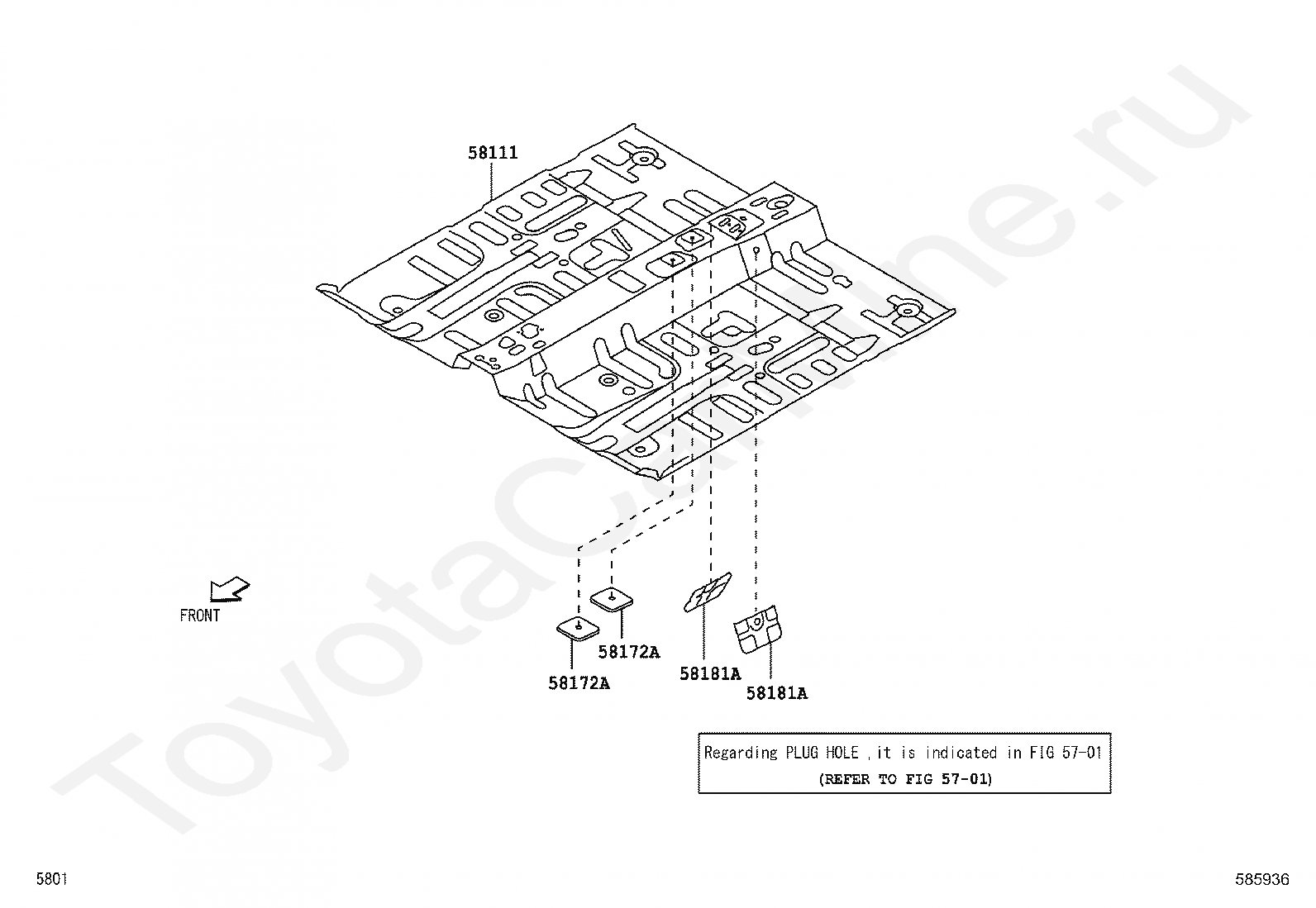

Код

Описание

5701

переход к группе запчастей

58111

PAN, FRONT FLOOR

58172A

PLATE, PARKING BRAKE MOUNTING

58181A

RETAINER, SEAT RAIL, FRONT

Код

Описание

5701

переход к группе запчастей

58111

PAN, FRONT FLOOR

58172A

PLATE, PARKING BRAKE MOUNTING

58181A

RETAINER, SEAT RAIL, FRONT

FLOOR PAN & LOWER BACK PANEL TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени
