Задние кресла TOYOTA PICNIC/AVENSIS VERSO, 2001/05 - 2005/07, 2 литра, 16 клапанов DOHC, EFI, ACM20, механика

Каталог

Европа

Модель

PICNIC/AVENSIS VERSO

Двигатель

2 литра, 16 клапанов DOHC, EFI

Фрейм

ACM20

Трансмиссия

механика

Опции

правый руль 7-местный Европа

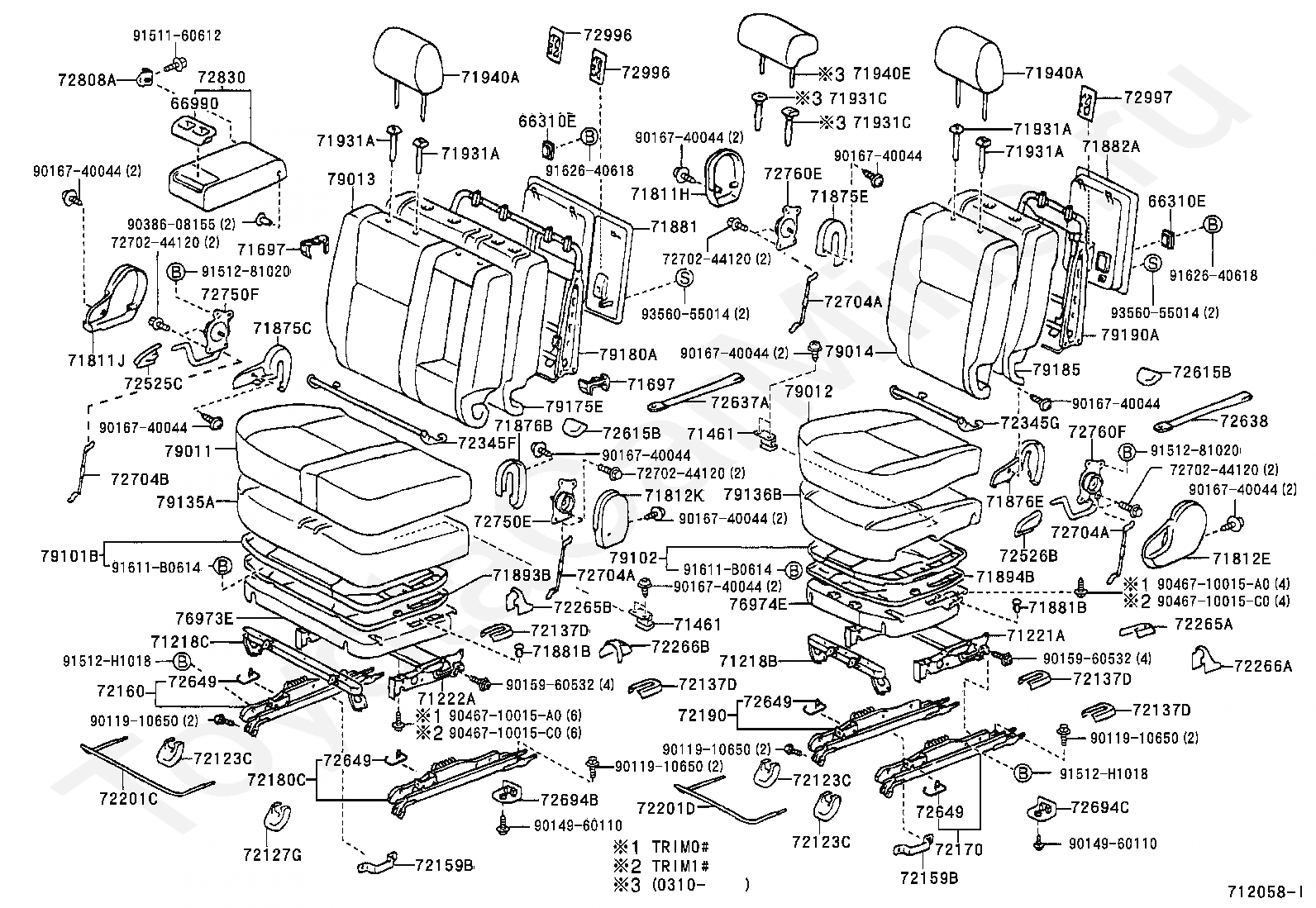

Код

Описание

66310E

HOOK ASSY, ROPE

66990

HOLDER ASSY, CUP

71218B

REINFORCEMENT, RR SEAT CUSHION, RH

71218C

REINFORCEMENT, RR SEAT CUSHION, LH

71221A

REINFORCEMENT, REAR SEAT CUSHION, REAR

71222A

REINFORCEMENT, REAR SEAT CUSHION, REAR

71461

SPRING, REAR SEAT CUSHION

71697

PROTECTOR, REAR SEAT BACK EDGE

71811H

COVER, RECLINING ADJUSTER, RH

71811J

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71812K

COVER, RECLINING ADJUSTER, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71881

BOARD, REAR SEAT BACK, RH

71881B

CLIP, REAR SEAT BACK BOARD

71882A

BOARD, REAR SEAT BACK, LH

71893B

CARPET, REAR SEAT CUSHION, UNDER RH

71894B

CARPET, REAR SEAT CUSHION, UNDER LH

71931A

SUPPORT, REAR SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940E

HEADREST ASSY, NO.2 SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72159B

COVER, REAR SEAT TRACK BRACKET, OUTER

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72265B

COVER, SEAT TRACK UPR RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72266B

COVER, SEAT TRACK UPPER RAIL, LH

72345F

PIPE, RECLINING CONNECTING, RH

72345G

PIPE, RECLINING CONNECTING, LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72649

SPRING, REAR SEAT CUSHION SUPPORT

72694B

COVER, REAR SEAT CUSHION LOCK, RH

72694C

COVER, REAR SEAT CUSHION LOCK, LH

7270244120

Крепеж

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704B

CABLE, REAR SEAT RECLINING CONTROL, NO.2

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72808A

BRACKET SUB-ASSY, SEAT CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79135A

PAD, NO.1 SEAT CUSHION, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910650

Крепеж

9014960110

Крепеж

9015960532

Крепеж

9016740044

Крепеж

9038608155

Крепеж

9046710015A0

Крепеж

9046710015C0

Крепеж

9151160612

Крепеж

9151281020

Крепеж

91512H1018

Крепеж

91611B0614

Крепеж

9162640618

Крепеж

9356055014

Крепеж

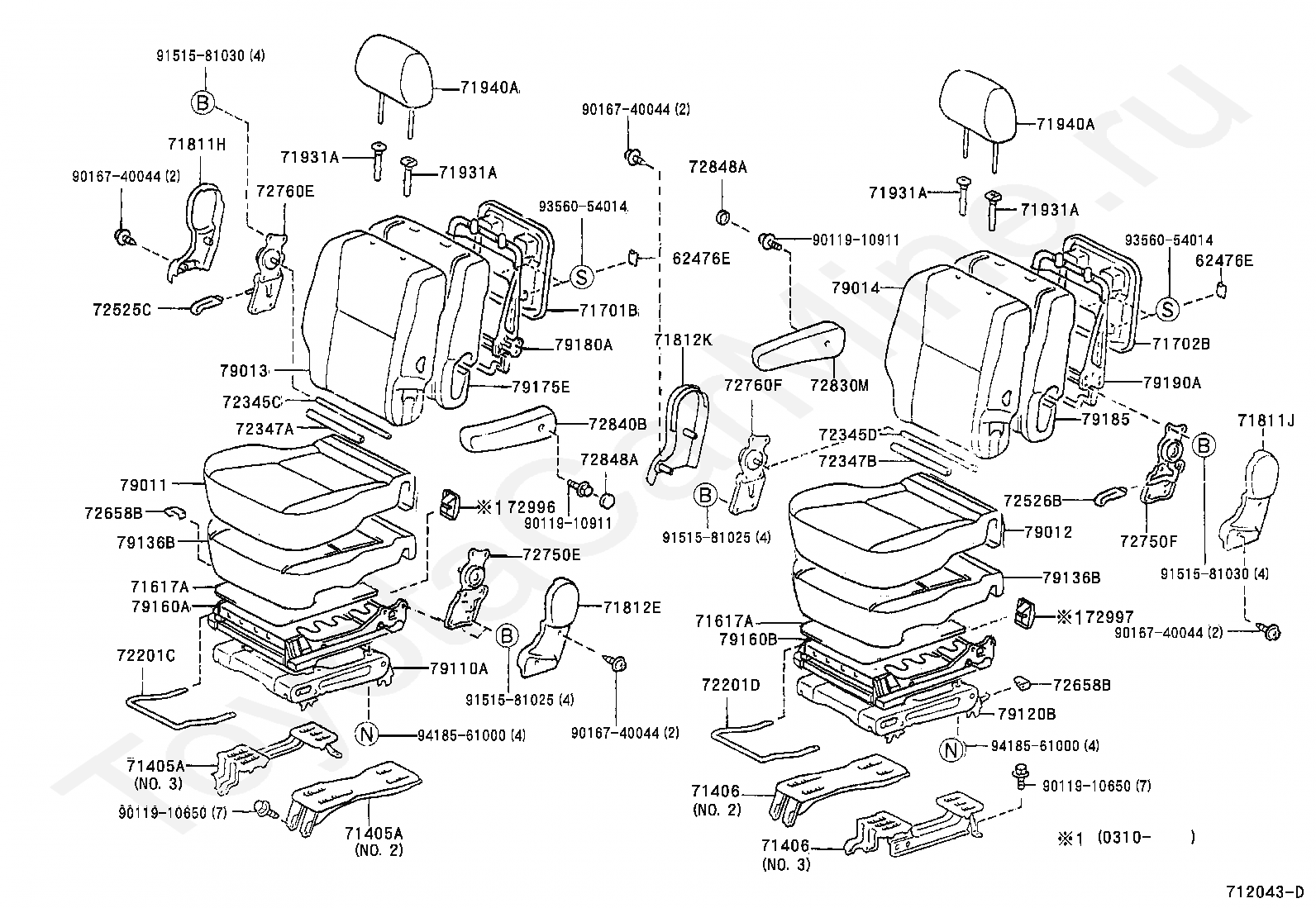

Код

Описание

62476E

CAP, REAR SEAT

71405A

STRIKER SUB-ASSY, REAR SEAT LOCK, RH

71406

STRIKER SUB-ASSY, REAR SEAT LOCK, LH

71617A

CLOTH, REAR SEAT CUSHION UNDER

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71811H

COVER, RECLINING ADJUSTER, RH

71811J

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71812K

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72347A

COVER, RECLINING CONNECTING HOOK

72347B

COVER, RECLINING CONNECTING HOOK

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72658B

KNOB, REAR SEAT LOCK HANDLE

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72830M

ARMREST ASSY, SEAT CENTER, RH

72840B

ARMREST ASSY, SEAT CENTER, LH

72848A

CAP, SEAT ARMREST, NO.1

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79110A

LEG ASSY, NO.1 SEAT, RH

79120B

LEG ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79160B

SPRING ASSY, NO.1 SEAT CUSHION, LH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910650

Крепеж

9011910911

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9151581030

Крепеж

9356054014

Крепеж

9418561000

Крепеж

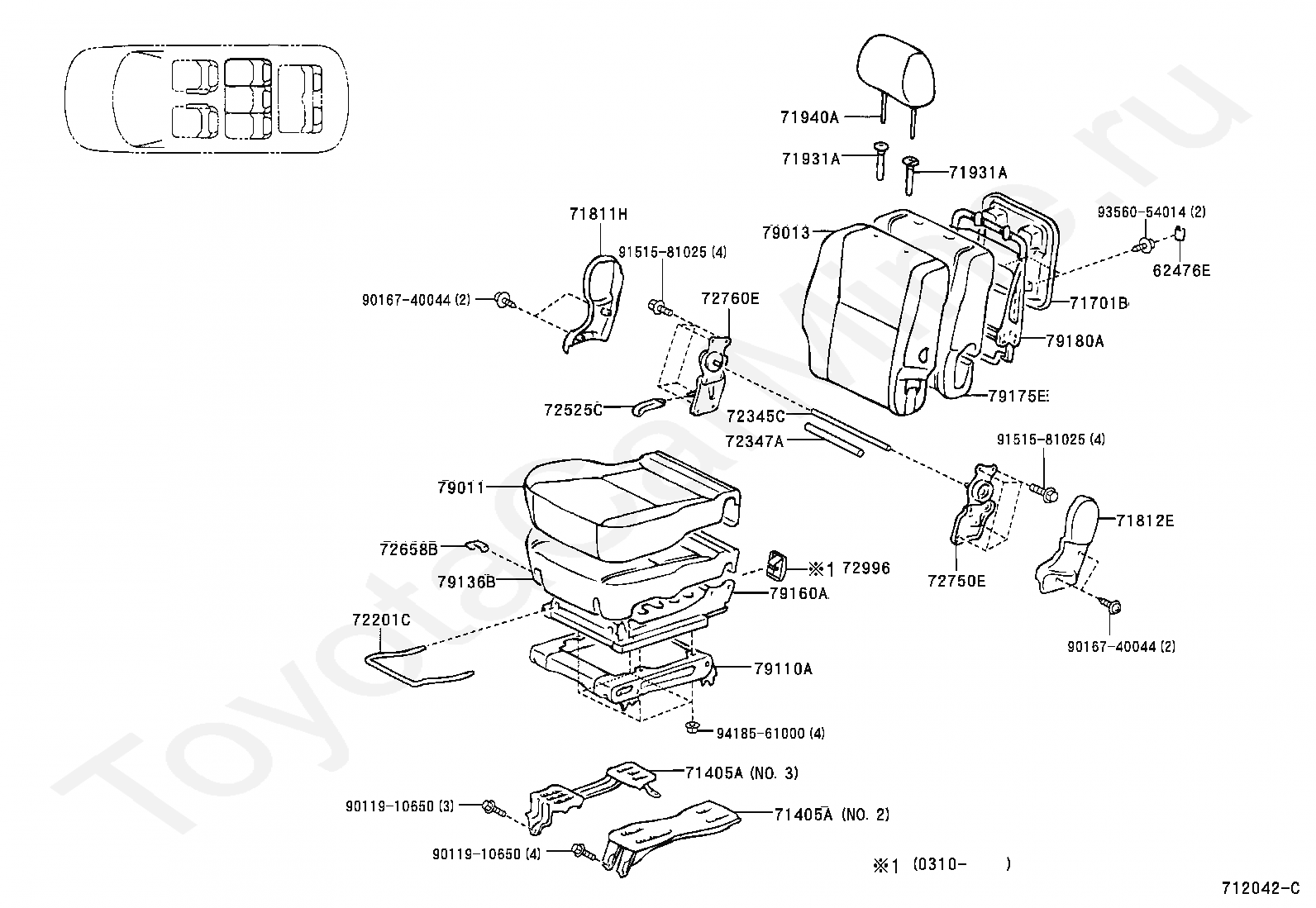

Код

Описание

62476E

CAP, REAR SEAT

71405A

STRIKER SUB-ASSY, REAR SEAT LOCK, RH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71811H

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72345C

PIPE,RECLINING CONNECTING, RH

72347A

COVER, RECLINING CONNECTING HOOK

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72996

COVER, REAR SEAT BACK, RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79110A

LEG ASSY, NO.1 SEAT, RH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

9011910650

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9356054014

Крепеж

9418561000

Крепеж

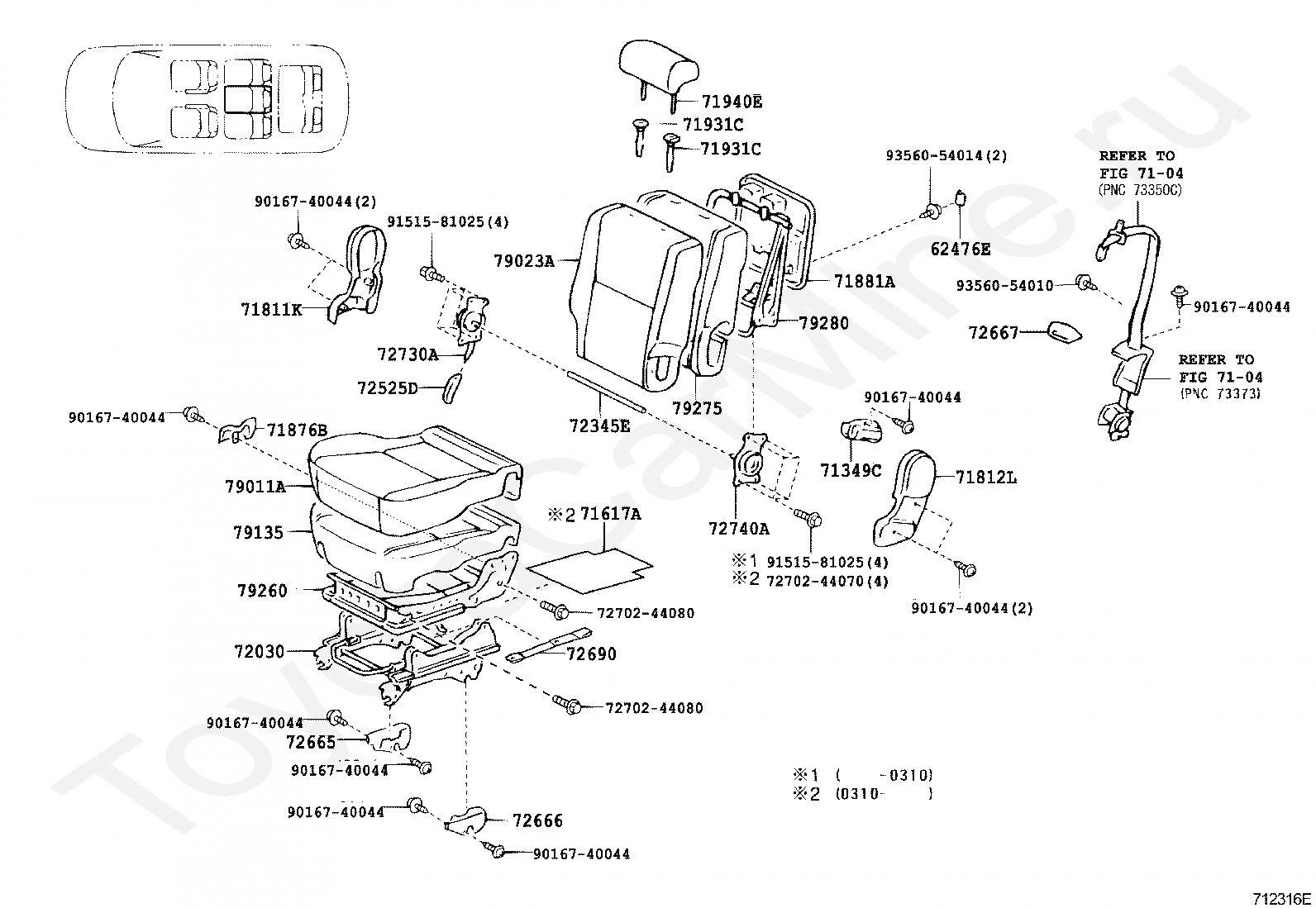

Код

Описание

62476E

CAP, REAR SEAT

7104

переход к группе запчастей

71349C

COVER, REAR SEAT BACK HINGE

71617A

CLOTH, REAR SEAT CUSHION UNDER

71811K

COVER, RECLINING ADJUSTER, RH (FOR CENTER SEAT)

71812L

COVER, RECLINING ADJUSTER, LH (FOR CENTER SEAT)

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71881A

BOARD, REAR SEAT BACK

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72030

ADJUSTER ASSY, REAR NO.1 SEAT

72345E

PIPE, RECLINING CONNECTING

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

7270244070

Крепеж

7270244080

Крепеж

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79135

PAD, NO.1 SEAT CUSHION

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79280

SPRING ASSY, NO.2 SEAT BACK

9016740044

Крепеж

9151581025

Крепеж

9356054010

Крепеж

9356054014

Крепеж

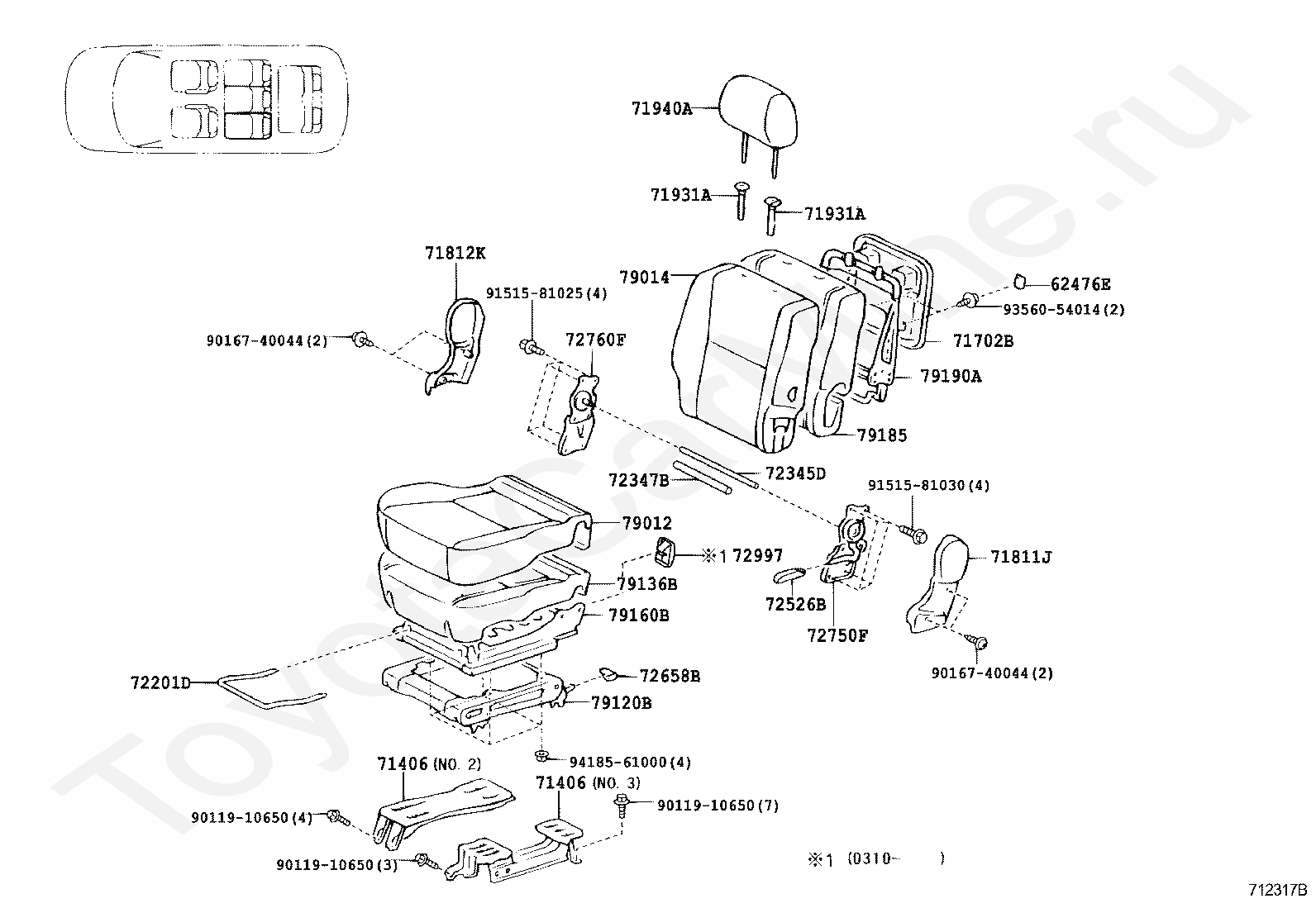

Код

Описание

62476E

CAP, REAR SEAT

71406

STRIKER SUB-ASSY, REAR SEAT LOCK, LH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71811J

COVER, RECLINING ADJUSTER, RH

71812K

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72345D

PIPE, RECLINING CONNECTING, LH

72347B

COVER, RECLINING CONNECTING HOOK

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72658B

KNOB, REAR SEAT LOCK HANDLE

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72997

COVER, REAR SEAT BACK, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120B

LEG ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160B

SPRING ASSY, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910650

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9151581030

Крепеж

9356054014

Крепеж

9418561000

Крепеж

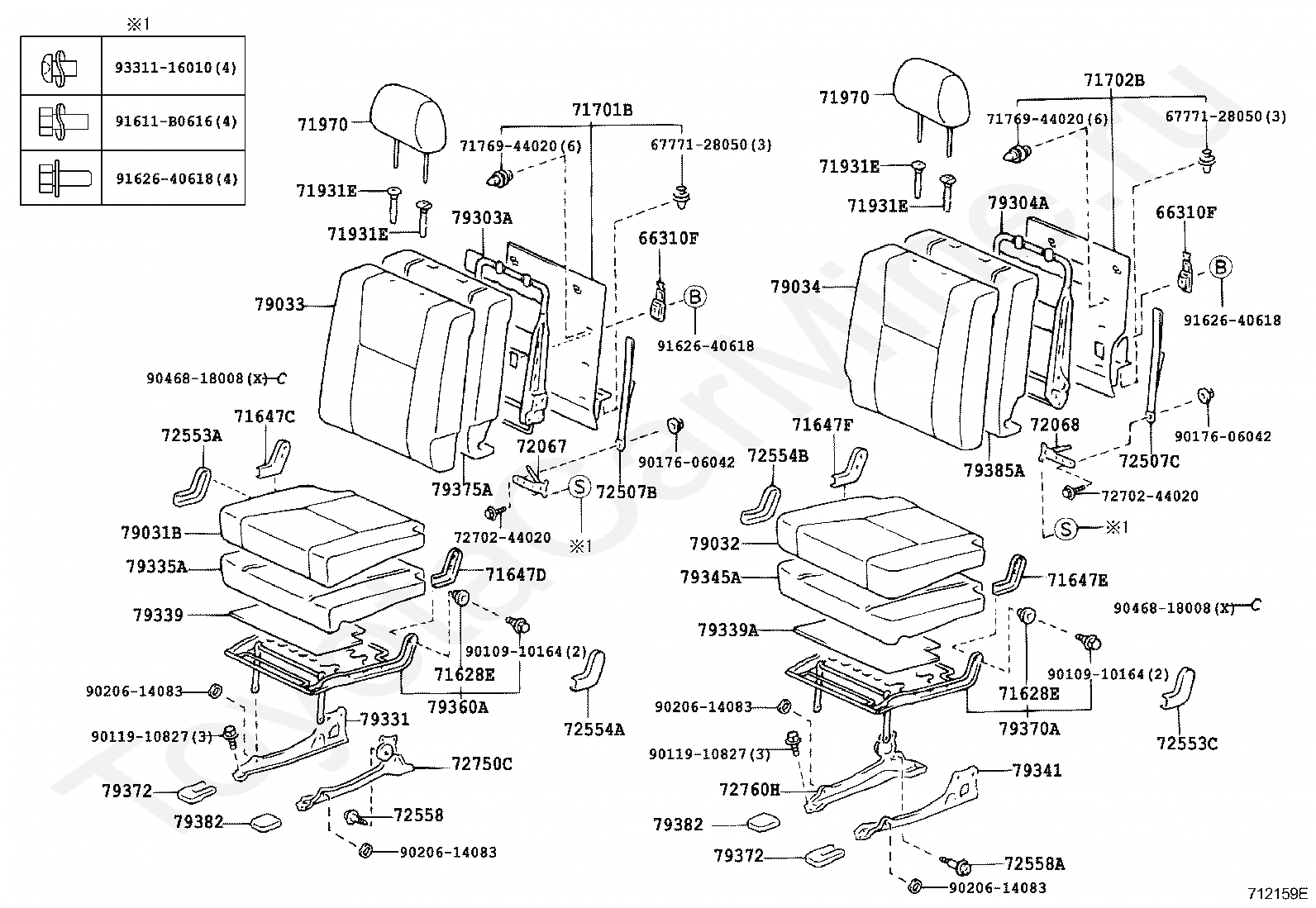

Код

Описание

66310F

HOOK ASSY, ROPE

6777128050

Крепеж

71628E

SPACER, REAR SEAT CUSHION

71647C

PROTECTOR, REAR SEAT CUSHION EDGE,OUTER RH

71647D

PROTECTOR, REAR SEAT CUSHION EDGE, INNER RH

71647E

PROTECTOR, REAR SEAT CUSHION EDGE, OUTER LH

71647F

PROTECTOR, REAR SEAT CUSHION EDGE, INNER LH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

7176944020

Крепеж

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553A

PROTECTOR, RECLINING COVER, RH

72553C

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72554B

PROTECTOR, RECLINING COVER, LH

72558

STOPPER, RECLINING

72558A

STOPPER, RECLINING

7270244020

Крепеж

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760H

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

79031B

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79339

CLOTH, NO.3 SEAT CUSHION RH

79339A

CLOTH, NO.3 SEAT CUSHION LH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79375A

PAD, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79385A

PAD, NO.3 SEAT BACK, LH

9010910164

Крепеж

9011910827

Крепеж

9017606042

Крепеж

9020614083

Крепеж

9046818008

Крепеж

91611B0616

Крепеж

9162640618

Крепеж

9331116010

Крепеж

Код

Описание

62476E

CAP, REAR SEAT

71405A

STRIKER SUB-ASSY, REAR SEAT LOCK, RH

71406

STRIKER SUB-ASSY, REAR SEAT LOCK, LH

71617A

CLOTH, REAR SEAT CUSHION UNDER

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71881

BOARD, REAR SEAT BACK, RH

71882A

BOARD, REAR SEAT BACK, LH

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72347B

COVER, RECLINING CONNECTING HOOK

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72658B

KNOB, REAR SEAT LOCK HANDLE

72760H

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

72760J

ADJUSTER ASSY, NO.3 SEAT, RECLINIG, OUTER LH

79031B

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79345

COVER, NO.3 SEAT CUSHION FRAME, CENTER

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79375A

PAD, NO.3 SEAT BACK, RH

79385A

PAD, NO.3 SEAT BACK, LH

9011910650

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9151581030

Крепеж

9356054014

Крепеж

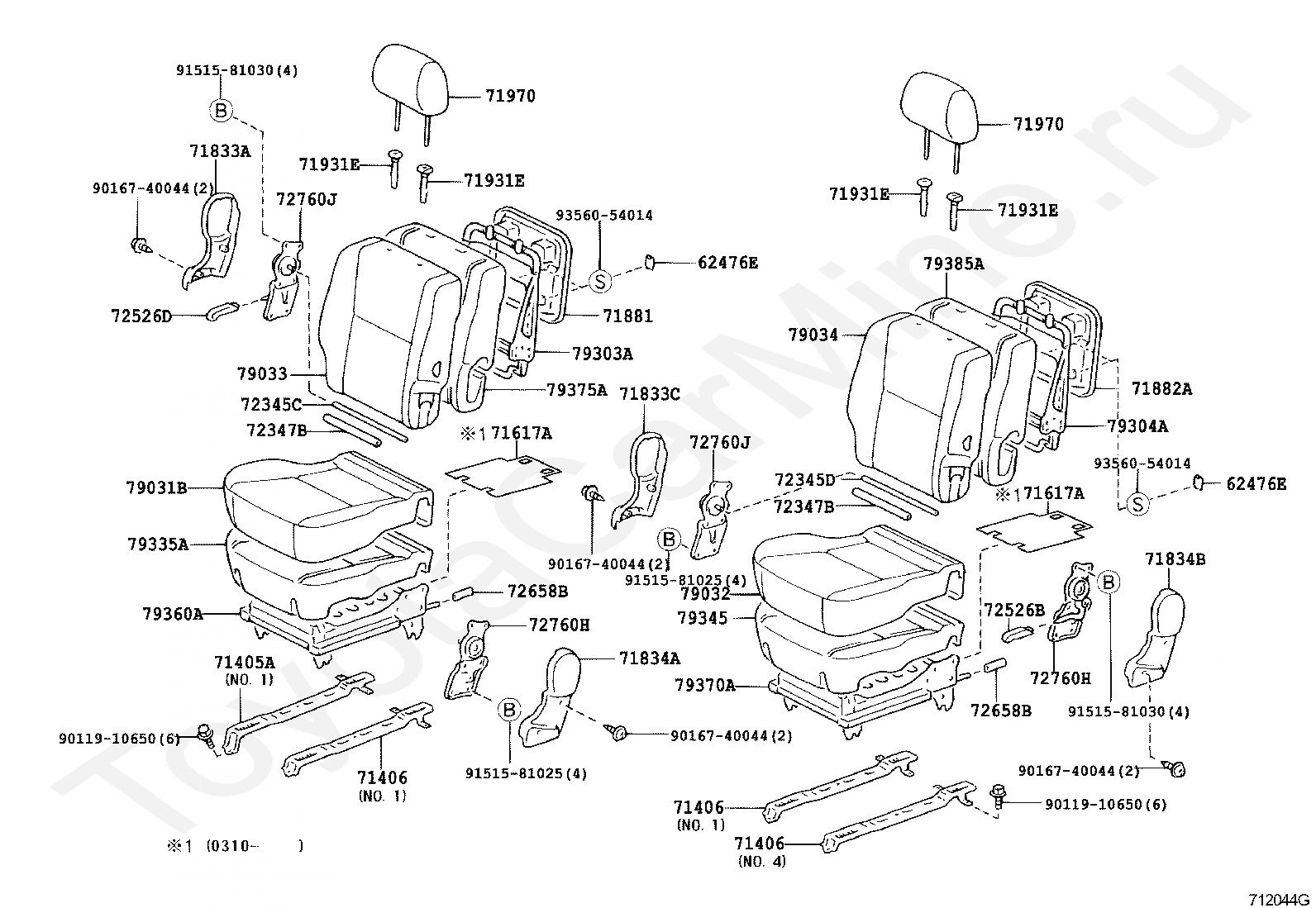

Задние кресла TOYOTA PICNIC/AVENSIS VERSO, 2001/05 - 2005/07, 2 литра, 16 клапанов DOHC, EFI, ACM20, механика

Товар добавлен в корзину!

Заполните форму
