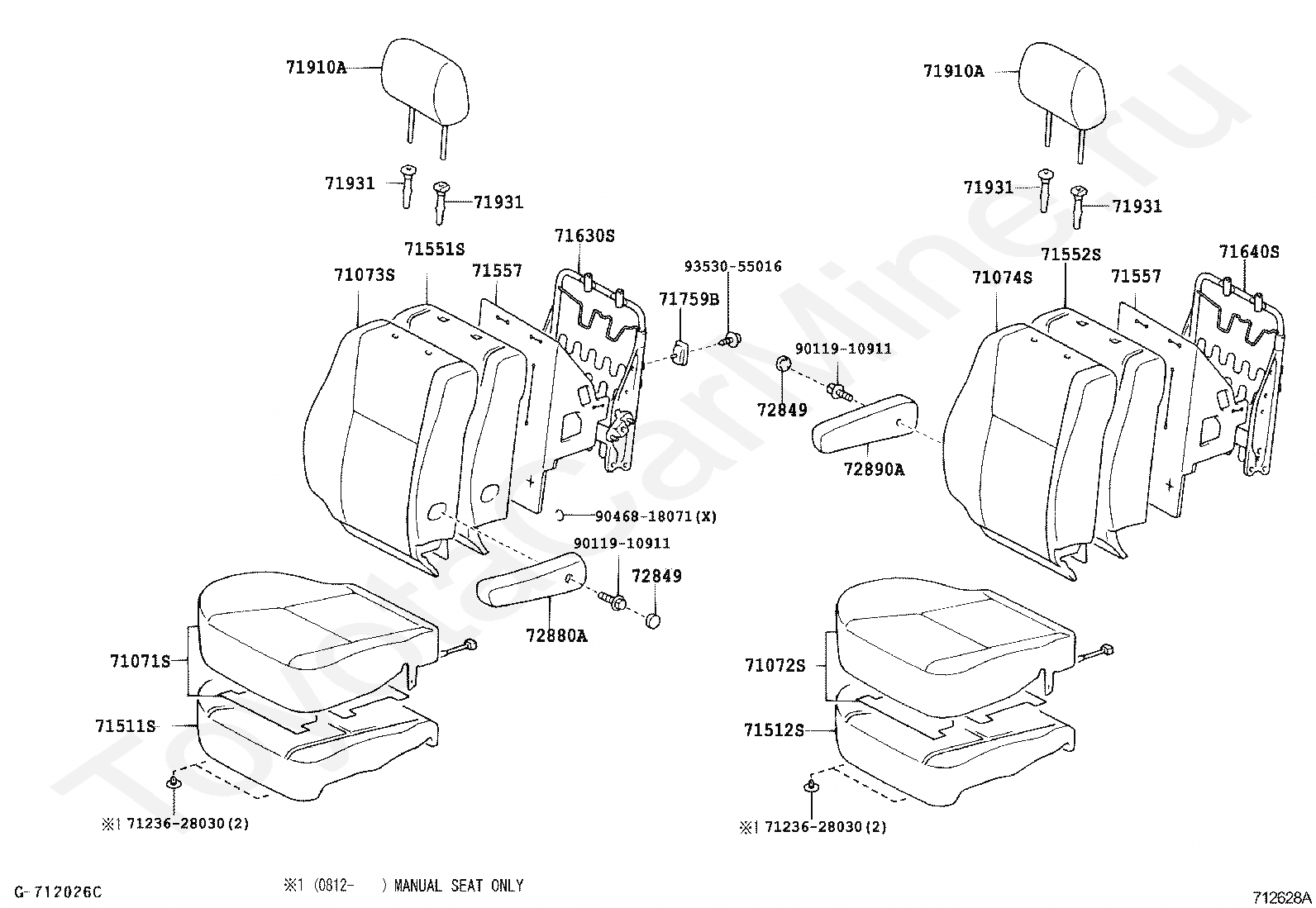

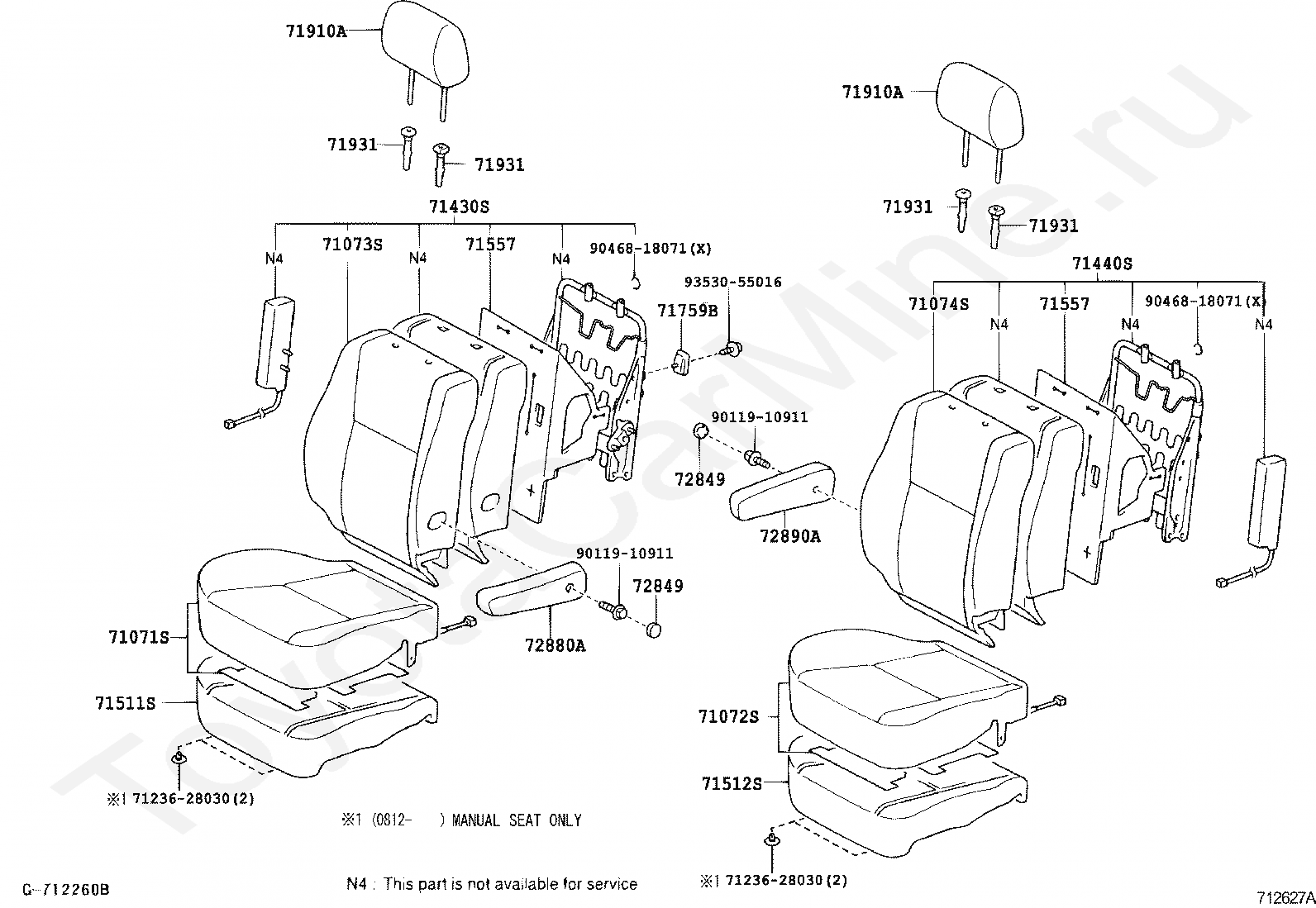

Передние кресла TOYOTA PICNIC/AVENSIS VERSO, 2001/05 - 2005/07, 2 литра, 16 клапанов DOHC, EFI, ACM20, механика

Каталог

Европа

Модель

PICNIC/AVENSIS VERSO

Двигатель

2 литра, 16 клапанов DOHC, EFI

Фрейм

ACM20

Трансмиссия

механика

Опции

правый руль 7-местный Европа

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7123628030

Крепеж

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71557

CLOTH, FRONT SEAT BACK UNDER

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72849

CAP, SEAT ARMREST, NO.2

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

9011910911

Крепеж

9046818071

Крепеж

9353055016

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

7123628030

Крепеж

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71557

CLOTH, FRONT SEAT BACK UNDER

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72849

CAP, SEAT ARMREST, NO.2

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890A

ARMREST ASSY, FRONT SEAT, INNER LH

9011910911

Крепеж

9046818071

Крепеж

9353055016

Крепеж

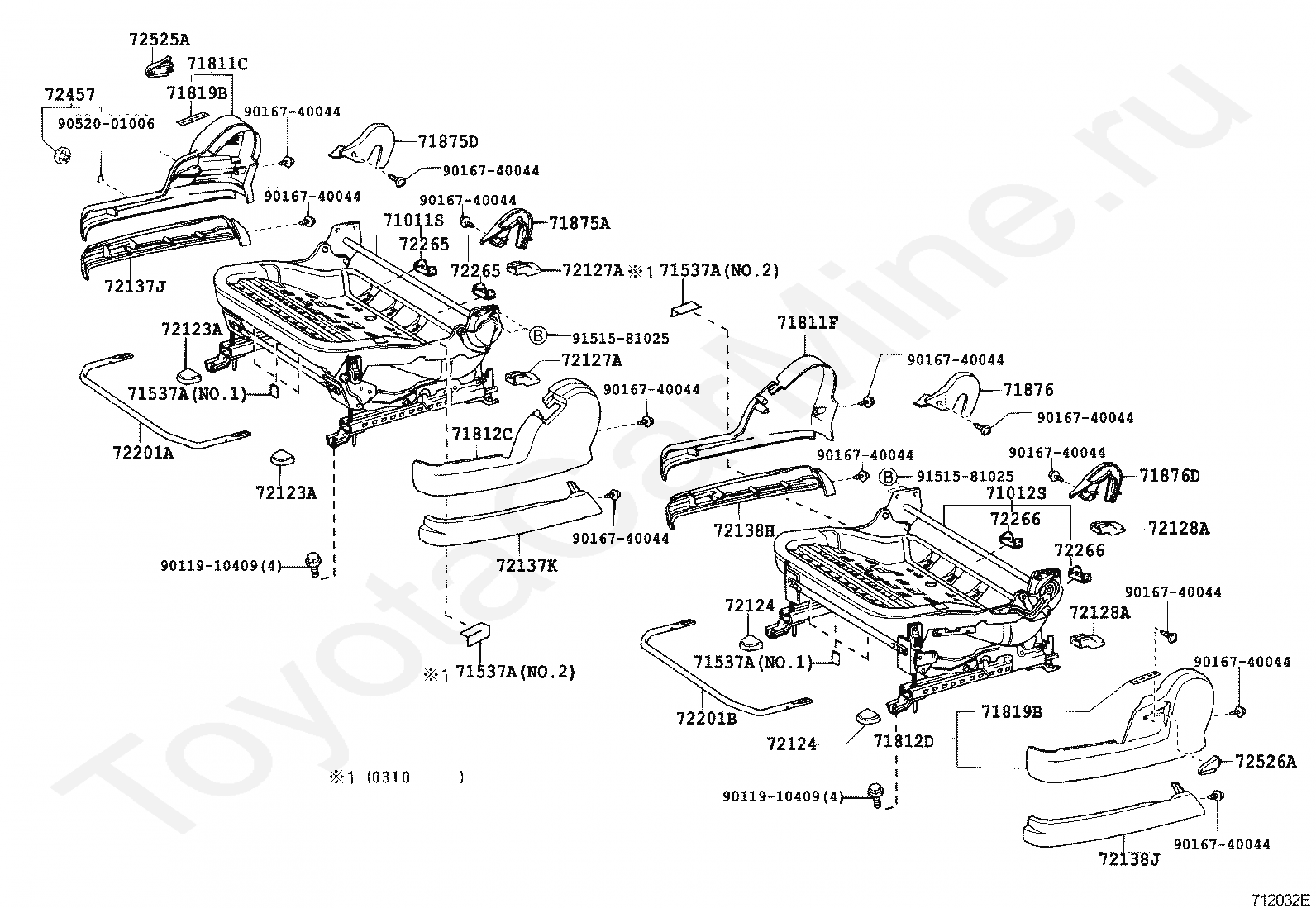

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71811C

COVER, RECLINING ADJUSTER, RH

71811F

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71819B

LABEL, SIDE AIR BAG NAME

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876D

COVER, RECLINING ADJUSTER OUTSIDE, LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72457

KNOB, VERTICAL SEAT ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910409

Крепеж

9016740044

Крепеж

9052001006

Крепеж

9151581025

Крепеж

Передние кресла TOYOTA PICNIC/AVENSIS VERSO, 2001/05 - 2005/07, 2 литра, 16 клапанов DOHC, EFI, ACM20, механика
