Каталог
ЯпонияМодель
YARIS GRДвигатель
1600CC TURBOКласс
RZ TYPEФрейм
GXPA16Трансмиссия
механика МКПП, 6 скоростейОпции
3 двери 801W

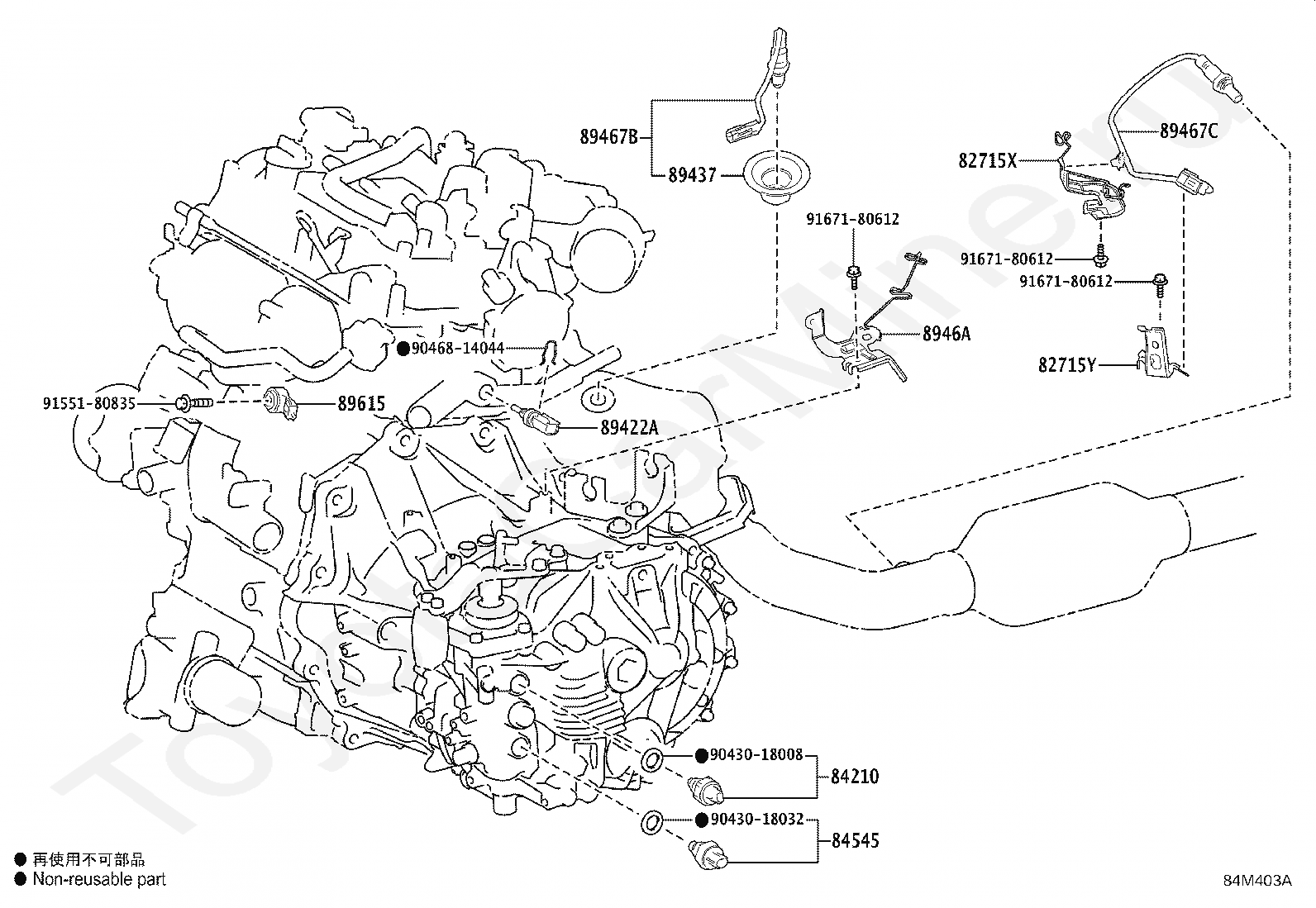

Код
Описание
82715X
BRACKET, WIRING HARNESS CLAMP, NO.2
82715Y
BRACKET, WIRING HARNESS CLAMP, NO.3
84210
SWITCH ASSY, BACK-UP LAMP
84545
SWITCH, NEUTRAL POSITION
89422A
SENSOR, WATER TEMPERATURE
89437
COVER, SENSOR
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
8946A
BRACKET, EXHAUST SENSOR CLAMP
89615
SENSOR, KNOCK CONTROL
9043018008
Крепеж
9043018032
Крепеж
9046814044
Крепеж
9155180835
Крепеж
9167180612
Крепеж

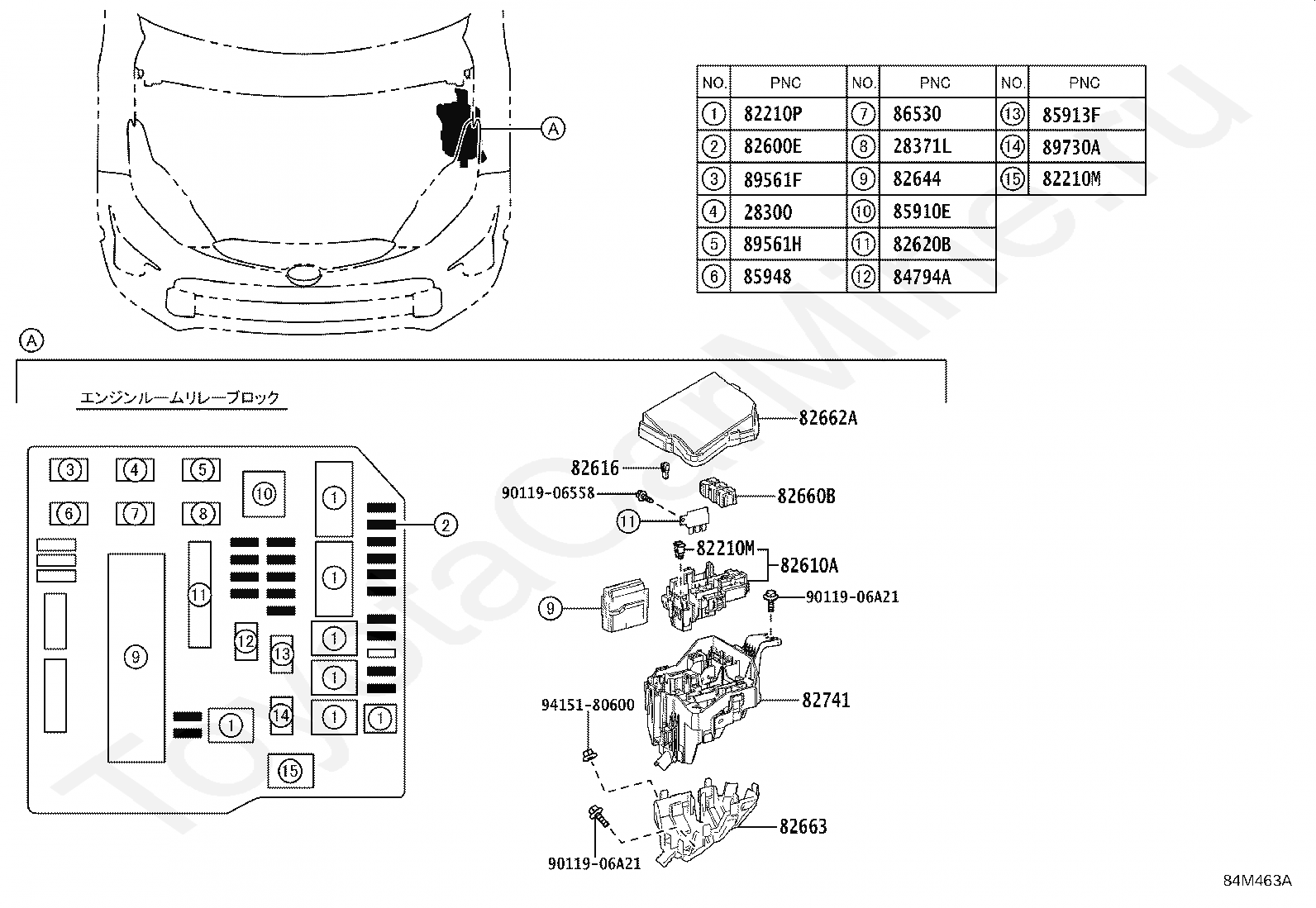

Код
Описание
28300
RELAY ASSY, STARTER
28371L
RELAY, IGP
82210M
FUSIBLE LINK
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82610A
BLOCK ASSY, FUSE
82616
PULLER, FUSE
82620B
BLOCK ASSY, FUSIBLE LINK
82644
COMPUTER, SEMICONDUCTOR POWER INTEGRATION
82660B
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82663
COVER, RELAY BLOCK, LOWER
82741
BLOCK, ENGINE ROOM RELAY
84794A
RELAY, FR WIPER DEICER
85910E
RELAY, INJECTOR
85913F
RELAY, STEERING HEATER
85948
RELAY, WINDSHIELD WIPER
86530
RELAY ASSY, HORN
89561F
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561H
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
89730A
RELAY(FOR SECURITY WARNING)
9011906558
Крепеж
9011906A21
Крепеж
9415180600
Крепеж

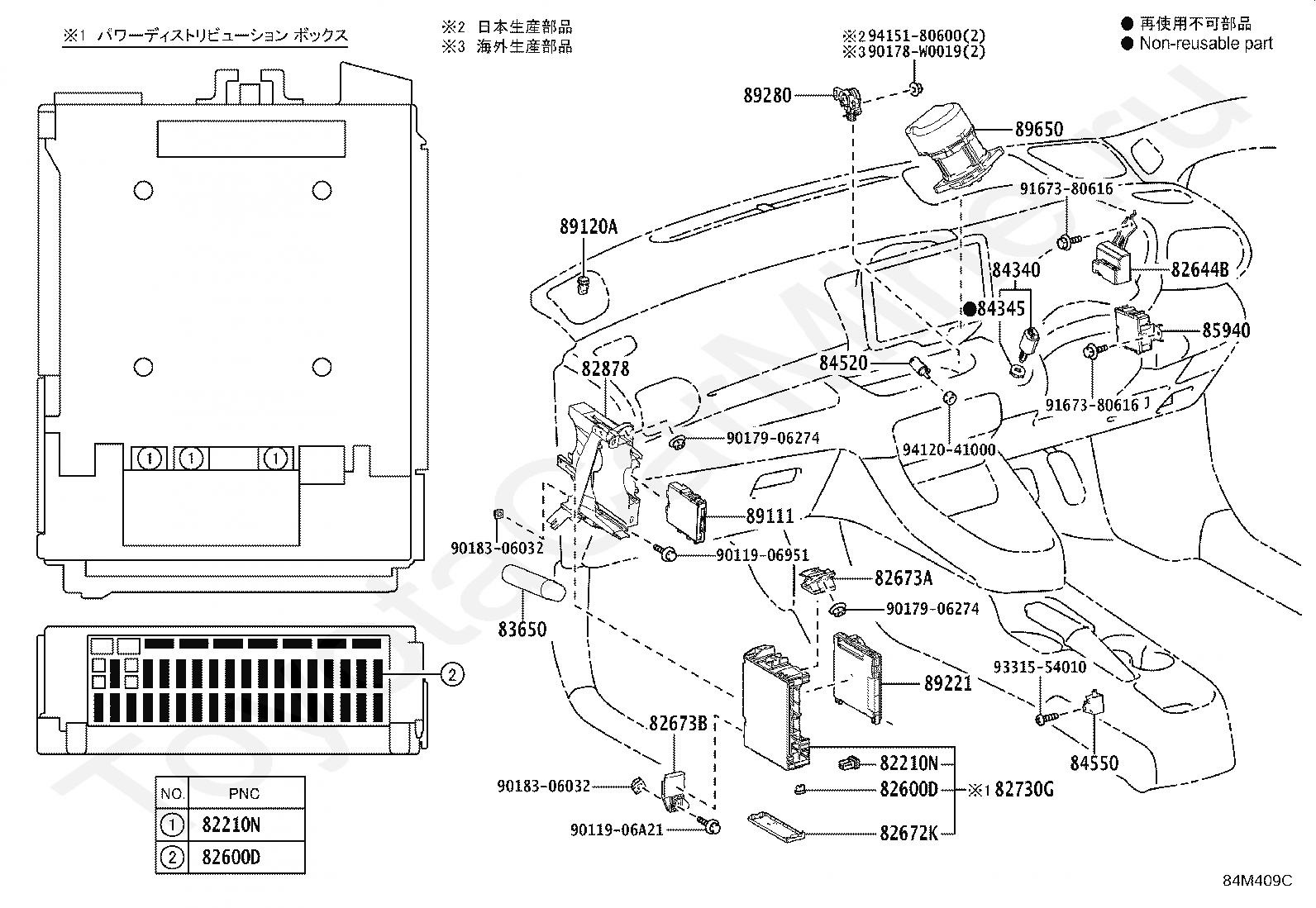

Код
Описание
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82644B
COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.2
82672K
COVER, POWER DISTRIBUTION BOX
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82730G
BOX ASSY, POWER DISTRIBUTION
82878
BOX, COMPUTER INTEGRATION, LH
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
85940
RELAY ASSY, WINDSHIELD WIPER
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89280
SENSOR ASSY, CLUTCH PEDAL STROKE
89650
COMPUTER ASSY, POWER STEERING
9011906951
Крепеж
9011906A21
Крепеж
90178W0019
Крепеж
9017906274
Крепеж
9018306032
Крепеж
9167380616
Крепеж
9331554010
Крепеж
9412041000
Крепеж
9415180600
Крепеж

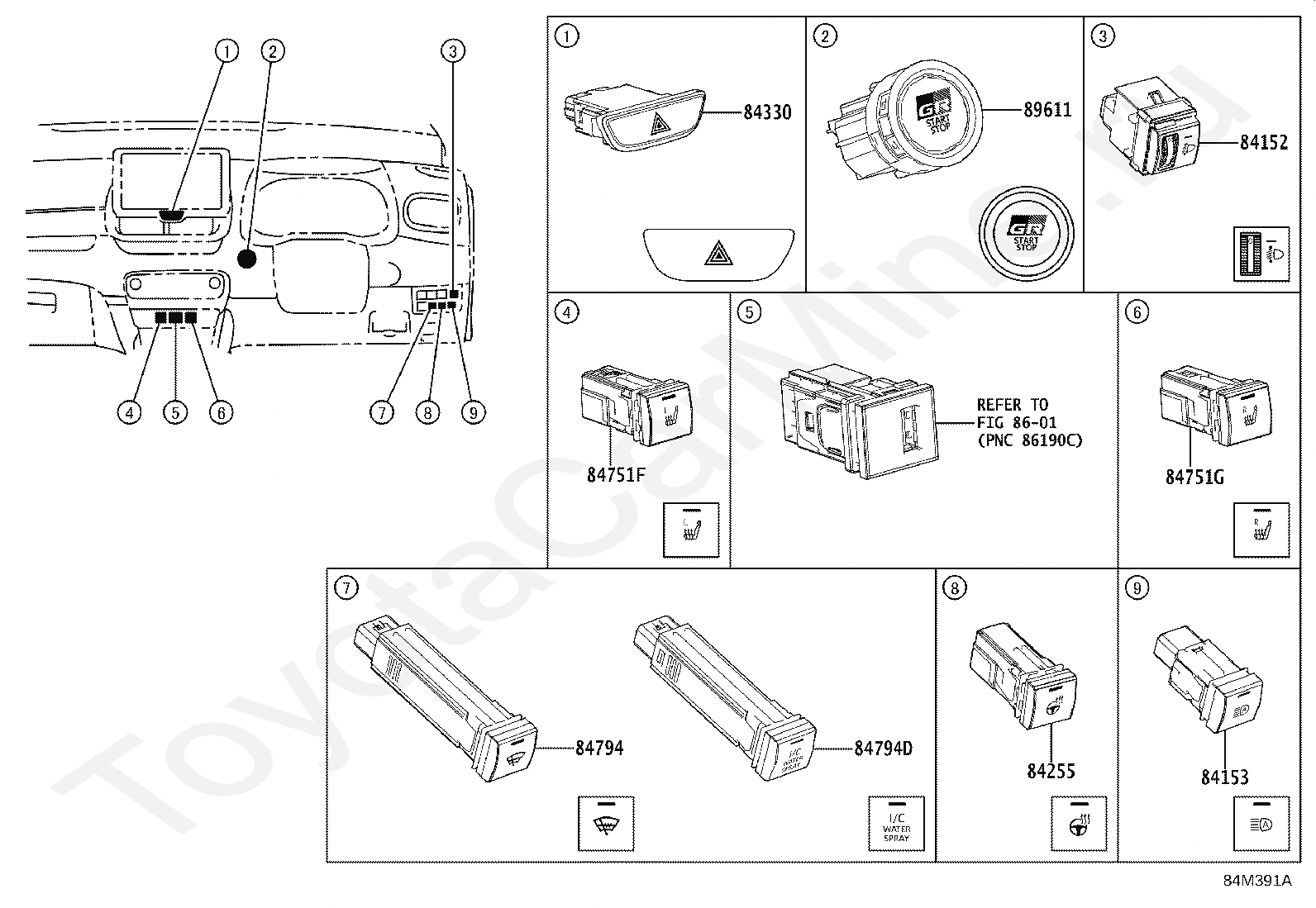

Код
Описание
84152
SWITCH, HEADLAMP LEVELING
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84751F
SWITCH, SEAT HEATER
84751G
SWITCH, SEAT HEATER
84794
SWITCH, FR WIPER DEICER
84794D
SWITCH, WATER SPRAY
8601
переход к группе запчастей
89611
SWITCH, PUSH START

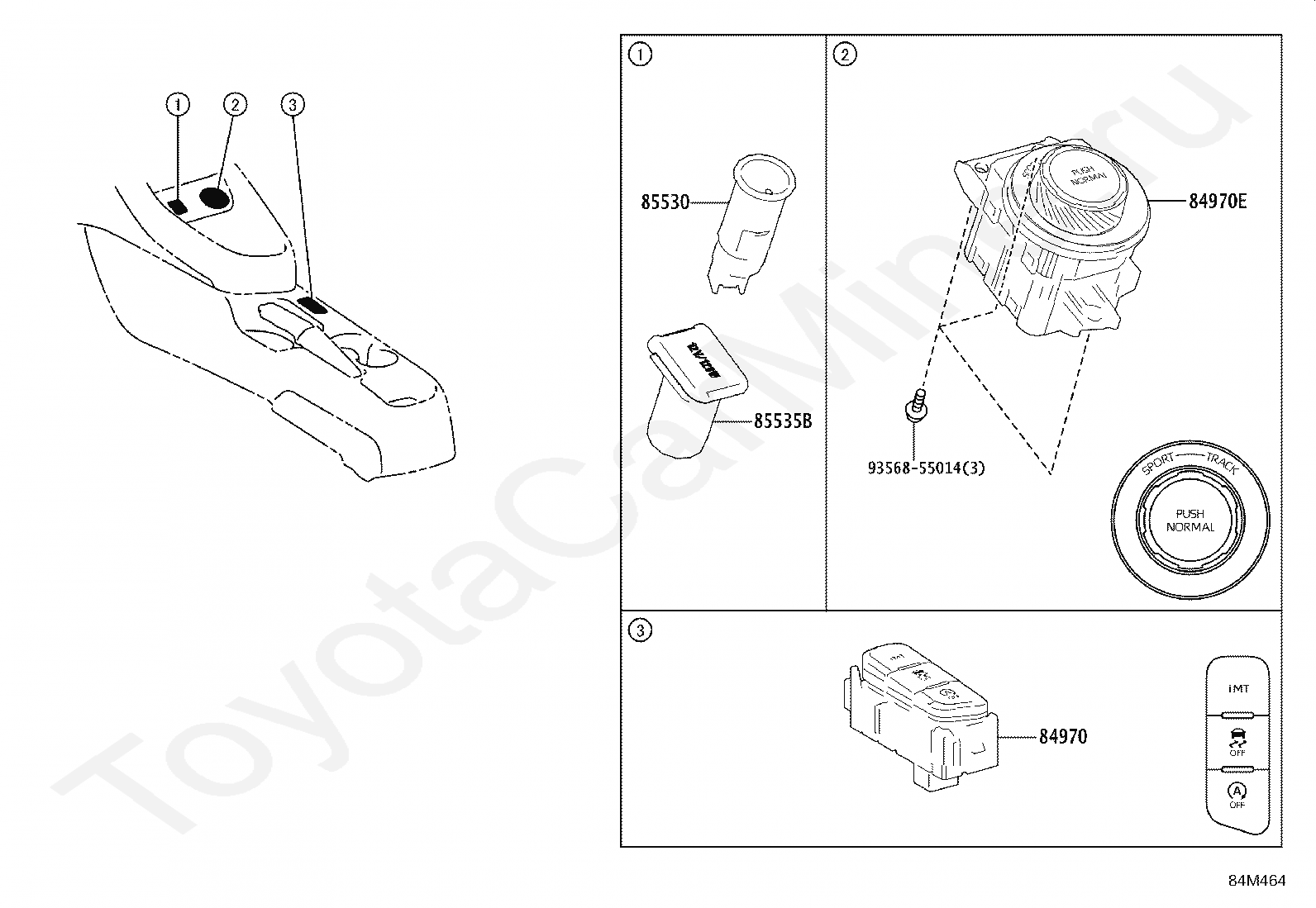

Код
Описание
84970
SWITCH ASSY, COMBINATION
84970E
SWITCH ASSY, COMBINATION NO.2
85530
SOCKET ASSY, POWER OUTLET, NO.1
85535B
COVER, POWER OUTLET SOCKET, NO.1
9356855014
Крепеж
Код
Описание

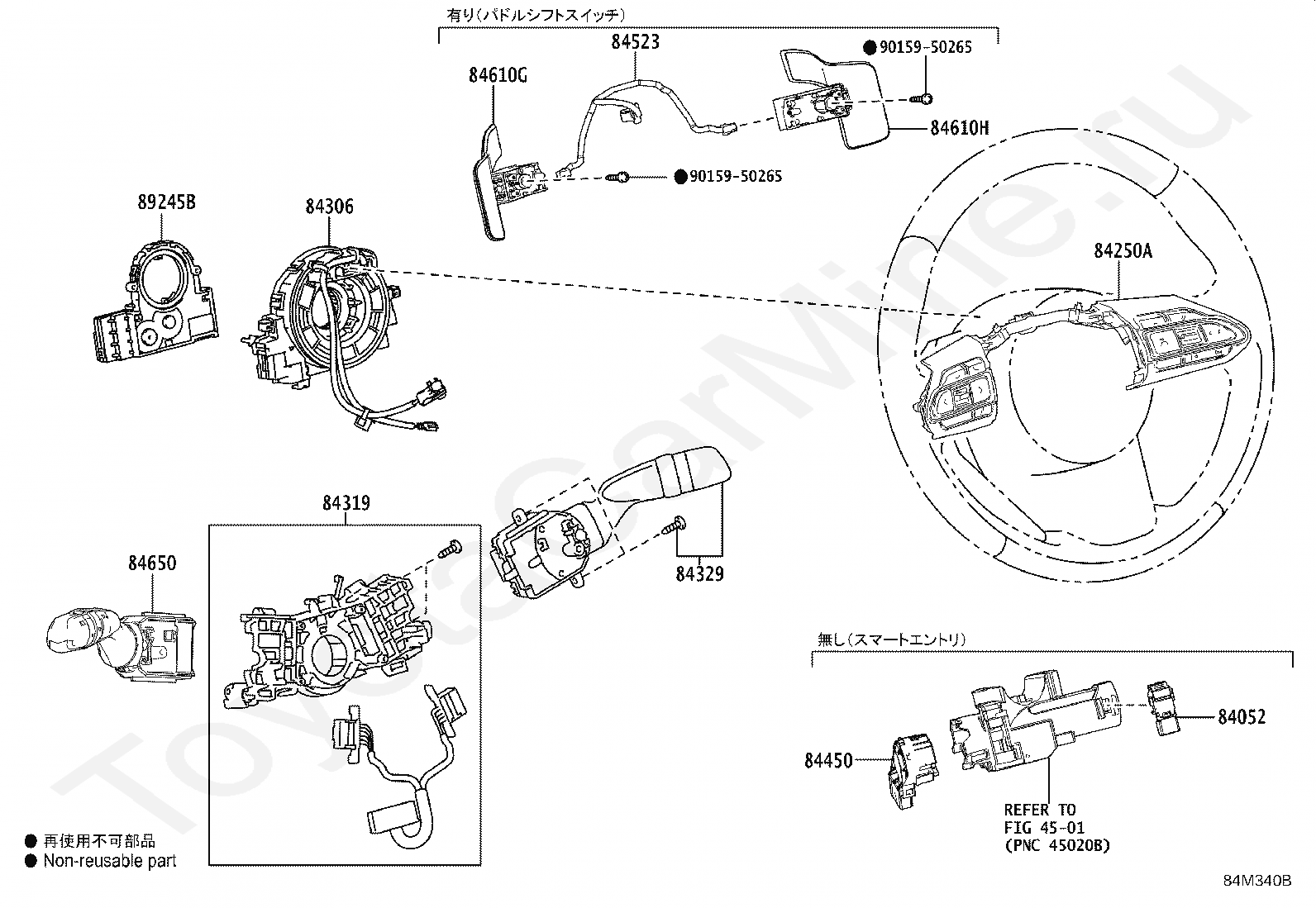

4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84523
WIRE, SWITCH NO.1
84610G
SWITCH ASSY, TRANSMISSION SHIFT, NO.1
84610H
SWITCH ASSY, TRANSMISSION SHIFT, NO.2
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950265
Крепеж

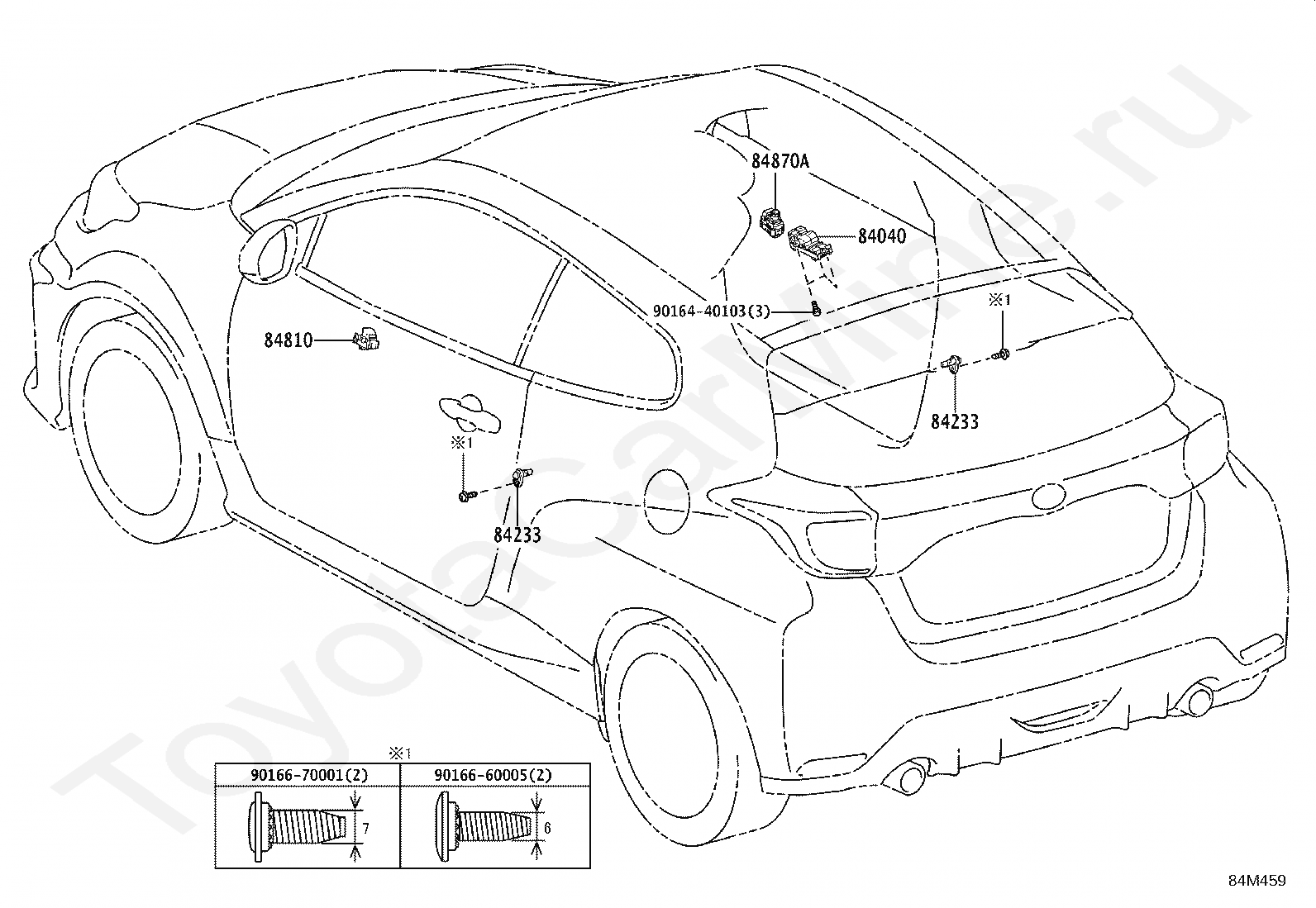

Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84870A
SWITCH ASSY, OUTER MIRROR
9016440103
Крепеж
9016660005
Крепеж
9016670001
Крепеж

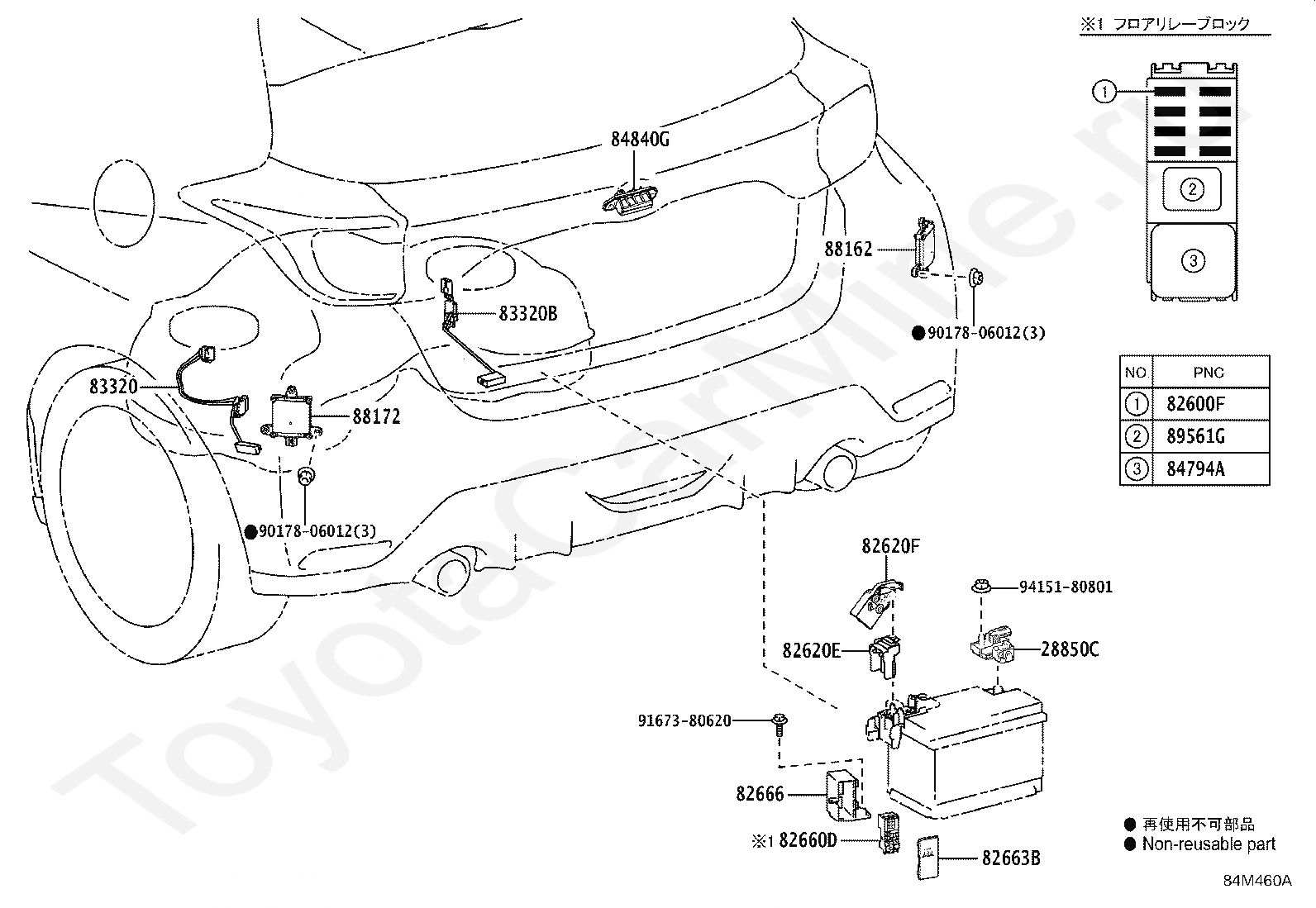

Код
Описание
28850C
SENSOR ASSY, BATTERY STATE
82600F
FUSE, FUSE BLOCK
82620E
BLOCK ASSY, FUSIBLE LINK
82620F
BLOCK ASSY, FUSIBLE LINK
82660D
BLOCK ASSY, RELAY
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82666
HOLDER, CONNECTOR
83320
GAGE ASSY, FUEL SENDER
83320B
GAGE ASSY, FUEL SENDER, NO.2
84794A
RELAY, FR WIPER DEICER
84840G
SWITCH ASSY, BACK DOOR OPENER
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
89561G
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
9017806012
Крепеж
9167380620
Крепеж
9415180801
Крепеж
