ЕвропаМодель
YARIS (FRP)Двигатель
1 литр, 12 клапанов DOHC, EFIКласс
SOL TYPEФрейм
KSP90Трансмиссия
механика МКПП, 5 скоростейОпции
PRODUCED AT TMMF левый руль 3 двери 316W
Код
Описание

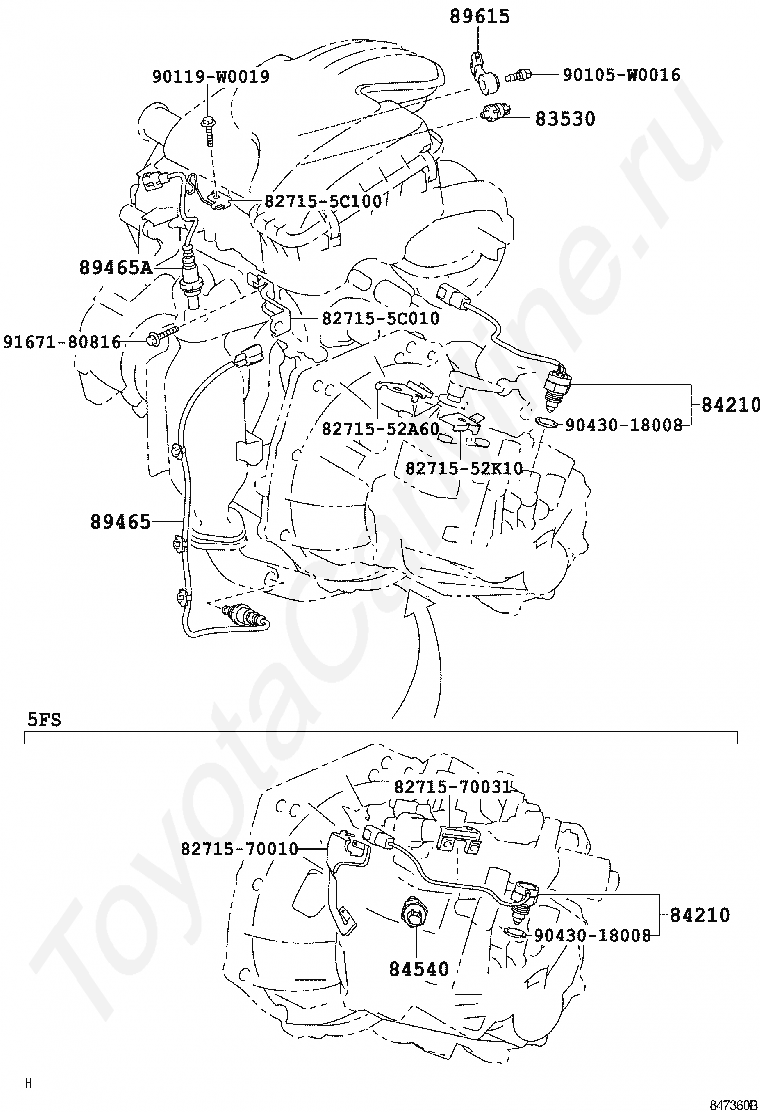

8271552A60
Крепеж
8271552K10
Крепеж
827155C010
Крепеж
827155C100
Крепеж
8271570010
Крепеж
8271570031
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89465
SENSOR, OXYGEN
89465A
SENSOR, OXYGEN NO.2
89615
SENSOR, KNOCK CONTROL
90105W0016
Крепеж
90119W0019
Крепеж
9043018008
Крепеж
9167180816
Крепеж
Код
Описание
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
82620A
BLOCK ASSY, FUSIBLE LINK
82621A
COVER, FUSIBLE LINK
85928B
RESISTOR, COOLING FAN
85959A
HOLDER, RELAY
9009140602
Крепеж
90119W0059
Крепеж
9167180610
Крепеж
Код
Описание

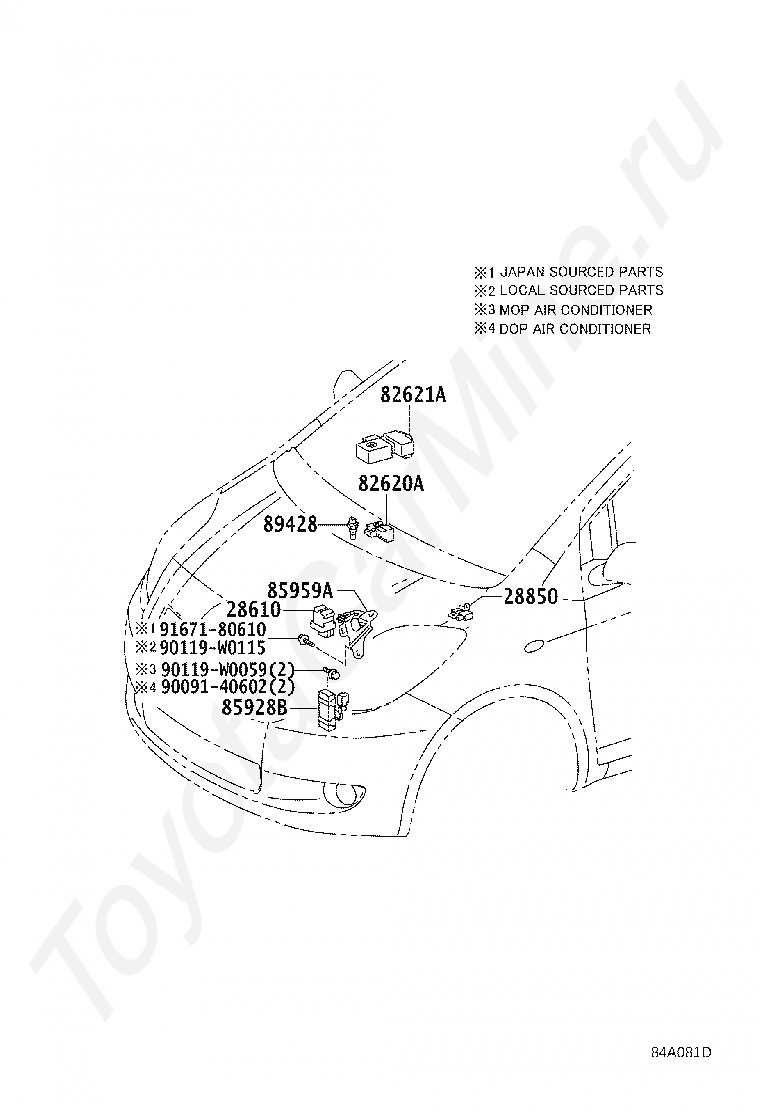

28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28850
SENSOR ASSY, BATTERY CURRENT
82620A
BLOCK ASSY, FUSIBLE LINK
82621A
COVER, FUSIBLE LINK
85928B
RESISTOR, COOLING FAN
85959A
HOLDER, RELAY
89428
SWITCH, TEMPERATURE DETECT, NO.2
9009140602
Крепеж
90119W0059
Крепеж
90119W0115
Крепеж
9167180610
Крепеж
Код
Описание
28300
RELAY ASSY, STARTER
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82641
RELAY, INTEGRATION NO.1
82643
RELAY, DIM-DIP LAMP
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
8410
переход к группе запчастей
85926
RELAY, HEADLAMP DIMMER
85927A
RELAY, COOLING FAN, NO.2
87346K
RELAY, PTC HEATER
9167180620
Крепеж
9415180600
Крепеж
Код
Описание

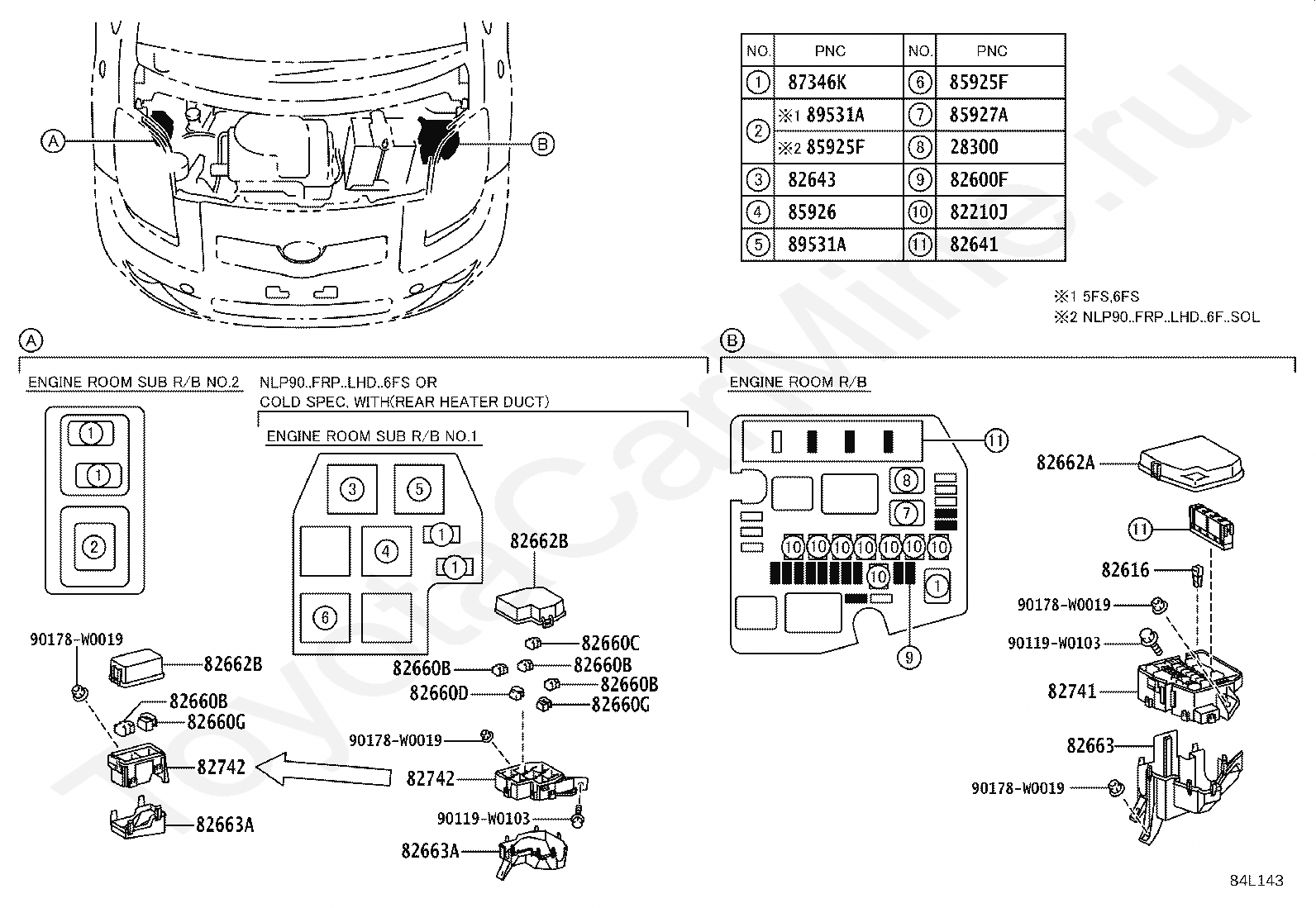

28300
RELAY ASSY, STARTER
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82641
RELAY, INTEGRATION NO.1
82643
RELAY, DIM-DIP LAMP
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660G
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
85925F
RELAY, PTC HEATER NO.2
85926
RELAY, HEADLAMP DIMMER
85927A
RELAY, COOLING FAN, NO.2
87346K
RELAY, PTC HEATER
89531A
RELAY, TRANSMISSION CONTROL
90119W0103
Крепеж
90178W0019
Крепеж
Код
Описание

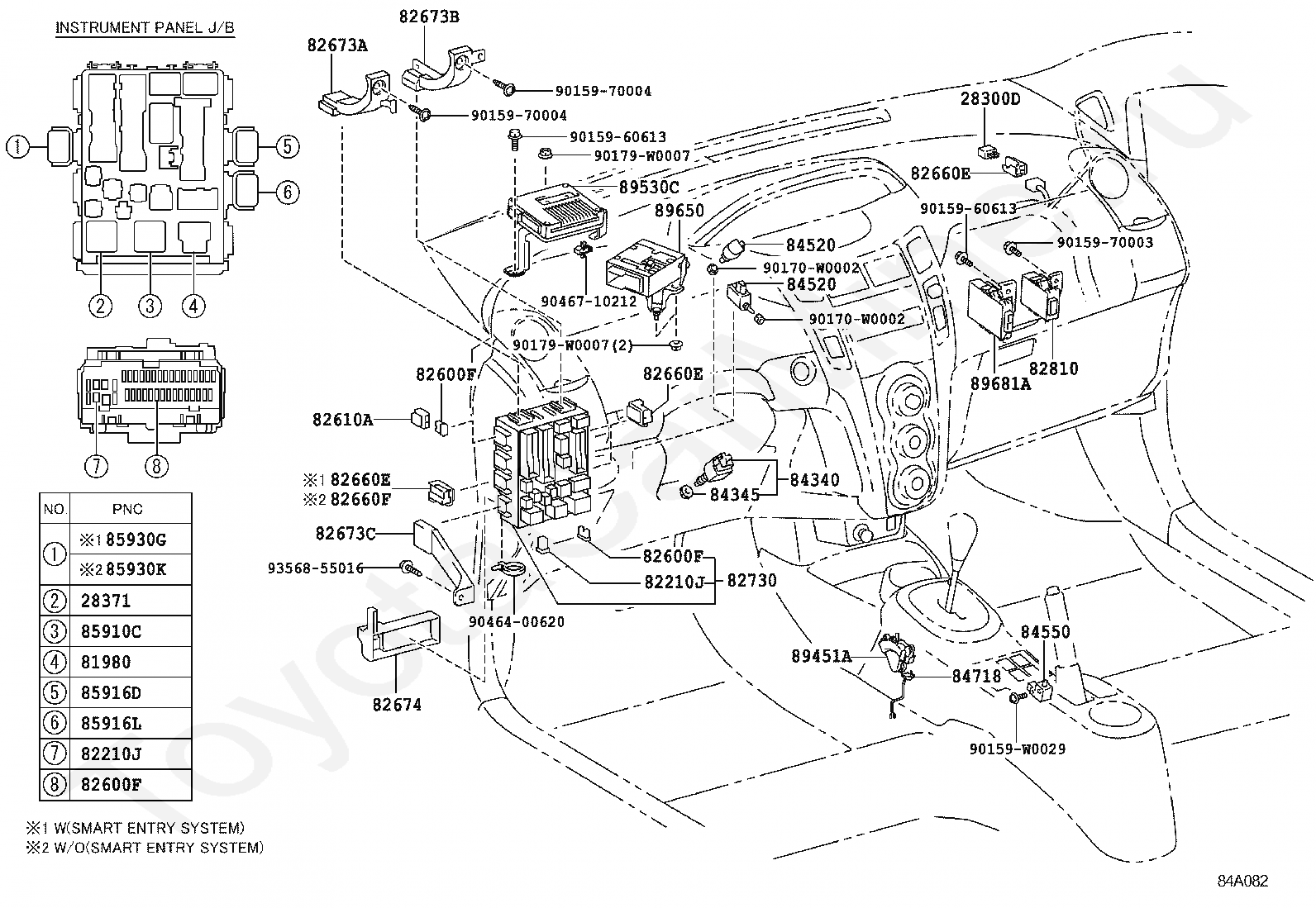

28300D
RELAY, STARTER CUT
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82674
COVER, JUNCTION BLOCK LOWER
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82810
RELAY ASSY, RUNNING LIGHT
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
84718
SWITCH, TRANSMISSION SHIFT MAIN
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85916D
RELAY, FOG LAMP
85916L
RELAY, REAR FOG LAMP
85930G
RELAY, ACC
85930K
RELAY, ACC, NO.2
89451A
SENSOR, SHIFT LEVER POSITION
89650
COMPUTER ASSY, POWER STEERING
9015960610
Крепеж
9015970003
Крепеж
9015970004
Крепеж
90159W0029
Крепеж
90170W0002
Крепеж
90179W0007
Крепеж
9046400620
Крепеж
9356855016
Крепеж
Код
Описание
28300D
RELAY, STARTER CUT
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82610A
BLOCK ASSY, FUSE
82660E
BLOCK ASSY, RELAY
82660F
BLOCK ASSY, RELAY
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
82673C
BRACKET, JUNCTION BLOCK
82674
COVER, JUNCTION BLOCK LOWER
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82810
RELAY ASSY, RUNNING LIGHT
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
84718
SWITCH, TRANSMISSION SHIFT MAIN
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85916D
RELAY, FOG LAMP
85916L
RELAY, REAR FOG LAMP
85930G
RELAY, ACC
85930K
RELAY, ACC, NO.2
89451A
SENSOR, SHIFT LEVER POSITION
89530C
COMPUTER ASSY, TRANSMISSION CONTROL
89650
COMPUTER ASSY, POWER STEERING
89681A
COMPUTER, POWER MANAGEMENT CONTROL
9015960613
Крепеж
9015970003
Крепеж
9015970004
Крепеж
90159W0029
Крепеж
90170W0002
Крепеж
90179W0007
Крепеж
9046400620
Крепеж
9046710212
Крепеж
9356855016
Крепеж
Код
Описание
8302
переход к группе запчастей
8410
переход к группе запчастей

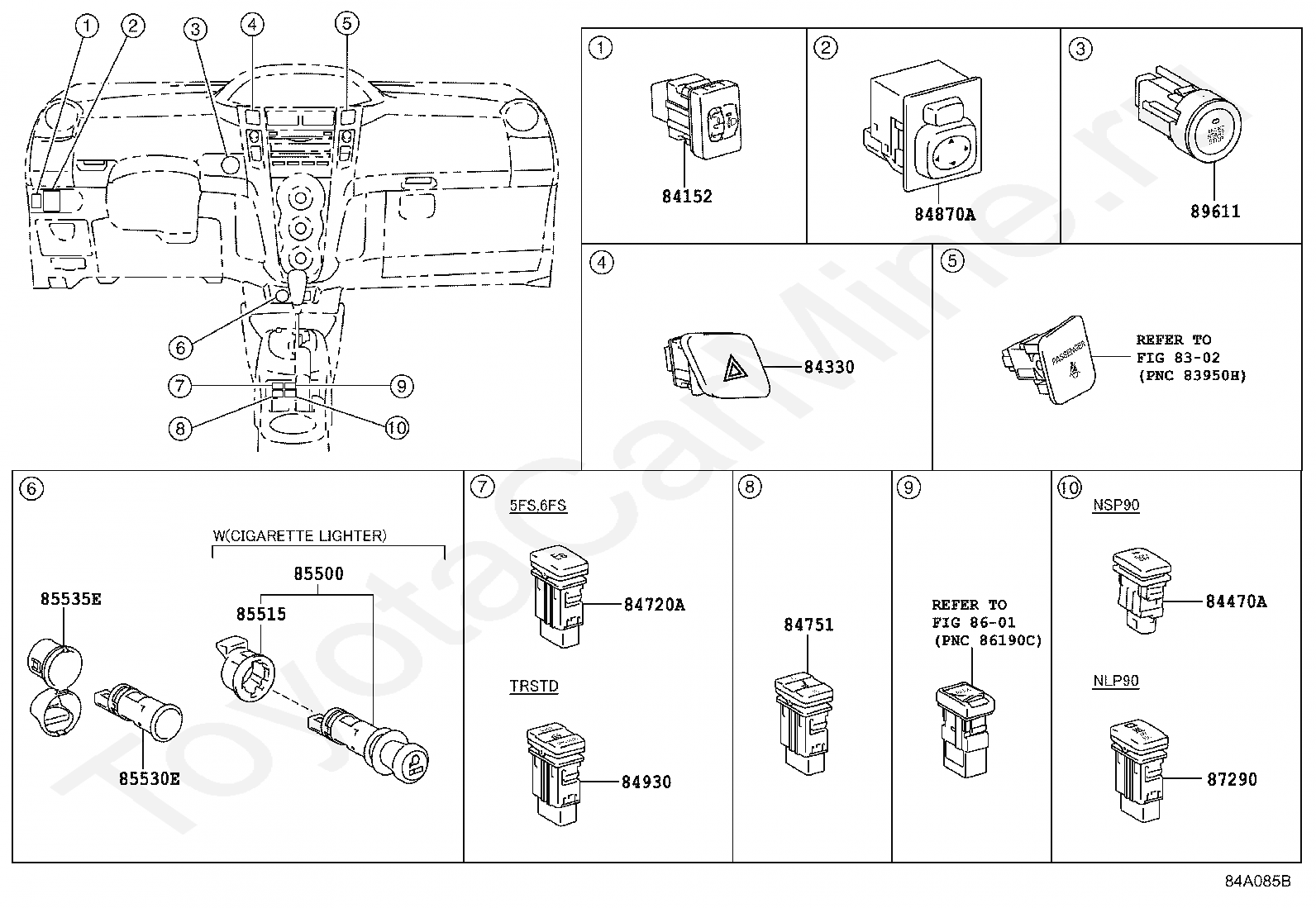

84152
SWITCH, HEADLAMP LEVELING
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84751
SWITCH, SEAT HEATER
84870A
SWITCH ASSY, OUTER MIRROR
84930
SWITCH ASSY, DOOR CONTROL
85500
LIGHTER ASSY, CIGARETTE
85515
STAY, CIGARETTE LIGHTER BEZEL
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85535E
COVER, POWER OUTLET SOCKET, NO.2
87290
SWITCH ASSY, HEATER
89611
SWITCH, PUSH START
Код
Описание
8302
переход к группе запчастей
84152
SWITCH, HEADLAMP LEVELING
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84470A
SWITCH ASSY, ECORUN CANCEL
84720A
SWITCH ASSY, PATTERN SELECT, NO.1
84751
SWITCH, SEAT HEATER
84870A
SWITCH ASSY, OUTER MIRROR
84930
SWITCH ASSY, DOOR CONTROL
85500
LIGHTER ASSY, CIGARETTE
85515
STAY, CIGARETTE LIGHTER BEZEL
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85535E
COVER, POWER OUTLET SOCKET, NO.2
8601
переход к группе запчастей
87290
SWITCH ASSY, HEATER
89611
SWITCH, PUSH START
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84247A
SWITCH, STEERING PAD, LH
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84247A
SWITCH, STEERING PAD, LH
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
Код
Описание

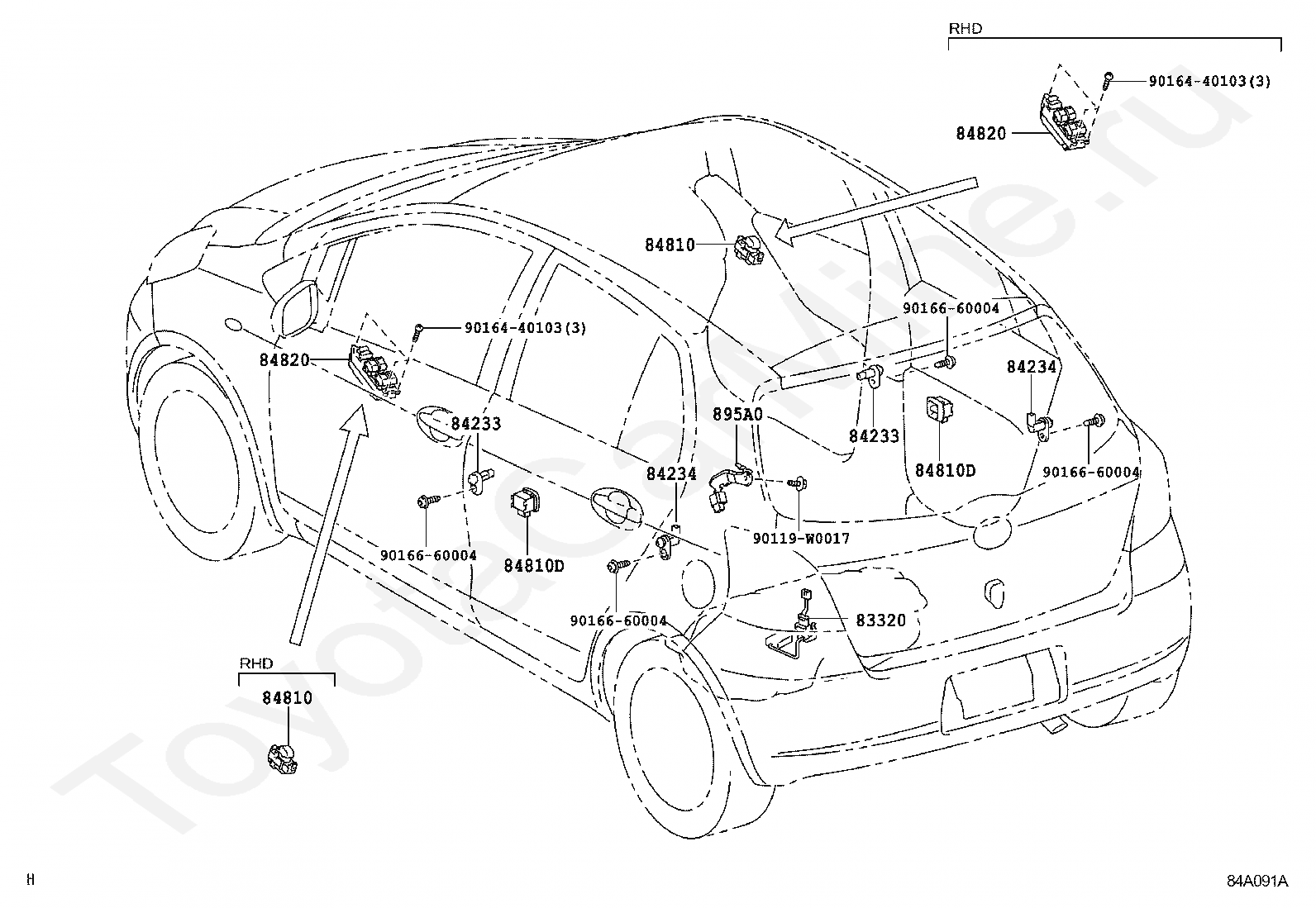

83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
9016440103
Крепеж
9016670001
Крепеж
Код
Описание
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
895A0
RELAY ASSY, STOP LAMP CONTROL
90119W0017
Крепеж
9016440103
Крепеж
9016660004
Крепеж
