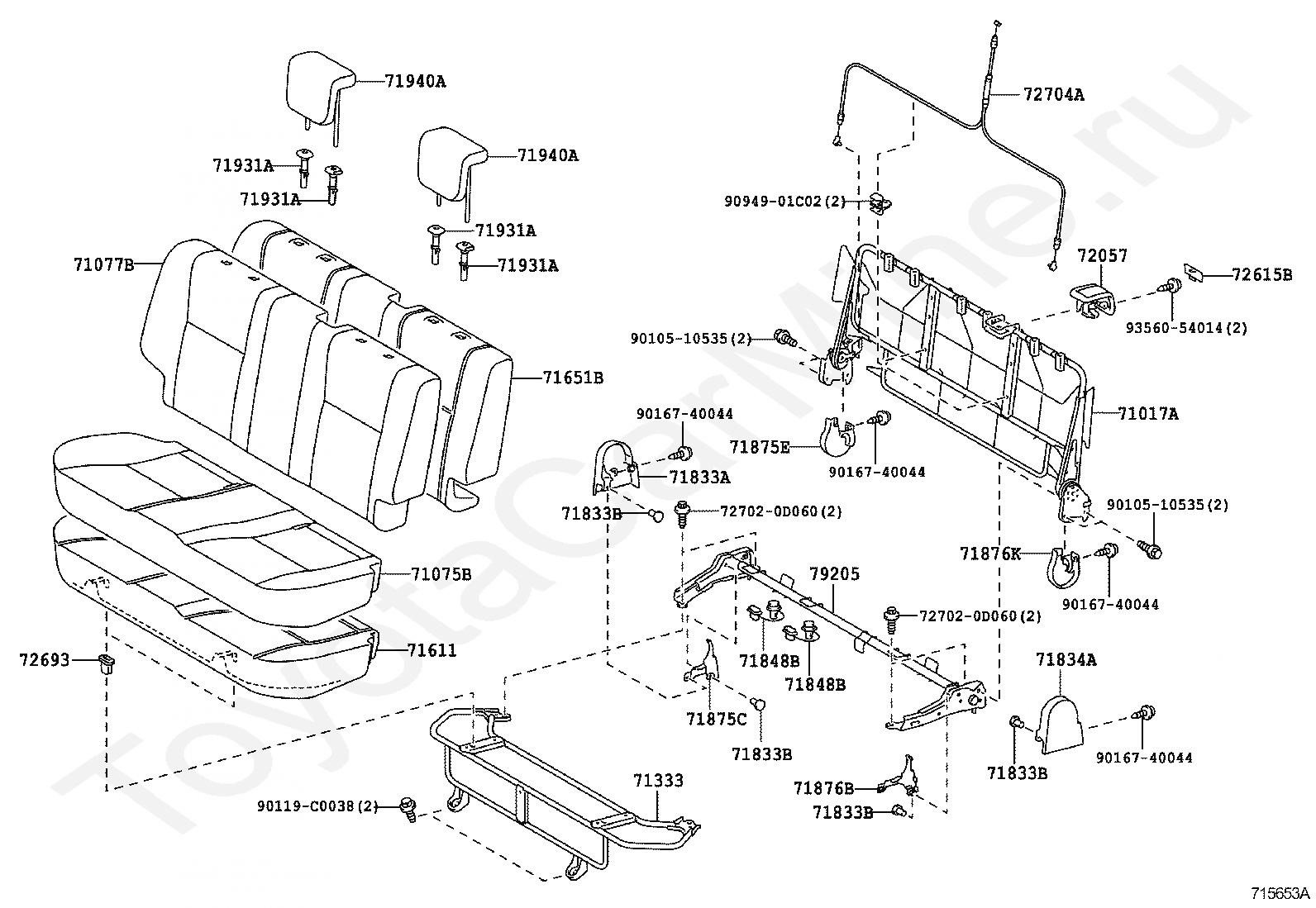

Задние кресла TOYOTA YARIS (CHINA), 2008/05 - 2013/08, 1,6 литра, 16 клапанов DOHC, EFI, STANDARD TYPE, ZSP91, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

YARIS (CHINA)

Двигатель

1,6 литра, 16 клапанов DOHC, EFI

Класс

STANDARD TYPE

Фрейм

ZSP91

Трансмиссия

автомат АКПП, 4 ступени

Опции

левый руль 411W

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71333

LEG, REAR SEAT CUSHION, NO.1

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876K

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72693

HOOK, REAR SEAT CUSHION LOCK

727020D060

Крепеж

72704A

CABLE, REAR SEAT RECLINING CONTROL

79205

LEG SUB-ASSY, NO.2 SEAT

9010510535

Крепеж

90119C0038

Крепеж

9016740044

Крепеж

9094901C02

Крепеж

9356054014

Крепеж

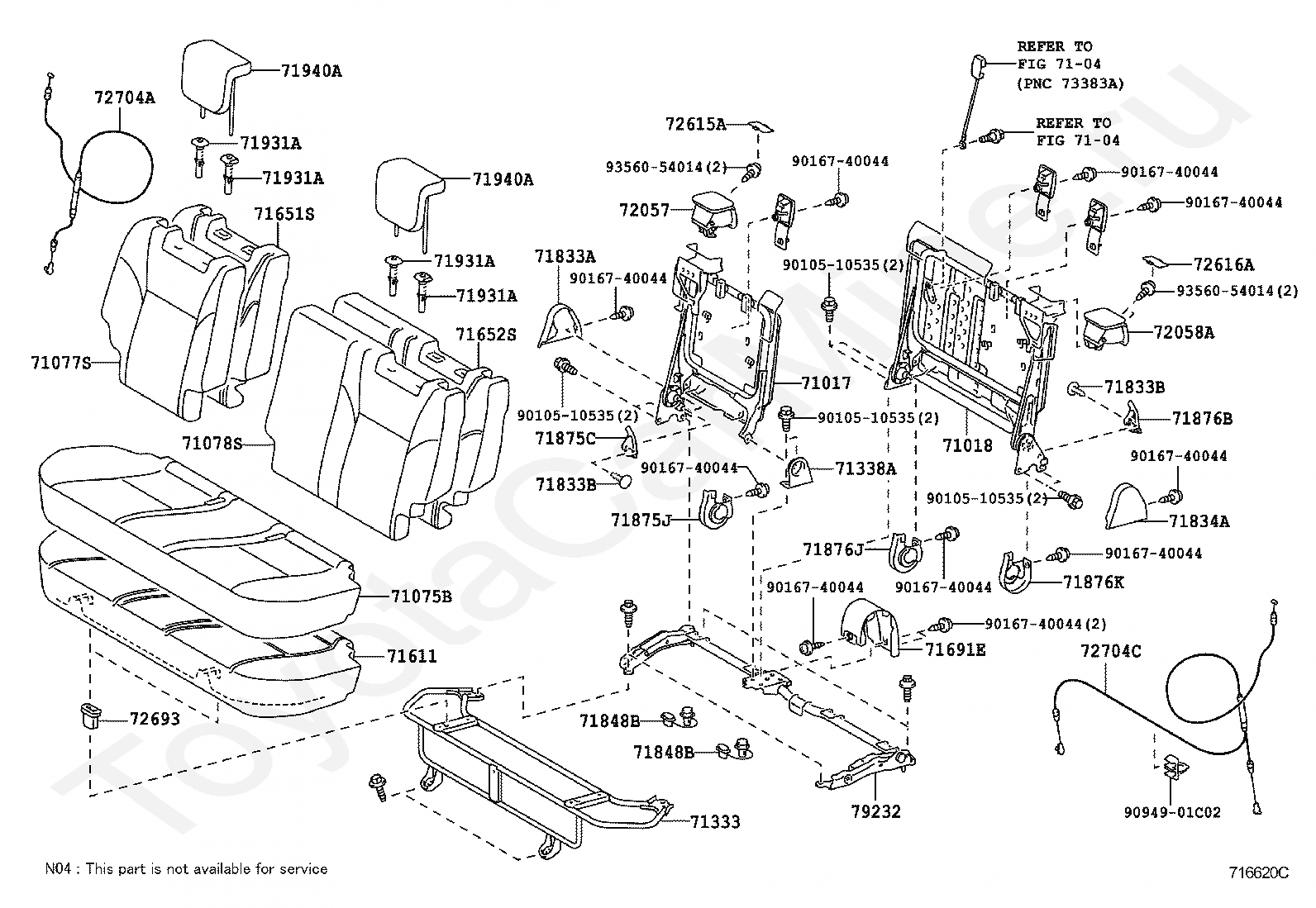

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71333

LEG, REAR SEAT CUSHION, NO.1

71338A

PLATE, REAR SEAT LEG, NO.2

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71876K

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72693

HOOK, REAR SEAT CUSHION LOCK

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704C

CABLE, REAR NO.2 SEAT RECLINING CONTROL

79232

LEG, REAR NO.2 SEAT, RH

9010510535

Крепеж

9016740044

Крепеж

9094901C02

Крепеж

9356054014

Крепеж

Задние кресла TOYOTA YARIS (CHINA), 2008/05 - 2013/08, 1,6 литра, 16 клапанов DOHC, EFI, STANDARD TYPE, ZSP91, автомат, АКПП, 4 ступени
