Задние кресла TOYOTA YARIS, 2008/08 - 2025, 1,5 литра, 16 клапанов DOHC, EFI, NCP93, автомат

Каталог

Ближний Восток

Модель

YARIS

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Фрейм

NCP93

Трансмиссия

автомат

Опции

правый руль Австралия 425W

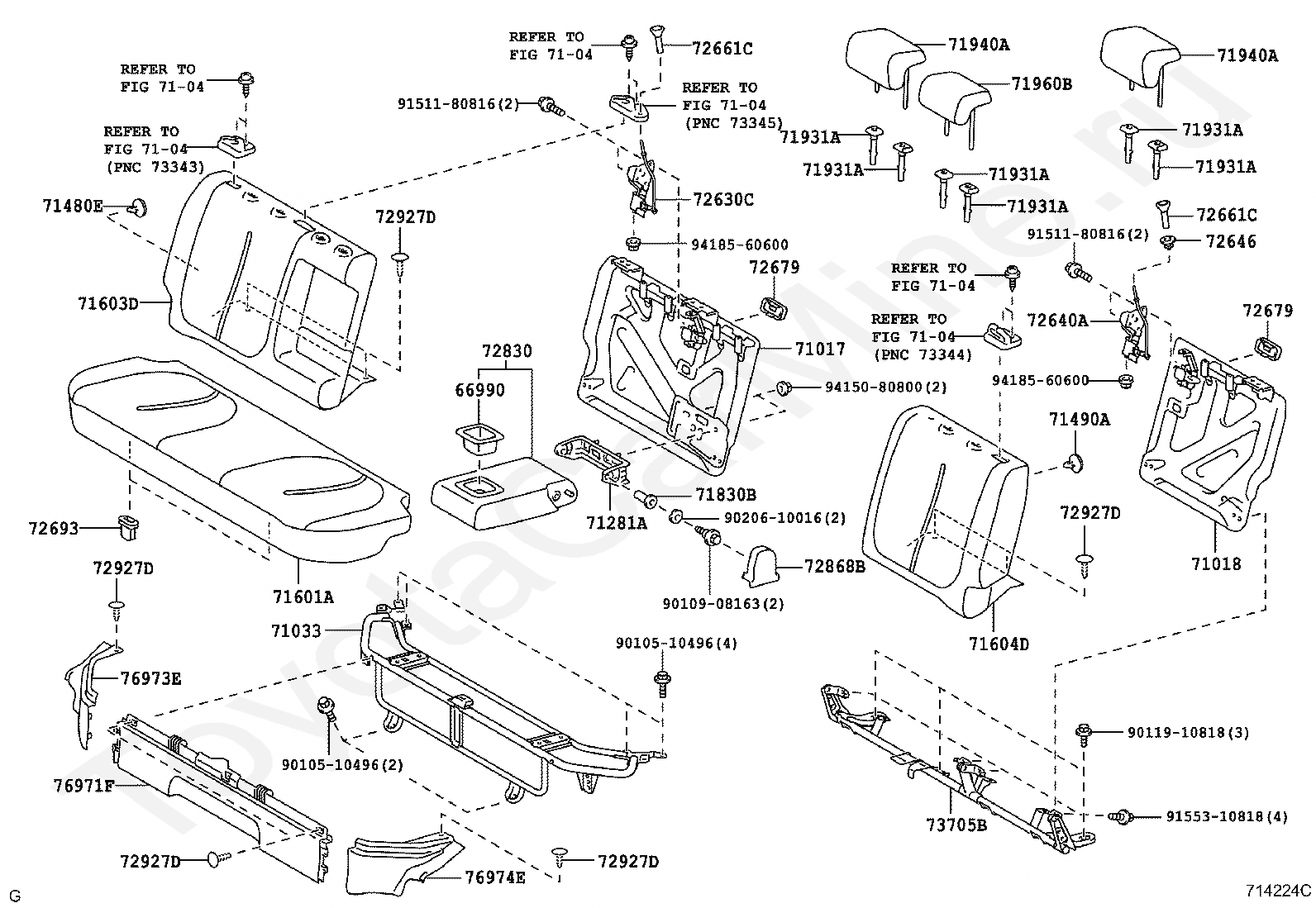

Код

Описание

66990

HOLDER ASSY, CUP

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7104

переход к группе запчастей

71281A

HINGE, REAR SEAT CENTER ARMREST

71480E

CLIP, REAR SEAT BACK, RH

71490A

CLIP, REAR SEAT BACK, LH

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH

71604D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH

71830B

BUSH(FOR REAR SEAT ARMREST)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72868B

COVER, CENTER ARMREST HINGE

72927D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

76971F

COVER, REAR UNDER

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

9010510496

Крепеж

9010908163

Крепеж

9011910818

Крепеж

9020610016

Крепеж

9151180816

Крепеж

9155310818

Крепеж

9415080800

Крепеж

9418560600

Крепеж

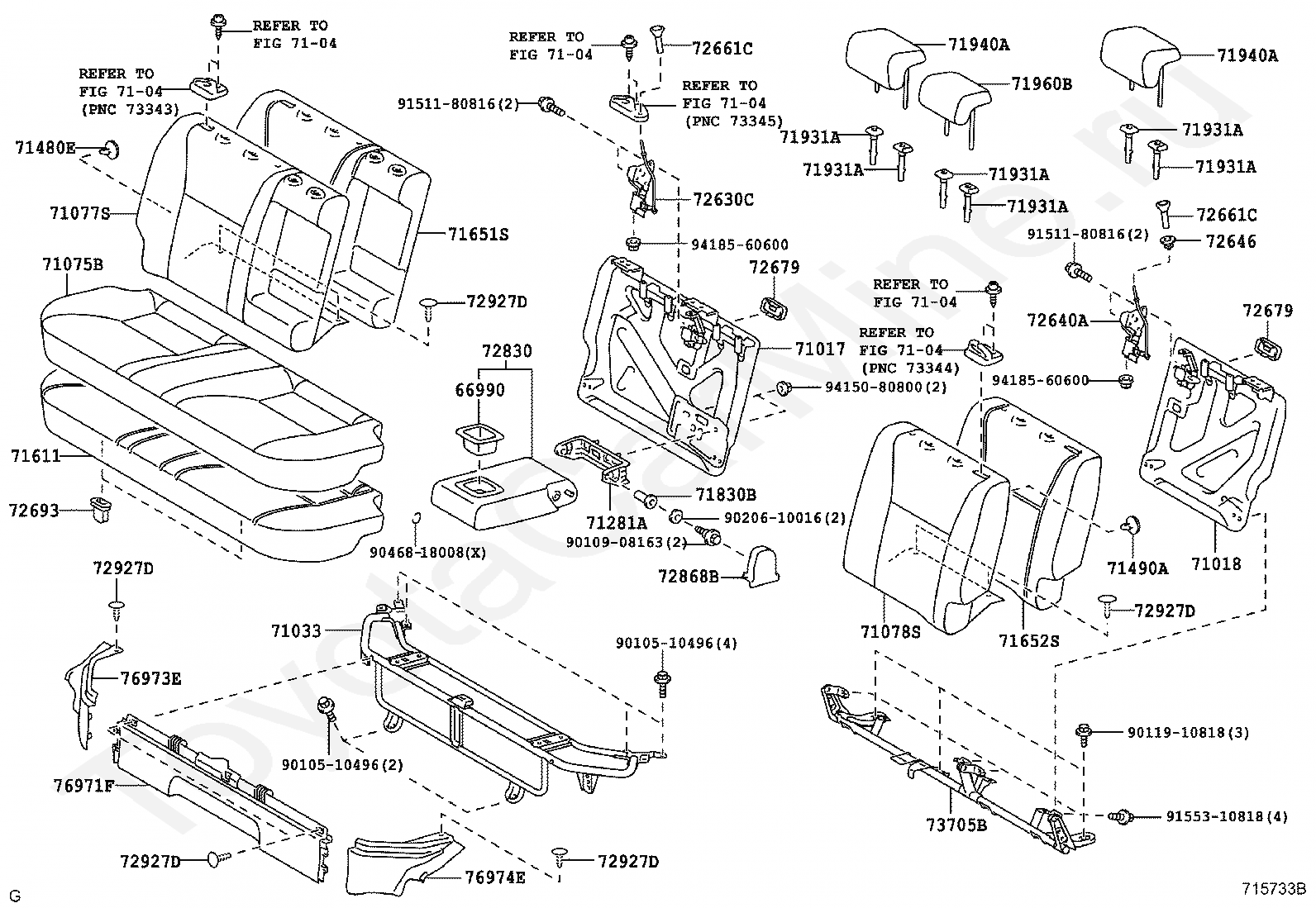

Код

Описание

66990

HOLDER ASSY, CUP

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71281A

HINGE, REAR SEAT CENTER ARMREST

71480E

CLIP, REAR SEAT BACK, RH

71490A

CLIP, REAR SEAT BACK, LH

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71830B

BUSH(FOR REAR SEAT ARMREST)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72868B

COVER, CENTER ARMREST HINGE

72927D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

76971F

COVER, REAR UNDER

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

9010510496

Крепеж

9010908163

Крепеж

9011910818

Крепеж

9020610016

Крепеж

9046818008

Крепеж

9151180816

Крепеж

9155310818

Крепеж

9415080800

Крепеж

9418560600

Крепеж

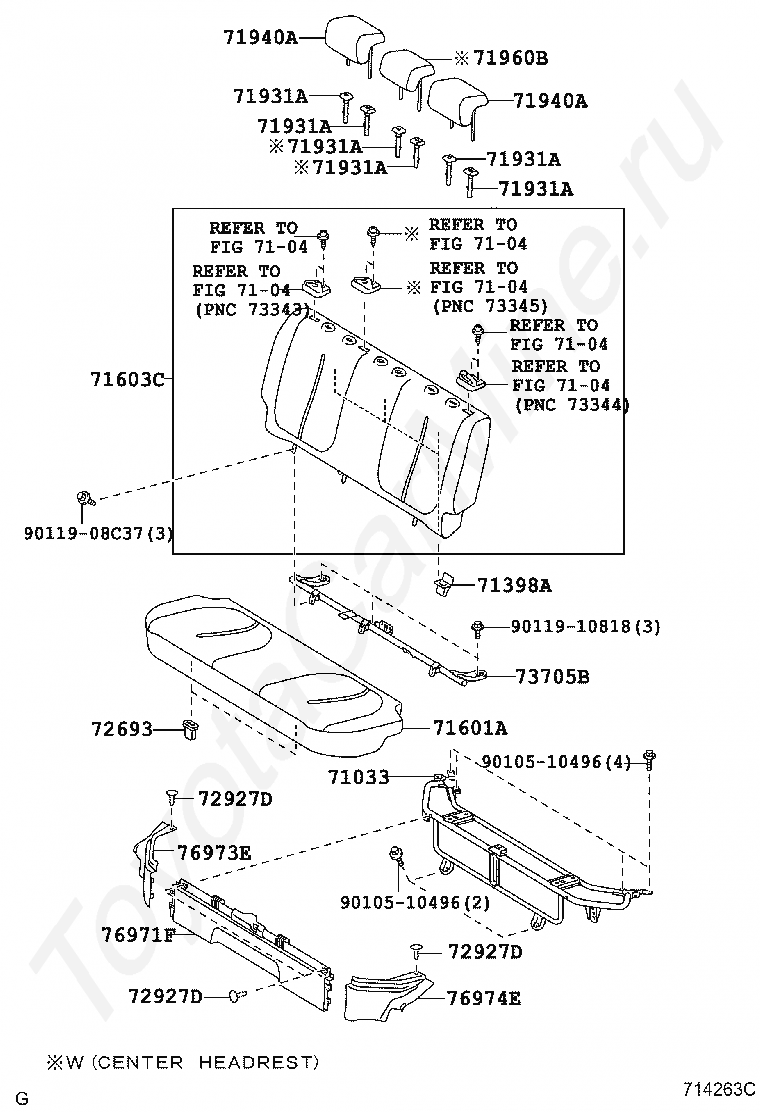

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

7104

переход к группе запчастей

71398A

HOLDER, REAR SEAT BACK

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72693

HOOK, REAR SEAT CUSHION LOCK

72927D

CLIP (FOR REAR SEAT CUSHION UNDER COVER)

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

76971F

COVER, REAR UNDER

76973E

COVER, REAR UNDER SIDE, RH

76974E

COVER, REAR UNDER SIDE, LH

9010510496

Крепеж

9011908C37

Крепеж

9011910818

Крепеж

Задние кресла TOYOTA YARIS, 2008/08 - 2025, 1,5 литра, 16 клапанов DOHC, EFI, NCP93, автомат
