Боковая панель кузова TOYOTA YARIS, 2022/01 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, NSP151, механика, МКПП, 6 скоростей

Каталог

Ближний Восток

Модель

YARIS

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Фрейм

NSP151

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль 5 дверей ARGENTINE V(MODEL MARK) CUT HOSE TO LENGTH AS SPECIFIED IN REMARKS 862W

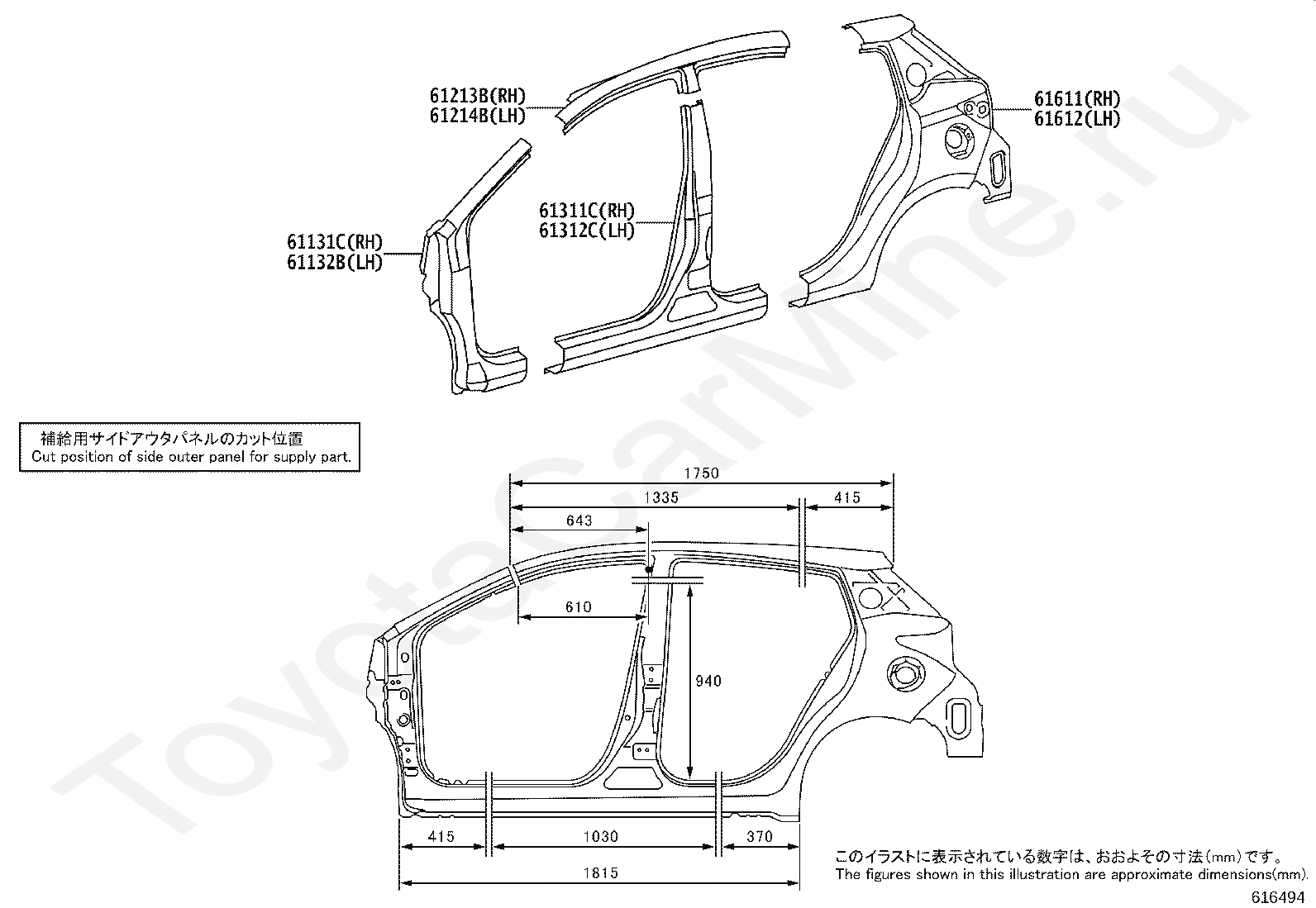

Код

Описание

61131C

PILLAR, FRONT BODY, OUTER RH

61132B

PILLAR, FRONT BODY, OUTER LH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61214B

RAIL, ROOF SIDE, OUTER NO.2 LH

61311C

PANEL, REAR BODY FRONT OUTSIDE, RH

61312C

PANEL, REAR BODY FRONT OUTSIDE, LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

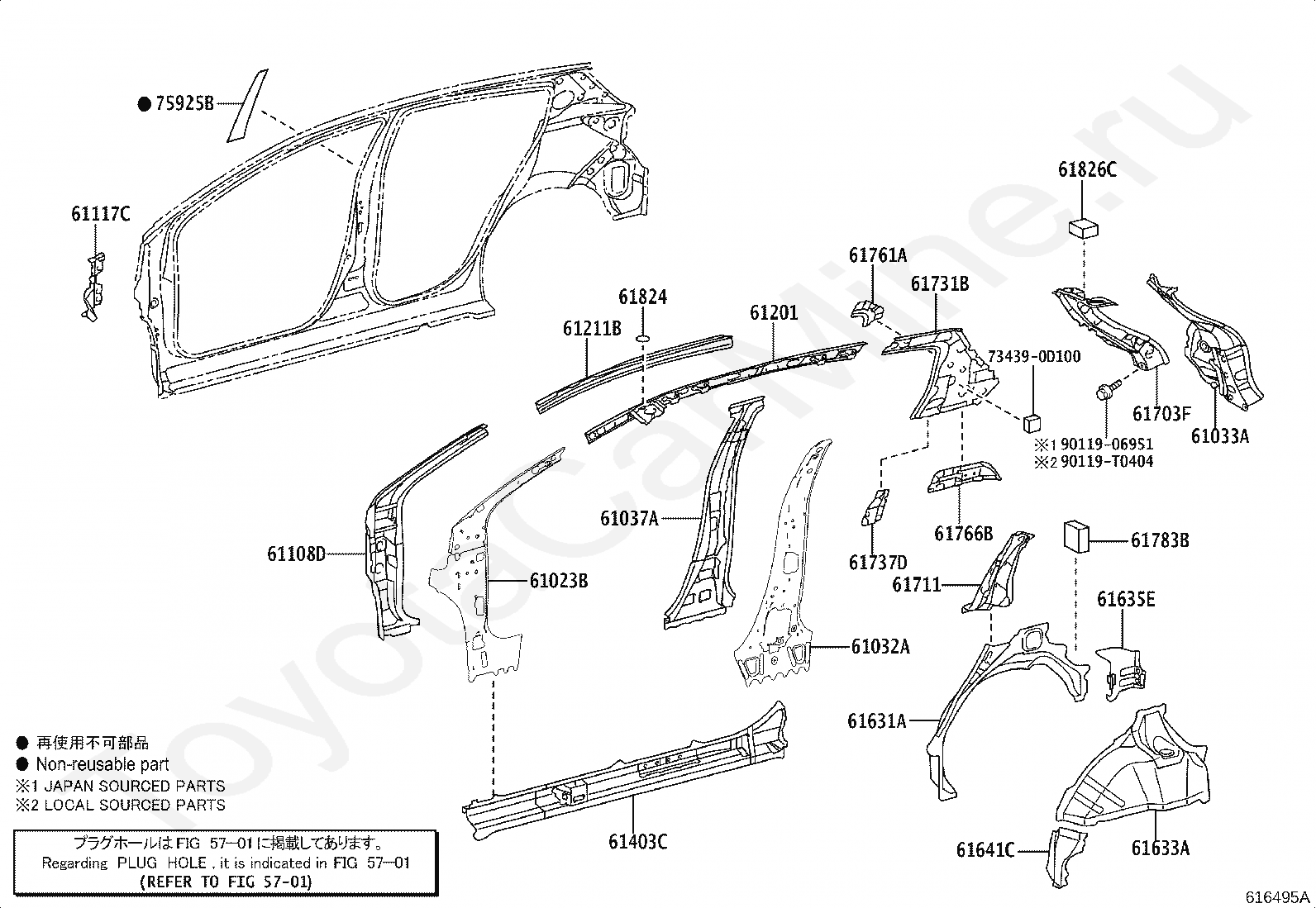

Код

Описание

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61032A

PILLAR SUB-ASSY, NO.1 INNER, RH

61033A

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61117C

GUSSET, SIDE PANEL TO COWL, RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61211B

RAIL, ROOF SIDE, OUTER REAR RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61635E

EXTENSION, QUARTER WHEEL HOUSE, RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61703F

PANEL SUB-ASSY, QUARTER, INNER FRONT RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61761A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61766B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

61783B

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

734390D100

Крепеж

75925B

TAPE, BLACK OUT, NO.3 RH

9011906951

Крепеж

90119T0404

Крепеж

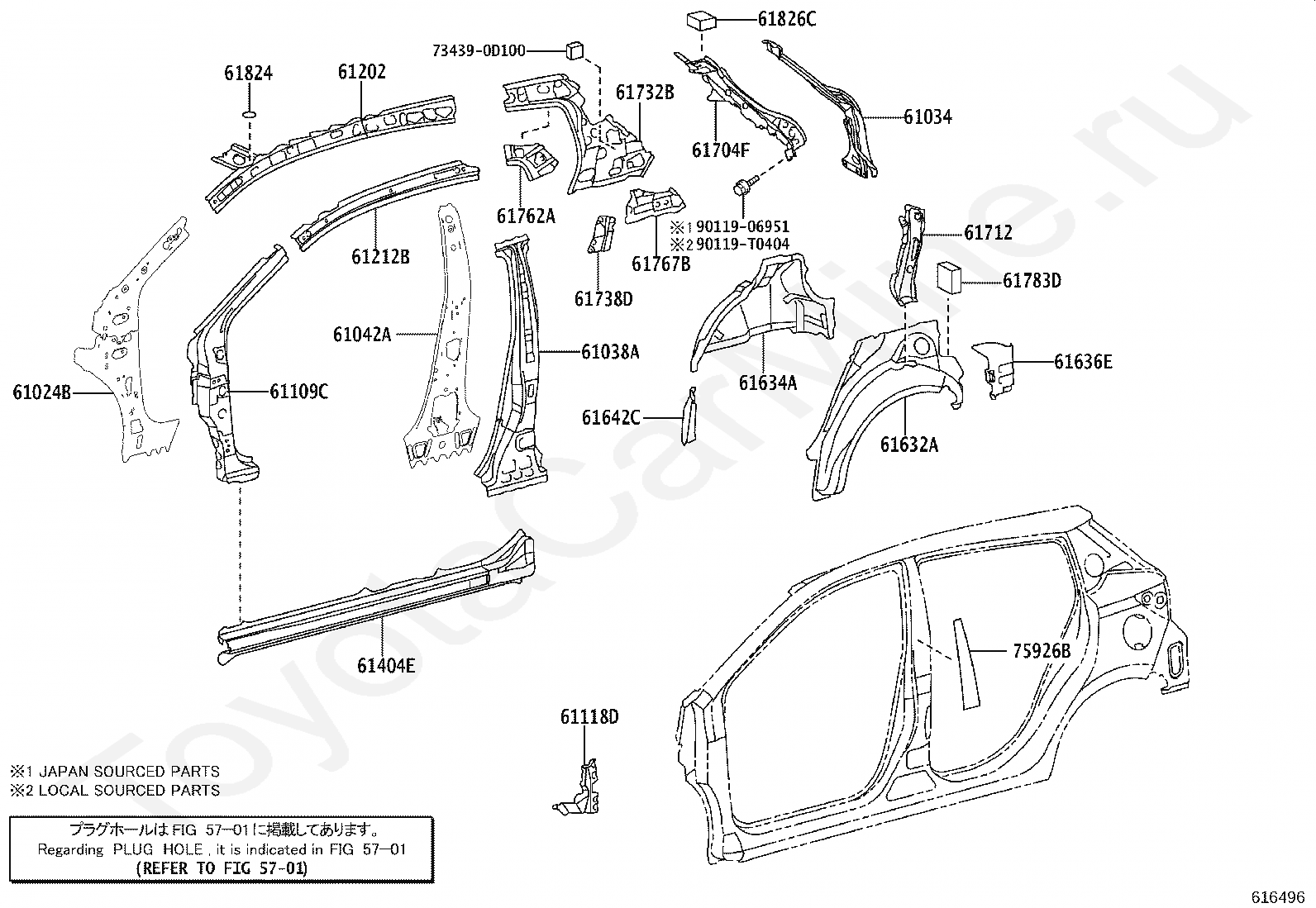

Код

Описание

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61034

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61042A

PILLAR SUB-ASSY, NO.1 INNER, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61118D

GUSSET, SIDE PANEL TO COWL, LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61212B

RAIL, ROOF SIDE, OUTER REAR LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61636E

EXTENSION, QUARTER WHEEL HOUSE, LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61704F

PANEL SUB-ASSY, QUARTER, INNER FRONT LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61762A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61767B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

61783D

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

734390D100

Крепеж

75926B

TAPE, BLACK OUT, NO.3 LH

9011906951

Крепеж

90119T0404

Крепеж
