Задние кресла TOYOTA VITZ, 2010/12 - 2014/04, 1 литр, 12 клапанов DOHC, EFI, JEWL, KSP130, вариатор

Каталог

Япония

Модель

VITZ

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

JEWL

Фрейм

KSP130

Трансмиссия

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

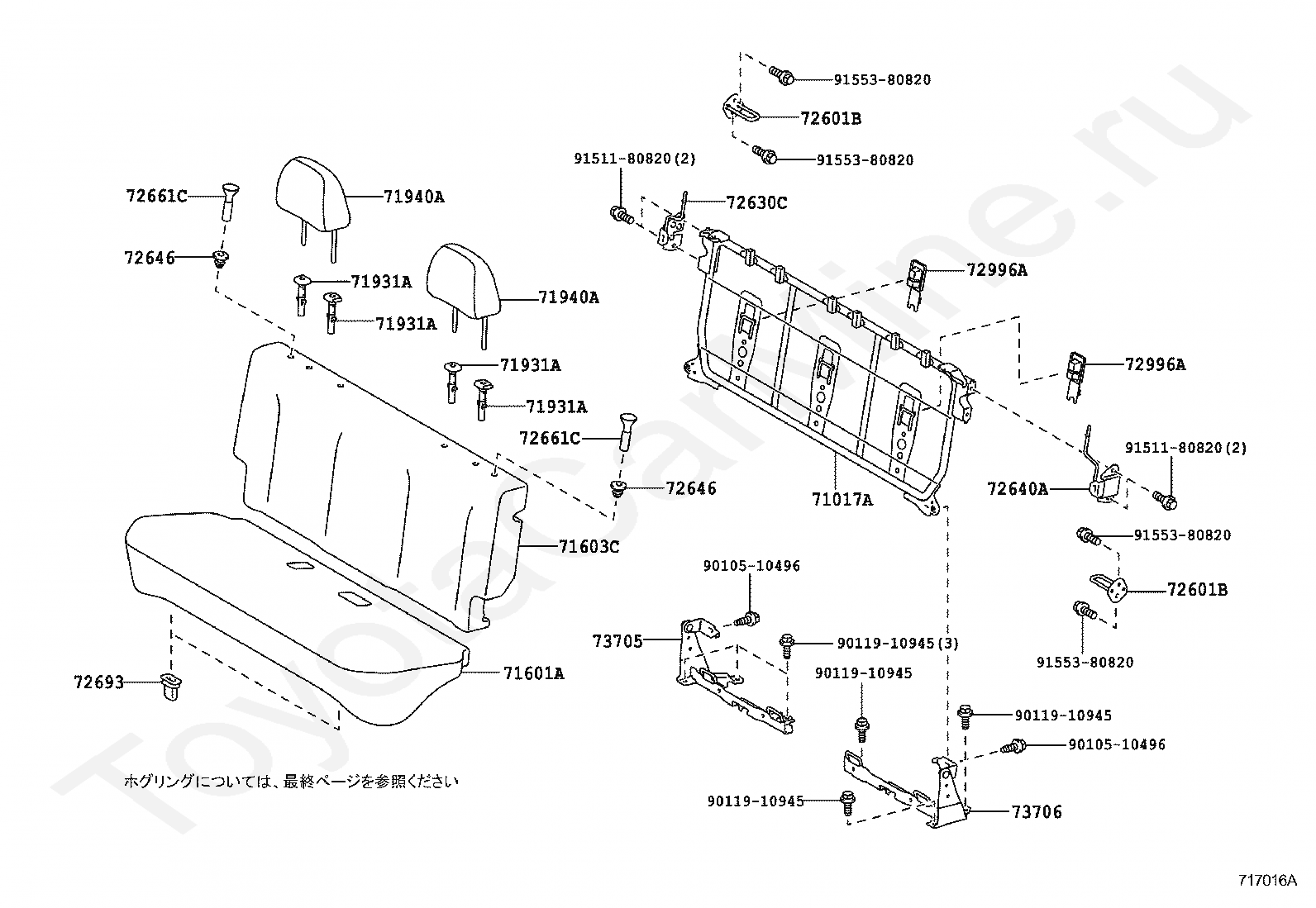

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72996A

COVER, REAR SEAT BACK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010510496

Крепеж

9011910945

Крепеж

9151180820

Крепеж

9155380820

Крепеж

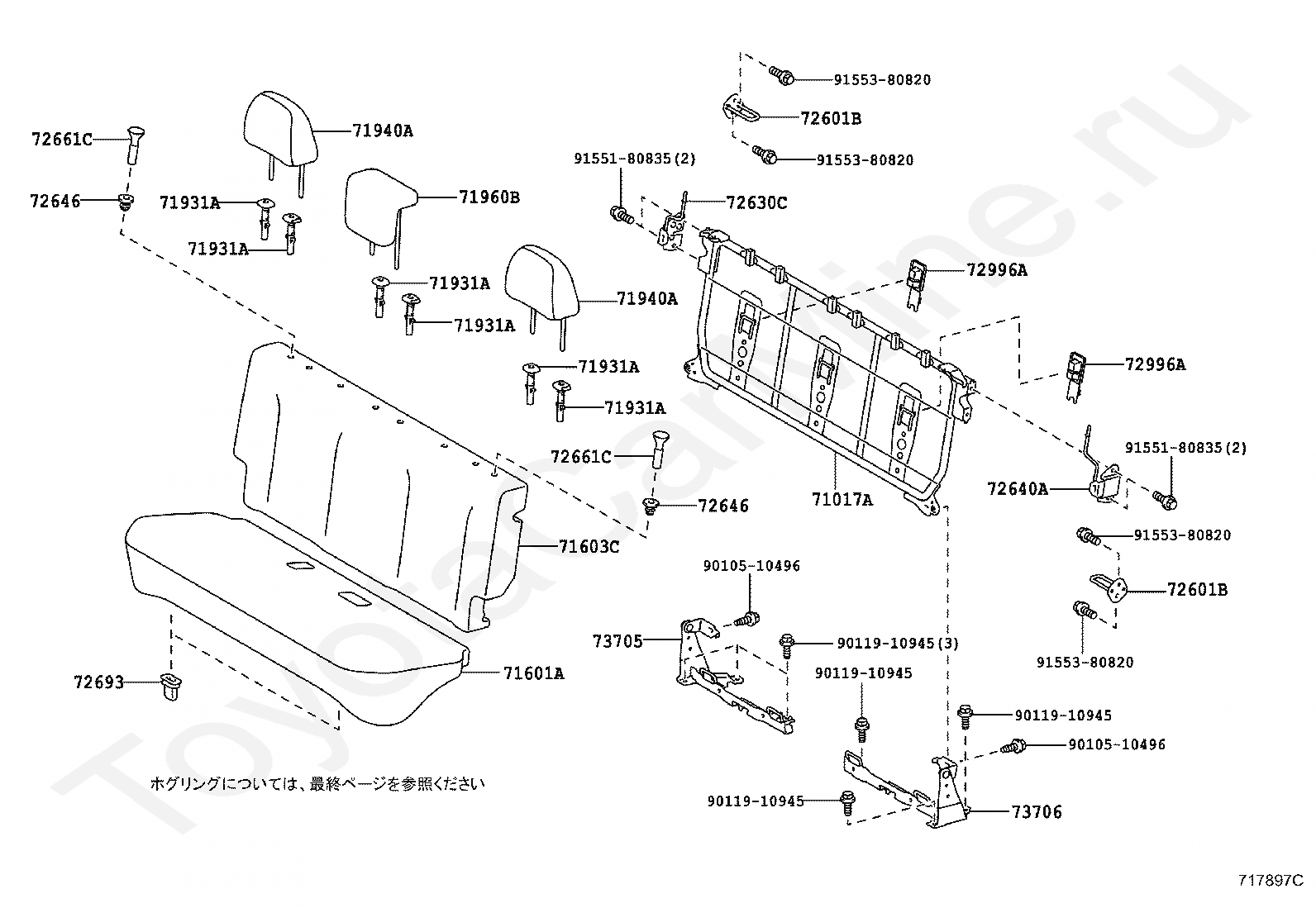

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72996A

COVER, REAR SEAT BACK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010510496

Крепеж

9011910945

Крепеж

9155180835

Крепеж

9155380820

Крепеж

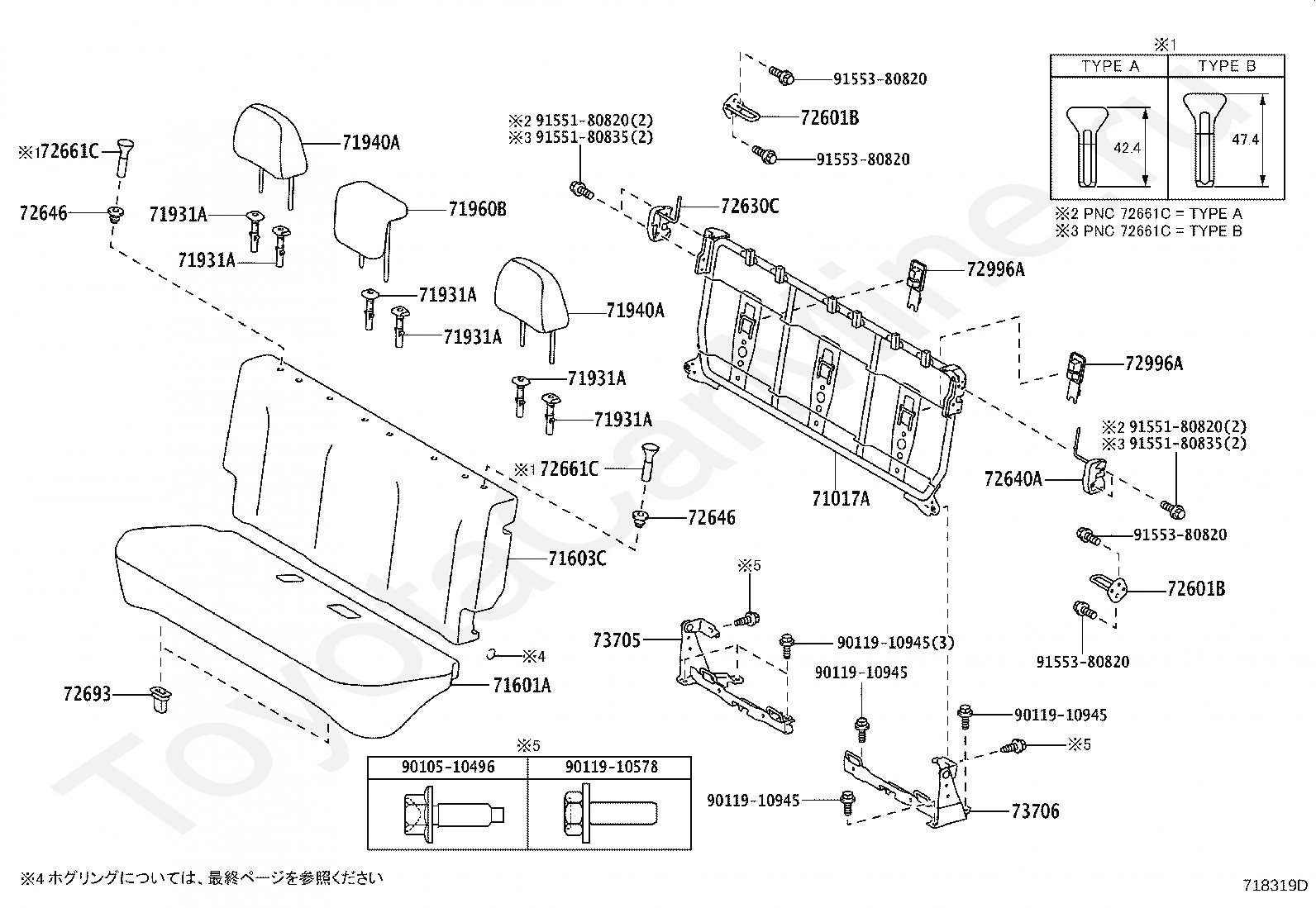

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603C

PAD SUB-ASSY, REAR SEAT BACK W/COVER

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72996A

COVER, REAR SEAT BACK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010510496

Крепеж

9011910578

Крепеж

9011910945

Крепеж

9155180820

Крепеж

9155180835

Крепеж

9155380820

Крепеж

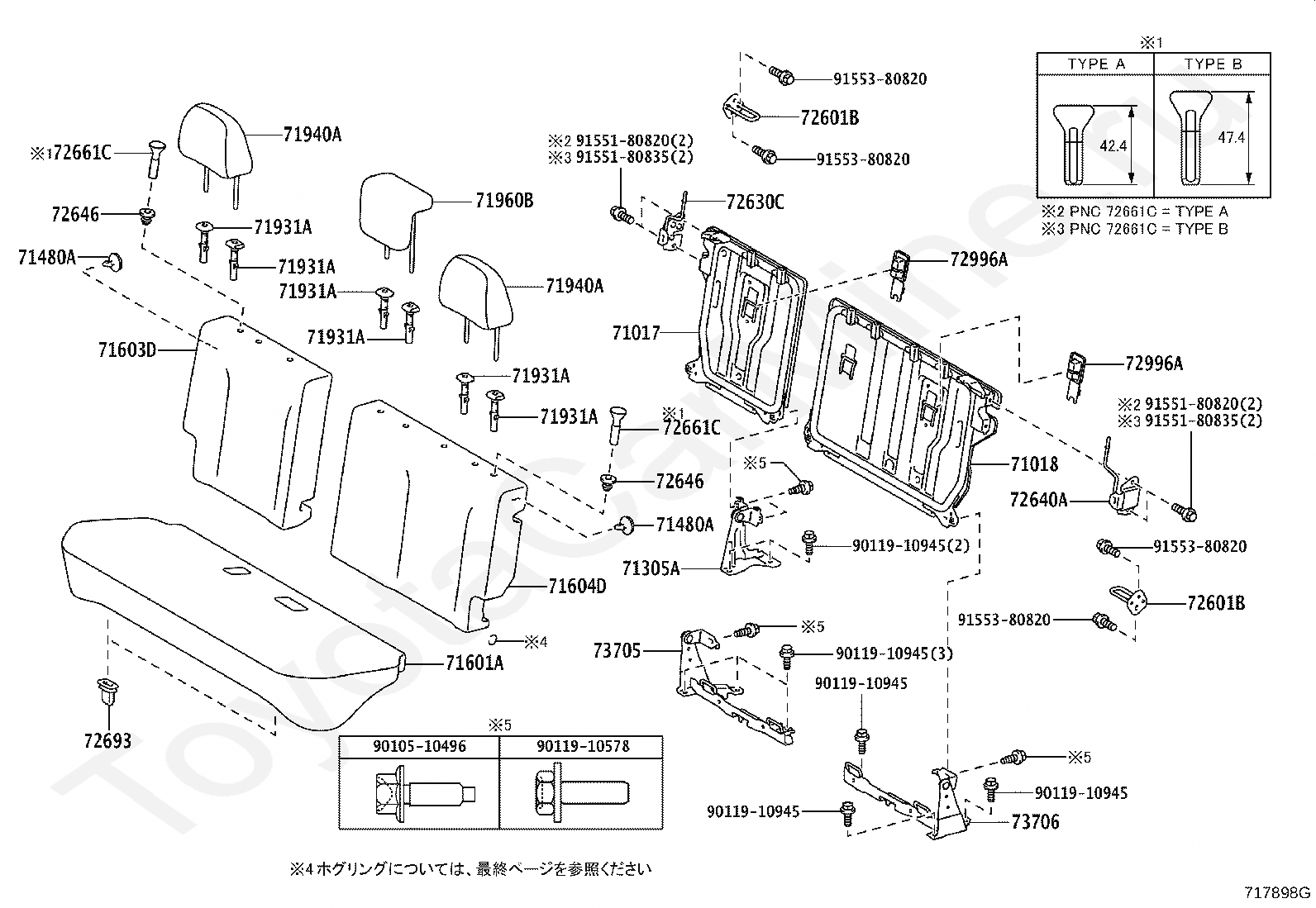

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71480A

CLIP (FOR REAR SEAT BACK)

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH

71604D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72996A

COVER, REAR SEAT BACK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9010510496

Крепеж

9011910578

Крепеж

9011910945

Крепеж

9155180820

Крепеж

9155180835

Крепеж

9155380820

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
