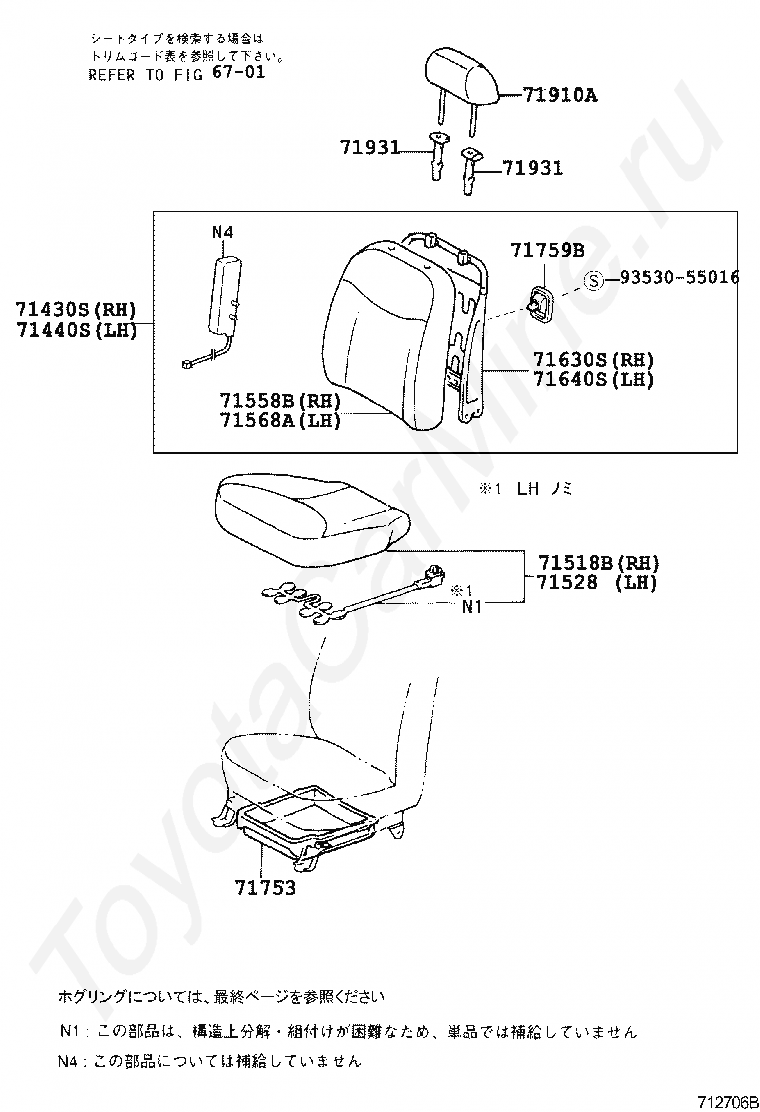

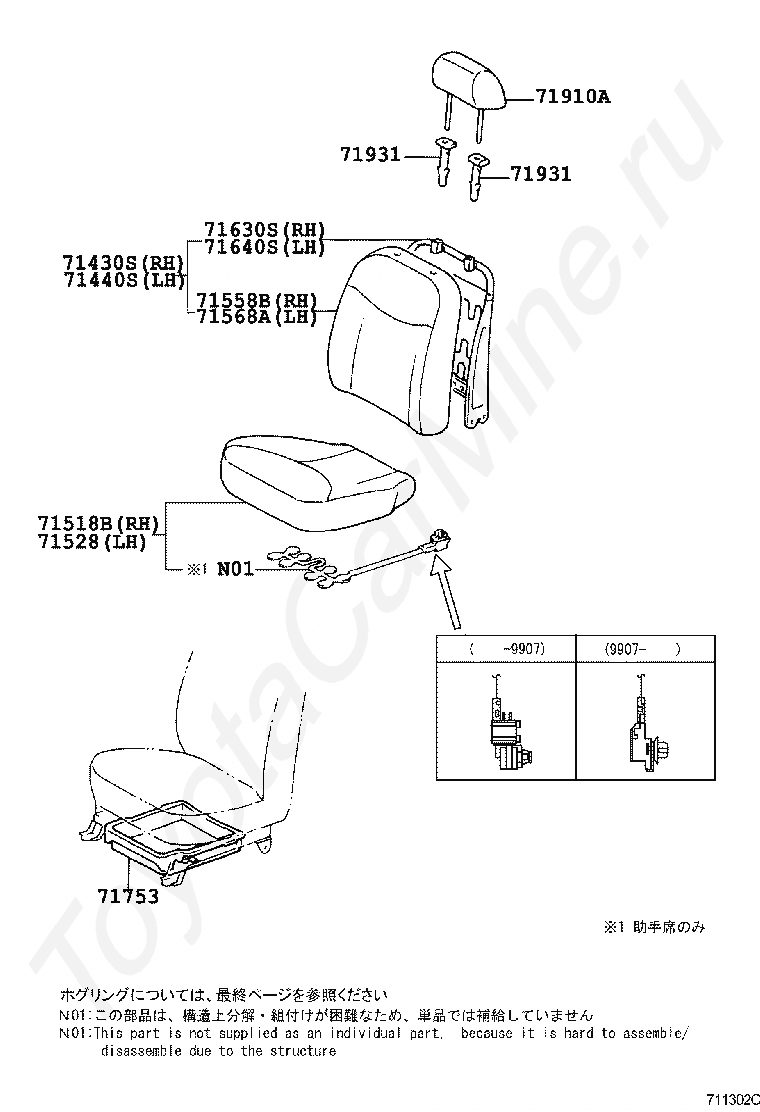

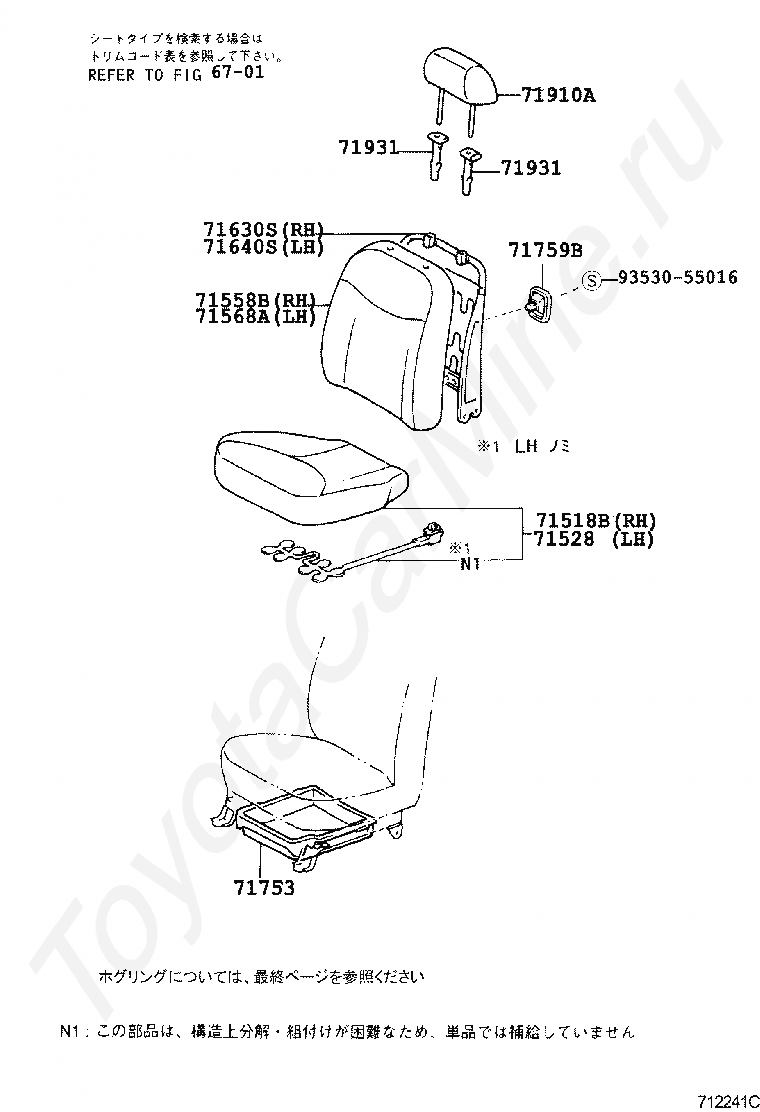

Передние кресла TOYOTA VITZ, 1999/01 - 2005/01, 1 литр, 16 клапанов DOHC, EFI, 3 литра, дизель, SCP10, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

VITZ

Двигатель

1 литр, 16 клапанов DOHC, EFI

Класс

3 литра, дизель

Фрейм

SCP10

Трансмиссия

автомат АКПП, 4 ступени

Опции

3 двери

Код

Описание

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

Код

Описание

6701

переход к группе запчастей

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

9353055016

Крепеж

Код

Описание

6701

переход к группе запчастей

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

9353055016

Крепеж

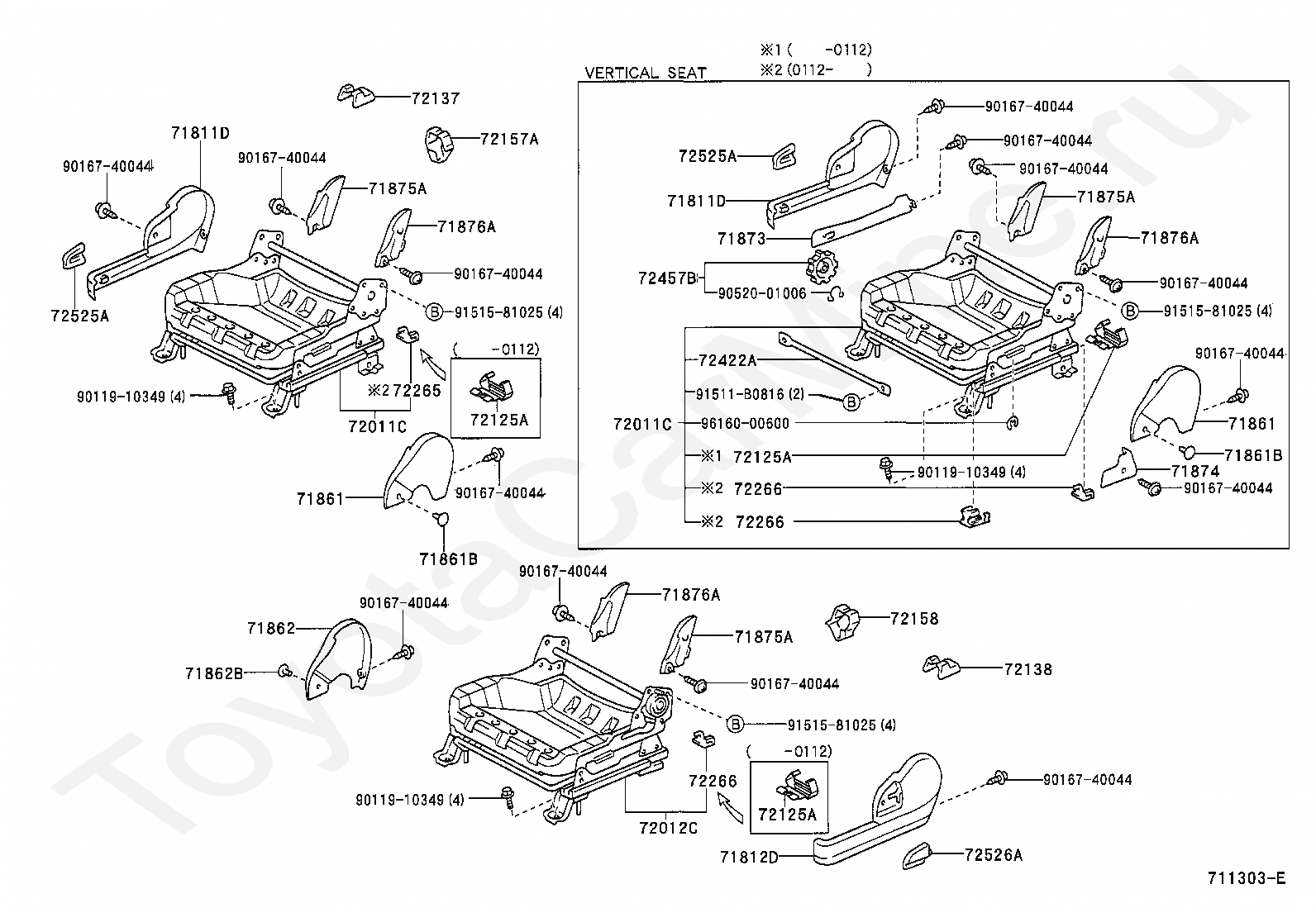

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72125A

COVER, SEAT TRACK, UPPER REAR

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72422A

ROD, FRONT SEAT ADJUSTER

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910349

Крепеж

9016740044

Крепеж

9052001006

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9616000600

Крепеж

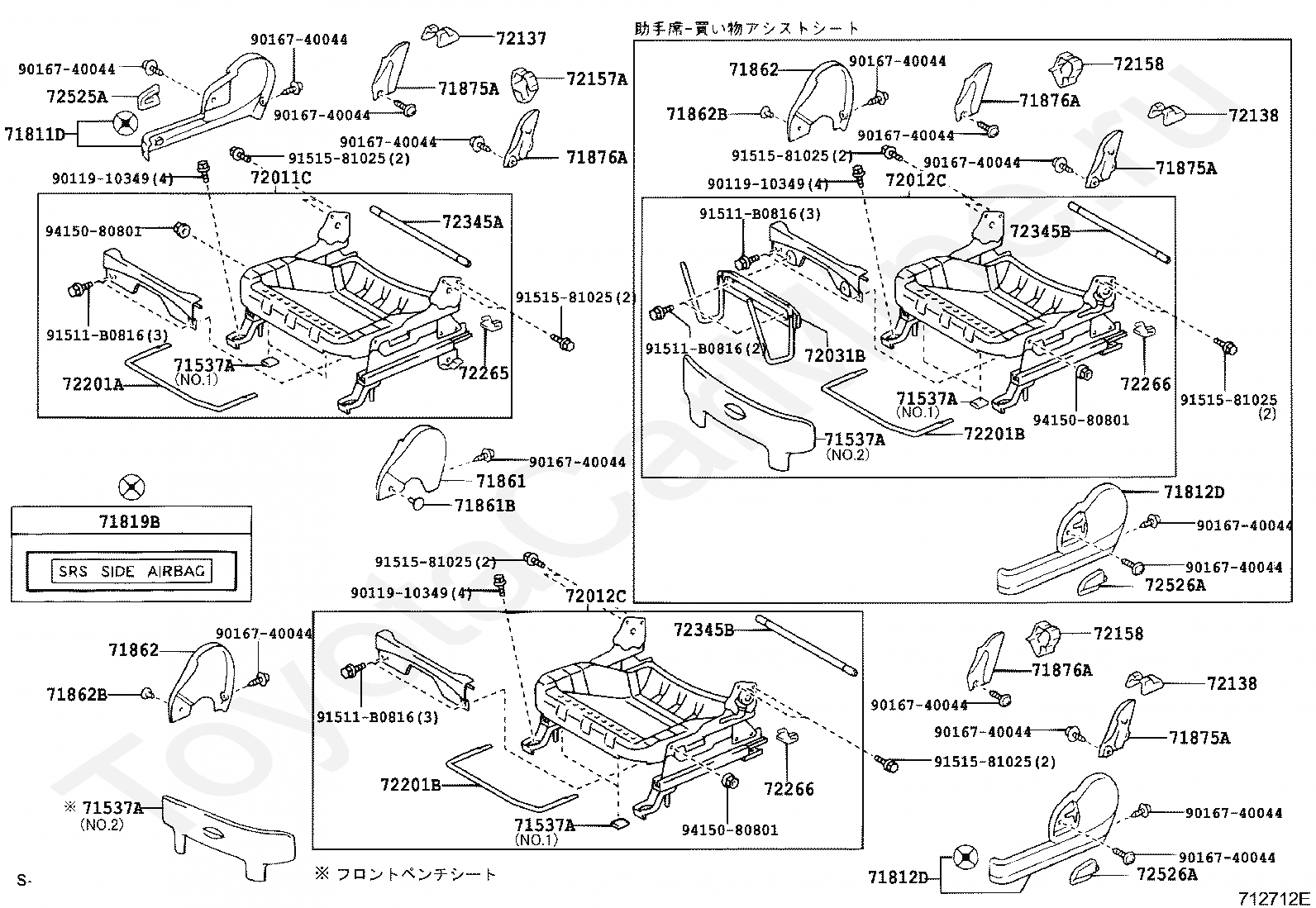

Код

Описание

71537A

PROTECTOR, FRONT SEAT CUSHION

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71819B

LABEL, SIDE AIR BAG NAME

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72031B

LEG, FRONT SEAT SET

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72345A

PIPE, RECLINING CONNECTING

72345B

PIPE, RECLINING CONNECTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910349

Крепеж

9016740044

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9415080801

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
