Каталог
ЯпонияМодель
VISTA/VISTA ARDEOДвигатель
1,8 литра, 16 клапанов DOHC, EFIКузов
фургонКласс
ARDEO 180 TYPEФрейм
ZZV50Опции

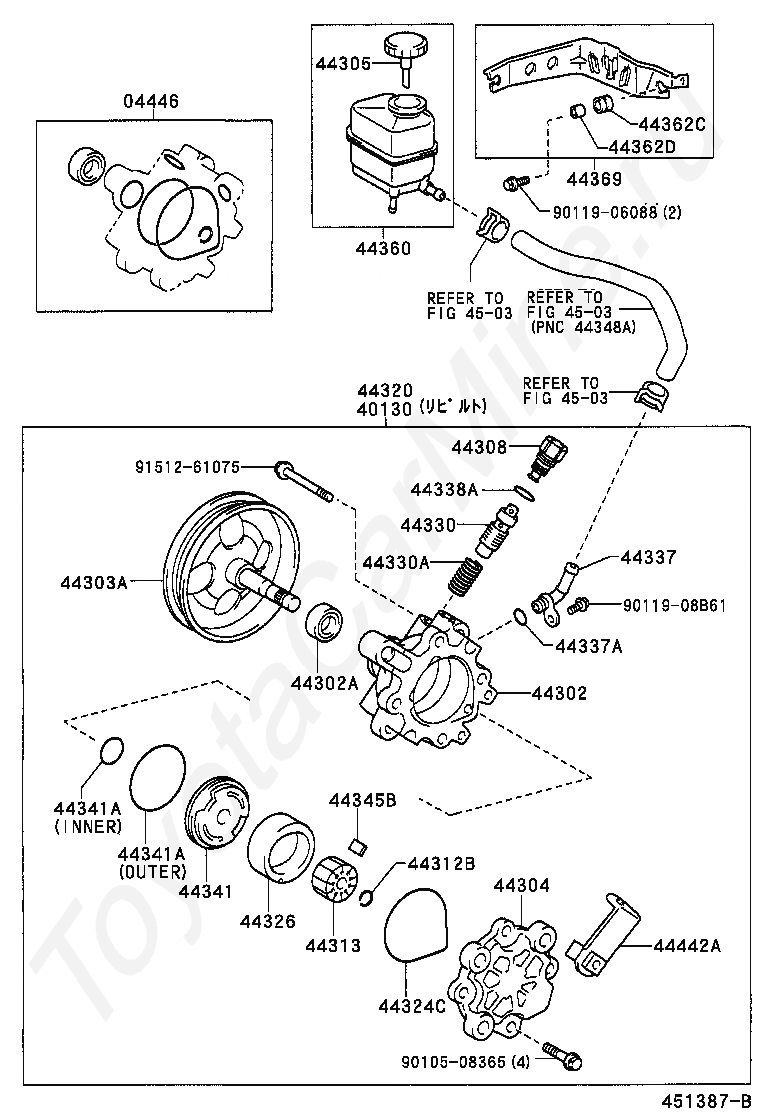

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
40130
PUMP ASSY,VANE REBUILT
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302A
SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44303A
SHAFT SUB-ASSY, W/PULLEY
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308
UNION SUB-ASSY, PRESSURE PORT
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44320
PUMP ASSY, VANE
44324C
RING, O(FOR PUMP HOUSING REAR)
44326
RING, CAM(FOR VANE PUMP)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338A
RING, O(FOR PRESSURE PORT UNION)
44341
PLATE, VANE PUMP SIDE, FRONT
44341A
RING, O(FOR VANE PUMP FRONT SIDE PLATE)
44345B
PLATE, VANE PUMP
44360
RESERVOIR ASSY, VANE PUMP OIL
44362C
CUSHION(FOR VANE PUMP OIL RESERVOIR)
44362D
SPACER(FOR VANE PUMP OIL RESERVOIR)
44369
BRACKET, OIL RESERVOIR, NO.1
44442A
BRACKET, VANE PUMP, REAR
4503
переход к группе запчастей
9010508365
Крепеж
9011906088
Крепеж
9011908B61
Крепеж
9151261075
Крепеж

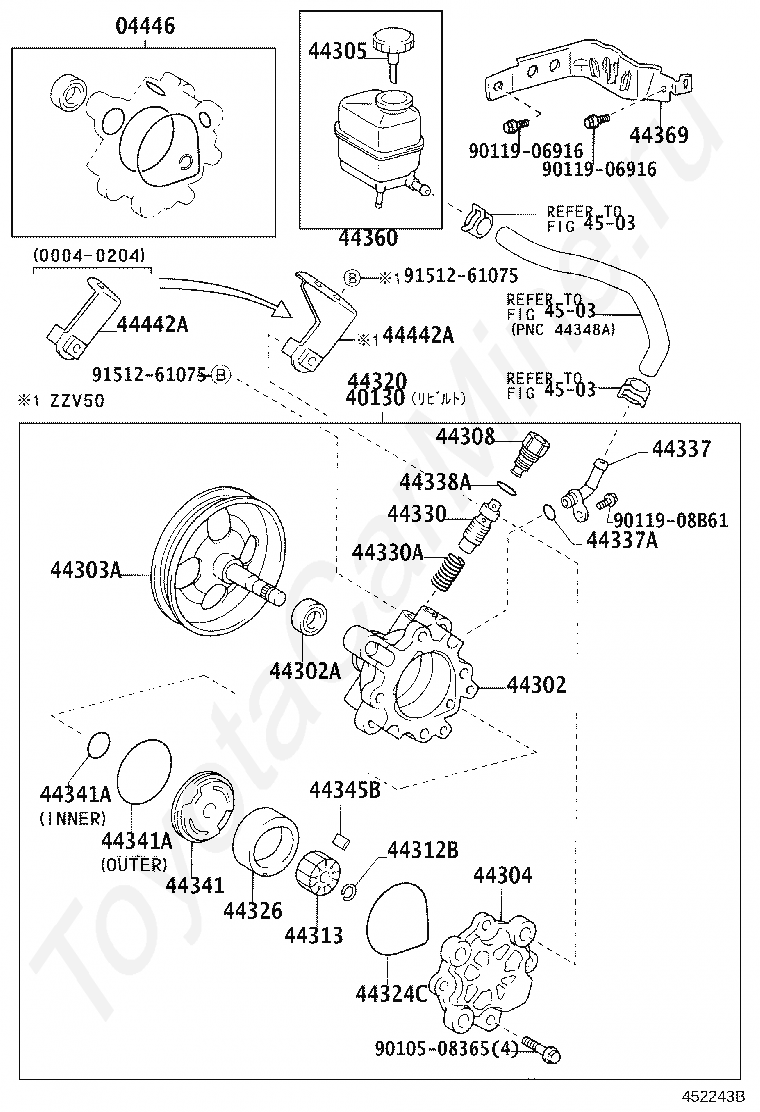

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
40130
PUMP ASSY,VANE REBUILT
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302A
SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44303A
SHAFT SUB-ASSY, W/PULLEY
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308
UNION SUB-ASSY, PRESSURE PORT
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44320
PUMP ASSY, VANE
44324C
RING, O(FOR PUMP HOUSING REAR)
44326
RING, CAM(FOR VANE PUMP)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338A
RING, O(FOR PRESSURE PORT UNION)
44341
PLATE, VANE PUMP SIDE, FRONT
44341A
RING, O(FOR VANE PUMP FRONT SIDE PLATE)
44345B
PLATE, VANE PUMP
44360
RESERVOIR ASSY, VANE PUMP OIL
44369
BRACKET, OIL RESERVOIR, NO.1
44442A
BRACKET, VANE PUMP, REAR
4503
переход к группе запчастей
9010508365
Крепеж
9011906916
Крепеж
9011908B61
Крепеж
9151261075
Крепеж
