Каталог
ЯпонияМодель
VISTA/VISTA ARDEOДвигатель
1,8 литра, 16 клапанов DOHC, EFIКузов
фургонКласс
ARDEO 180 TYPEФрейм
ZZV50Опции

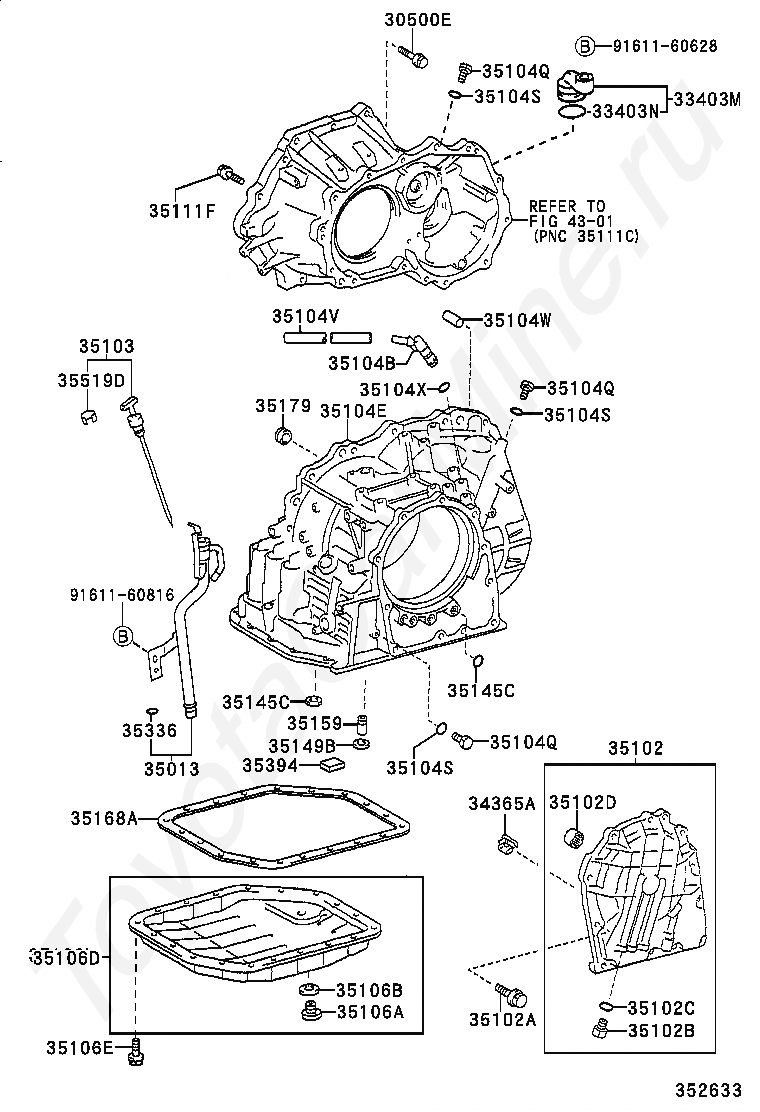

Код
Описание
30500E
BOLT(FOR TRANSAXLE & ENGINE SETTING)
33119A
PLATE, STIFFENER, LH(ATM)
33403M
COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403N
RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013
TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507
переход к группе запчастей
35102
COVER SUB-ASSY, TRANSAXLE REAR
35102A
BOLT (FOR TRANSAXLE REAR COVER SETTING)
35103
GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104C
PLUG, BREATHER, NO.2 (ATM)
35104E
CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104Q
PLUG, NO.1 (FOR TRANSAXLE CASE)
35104S
RING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104W
PIN, STRAIGHT (FOR TRANSAXLE CASE)
35106A
PLUG SUB-ASSY, DRAIN (ATM)
35106B
GASKET, DRAIN PLUG (ATM)
35106D
PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106E
BOLT (FOR TRANSAXLE OIL PAN)
35111F
BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
35148
GASKET, GOVERNOR APPLY, NO.1
35149B
GASKET, TRANSAXLE CASE 2ND BRAKE
35159
GASKET, BRAKE DRUM
35168A
GASKET, AUTOMATIC TRANSAXLE OIL PAN
35179
GASKET, OVERDRIVE BRAKE
35336
RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394
MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519D
LABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
переход к группе запчастей
9036425017
Крепеж
9151261035
Крепеж
9161160628
Крепеж
91611B0614
Крепеж
9161261028
Крепеж
Код
Описание
30500E
BOLT(FOR TRANSAXLE & ENGINE SETTING)
33403M
COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403N
RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
34365A
RETAINER, OUTER RACE
35013
TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35102
COVER SUB-ASSY, TRANSAXLE REAR
35102A
BOLT (FOR TRANSAXLE REAR COVER SETTING)
35102B
PLUG(FOR TRANSAXLE REAR COVER)
35102C
RING, O(FOR TRANSAXLE REAR COVER PULG)
35102D
BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35103
GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104B
PLUG, BREATHER, NO.1 (ATM)
35104E
CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104Q
PLUG, NO.1 (FOR TRANSAXLE CASE)
35104S
RING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V
HOSE (FOR BREATHER PLUG)
35104W
PIN, STRAIGHT (FOR TRANSAXLE CASE)
35104X
RING, O (FOR BREATHER PLUG)
35106A
PLUG SUB-ASSY, DRAIN (ATM)
35106B
GASKET, DRAIN PLUG (ATM)
35106D
PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106E
BOLT (FOR TRANSAXLE OIL PAN)
35111F
BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
35145C
GASKET, TRANSAXLE CASE
35149B
GASKET, TRANSAXLE CASE 2ND BRAKE
35159
GASKET, BRAKE DRUM
35168A
GASKET, AUTOMATIC TRANSAXLE OIL PAN
35179
GASKET, OVERDRIVE BRAKE
35336
RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394
MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519D
LABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
переход к группе запчастей
9161160628
Крепеж
9161160816
Крепеж
