Каталог
ЕвропаМодель
YARIS/ECHO VERSOДвигатель
1,3 литра, 16 клапанов, DOHC, EFIКласс
SOL TYPEФрейм
NCP20Трансмиссия
автомат АКПП, 4 ступениОпции
левый руль

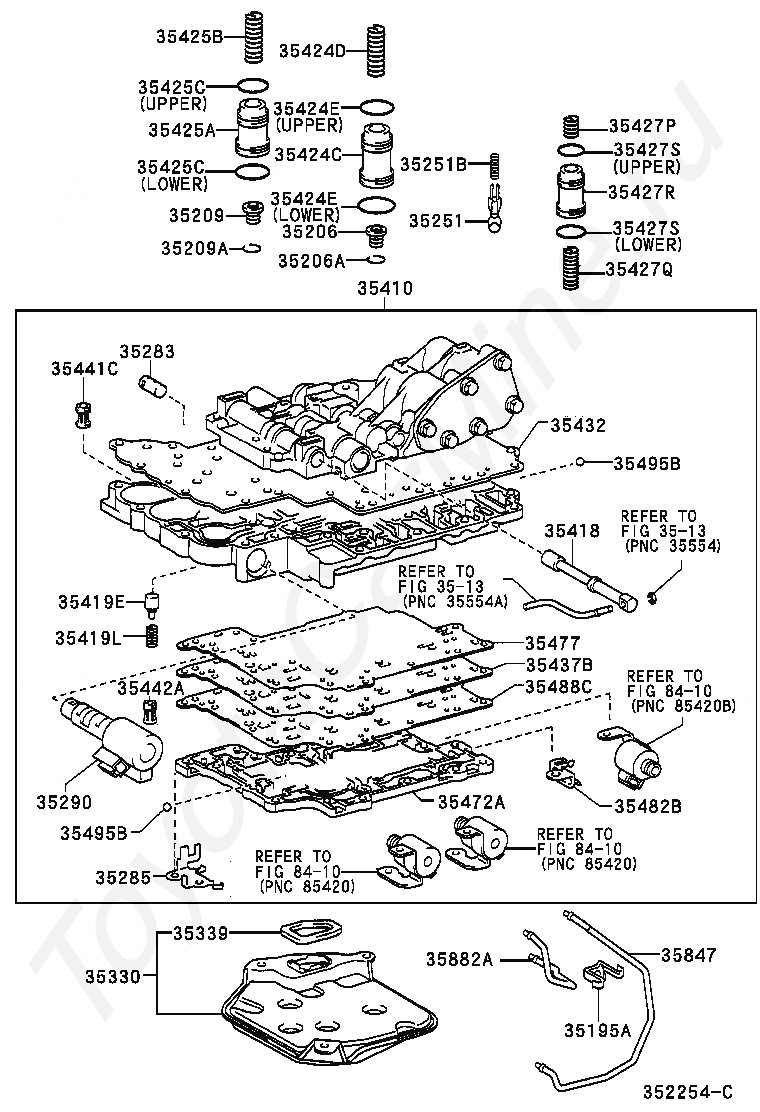

Код
Описание
3513
переход к группе запчастей
35195A
CLAMP, TRANSAXLE APPLY TUBE, NO.1
35206
SPRING SUB-ASSY, C-1 ACCUMULATOR
35206A
RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
35209
SPRING SUB-ASSY, C-2 ACCUMULATOR
35209A
RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251
BODY, CHECK BALL
35251B
SPRING, COMPRESSION(FOR CHECK BALL BODY)
35283
SLEEVE, LOCK UP CONTROL SOLENOID
35285
PLATE, SOLENOID LOCK
35290
SOLENOID ASSY, LINE PRESSURE CONTROL
35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35410
BODY ASSY, TRANSMISSION VALVE
35418
VALVE, MANUAL
35419E
VALVE, CHECK, NO.3
35419L
SPRING, COMPRESSION (FOR CHECK VALVE NO.3)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35427P
SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427Q
SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)
35427R
PISTON B-1 ACCUMULATOR
35427S
RING, O(FOR B-1 ACCUMULATOR PISTON)
35432
PLATE, VALVE BODY, NO.1
35437B
PLATE, VALVE BODY COVER
35441C
STRAINER, SOLENOID OIL
35442A
STRAINER, SOLENOID OIL, NO.2
35472A
COVER, LOWER VALVE BODY
35477
GASKET, VALVE BODY COVER
35482B
CLAMP, TEMPERATURE SENSOR
35488C
GASKET, VALVE BODY COVER, NO.2
35495B
BALL, CHECK, NO.1
35847
TUBE, TRANSMISSION LUBE APPLY
35882A
TUBE, DIFFERENTIAL GEAR LUBE APPLY
8410
переход к группе запчастей

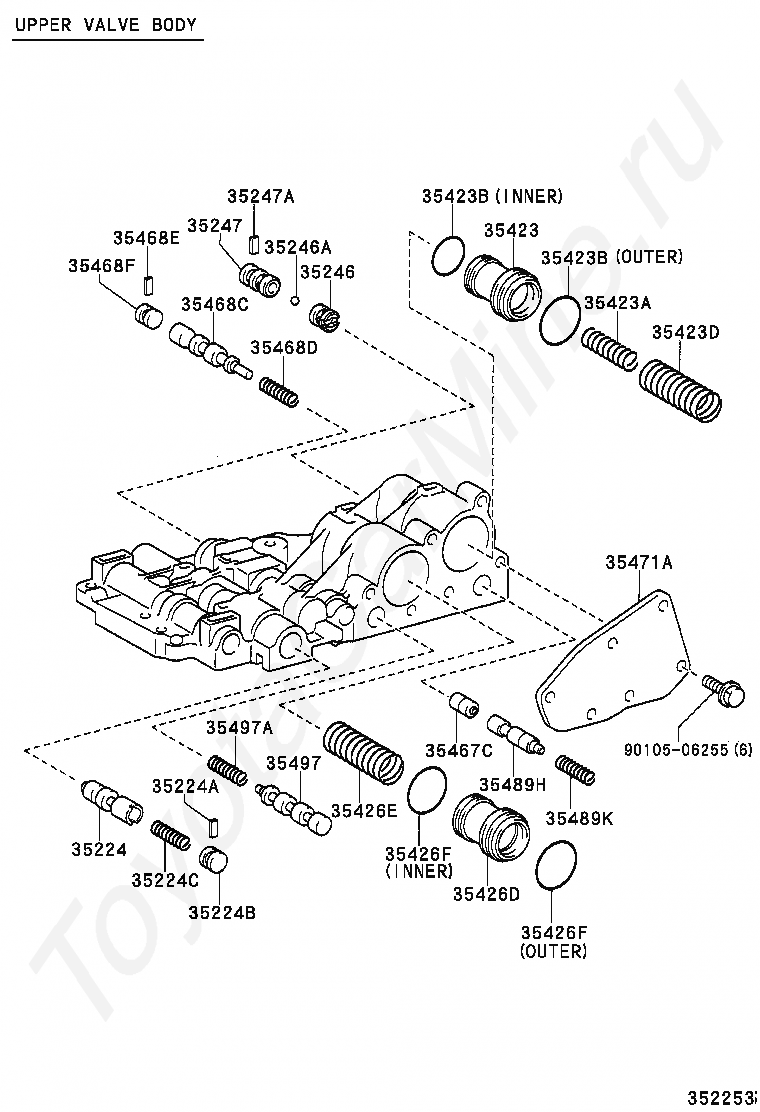

Код
Описание
35224
VALVE, REVERSE CONTROL
35224A
KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)
35224B
PLUG (FOR REVERSE CONTROL VALVE)
35224C
SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)
35246
VALVE, CHECK, NO.1
35246A
BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.1)
35247
VALVE, CHECK, NO.2
35247A
KEY, STRAIGHT(FOR CHECK VALVE NO.2)
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35423D
SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35426D
PISTON, C-3 ACCUMULATOR
35426E
SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426F
RING, O (FOR C-3 ACCUMULATOR PISTON)
35467C
PLUNGER, ORIFICE CONTROL VALVE
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468E
KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35471A
COVER, UPPER VALVE BODY
35489H
VALVE, C-1 ORIFICE CONTROL
35489K
SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
9010506255
Крепеж

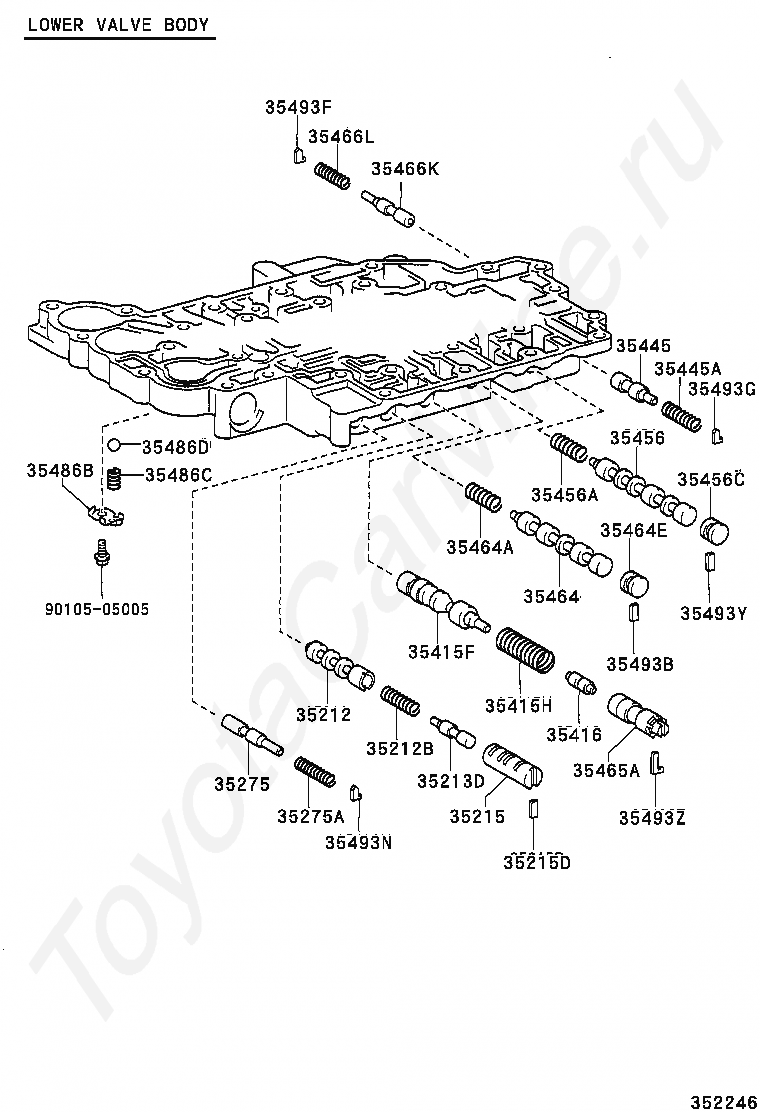

Код
Описание
35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213D
PLUNGER, LOCK UP RELAY VALVE
35215
SLEEVE, LOCK UP RELAY VALVE
35215D
KEY, STRAIGHT(FOR LOCK UP RELAY VALVE SLEEVE)
35275
VALVE, SOLENOID MODULATOR
35275A
SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)
35415F
VALVE, PRIMARY REGULATOR
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464E
PLUG (FOR 1-2 SHIFT VALVE)
35465A
SLEEVE, PRIMARY REGULATOR VALVE PLUNGER
35466K
VALVE, CLUTCH APPLY CONTROL
35466L
SPRING, COMPRESSION (FOR CLUTCH APPLY CONTROL VALVE)
35486B
SEAT, PRESSURE RELIEF VALVE SPRING
35486C
SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)
35486D
BALL (FOR PRESSURE RELIFE VALVE)
35493B
SEAT, 1-2 SHIFT VALVE PLUG
35493F
SEAT, SHIFT VALVE PLUG
35493G
SEAT, LOW COAST MODULATOR VALVE PLUG
35493N
SEAT, SOLENOID MODULATOR VALVE PLUG
35493Y
SEAT, 2-3 SHIFT VALVE PLUG
35493Z
SEAT, SHIFT VALVE PLUG, NO.1
9010505005
Крепеж

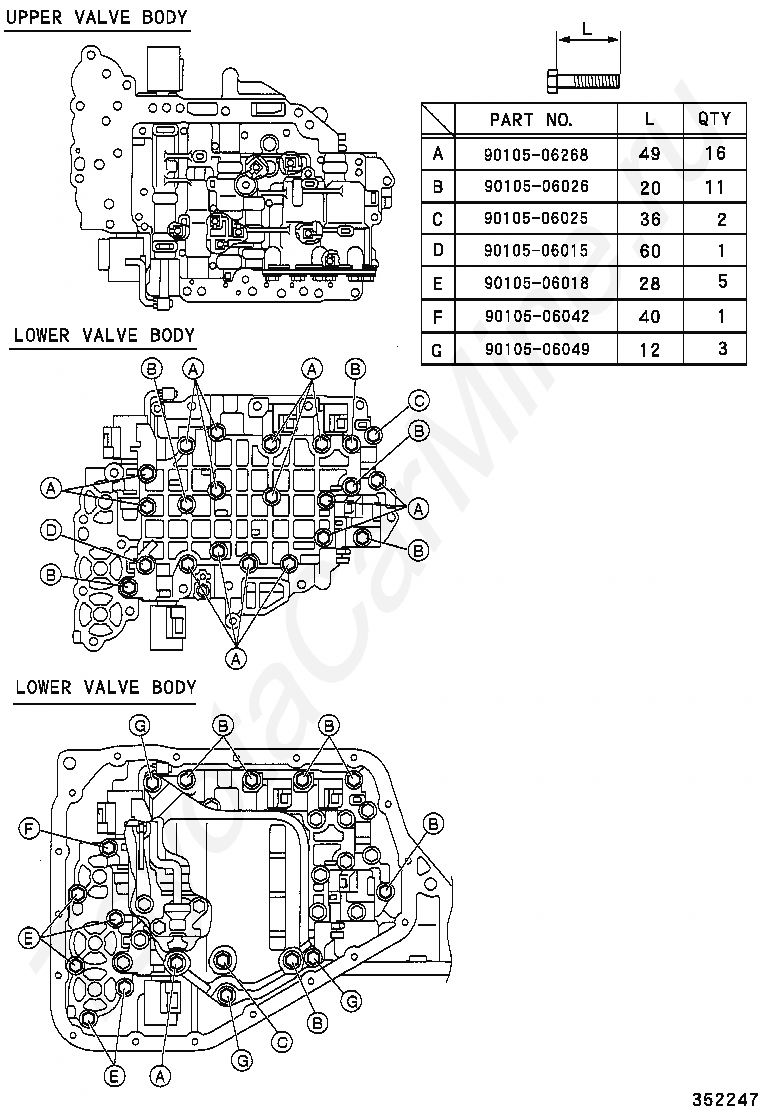

Код
Описание
9010506015
Крепеж
9010506018
Крепеж
9010506025
Крепеж
9010506026
Крепеж
9010506042
Крепеж
9010506049
Крепеж
9010506268
Крепеж

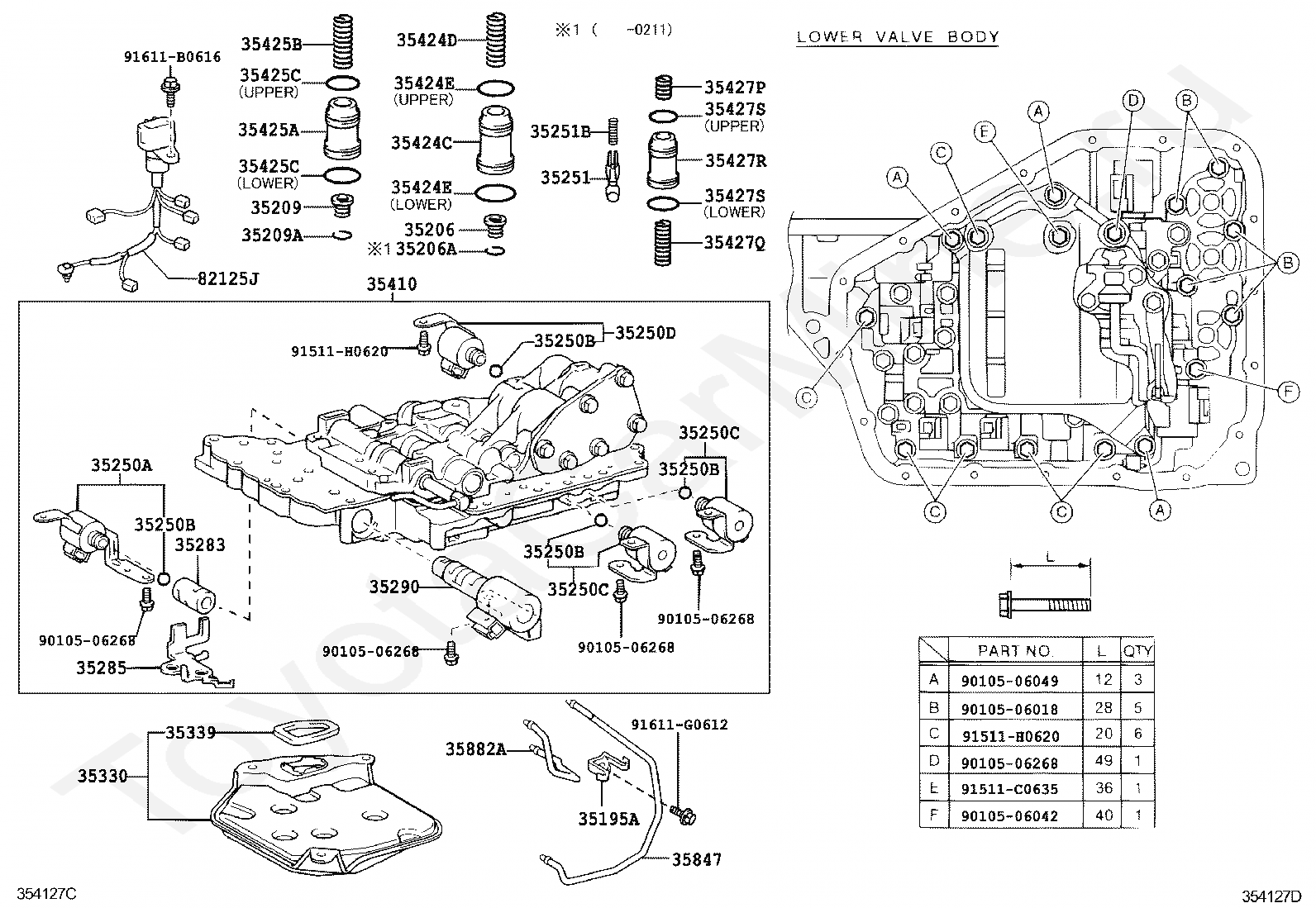

Код
Описание
35195A
CLAMP, TRANSAXLE APPLY TUBE, NO.1
35206
SPRING SUB-ASSY, C-1 ACCUMULATOR
35206A
RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
35209
SPRING SUB-ASSY, C-2 ACCUMULATOR
35209A
RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35250A
SOLENOID ASSY, TRANSMISSION, NO.3
35250B
RING, O NO.3(FOR TRANSMISSION SOLENOID)
35250C
SOLENOID ASSY, TRANSMISSION NO.1
35250D
SOLENOID ASSY, TRANSMISSION NO.2
35251
BODY, CHECK BALL
35251B
SPRING, COMPRESSION(FOR CHECK BALL BODY)
35283
SLEEVE, LOCK UP CONTROL SOLENOID
35285
PLATE, SOLENOID LOCK
35290
SOLENOID ASSY, LINE PRESSURE CONTROL
35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35410
BODY ASSY, TRANSMISSION VALVE
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35427P
SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427Q
SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)
35427R
PISTON B-1 ACCUMULATOR
35427S
RING, O(FOR B-1 ACCUMULATOR PISTON)
35847
TUBE, TRANSMISSION LUBE APPLY
35882A
TUBE, DIFFERENTIAL GEAR LUBE APPLY
82125J
WIRE, TRANSMISSION
9010506018
Крепеж
9010506042
Крепеж
9010506049
Крепеж
9010506268
Крепеж
91511C0635
Крепеж
91511H0620
Крепеж
91611B0616
Крепеж
91611G0612
Крепеж
