Задний мост TOYOTA VENZA, 2013/03 - 2025, 2,7 литра, 16 клапанов DOHC, EFI, N(MODEL MARK), AGV15, автомат, АКПП, 6 скоростей

Каталог

Ближний Восток

Модель

VENZA

Двигатель

2,7 литра, 16 клапанов DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

AGV15

Трансмиссия

автомат АКПП, 6 скоростей

Опции

537W

Код

Описание

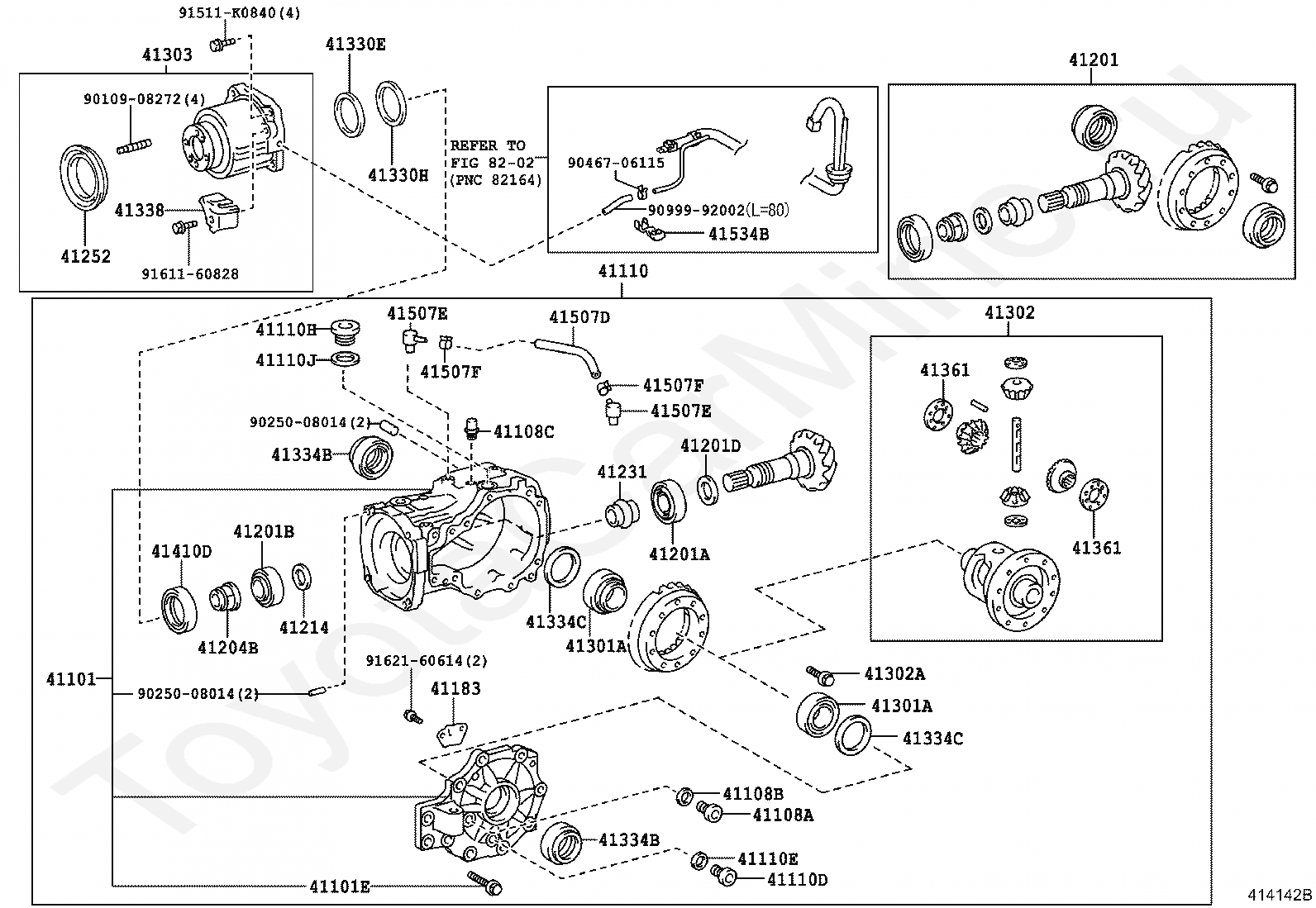

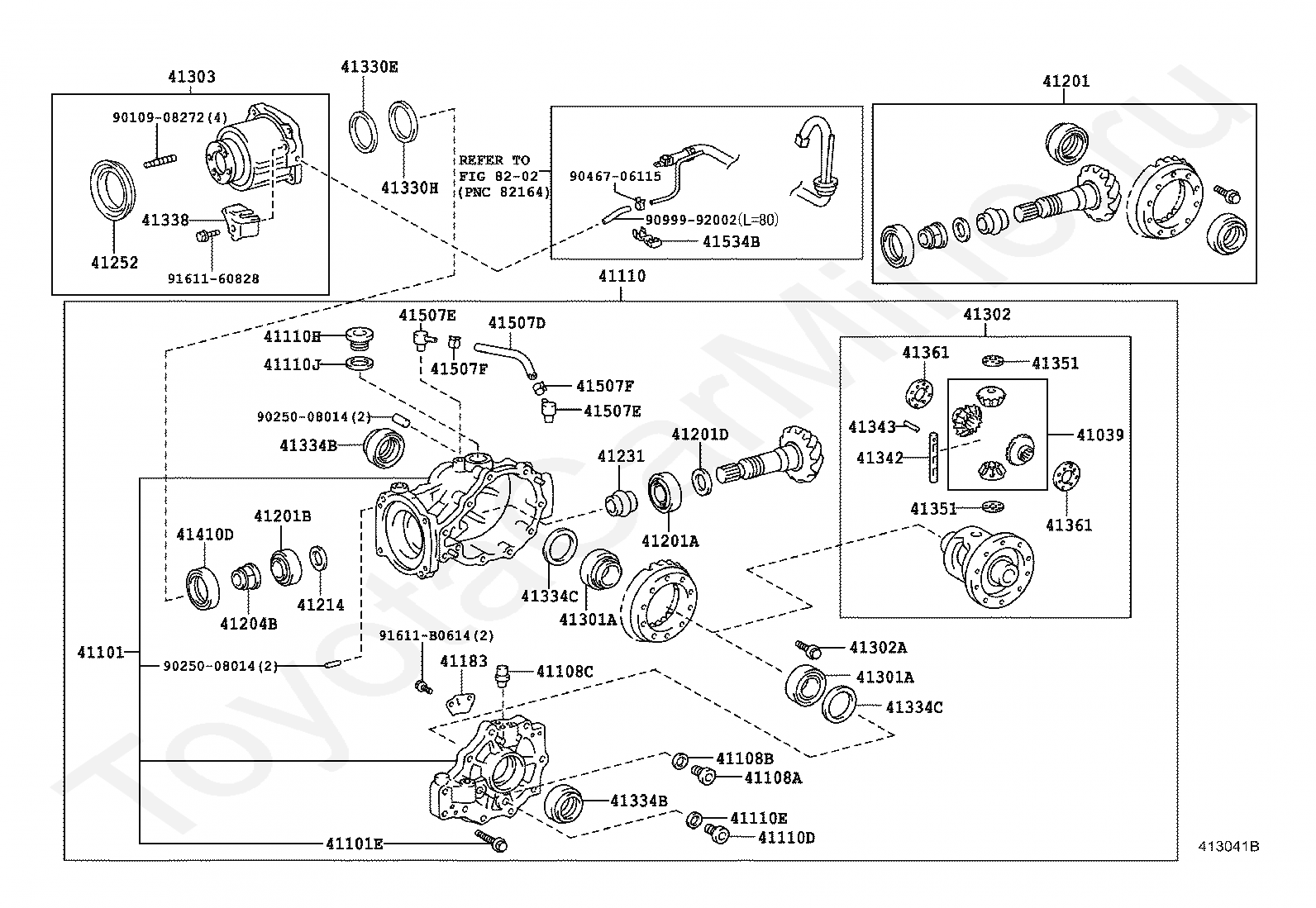

41039

GEAR KIT, DIFFERENTIAL, REAR

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41101E

BOLT (FOR REAR DIFFERENTIAL CARRIER)

41108A

PLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

41108B

GASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

41108C

PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41110D

PLUG (FOR REAR DIFFERENTIAL DRAIN)

41110E

GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

41110H

PLUG (FOR REAR DIFFERENTIAL FILLER)

41110J

GASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

41183

DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41303

COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL

41330E

WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)

41330H

SPACER (FOR TRANSMISSION COUPLING)

41334B

SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41334C

WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41338

BRACKET, CONNECTOR CLAMP

41342

SHAFT, REAR DIFFERENTIAL PINION

41343

PIN, REAR DIFFERENTIAL PINION SHAFT

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41410D

SEAL, OIL DIAPHRAGM

41507D

HOSE, DIFFERENTIAL PRESSURE CONTROL

41507E

ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE

41507F

CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE

41534B

BRACKET, DIFFERENTIAL BREATHER

8202

переход к группе запчастей

9010908272

Крепеж

9025008014

Крепеж

9046706115

Крепеж

9099992002

Крепеж

9161160828

Крепеж

91611B0614

Крепеж

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41101E

BOLT (FOR REAR DIFFERENTIAL CARRIER)

41108A

PLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

41108B

GASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

41108C

PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41110D

PLUG (FOR REAR DIFFERENTIAL DRAIN)

41110E

GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

41110H

PLUG (FOR REAR DIFFERENTIAL FILLER)

41110J

GASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

41183

DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41303

COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL

41330E

WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)

41330H

SPACER (FOR TRANSMISSION COUPLING)

41334B

SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41334C

WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

41338

BRACKET, CONNECTOR CLAMP

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41410D

SEAL, OIL DIAPHRAGM

41507D

HOSE, DIFFERENTIAL PRESSURE CONTROL

41507E

ELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE

41507F

CLIP, DIFFERENTIAL PRESSURE CONTROL HOSE

41534B

BRACKET, DIFFERENTIAL BREATHER

8202

переход к группе запчастей

9010908272

Крепеж

9025008014

Крепеж

9046706115

Крепеж

9099992002

Крепеж

91511K0840

Крепеж

9161160828

Крепеж

9162160614

Крепеж

Код

Описание

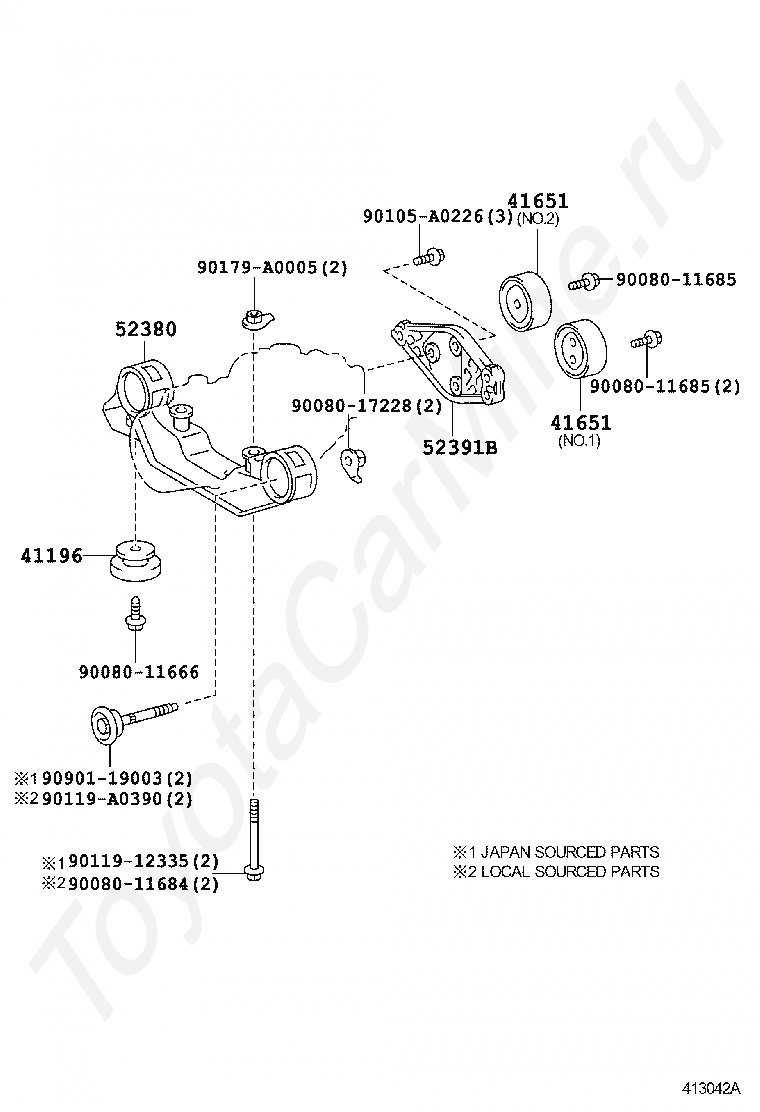

41196

DAMPER, REAR DIFFERENTIAL DYNAMIC

41651

CUSHION, REAR DIFFERENTIAL MOUNT, NO.1

52380

SUPPORT, REAR DIFFERENTIAL, NO.1

52391B

SUPPORT, DIFFERENTIAL

9008011666

Крепеж

9008011684

Крепеж

9008011685

Крепеж

9008017228

Крепеж

90105A0226

Крепеж

9011912335

Крепеж

90119A0390

Крепеж

90179A0005

Крепеж

9090119003

Крепеж
