Кресла TOYOTA VAN, 1988/08 - 1990/01, 2,2 литра, EFI, фургон, DELUX SPECIFICATION, YR31, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

VAN

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR31

Трансмиссия

автомат АКПП, 4 ступени

Опции

США

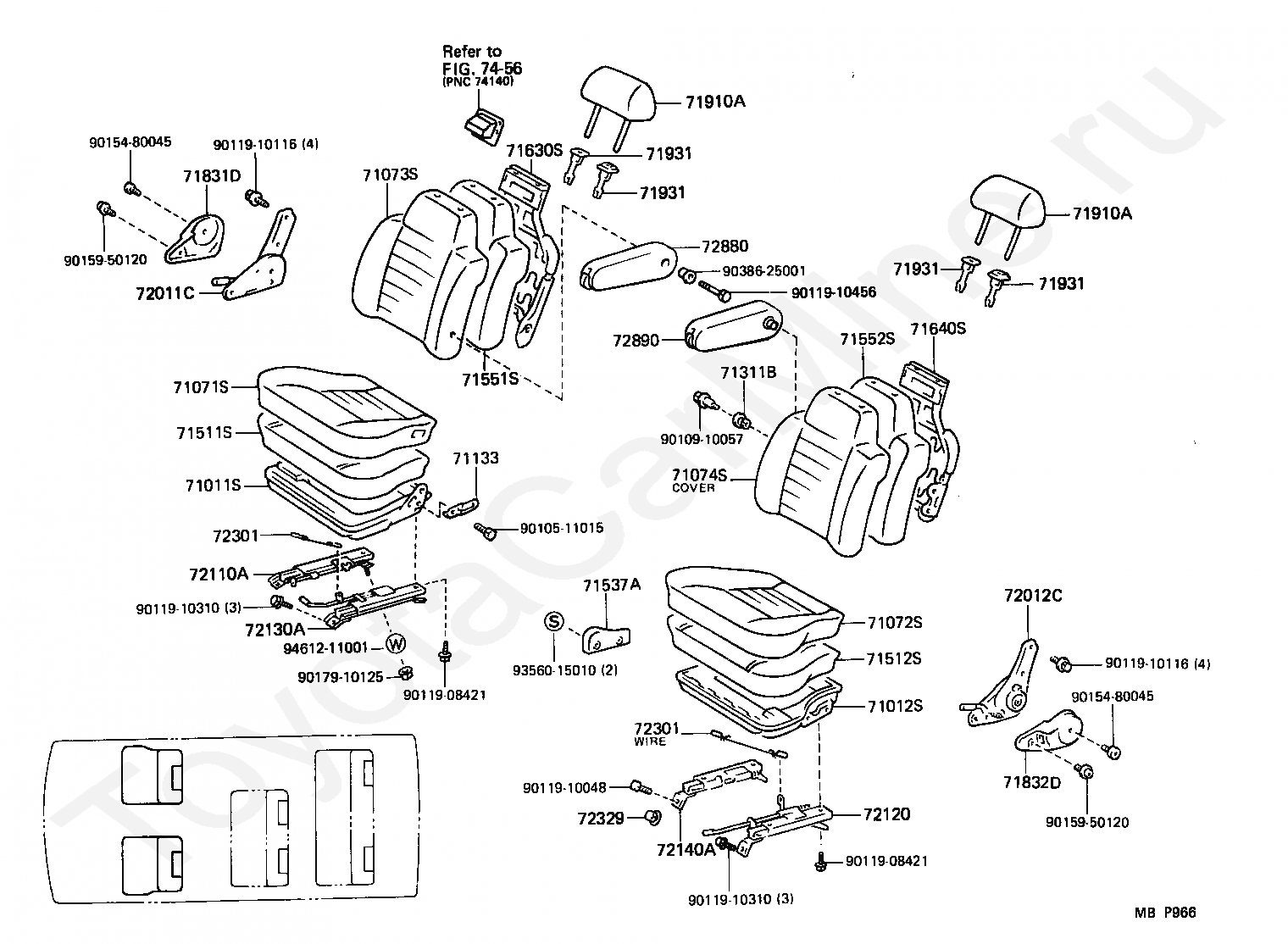

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71133

PLATE, FRONT SEAT CUSHION, NO.3

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72329

COVER, SEAT ADJUSTER BOLT

72880

ARMREST ASSY, SEAT, C RH

72890

ARMREST ASSY, SEAT, C LH

7456

переход к группе запчастей

9010511015

Крепеж

9010910057

Крепеж

9011908421

Крепеж

9011910048

Крепеж

9011910116

Крепеж

9011910310

Крепеж

9011910456

Крепеж

9015480045

Крепеж

9015950120

Крепеж

9017910125

Крепеж

9038625001

Крепеж

9356015010

Крепеж

9461211001

Крепеж

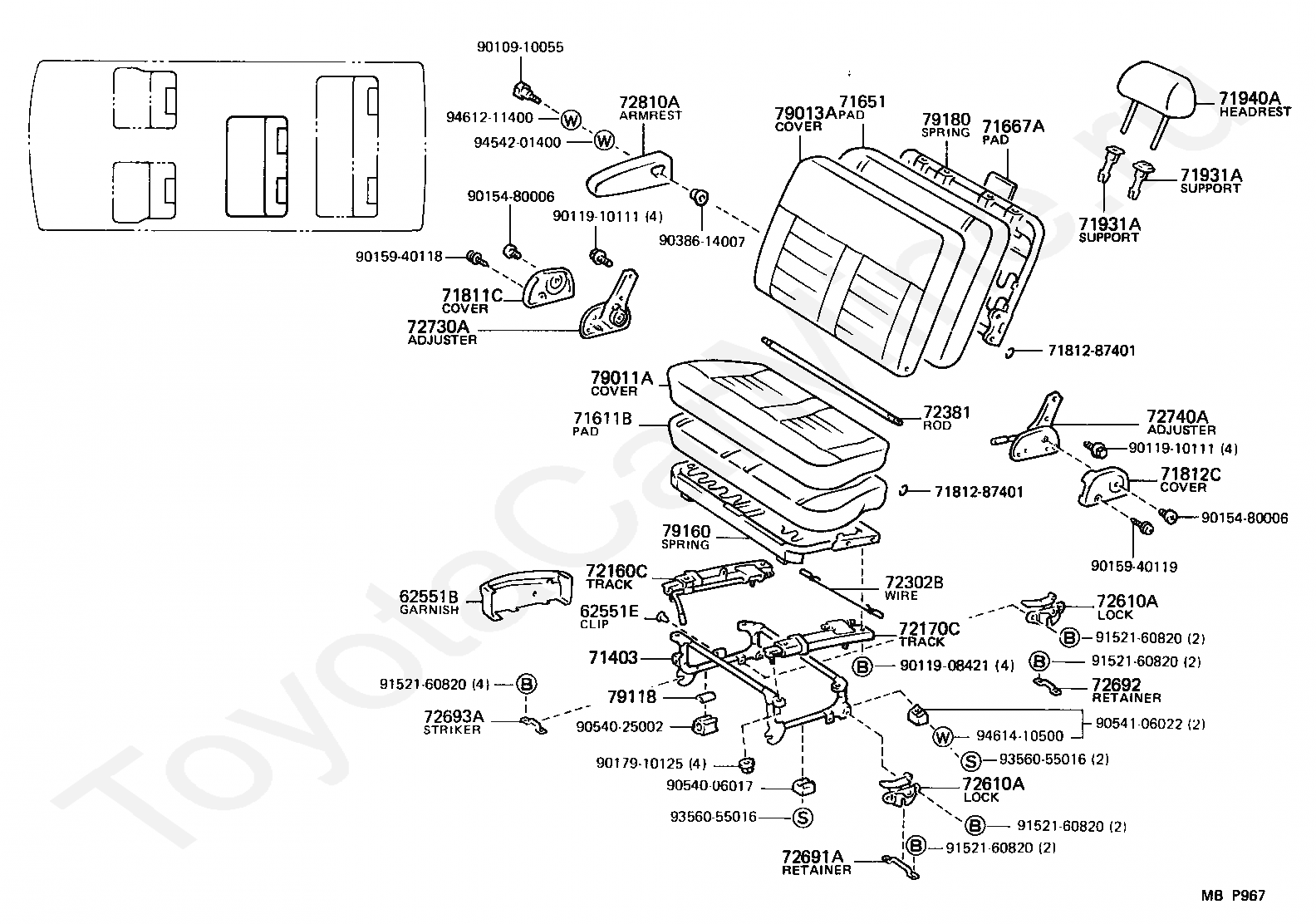

Код

Описание

62551B

GARNISH, REAR SEAT SIDE

62551E

CLIP(FOR REAR SEAT SIDE GARNISH)

71403

LEG SUB-ASSY, REAR NO.1 SEAT

71611B

PAD, REAR NO.1 SEAT CUSHION

71651

PAD, REAR NO.1 SEAT BACK

71667A

PAD, REAR SEAT BACK, CENTER A

71811C

COVER, RECLINING ADJUSTER, RH

7181287401

Крепеж

71812C

COVER, RECLINING ADJUSTER, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160C

TRACK ASSY, REAR NO.1 SEAT, OUTER RH

72170C

TRACK ASSY, REAR NO.1 SEAT, INNER RH

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72381

ROD, RECLINING ADJUSTER EQUALIZING, NO.1

72610A

STRIKER ASSY, REAR SEAT BACK LOCK

72691A

STRIKER, REAR SEAT CUSHION LOCK, NO.1

72692

STRIKER, REAR SEAT CUSHION LOCK, NO.2

72693A

STRIKER, REAR SEAT CUSHION LOCK, NO.3

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72810A

ARMREST ASSY, SEAT, RH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79118

BRACKET, NO.1 SEAT LEG

79160

SPRING ASSY, NO.1 SEAT CUSHION

79180

SPRING ASSY, NO.1 SEAT BACK

9010910055

Крепеж

9011908421

Крепеж

9011910111

Крепеж

9015480006

Крепеж

9015940118

Крепеж

9015940119

Крепеж

9017910125

Крепеж

9038614007

Крепеж

9054006017

Крепеж

9054025002

Крепеж

9054106022

Крепеж

9152160820

Крепеж

9356055016

Крепеж

9454201400

Крепеж

9461211400

Крепеж

9461410500

Крепеж

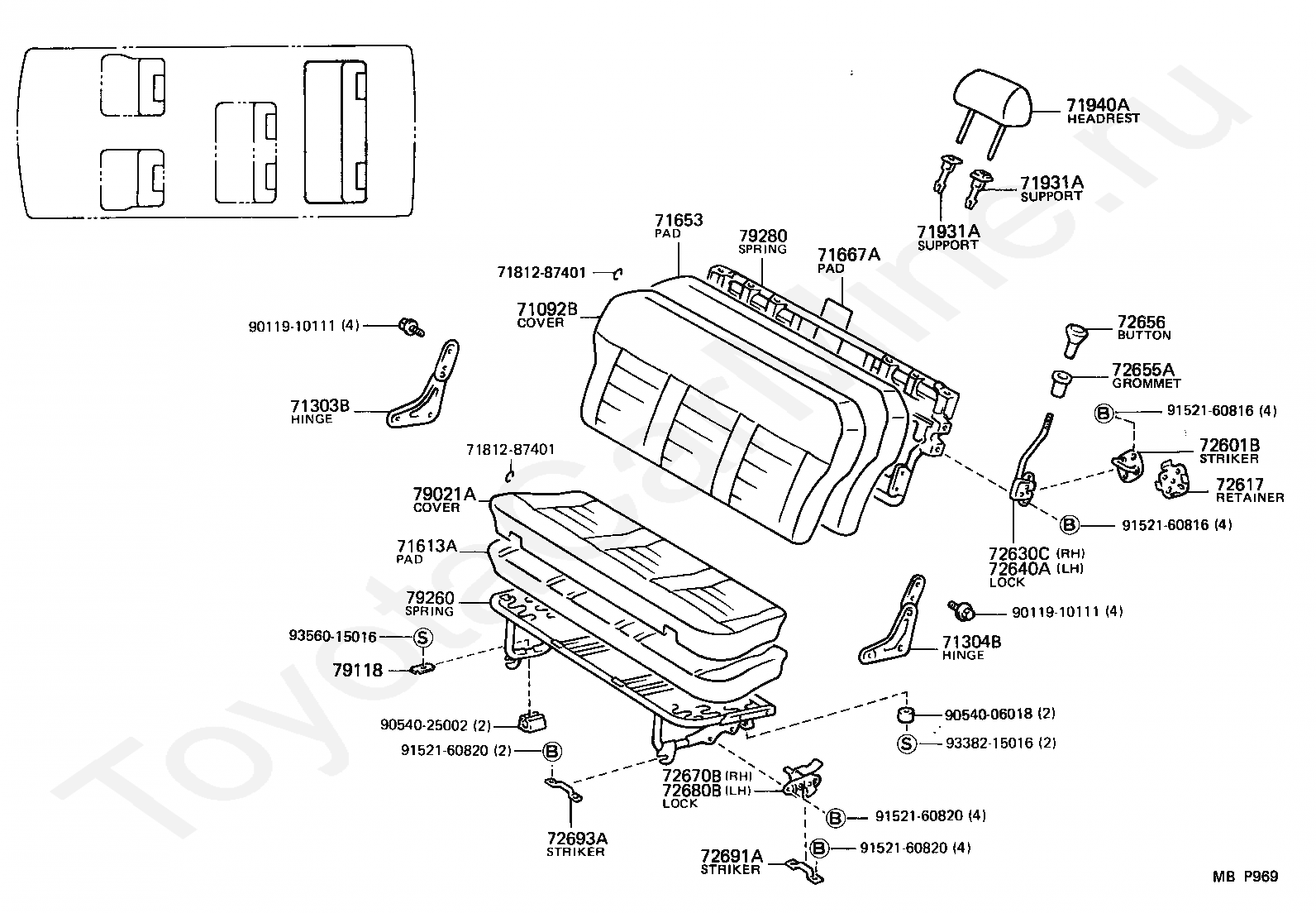

Код

Описание

71092B

COVER SUB-ASSY, NO.2 SEAT BACK

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71613A

PAD, REAR NO.2 SEAT CUSHION

71653

PAD, REAR NO.2 SEAT BACK

71667A

PAD, REAR SEAT BACK, CENTER A

7181287401

Крепеж

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72617

RETAINER, SEAT BACK LOCK STRIKER COVER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72655A

GROMMET, REAR SEAT BACK STOP BUTTON

72656

BUTTON, REAR SEAT BACK STOP RELEASE

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72691A

STRIKER, REAR SEAT CUSHION LOCK, NO.1

72693A

STRIKER, REAR SEAT CUSHION LOCK, NO.3

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79118

BRACKET, NO.1 SEAT LEG

79260

SPRING ASSY, NO.2 SEAT CUSHION

79280

SPRING ASSY, NO.2 SEAT BACK

9011910111

Крепеж

9054006018

Крепеж

9054025002

Крепеж

9152160816

Крепеж

9152160820

Крепеж

9338215016

Крепеж

9356015016

Крепеж

Кресла TOYOTA VAN, 1988/08 - 1990/01, 2,2 литра, EFI, фургон, DELUX SPECIFICATION, YR31, автомат, АКПП, 4 ступени
