Каталог
ЕвропаМодель
VANДвигатель
2,2 литра, EFIКузов
фургонКласс
DELUX SPECIFICATIONФрейм
YR31Трансмиссия
автомат АКПП, 4 ступениОпции
США

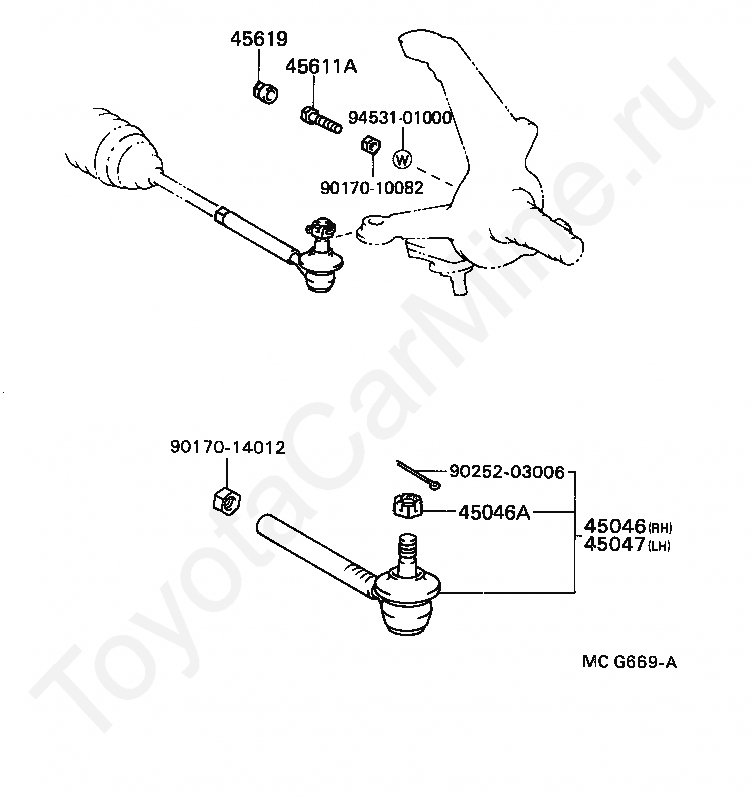

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45611A
BOLT, KNUCKLE STOPPER
45619
COVER, KNUCKLE STOPPER
9017010082
Крепеж
9017014012
Крепеж
9025203006
Крепеж
9453101000
Крепеж

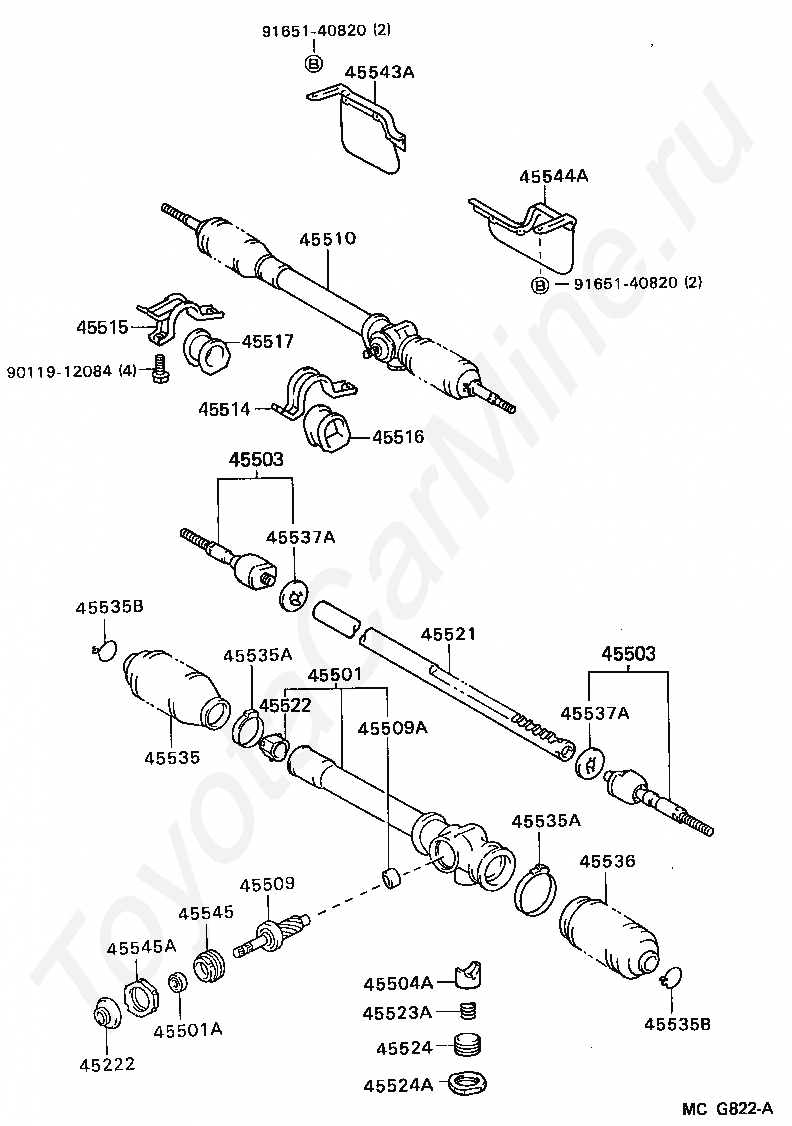

Код
Описание
45222
COVER, STEERING GEAR DUST
45501
HOUSING SUB-ASSY, STEERING RACK
45501A
SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503
END SUB-ASSY, STEERING RACK
45504A
GUIDE SUB-ASSY, RACK
45509
PINION SUB-ASSY, STEERING
45509A
BEARING(FOR STEERING PINION)
45510
GEAR ASSY, STEERING
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45521
RACK, STEERING
45522
BUSH, STEERING RACK
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535A
CLAMP(FOR STEERING RACK BOOT)
45535B
CLIP(FOR STEERING RACK BOOT)
45536
BOOT, STEERING RACK, NO.2
45537A
WASHER, CLAW(FOR STEERING RACK END LOCK)
45543A
PROTECTOR, STEERING RACK BOOT, RH
45544A
PROTECTOR, STEERING RACK BOOT, LH
45545
SCREW, PINION BEARING ADJUSTING
45545A
NUT(FOR PINION BEARING ADJUSTING SCREW)
9011912084
Крепеж
9165140820
Крепеж

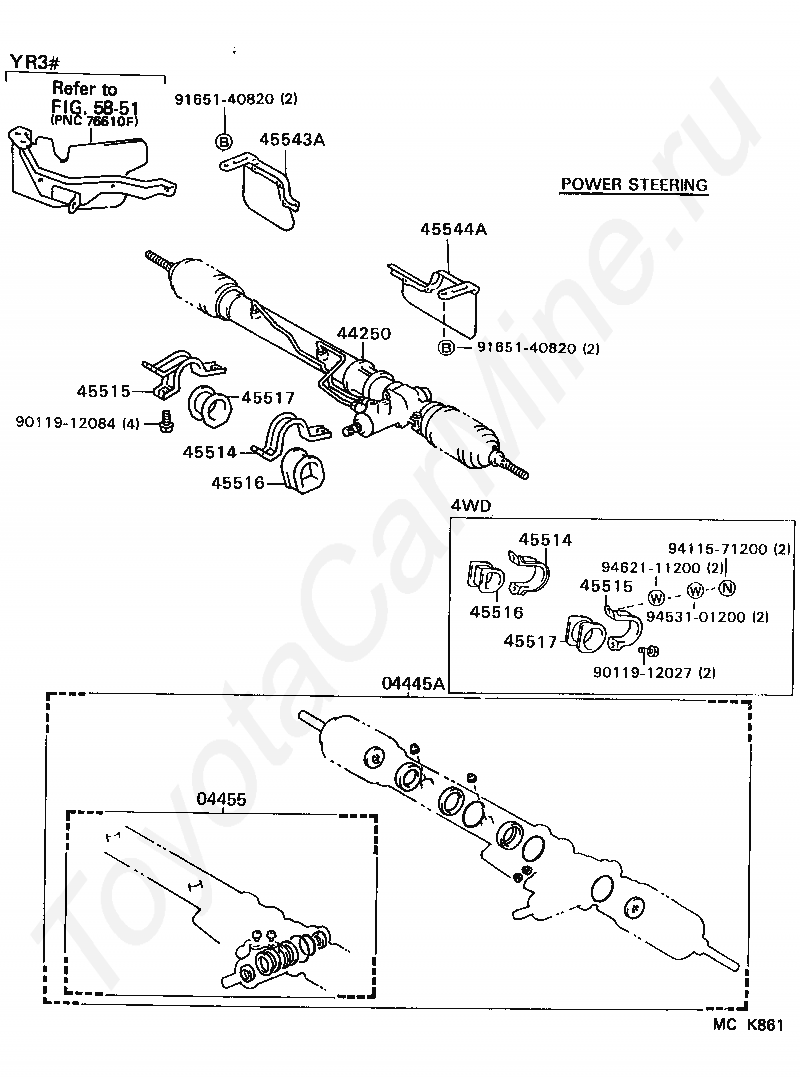

Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
45543A
PROTECTOR, STEERING RACK BOOT, RH
45544A
PROTECTOR, STEERING RACK BOOT, LH
5851
переход к группе запчастей
9011912027
Крепеж
9011912084
Крепеж
9165140820
Крепеж
9411571200
Крепеж
9453101200
Крепеж
9462111200
Крепеж

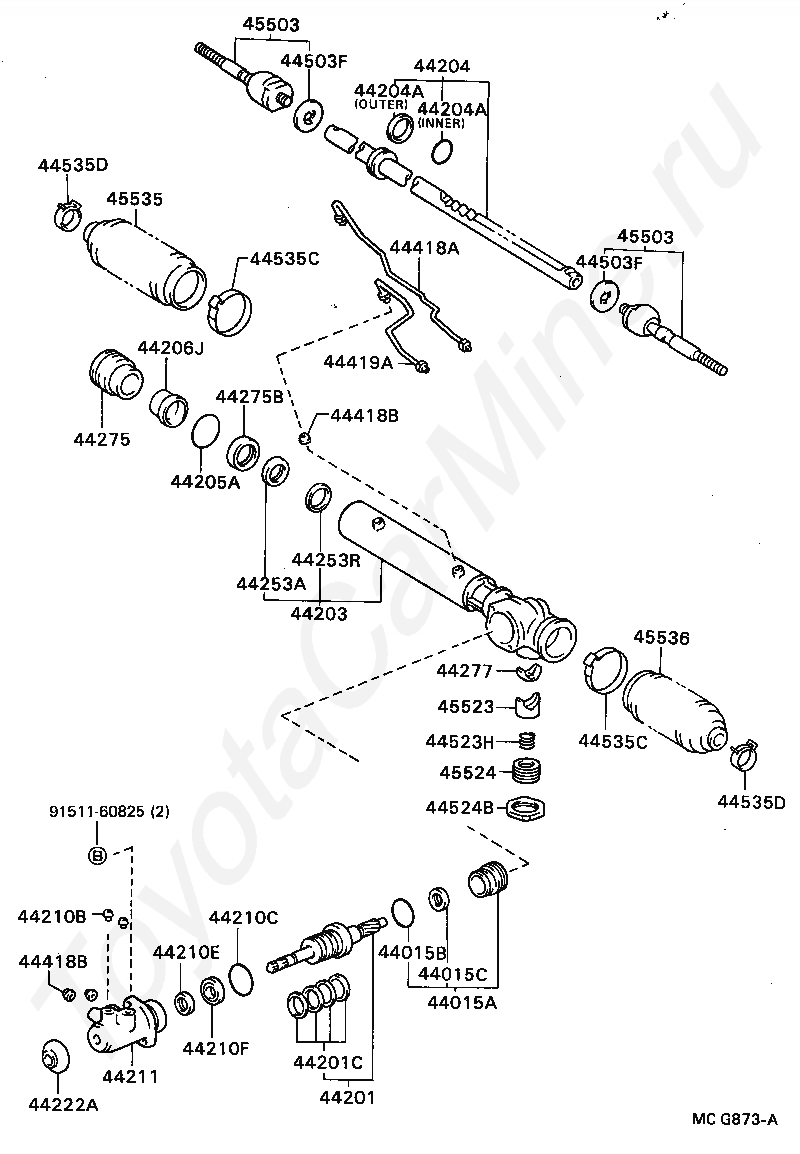

Код
Описание
44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44205A
RING, O(FOR CYLINDER END STOPPER)
44206J
BUSH(FOR POWER STEERING CYLINDER TUBE)
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44222A
COVER, DUST(FOR POWER STEERING GEAR)
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253R
SPACER(FOR POWER STEERING RACK HOUSING)
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
44503F
WASHER, CLAW(FOR POWER STEERING RACK END)
44523H
SPRING(FOR POWER STEERING RACK GUIDE)
44524B
NUT(FOR POWER STEERING RACK GUIDE CAP)
44535C
CLAMP(FOR POWER STEERING RACK BOOT)
44535D
CLIP(FOR POWER STEERING RACK BOOT)
45503
END SUB-ASSY, STEERING RACK
45523
GUIDE, RACK(FOR STEERING GEAR)
45524
CAP, STEERING RACK GUIDE SPRING
45535
BOOT, STEERING RACK, NO.1
45536
BOOT, STEERING RACK, NO.2
9151160825
Крепеж
