Каталог
АмерикаМодель
TUNDRAДвигатель
5,7 литра, 32 клапана, DOHC, EFIКласс
SR-5 TYPE,GLX TYPEФрейм
USK56Трансмиссия
АКПП, 6 скоростейОпции
DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

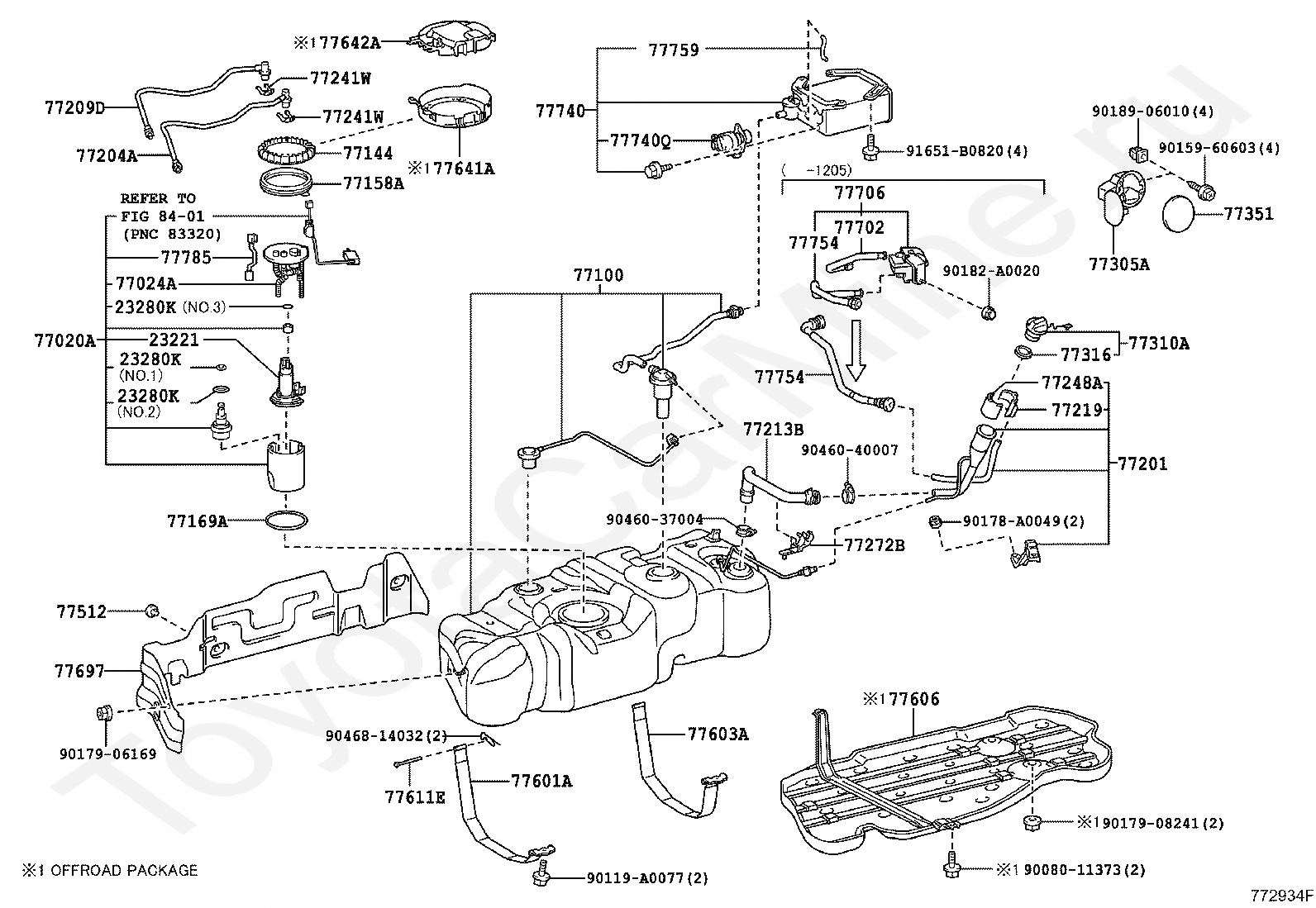

Код
Описание
23221
PUMP, FUEL
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77158A
SUPPORT, TANK SUCTION TUBE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77272B
SUPPORT, BREATHER TUBE, NO.1
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77351
LID, FUEL FILLER OPENING, OUTER
77512
BRACKET, FUEL TANK, REAR
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611E
PIN, FUEL TANK BAND
77697
INSULATOR, FUEL TANK HEAT, NO.1
77702
HOSE SUB-ASSY, CANISTER OUTLET, NO.2
77706
FILTER SUB-ASSY, CHARCOAL CANISTER
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759
HOSE, CHARCOAL CANISTER
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9008011373
Крепеж
90119A0077
Крепеж
9015960603
Крепеж
90178A0049
Крепеж
9017906169
Крепеж
9017908241
Крепеж
90182A0020
Крепеж
9018906010
Крепеж
9046037004
Крепеж
9046040007
Крепеж
9046814032
Крепеж
91651B0820
Крепеж

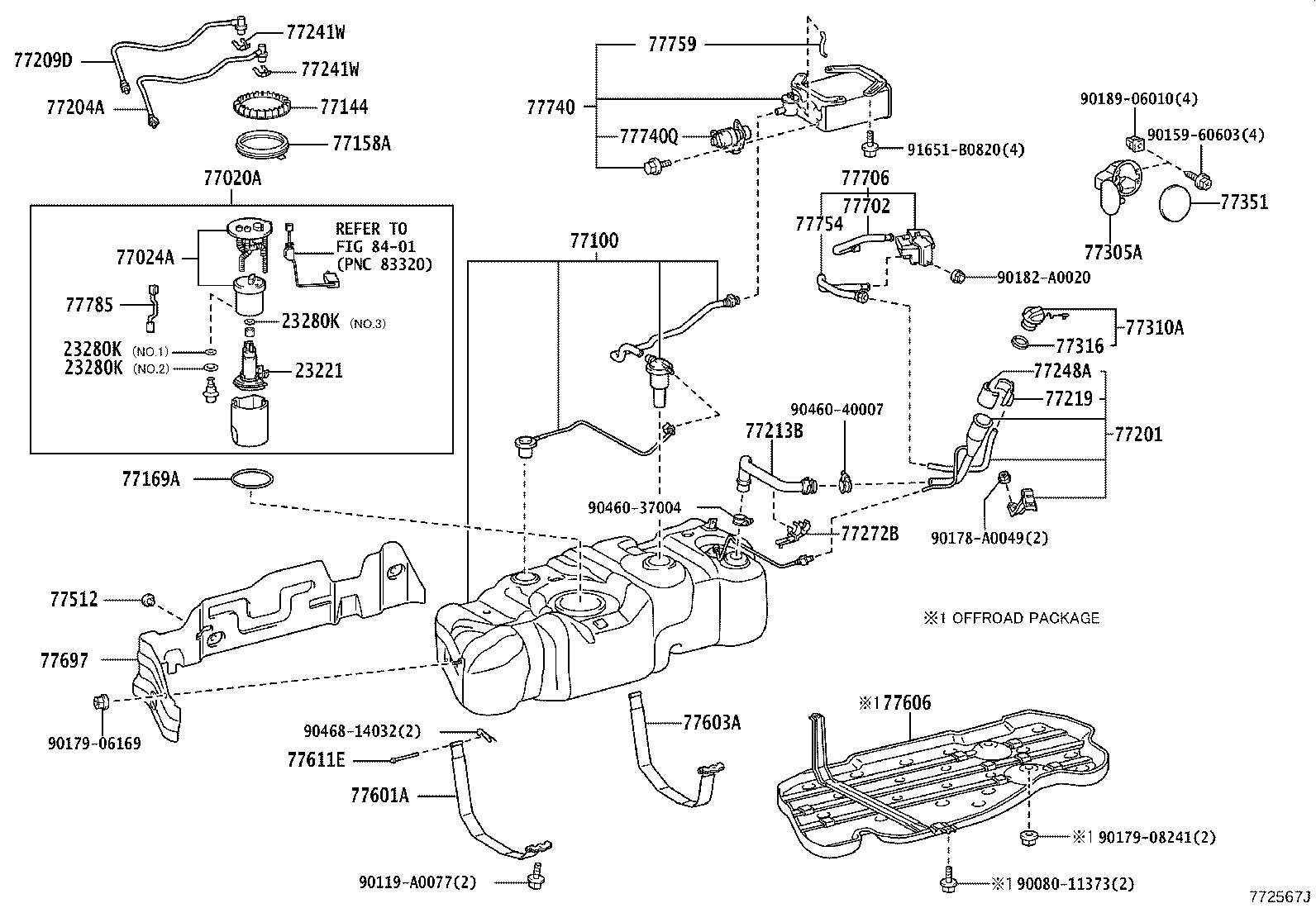

Код
Описание
23221
PUMP, FUEL
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77158A
SUPPORT, TANK SUCTION TUBE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77272B
SUPPORT, BREATHER TUBE, NO.1
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77351
LID, FUEL FILLER OPENING, OUTER
77512
BRACKET, FUEL TANK, REAR
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611E
PIN, FUEL TANK BAND
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77697
INSULATOR, FUEL TANK HEAT, NO.1
77702
HOSE SUB-ASSY, CANISTER OUTLET, NO.2
77706
FILTER SUB-ASSY, CHARCOAL CANISTER
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759
HOSE, CHARCOAL CANISTER
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9008011373
Крепеж
90119A0077
Крепеж
9015960603
Крепеж
90178A0049
Крепеж
9017906169
Крепеж
9017908241
Крепеж
90182A0020
Крепеж
9018906010
Крепеж
9046037004
Крепеж
9046040007
Крепеж
9046814032
Крепеж
91651B0820
Крепеж

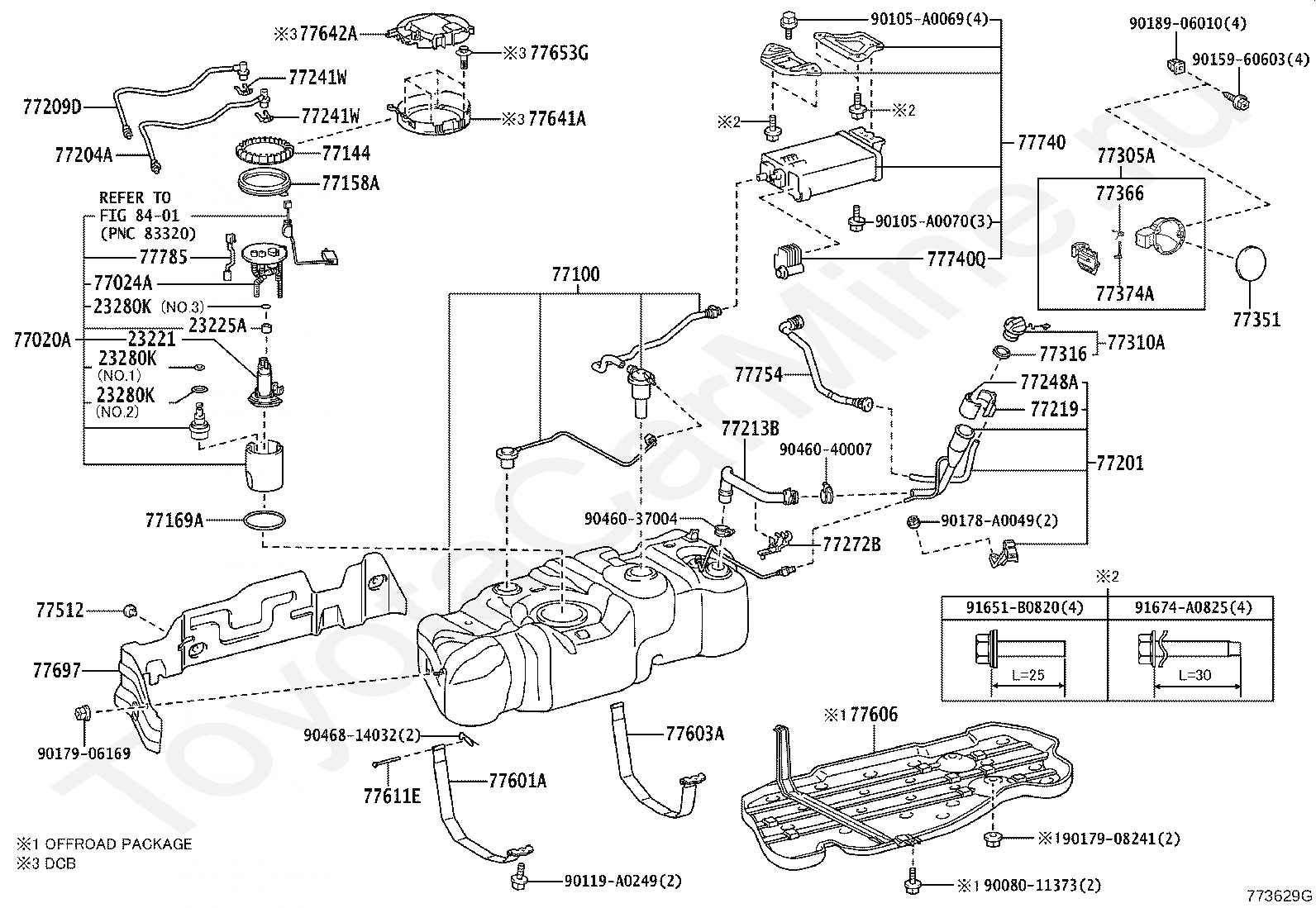

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77158A
SUPPORT, TANK SUCTION TUBE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77272B
SUPPORT, BREATHER TUBE, NO.1
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77351
LID, FUEL FILLER OPENING, OUTER
77366
SPRING, FUEL FILLER OPENING LID HINGE
77374A
PIN, FUEL FILLER OPENING LID LOCK
77512
BRACKET, FUEL TANK, REAR
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611E
PIN, FUEL TANK BAND
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77653G
PIN, FUEL TANK PACKING
77697
INSULATOR, FUEL TANK HEAT, NO.1
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9008011373
Крепеж
90105A0069
Крепеж
90105A0070
Крепеж
90119A0249
Крепеж
9015960603
Крепеж
90178A0049
Крепеж
9017906169
Крепеж
9017908241
Крепеж
9018906010
Крепеж
9046037004
Крепеж
9046040007
Крепеж
9046814032
Крепеж
91651B0820
Крепеж
91674A0825
Крепеж

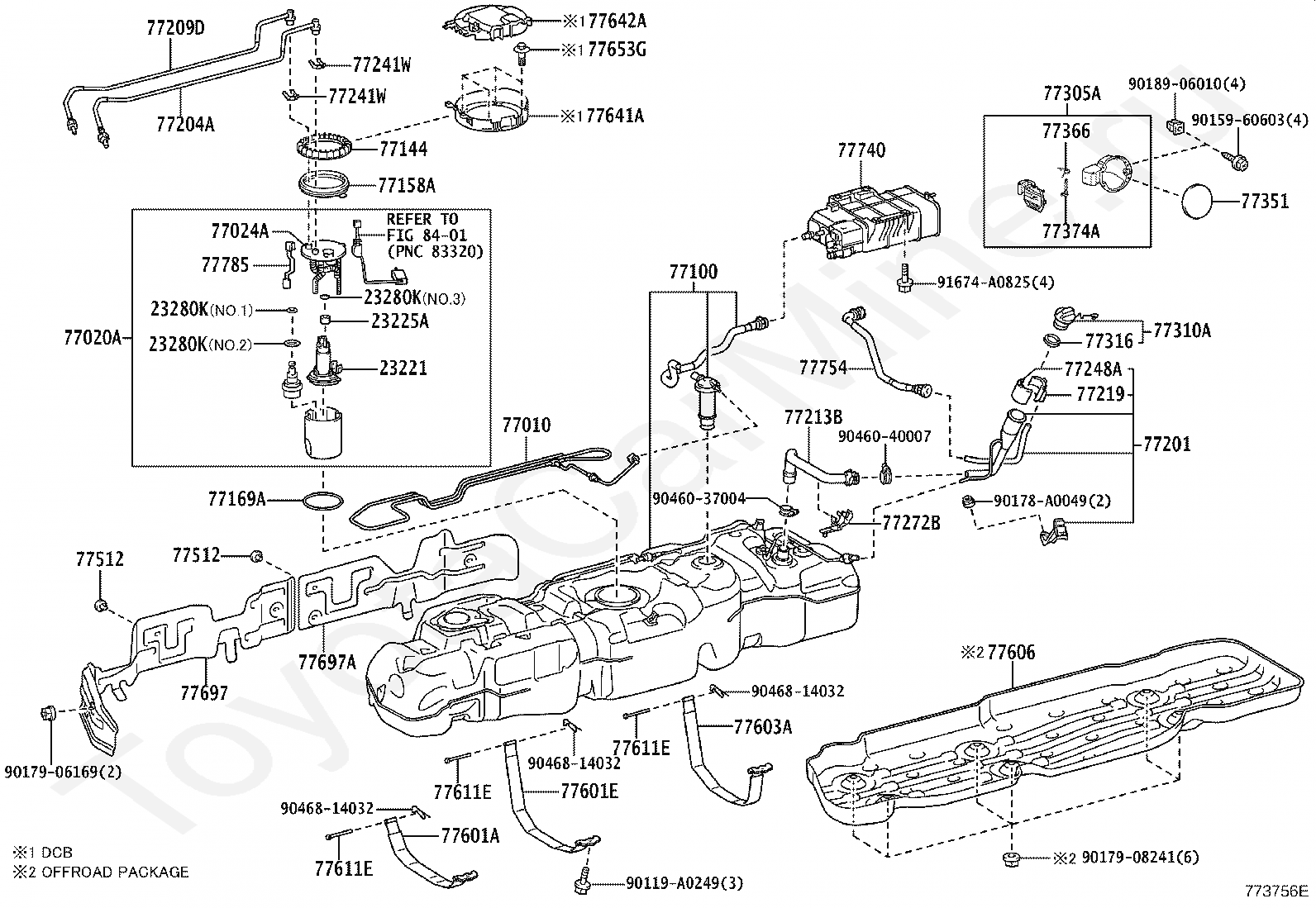

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77010
TUBE ASSY, FUEL TANK VENT
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77158A
SUPPORT, TANK SUCTION TUBE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77272B
SUPPORT, BREATHER TUBE, NO.1
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77351
LID, FUEL FILLER OPENING, OUTER
77366
SPRING, FUEL FILLER OPENING LID HINGE
77374A
PIN, FUEL FILLER OPENING LID LOCK
77512
BRACKET, FUEL TANK, REAR
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77601E
BAND SUB-ASSY, FUEL TANK
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611E
PIN, FUEL TANK BAND
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77653G
PIN, FUEL TANK PACKING
77697
INSULATOR, FUEL TANK HEAT, NO.1
77697A
INSULATOR, FUEL TANK HEAT, NO.2
77740
CANISTER ASSY, CHARCOAL
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
90119A0249
Крепеж
9015960603
Крепеж
90178A0049
Крепеж
9017906169
Крепеж
9017908241
Крепеж
9018906010
Крепеж
9046037004
Крепеж
9046040007
Крепеж
9046814032
Крепеж
91674A0825
Крепеж

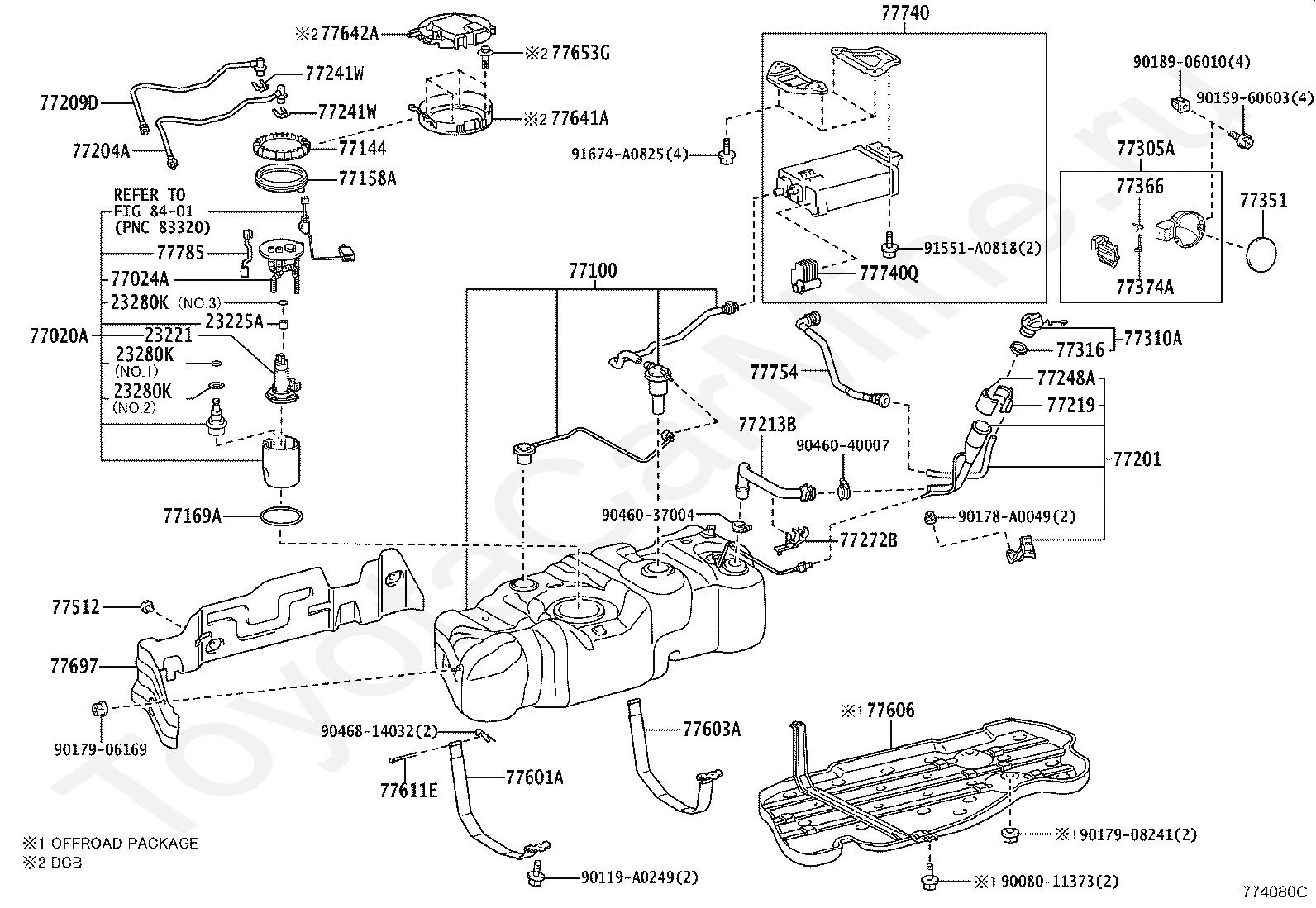

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77158A
SUPPORT, TANK SUCTION TUBE
77169A
GASKET, FUEL SUCTION TUBE SET
77201
PIPE SUB-ASSY, FUEL TANK INLET
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77248A
HOLDER, FUEL TANK FILLER PIPE COVER
77272B
SUPPORT, BREATHER TUBE, NO.1
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77351
LID, FUEL FILLER OPENING, OUTER
77366
SPRING, FUEL FILLER OPENING LID HINGE
77374A
PIN, FUEL FILLER OPENING LID LOCK
77512
BRACKET, FUEL TANK, REAR
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611E
PIN, FUEL TANK BAND
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77653G
PIN, FUEL TANK PACKING
77697
INSULATOR, FUEL TANK HEAT, NO.1
77740
CANISTER ASSY, CHARCOAL
77740Q
LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9008011373
Крепеж
90119A0249
Крепеж
9015960603
Крепеж
90178A0049
Крепеж
9017906169
Крепеж
9017908241
Крепеж
9018906010
Крепеж
9046037004
Крепеж
9046040007
Крепеж
9046814032
Крепеж
91551A0818
Крепеж
91674A0825
Крепеж

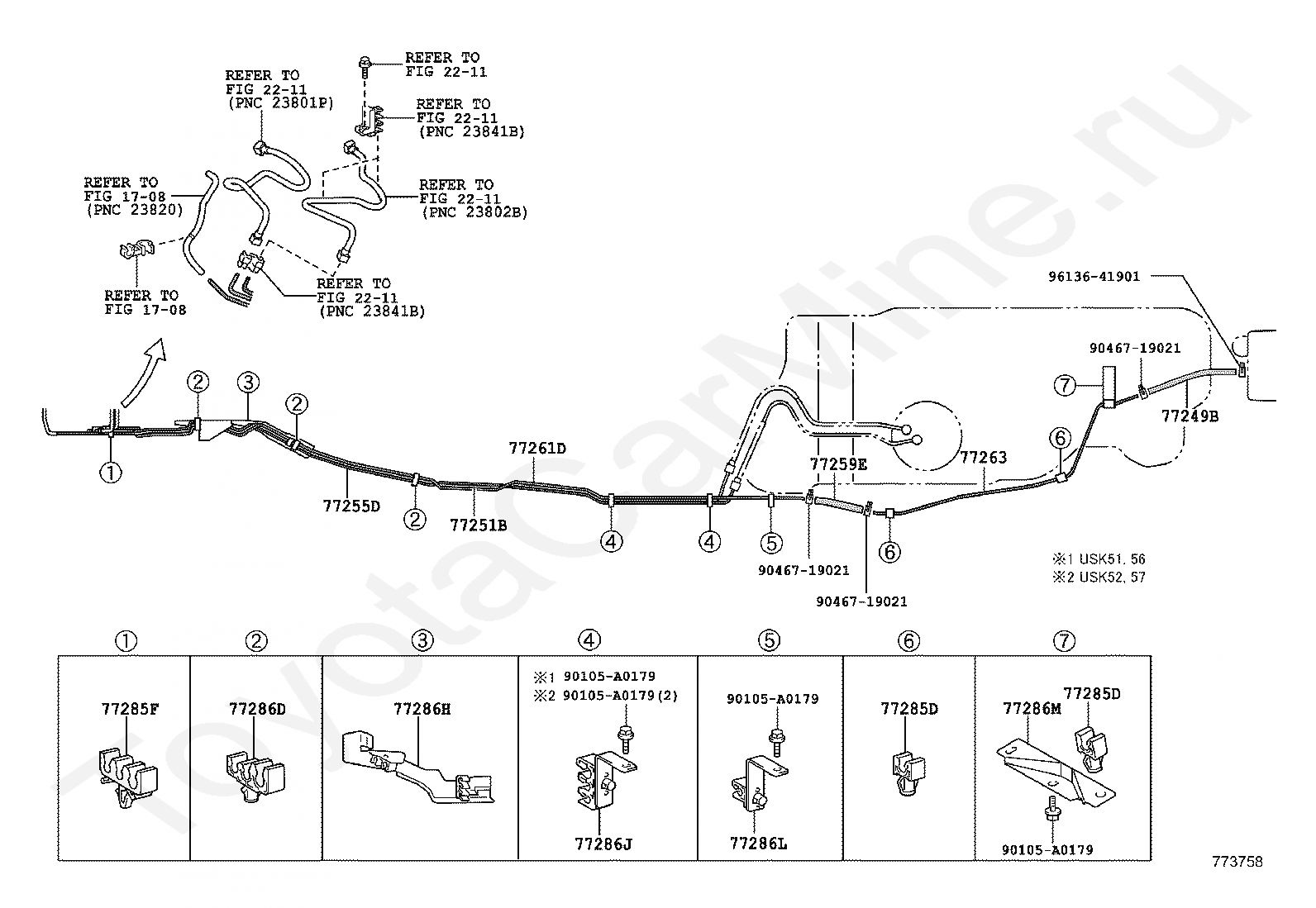

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77249B
HOSE, FUEL
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77259E
HOSE, FUEL
77261D
TUBE, FUEL TANK TO CANISTER
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286H
CLAMP, FUEL TUBE, NO.3
77286J
CLAMP, FUEL TUBE, NO.4
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
90105A0179
Крепеж
9613341301
Крепеж
9613341501
Крепеж

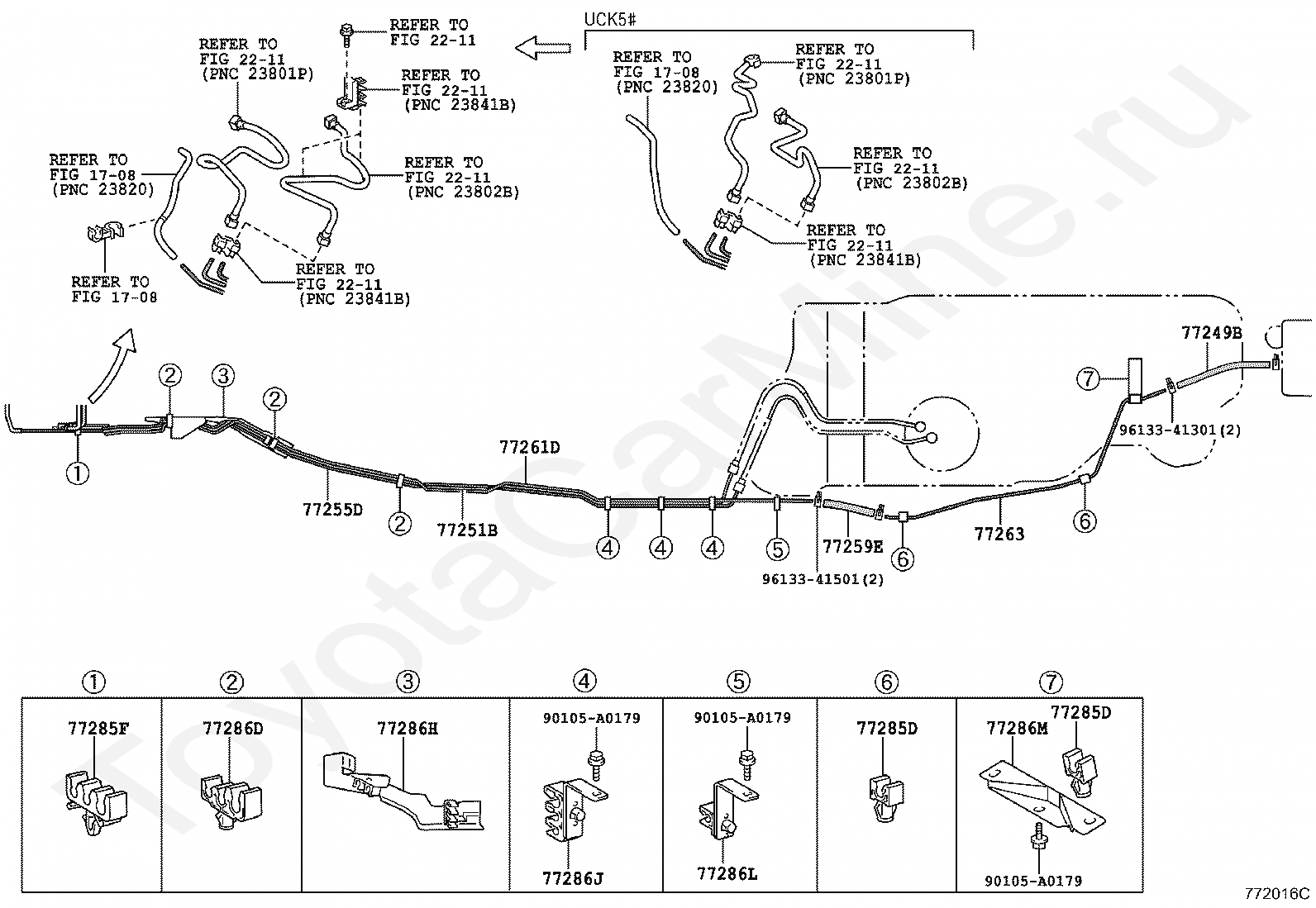

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77249B
HOSE, FUEL
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77259E
HOSE, FUEL
77261D
TUBE, FUEL TANK TO CANISTER
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286H
CLAMP, FUEL TUBE, NO.3
77286J
CLAMP, FUEL TUBE, NO.4
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
90105A0179
Крепеж
9046719021
Крепеж
9613341301
Крепеж
9613341501
Крепеж
9613641901
Крепеж

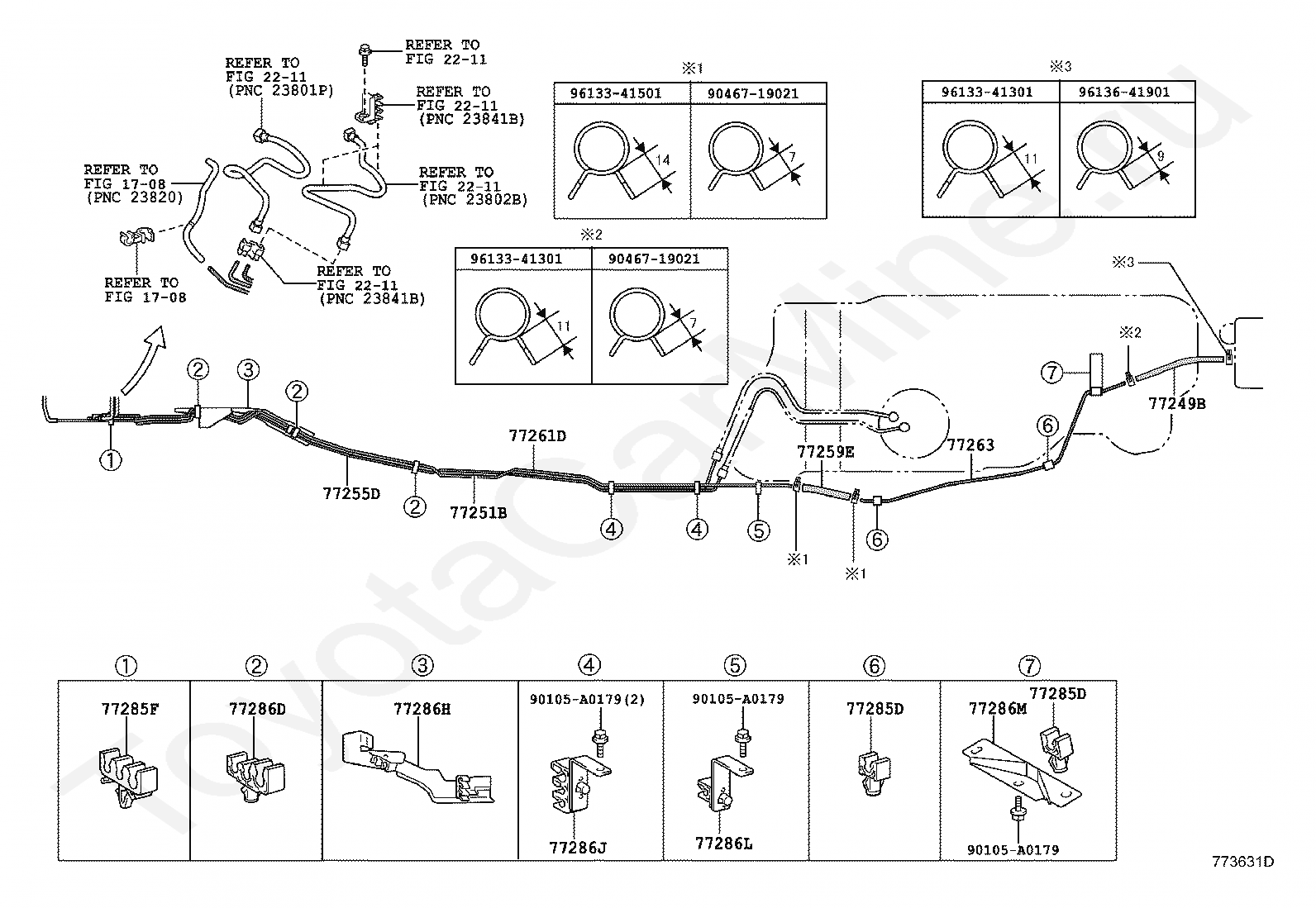

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77249B
HOSE, FUEL
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77259E
HOSE, FUEL
77261D
TUBE, FUEL TANK TO CANISTER
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77285D
CLAMP, FUEL TUBE, NO.1
77285F
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286H
CLAMP, FUEL TUBE, NO.3
77286J
CLAMP, FUEL TUBE, NO.4
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
90105A0179
Крепеж
9046719021
Крепеж
9613641901
Крепеж
