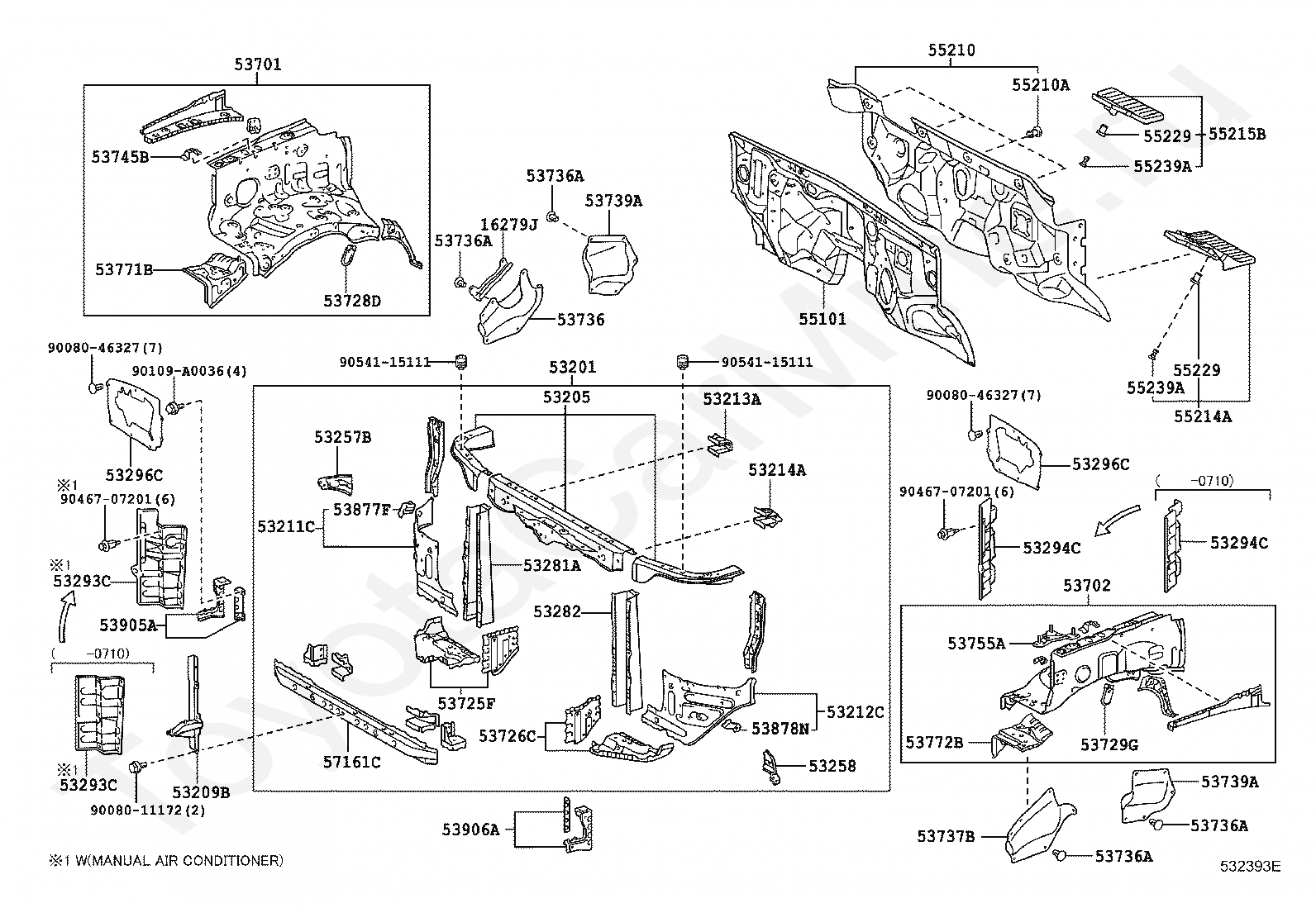

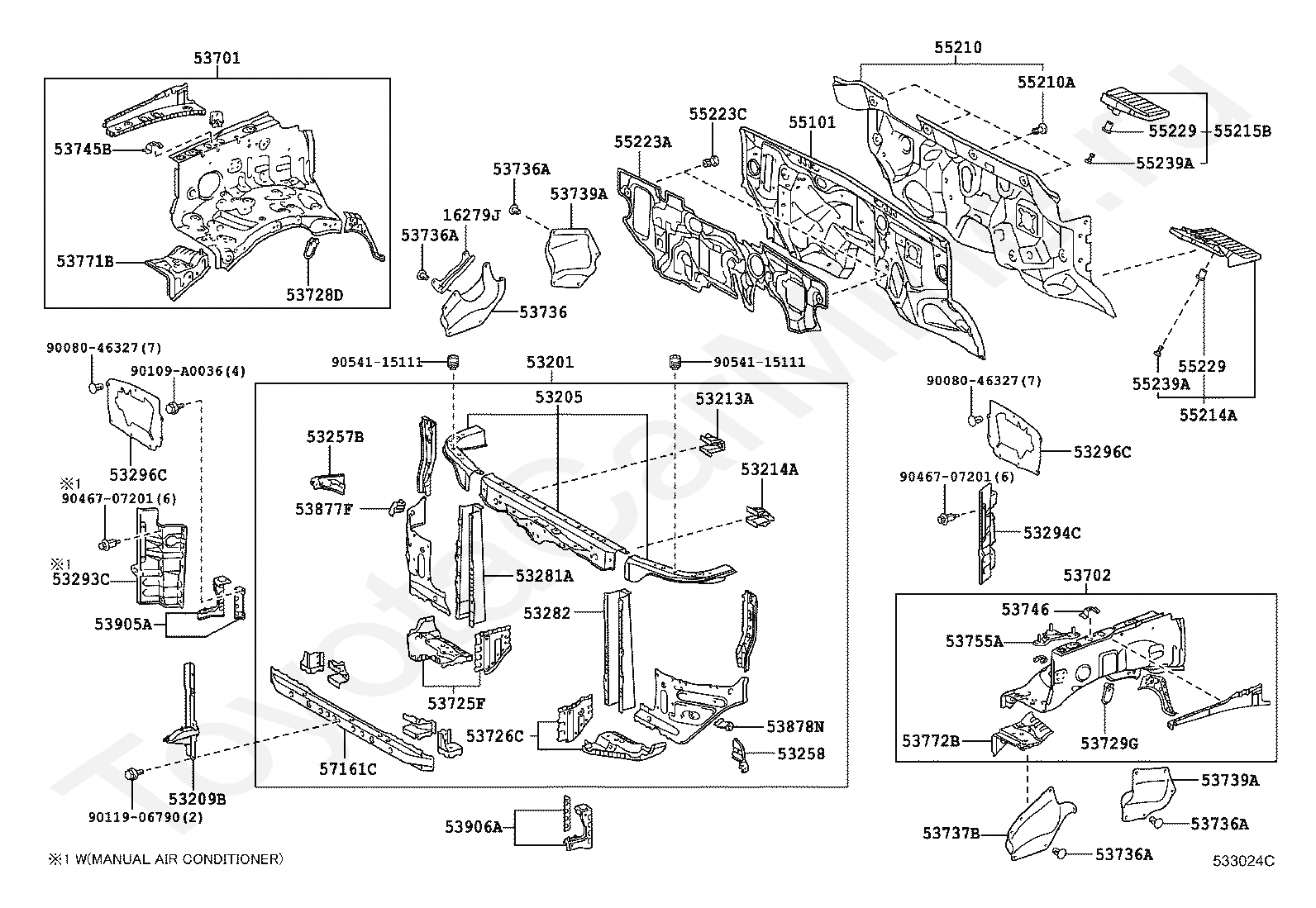

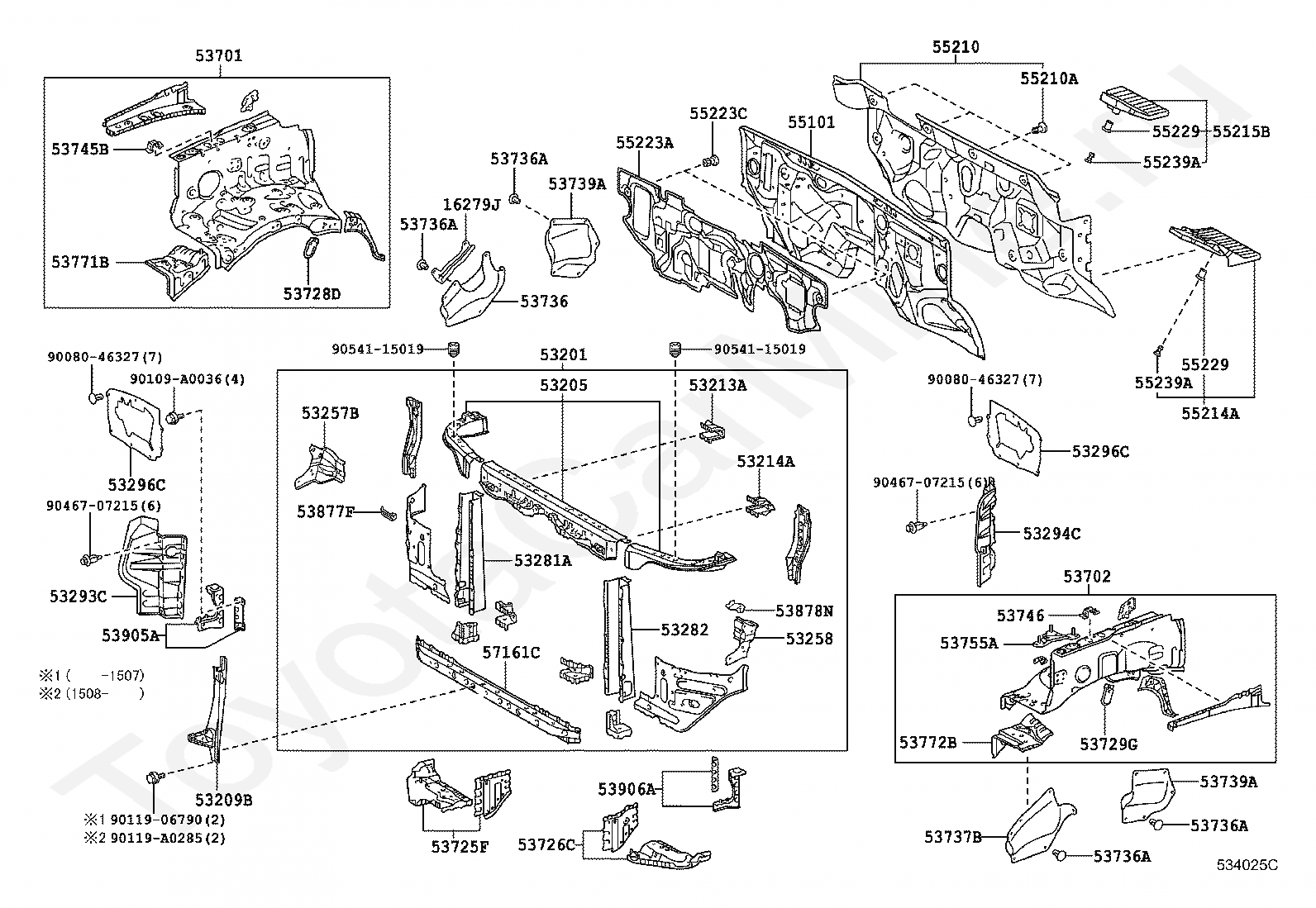

Передняя часть кузова TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

Код

Описание

16279J

PROTECTOR, HOSE

53201

SUPPORT SUB-ASSY, RADIATOR

53205

SUPPORT SUB-ASSY, RADIATOR, UPPER

53209B

BRACE SUB-ASSY, HOOD LOCK SUPPORT

53211C

SUPPORT, RADIATOR, RH

53212C

SUPPORT, RADIATOR, LH

53213A

SUPPORT, RADIATOR, UPPER RH

53214A

SUPPORT, RADIATOR, UPPER LH

53257B

BRACKET, RADIATOR SUPPORT TO FRONT FENDER

53258

BRACKET, FRONT END PANEL MOUNTING, LH

53281A

REINFORCEMENT, FRONT BODY MOUNTING, RH

53282

REINFORCEMENT, FRONT BODY MOUNTING, LH

53293C

DEFLECTOR, RADIATOR SIDE, RH

53294C

DEFLECTOR, RADIATOR SIDE, LH

53296C

SHIELD, HEATER AIR

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53725F

APRON, FRONT FENDER NO.2 SIDE, RH

53726C

APRON, FRONT FENDER NO.2 SIDE, LH

53728D

BRACKET, FENDER APRON, RH

53729G

BRACKET, FENDER APRON, LH

53736

SEAL, FRONT FENDER APRON, RH

53736A

CLIP(FOR FRONT FENDER APRON SEAL)

53737B

SEAL, FRONT FENDER APRON, LH

53739A

SEAL, FRONT FENDER APRON, REAR LH

53745B

REINFORCEMENT, FRONT FENDER APRON, REAR RH

53755A

REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

53771B

SUPPORT, BATTERY CARRIER, RH

53772B

SUPPORT, BATTERY CARRIER, LH

53877F

BRACKET, FRONT FENDER LINER, RH

53878N

BRACKET, FRONT FENDER LINER, LH

53905A

SUPPORT SUB-ASSY, FRONT END PANEL, RH

53906A

SUPPORT SUB-ASSY, FRONT END PANEL, LH

55101

PANEL SUB-ASSY, DASH

55210

INSULATOR ASSY, DASH PANEL

55210A

CLIP

55214A

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55229

PLATE, DASH PANEL INSULATOR, NO.4

55239A

PLATE, DASH PANEL INSULATOR, NO.3

57161C

MEMBER, FRONT CROSS

9008011172

Крепеж

9008046327

Крепеж

90109A0036

Крепеж

9046707201

Крепеж

9054115111

Крепеж

Код

Описание

16279J

PROTECTOR, HOSE

53201

SUPPORT SUB-ASSY, RADIATOR

53205

SUPPORT SUB-ASSY, RADIATOR, UPPER

53209B

BRACE SUB-ASSY, HOOD LOCK SUPPORT

53213A

SUPPORT, RADIATOR, UPPER RH

53214A

SUPPORT, RADIATOR, UPPER LH

53257B

BRACKET, RADIATOR SUPPORT TO FRONT FENDER

53258

BRACKET, FRONT END PANEL MOUNTING, LH

53281A

REINFORCEMENT, FRONT BODY MOUNTING, RH

53282

REINFORCEMENT, FRONT BODY MOUNTING, LH

53293C

DEFLECTOR, RADIATOR SIDE, RH

53294C

DEFLECTOR, RADIATOR SIDE, LH

53296C

SHIELD, HEATER AIR

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53725F

APRON, FRONT FENDER NO.2 SIDE, RH

53726C

APRON, FRONT FENDER NO.2 SIDE, LH

53728D

BRACKET, FENDER APRON, RH

53729G

BRACKET, FENDER APRON, LH

53736

SEAL, FRONT FENDER APRON, RH

53736A

CLIP(FOR FRONT FENDER APRON SEAL)

53737B

SEAL, FRONT FENDER APRON, LH

53739A

SEAL, FRONT FENDER APRON, REAR LH

53745B

REINFORCEMENT, FRONT FENDER APRON, REAR RH

53746

REINFORCEMENT, FRONT FENDER APRON, REAR LH

53755A

REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

53771B

SUPPORT, BATTERY CARRIER, RH

53772B

SUPPORT, BATTERY CARRIER, LH

53877F

BRACKET, FRONT FENDER LINER, RH

53878N

BRACKET, FRONT FENDER LINER, LH

53905A

SUPPORT SUB-ASSY, FRONT END PANEL, RH

53906A

SUPPORT SUB-ASSY, FRONT END PANEL, LH

55101

PANEL SUB-ASSY, DASH

55210

INSULATOR ASSY, DASH PANEL

55210A

CLIP

55214A

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55223A

INSULATOR, DASH PANEL, OUTER

55223C

CLIP

55229

PLATE, DASH PANEL INSULATOR, NO.4

55239A

PLATE, DASH PANEL INSULATOR, NO.3

57161C

MEMBER, FRONT CROSS

9008046327

Крепеж

90109A0036

Крепеж

9011906790

Крепеж

9046707201

Крепеж

9054115111

Крепеж

Код

Описание

16279J

PROTECTOR, HOSE

53201

SUPPORT SUB-ASSY, RADIATOR

53205

SUPPORT SUB-ASSY, RADIATOR, UPPER

53209B

BRACE SUB-ASSY, HOOD LOCK SUPPORT

53213A

SUPPORT, RADIATOR, UPPER RH

53214A

SUPPORT, RADIATOR, UPPER LH

53257B

BRACKET, RADIATOR SUPPORT TO FRONT FENDER

53258

BRACKET, FRONT END PANEL MOUNTING, LH

53281A

REINFORCEMENT, FRONT BODY MOUNTING, RH

53282

REINFORCEMENT, FRONT BODY MOUNTING, LH

53293C

DEFLECTOR, RADIATOR SIDE, RH

53294C

DEFLECTOR, RADIATOR SIDE, LH

53296C

SHIELD, HEATER AIR

53701

APRON SUB-ASSY, FRONT FENDER, RH

53702

APRON SUB-ASSY, FRONT FENDER, LH

53725F

APRON, FRONT FENDER NO.2 SIDE, RH

53726C

APRON, FRONT FENDER NO.2 SIDE, LH

53728D

BRACKET, FENDER APRON, RH

53729G

BRACKET, FENDER APRON, LH

53736

SEAL, FRONT FENDER APRON, RH

53736A

CLIP(FOR FRONT FENDER APRON SEAL)

53737B

SEAL, FRONT FENDER APRON, LH

53739A

SEAL, FRONT FENDER APRON, REAR LH

53745B

REINFORCEMENT, FRONT FENDER APRON, REAR RH

53746

REINFORCEMENT, FRONT FENDER APRON, REAR LH

53755A

REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

53771B

SUPPORT, BATTERY CARRIER, RH

53772B

SUPPORT, BATTERY CARRIER, LH

53877F

BRACKET, FRONT FENDER LINER, RH

53878N

BRACKET, FRONT FENDER LINER, LH

53905A

SUPPORT SUB-ASSY, FRONT END PANEL, RH

53906A

SUPPORT SUB-ASSY, FRONT END PANEL, LH

55101

PANEL SUB-ASSY, DASH

55210

INSULATOR ASSY, DASH PANEL

55210A

CLIP

55214A

PAD, DASH PANEL INSULATOR, NO.2

55215B

PAD, DASH PANEL INSULATOR, NO.3

55223A

INSULATOR, DASH PANEL, OUTER

55223C

CLIP

55229

PLATE, DASH PANEL INSULATOR, NO.4

55239A

PLATE, DASH PANEL INSULATOR, NO.3

57161C

MEMBER, FRONT CROSS

9008046327

Крепеж

90109A0036

Крепеж

9011906790

Крепеж

90119A0285

Крепеж

9046707215

Крепеж

9054115019

Крепеж

Передняя часть кузова TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей
