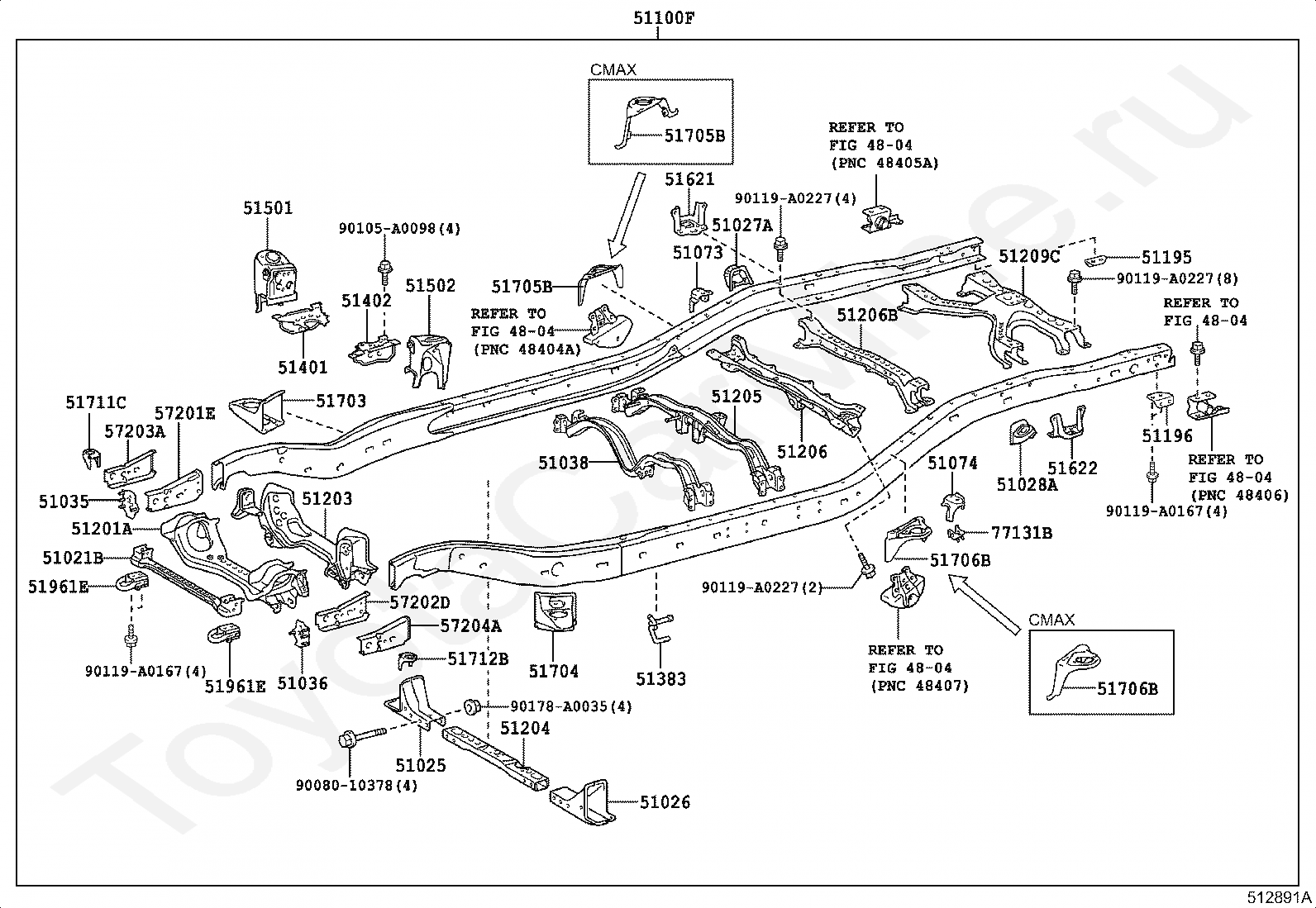

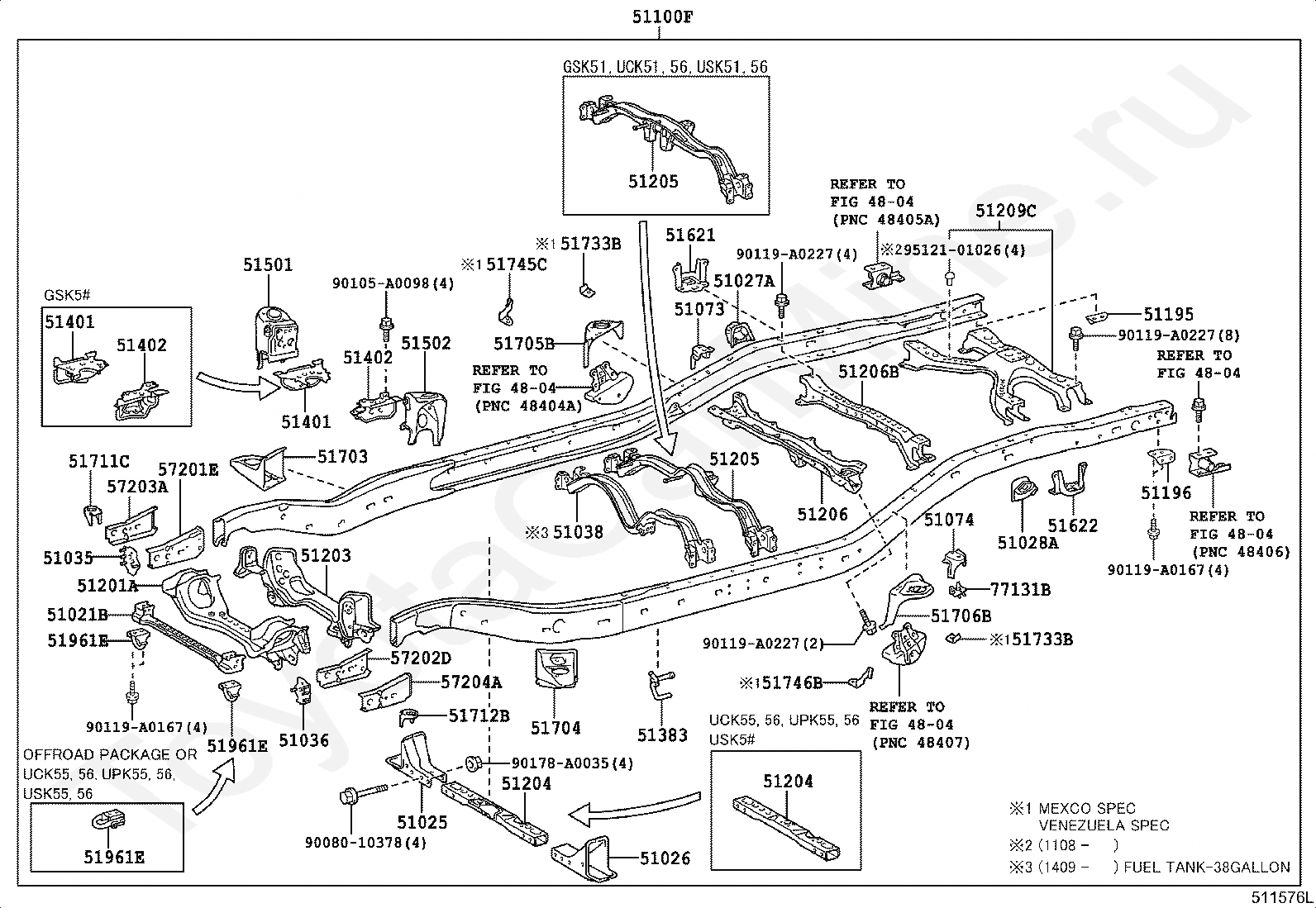

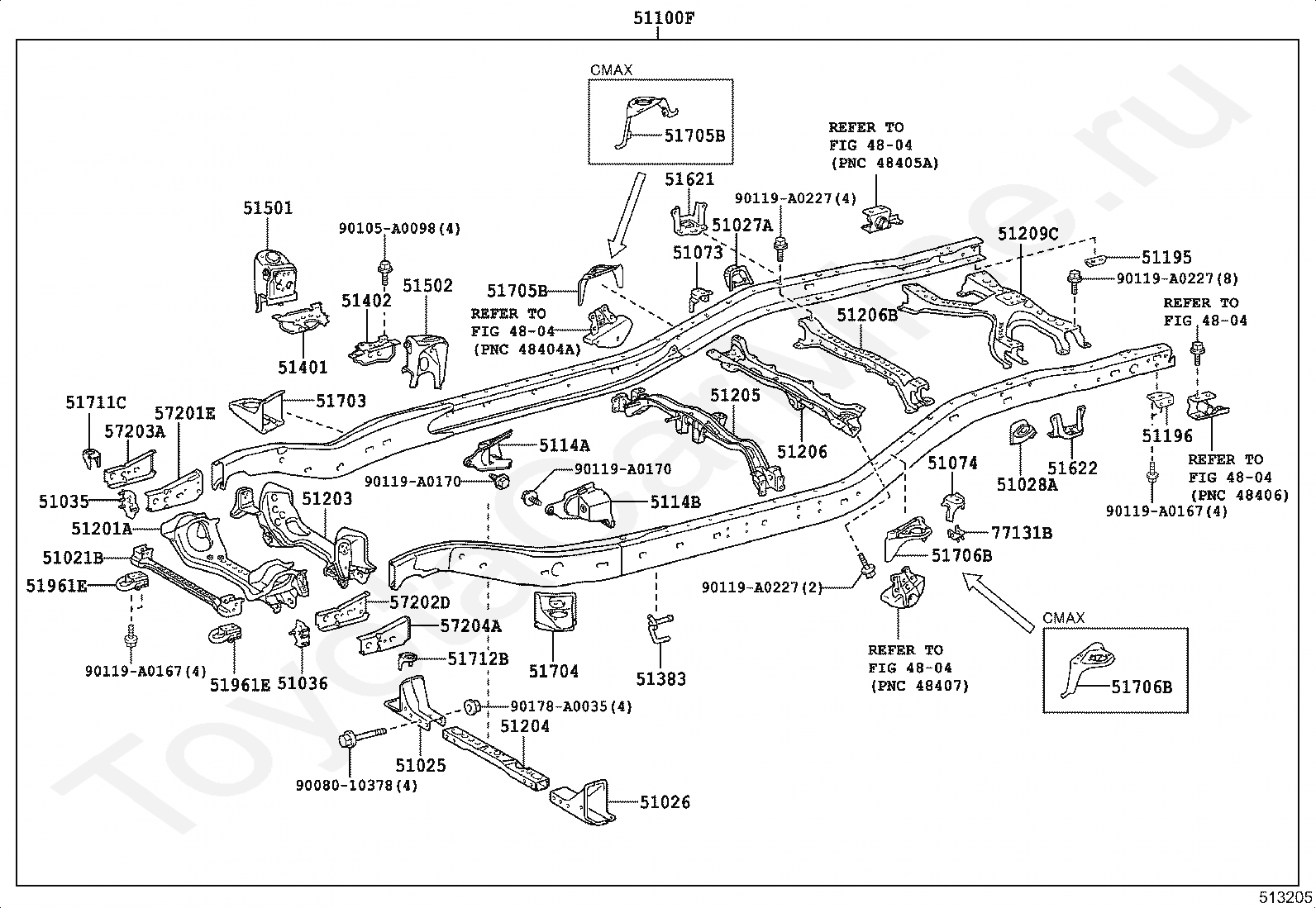

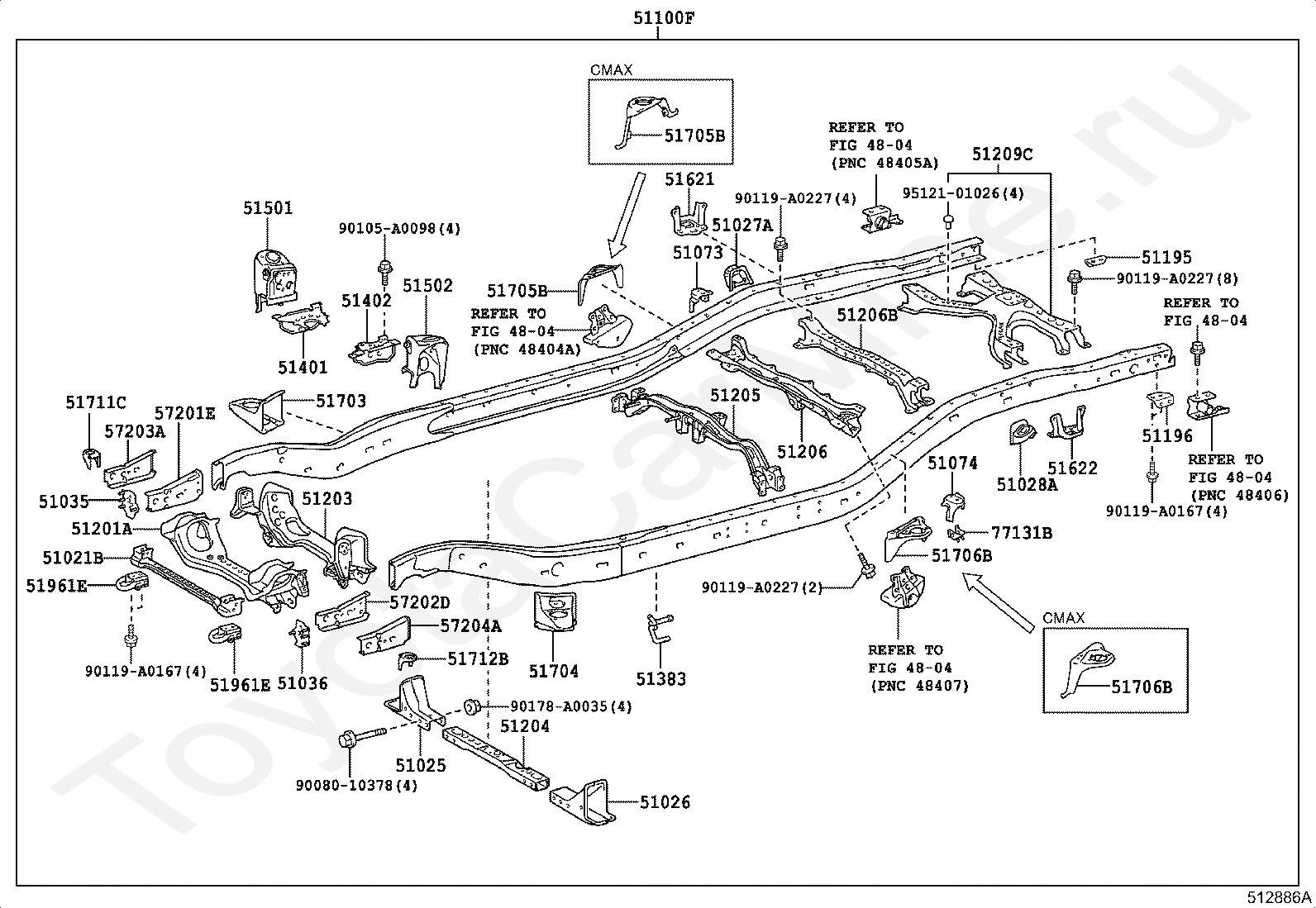

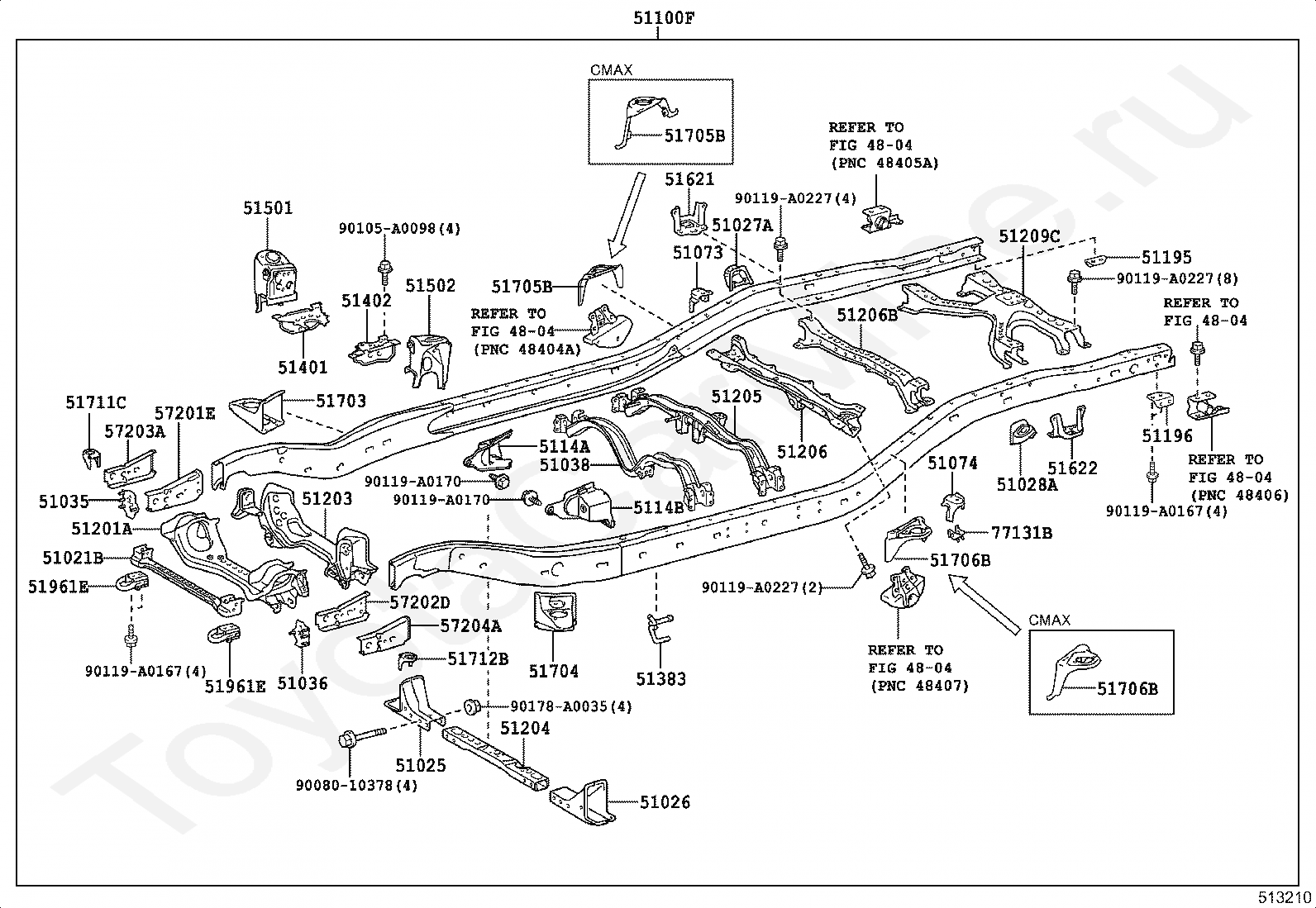

Рама TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

Код

Описание

4804

переход к группе запчастей

51021B

CROSSMEMBER SUB-ASSY, FRAME AUXILIARY

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51026

BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH

51027A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

51028A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

51035

PLATE SUB-ASSY, FRAME SIDE RAIL, RH

51036

PLATE SUB-ASSY, FRAME SIDE RAIL, LH

51038

MEMBER SUB-ASSY, FUEL TANK SUPPORT

51073

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

51074

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

51100F

FRAME SUB-ASSY

51195

PATCH, REAR FRAME RAIL, RH

51196

PATCH, REAR FRAME RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51383

ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51621

BRACKET, REAR BOUND STOPPER, RH

51622

BRACKET, REAR BOUND STOPPER, LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51711C

BRACKET, CAB MOUNTING, NO.1 RH

51712B

BRACKET, CAB MOUNTING, NO.1 LH

51733B

BRACKET, CAB REAR MOUNTING, UNDER

51745C

GUSSET, CAB MOUNTING, NO.3 RH

51746B

GUSSET, CAB MOUNTING, NO.3 LH

51961E

HOOK, FRONT

57201E

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202D

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57203A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57204A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

77131B

BRACKET, FUEL INLET PIPE SUPPORT

9008010378

Крепеж

90105A0098

Крепеж

90119A0167

Крепеж

90119A0227

Крепеж

90178A0035

Крепеж

9512101026

Крепеж

Код

Описание

4804

переход к группе запчастей

51021B

CROSSMEMBER SUB-ASSY, FRAME AUXILIARY

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51026

BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH

51027A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

51028A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

51035

PLATE SUB-ASSY, FRAME SIDE RAIL, RH

51036

PLATE SUB-ASSY, FRAME SIDE RAIL, LH

51073

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

51074

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

51100F

FRAME SUB-ASSY

51195

PATCH, REAR FRAME RAIL, RH

51196

PATCH, REAR FRAME RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51383

ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51621

BRACKET, REAR BOUND STOPPER, RH

51622

BRACKET, REAR BOUND STOPPER, LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51711C

BRACKET, CAB MOUNTING, NO.1 RH

51712B

BRACKET, CAB MOUNTING, NO.1 LH

51961E

HOOK, FRONT

57201E

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202D

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57203A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57204A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

77131B

BRACKET, FUEL INLET PIPE SUPPORT

9008010378

Крепеж

90105A0098

Крепеж

90119A0167

Крепеж

90119A0227

Крепеж

90178A0035

Крепеж

9512101026

Крепеж

Код

Описание

4804

переход к группе запчастей

51021B

CROSSMEMBER SUB-ASSY, FRAME AUXILIARY

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51026

BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH

51027A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

51028A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

51035

PLATE SUB-ASSY, FRAME SIDE RAIL, RH

51036

PLATE SUB-ASSY, FRAME SIDE RAIL, LH

51038

MEMBER SUB-ASSY, FUEL TANK SUPPORT

51073

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

51074

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

51100F

FRAME SUB-ASSY

51195

PATCH, REAR FRAME RAIL, RH

51196

PATCH, REAR FRAME RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51383

ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51621

BRACKET, REAR BOUND STOPPER, RH

51622

BRACKET, REAR BOUND STOPPER, LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51711C

BRACKET, CAB MOUNTING, NO.1 RH

51712B

BRACKET, CAB MOUNTING, NO.1 LH

51961E

HOOK, FRONT

57201E

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202D

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57203A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57204A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

77131B

BRACKET, FUEL INLET PIPE SUPPORT

9008010378

Крепеж

90105A0098

Крепеж

90119A0167

Крепеж

90119A0227

Крепеж

90178A0035

Крепеж

Код

Описание

4804

переход к группе запчастей

51021B

CROSSMEMBER SUB-ASSY, FRAME AUXILIARY

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51026

BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH

51027A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

51028A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

51035

PLATE SUB-ASSY, FRAME SIDE RAIL, RH

51036

PLATE SUB-ASSY, FRAME SIDE RAIL, LH

51073

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

51074

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

51100F

FRAME SUB-ASSY

5114A

SEAL, FRAME SIDE RAIL, RH

5114B

SEAL, FRAME SIDE RAIL, LH

51195

PATCH, REAR FRAME RAIL, RH

51196

PATCH, REAR FRAME RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51383

ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51621

BRACKET, REAR BOUND STOPPER, RH

51622

BRACKET, REAR BOUND STOPPER, LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51711C

BRACKET, CAB MOUNTING, NO.1 RH

51712B

BRACKET, CAB MOUNTING, NO.1 LH

51961E

HOOK, FRONT

57201E

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202D

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57203A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57204A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

77131B

BRACKET, FUEL INLET PIPE SUPPORT

9008010378

Крепеж

90105A0098

Крепеж

90119A0167

Крепеж

90119A0170

Крепеж

90119A0227

Крепеж

90178A0035

Крепеж

Код

Описание

4804

переход к группе запчастей

51021B

CROSSMEMBER SUB-ASSY, FRAME AUXILIARY

51025

MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

51026

BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH

51027A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

51028A

BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

51035

PLATE SUB-ASSY, FRAME SIDE RAIL, RH

51036

PLATE SUB-ASSY, FRAME SIDE RAIL, LH

51038

MEMBER SUB-ASSY, FUEL TANK SUPPORT

51073

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

51074

BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

51100F

FRAME SUB-ASSY

5114A

SEAL, FRAME SIDE RAIL, RH

5114B

SEAL, FRAME SIDE RAIL, LH

51195

PATCH, REAR FRAME RAIL, RH

51196

PATCH, REAR FRAME RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51204

CROSSMEMBER SUB-ASSY, FRAME, NO.3

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51206

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51206B

CROSSMEMBER SUB-ASSY, FRAME, NO.6

51209C

CROSSMEMBER SUB-ASSY, FRAME, REAR

51383

ROD, NO.3 CROSSMEMBER EXHAUST PIPE HANGER

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51501

SUPPORT SUB-ASSY, SUSPENSION ARM, RH

51502

SUPPORT SUB-ASSY, SUSPENSION ARM, LH

51621

BRACKET, REAR BOUND STOPPER, RH

51622

BRACKET, REAR BOUND STOPPER, LH

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

51706B

BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

51711C

BRACKET, CAB MOUNTING, NO.1 RH

51712B

BRACKET, CAB MOUNTING, NO.1 LH

51961E

HOOK, FRONT

57201E

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

57202D

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

57203A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57204A

EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

77131B

BRACKET, FUEL INLET PIPE SUPPORT

9008010378

Крепеж

90105A0098

Крепеж

90119A0167

Крепеж

90119A0170

Крепеж

90119A0227

Крепеж

90178A0035

Крепеж

Рама TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей
