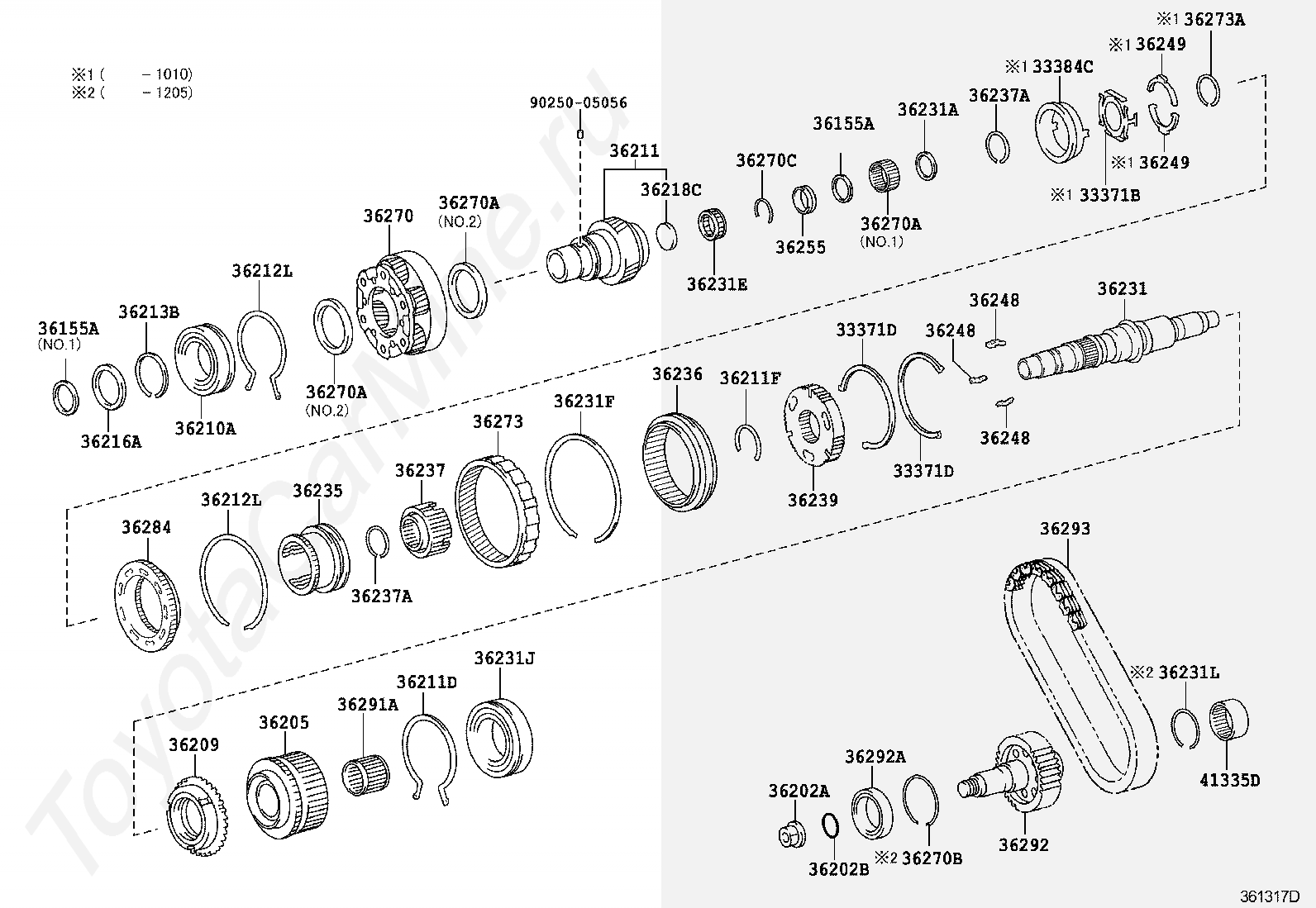

TRANSFER GEAR TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

Код

Описание

33371B

SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)

33371D

SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)

33384C

RING, SYNCHRONIZER, OUTER NO.3

36155A

RING, TRANSFER OIL SEAL

36202A

NUT(FOR TRANSFER OUTPUT REAR SHAFT)

36202B

RING, O(FOR TRANSFER OUTPUT REAR SHAFT)

36205

SPROCKET SUB-ASSY, TRANSFER DRIVE

36209

RING SET, TRANSFER SYNCHRONIZER

36210A

BEARING (FOR TRANSFER INPUT SHAFT)

36211

SHAFT, TRANSFER INPUT

36211D

RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)

36211F

RING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT)

36212L

RING, SHAFT SNAP

36213B

RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

36216A

RING, TRANSFER INPUT SHAFT SEAL, NO.1

36218C

PLUG, TRANSFER INPUT SHAFT

36231

SHAFT, TRANSFER OUTPUT, REAR

36231A

SPACER (FOR TRANSFER OUTPUT SHAFT)

36231E

BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

36231F

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

36231J

BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

36231L

RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)

36235

SLEEVE, TRANSFER HIGH & LOW CLUTCH

36236

SLEEVE, FRONT DRIVE CLUTCH

36237

HUB, TRANSFER CLUTCH

36237A

RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

36239

HUB, TRANSFER DRIVE CLUTCH

36248

KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1

36249

KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

36255

SPACER, TRANSFER OUTPUT SHAFT, NO.1

36270

GEAR ASSY, TRANSFER LOW PLANETARY

36270A

BEARING (FOR TRANSFER LOW PLANETARY GEAR)

36270B

RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)

36270C

RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)

36273

GEAR, TRANSFER LOW PLANETARY RING

36273A

RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

36284

PIECE, TRANSFER LOW PLANETARY GEAR SPLINE

36291A

BEARING (FOR TRANSFER DRIVE SPROCKET)

36292

SPROCKET, TRANSFER DRIVEN

36292A

BEARING (FOR TRANSFER DRIVEN SPROCKET)

36293

CHAIN, TRANSFER FRONT DRIVE

41335D

BEARING (FOR SIDE GEAR SHAFT HOLDER)

9025005056

Крепеж

Код

Описание

35285B

PLATE, SOLENOID LOCK

3609

переход к группе запчастей

36106K

BODY SUB-ASSY, TRANSFER OIL PUMP
