Радиатор и шланги TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей

Каталог

Америка

Модель

TUNDRA

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

Трансмиссия

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

Код

Описание

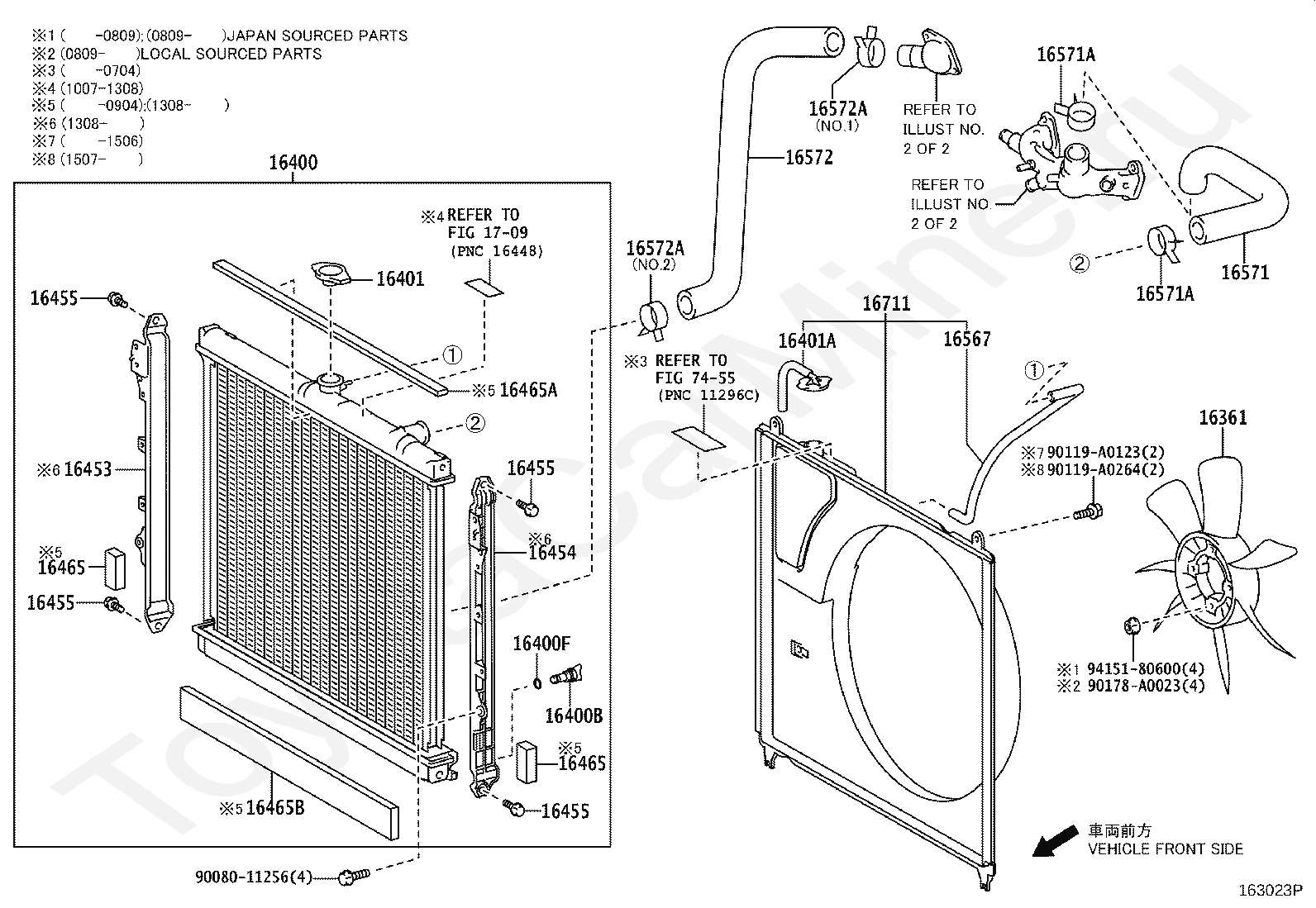

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16401A

CAP SUB-ASSY, RADIATOR RESERVE TANK

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16465

PACKING, RADIATOR

16465A

PACKING, RADIATOR, NO.1

16465B

PACKING, RADIATOR, NO.2

16567

HOSE(FOR RADIATOR RESERVE TANK)

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16711

SHROUD, FAN

1709

переход к группе запчастей

7455

переход к группе запчастей

9008011256

Крепеж

90119A0123

Крепеж

90119A0264

Крепеж

90178A0023

Крепеж

9415180600

Крепеж

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267K

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16341

GASKET, WATER OUTLET

16355

JOINT, WATER BY-PASS, FRONT

16877

COVER, HEAT EXCHANGER, NO.1

2211

переход к группе запчастей

3514

переход к группе запчастей

8404

переход к группе запчастей

8716

переход к группе запчастей

90105A0120

Крепеж

90105A0123

Крепеж

90119A0127

Крепеж

90119A0142

Крепеж

90119A0143

Крепеж

9012608050

Крепеж

90126A0017

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

9155180835

Крепеж

9155180870

Крепеж

9167180614

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9415180800

Крепеж

Код

Описание

1201

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267K

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16341

GASKET, WATER OUTLET

16355

JOINT, WATER BY-PASS, FRONT

16877

COVER, HEAT EXCHANGER, NO.1

2211

переход к группе запчастей

3514

переход к группе запчастей

8404

переход к группе запчастей

8716

переход к группе запчастей

90105A0120

Крепеж

90105A0123

Крепеж

90119A0127

Крепеж

90119A0142

Крепеж

90119A0143

Крепеж

9012608050

Крепеж

90126A0017

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

9155180835

Крепеж

9155180870

Крепеж

9167180612

Крепеж

9167180614

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9415180800

Крепеж

Код

Описание

1503

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267K

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16268L

PIPE, WATER BY-PASS

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16341

GASKET, WATER OUTLET

16355

JOINT, WATER BY-PASS, FRONT

16877

COVER, HEAT EXCHANGER, NO.1

2211

переход к группе запчастей

3514

переход к группе запчастей

8404

переход к группе запчастей

8716

переход к группе запчастей

90105A0120

Крепеж

90105A0123

Крепеж

90119A0127

Крепеж

90119A0142

Крепеж

90119A0143

Крепеж

9012608050

Крепеж

90126A0017

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

90466A0018

Крепеж

9155180835

Крепеж

9155180870

Крепеж

9167180614

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9613642101

Крепеж

9955620200

Крепеж

Код

Описание

1201

переход к группе запчастей

1503

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267K

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16268L

PIPE, WATER BY-PASS

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16341

GASKET, WATER OUTLET

16355

JOINT, WATER BY-PASS, FRONT

16877

COVER, HEAT EXCHANGER, NO.1

2211

переход к группе запчастей

3514

переход к группе запчастей

8404

переход к группе запчастей

8716

переход к группе запчастей

90105A0120

Крепеж

90105A0123

Крепеж

90119A0127

Крепеж

90119A0142

Крепеж

90119A0143

Крепеж

9012608050

Крепеж

90126A0017

Крепеж

90178A0023

Крепеж

90178A0024

Крепеж

90466A0018

Крепеж

9155180835

Крепеж

9155180870

Крепеж

9167180612

Крепеж

9167180614

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9613642101

Крепеж

9955620200

Крепеж

Радиатор и шланги TOYOTA TUNDRA, 2009/04 - 2013/08, 5,7 литра, 32 клапана, DOHC, EFI, SR-5 TYPE,GLX TYPE, USK56, АКПП, 6 скоростей
