Кресла TOYOTA TOYOACE/DYNA, 1985/08 - 1987/08, 2,4 литра, дизель, LY60, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

TOYOACE/DYNA

Двигатель

2,4 литра, дизель

Фрейм

LY60

Трансмиссия

механика МКПП, 5 скоростей

Опции

TOYOACE LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK 15T WT1 DSL CBU

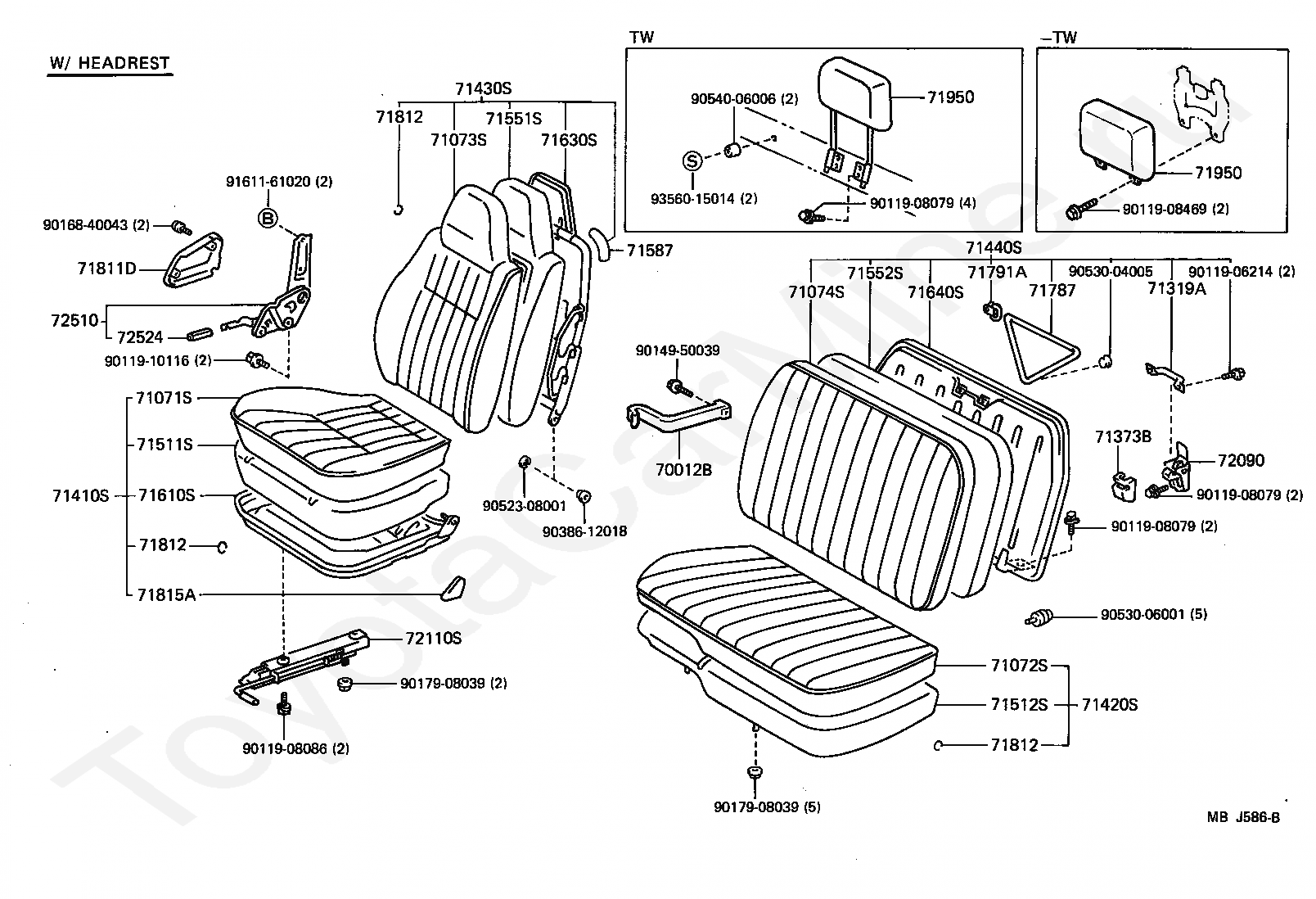

Код

Описание

70012B

BAND, ENGINE SERVICE HOLE COVER SUPPORT

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71319A

STRIKER, FRONT SEAT BACK

71373B

COVER, FRONT SEAT BACK LOCK

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71787

BAND, FRONT SEAT BACK POCKET

71791A

RETAINER, FRONT SEAT BACK POCKET

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71950

HEADREST ASSY, FRONT SEAT

72090

LOCK ASSY, FRONT SEAT BACK

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72524

HANDLE, RECLINING ADJUSTER RELEASE

9011906214

Крепеж

9011908079

Крепеж

9011908086

Крепеж

9011908469

Крепеж

9011910116

Крепеж

9014950039

Крепеж

9016840043

Крепеж

9017908039

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9053004005

Крепеж

9053006001

Крепеж

9054006006

Крепеж

9161161020

Крепеж

9356015014

Крепеж

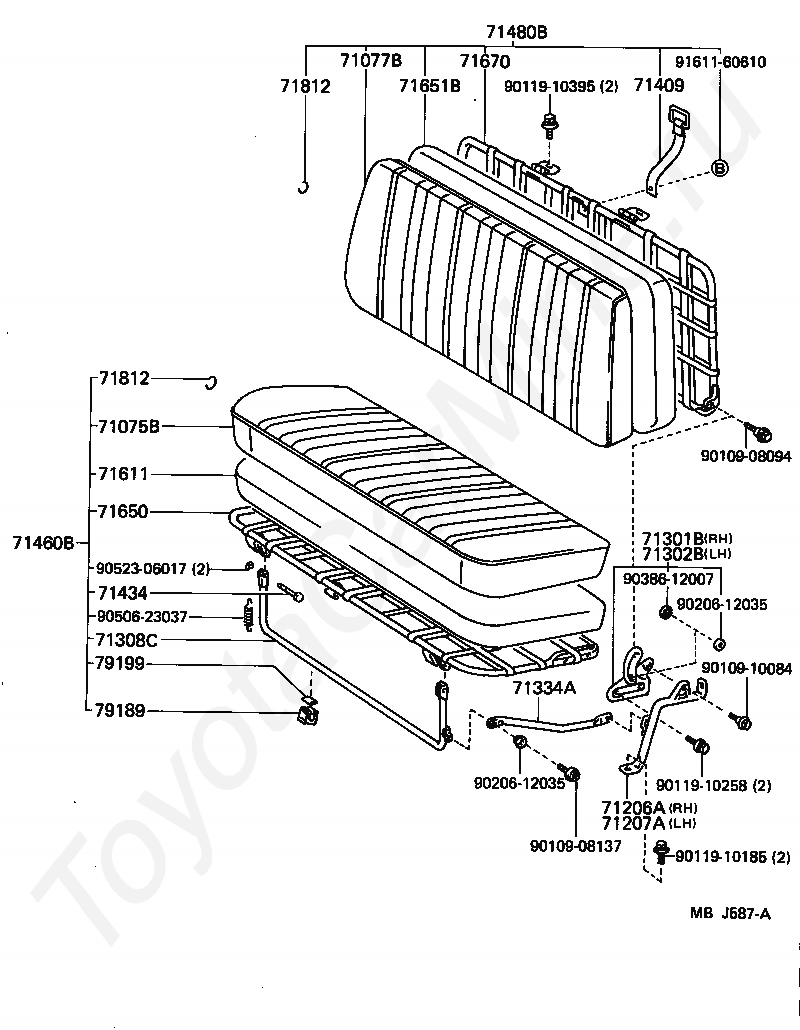

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71206A

BRACKET SUB-ASSY, REAR SEAT STOPPER, RH

71207A

BRACKET SUB-ASSY, REAR SEAT STOPPER, LH

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71308C

LEG SUB-ASSY, REAR SEAT, FRONT

71334A

STOPPER, REAR SEAT LEG

71409

STOPPER SUB-ASSY, REAR SEAT BACK

71434

PIN, REAR SEAT CUSHION LEG, REAR

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71480B

BACK ASSY, REAR SEAT (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71650

SPRING ASSY, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71670

SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

9010908094

Крепеж

9010908137

Крепеж

9010910084

Крепеж

9011910185

Крепеж

9011910258

Крепеж

9011910395

Крепеж

9020612035

Крепеж

9038612007

Крепеж

9050623037

Крепеж

9052306017

Крепеж

9161160610

Крепеж

Код

Описание

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72111

RAIL, SEAT TRACK UPPER

73800

SUSPENSION ASSY, SEAT, RH

73888

HANDLE, SEAT SUSPENSION CONTROL

9010508075

Крепеж

9017908039

Крепеж

9161160816

Крепеж

Кресла TOYOTA TOYOACE/DYNA, 1985/08 - 1987/08, 2,4 литра, дизель, LY60, механика, МКПП, 5 скоростей
