Задние амортизаторы TOYOTA TOYOACE/DYNA, 1985/08 - 1987/08, 2,4 литра, дизель, LY60, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

TOYOACE/DYNA

Двигатель

2,4 литра, дизель

Фрейм

LY60

Трансмиссия

механика МКПП, 5 скоростей

Опции

TOYOACE LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK 15T WT1 DSL CBU

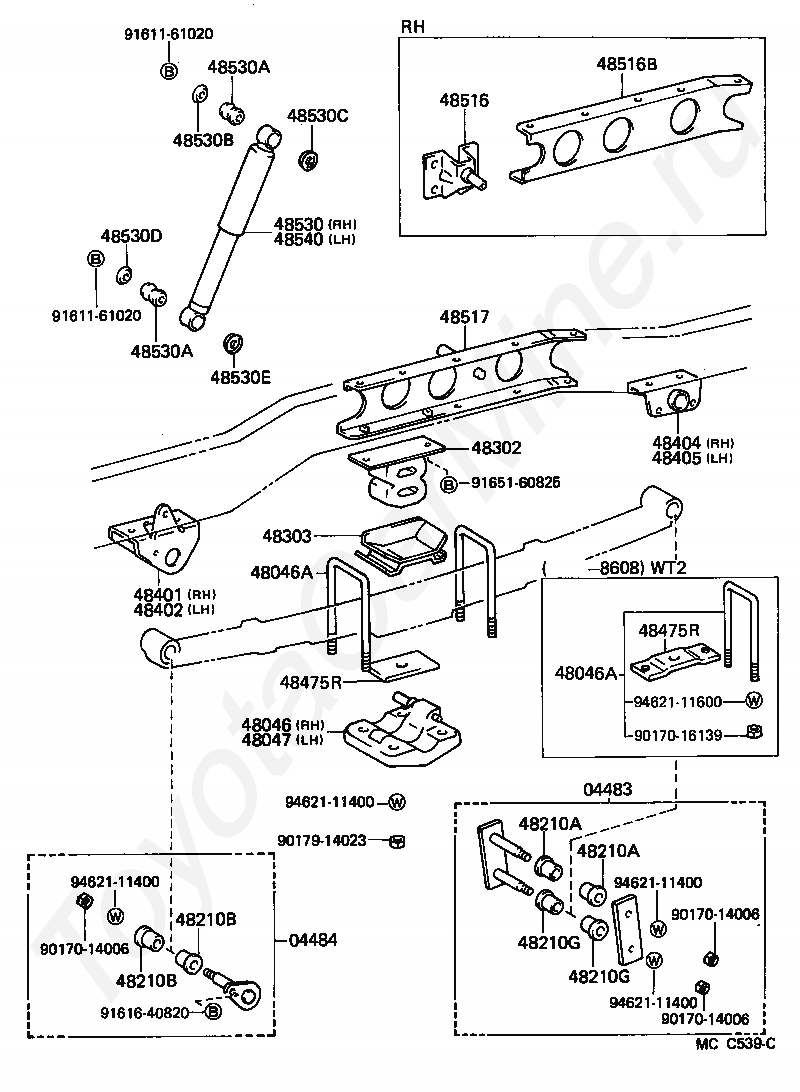

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48210B

BUSH(FOR REAR SPRING PIN)

48210G

BUSH(FOR REAR SPRING SHACKLE LOWER)

48302

SPRING SUB-ASSY, HOLLOW

48303

SEAT SUB-ASSY, HOLLOW SPRING

48401

BRACKET SUB-ASSY, REAR SPRING, FRONT RH

48402

BRACKET SUB-ASSY, REAR SPRING, FRONT LH

48404

BRACKET SUB-ASSY, REAR SPRING, REAR RH

48405

BRACKET SUB-ASSY, REAR SPRING, REAR LH

48475R

PLATE, DISTANCE(FOR REAR)

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48516B

STIFFENER, FRAME SIDE RAIL, REAR RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48540

ABSORBER ASSY, SHOCK, REAR LH

9017014006

Крепеж

9017016139

Крепеж

9017914023

Крепеж

9161161020

Крепеж

9161640820

Крепеж

9165160825

Крепеж

9462111400

Крепеж

9462111600

Крепеж

Код

Описание

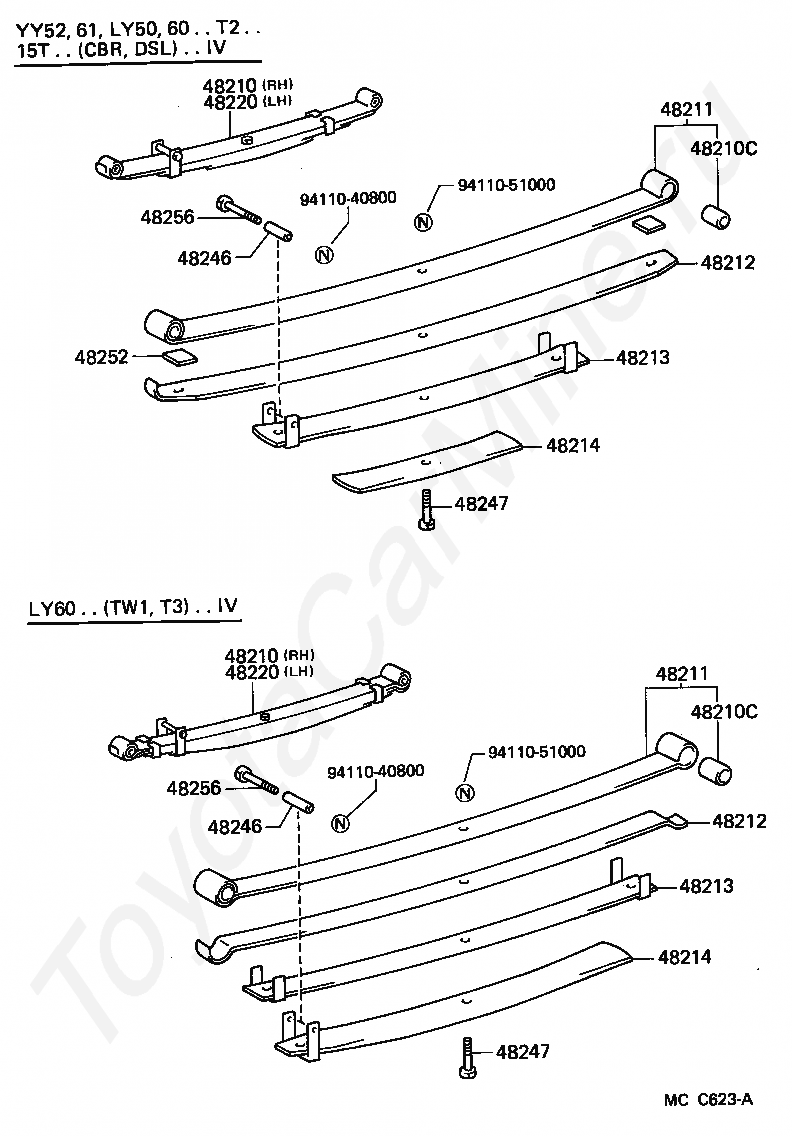

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

9411040800

Крепеж

9411051000

Крепеж

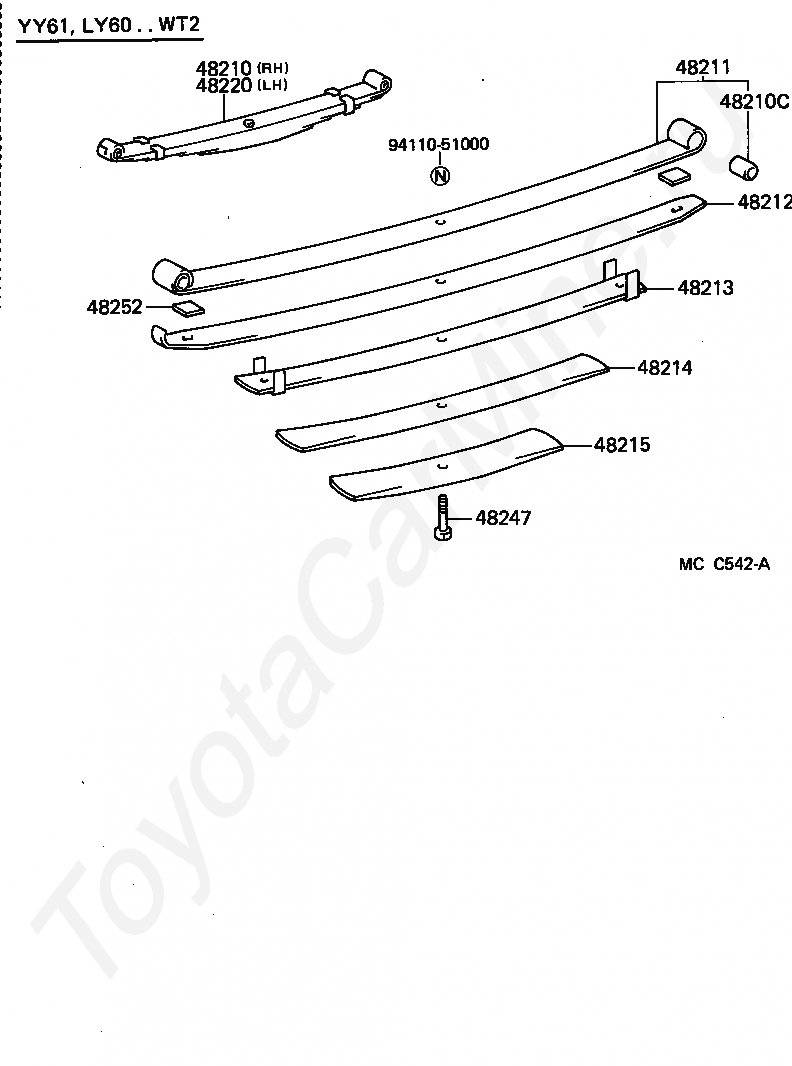

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48252

SILENCER, REAR SPRING

9411051000

Крепеж

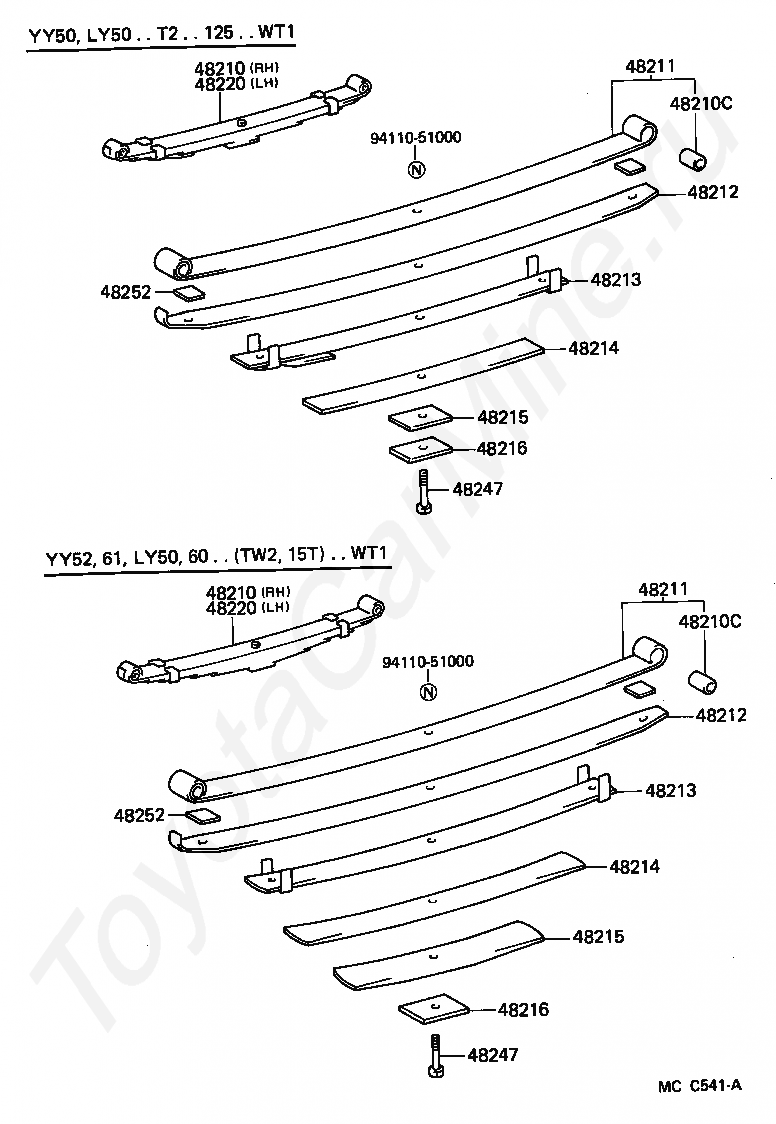

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48252

SILENCER, REAR SPRING

9411051000

Крепеж

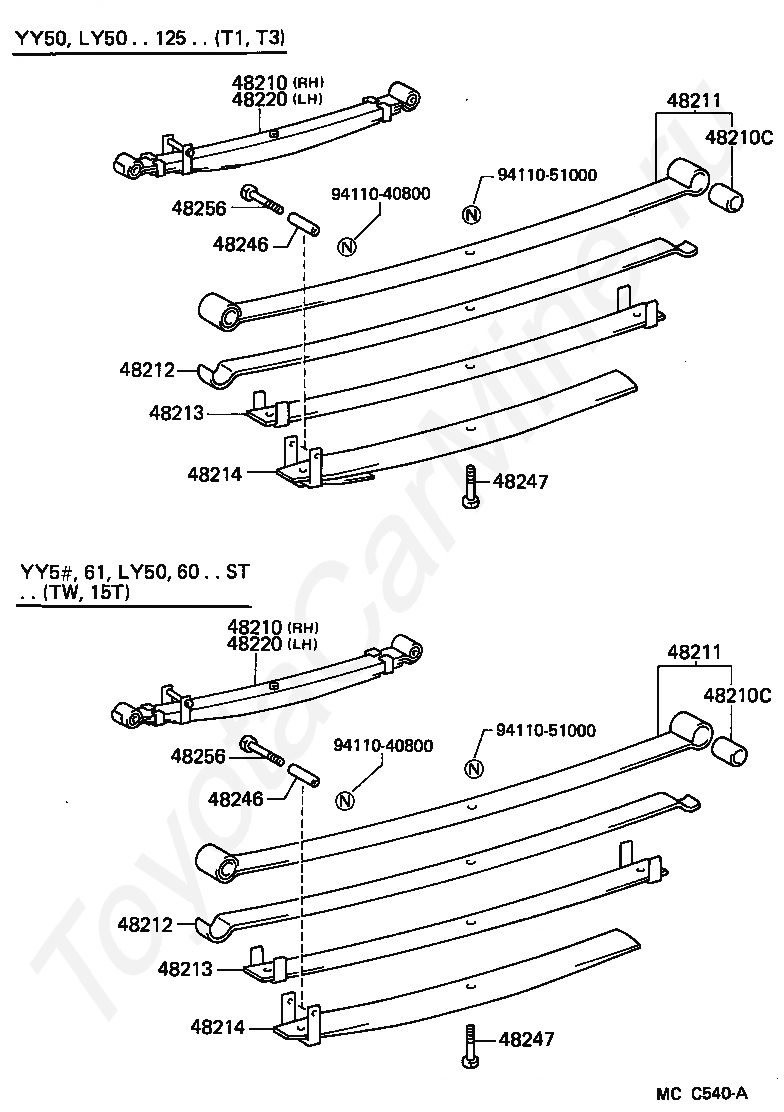

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48252

SILENCER, REAR SPRING

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

9411040800

Крепеж

9411051000

Крепеж

Задние амортизаторы TOYOTA TOYOACE/DYNA, 1985/08 - 1987/08, 2,4 литра, дизель, LY60, механика, МКПП, 5 скоростей
